WD_Black SN850 PCIe 4.0 NVMe SSD Review – Vying For That Top Spot

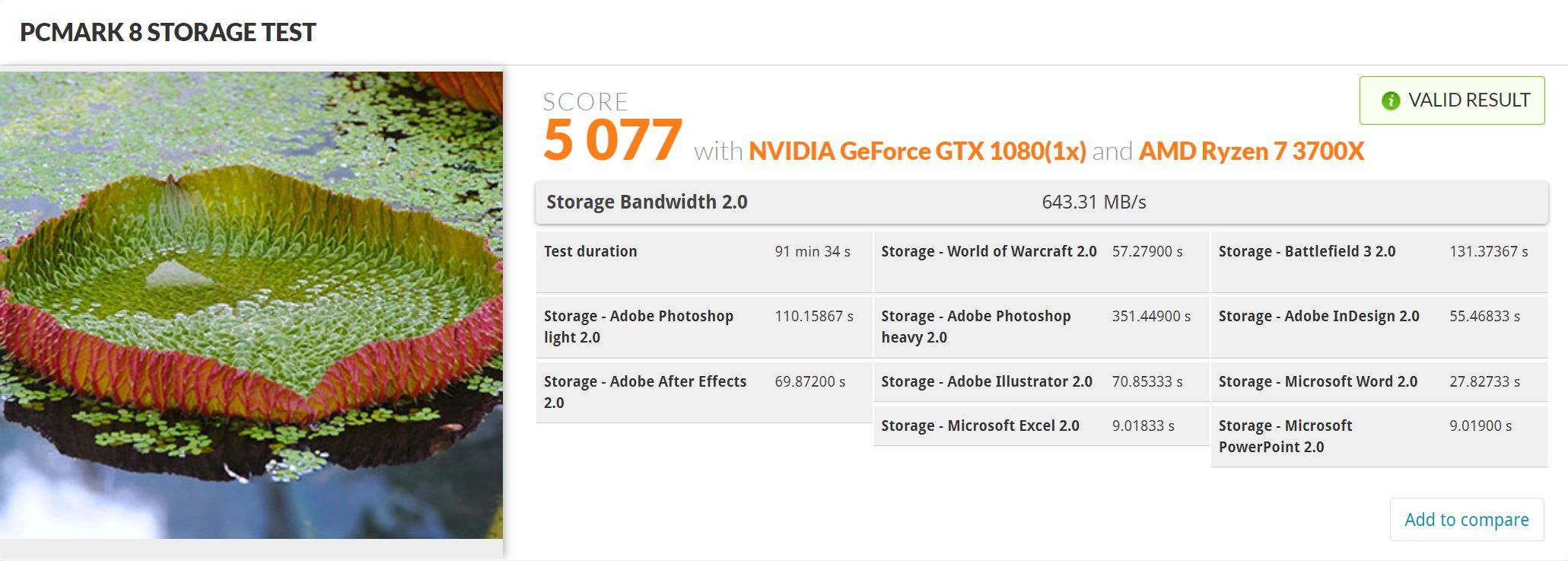

The SSD Review uses PCMark 8’s Storage test suite to create testing scenarios that might be used in the typical user experience. With 10 traces recorded from Adobe Creative Suite, Microsoft Office and a selection of popular games, it covers some of the most popular light to heavy workloads. Unlike synthetic storage tests, the PCMark 8 Storage benchmark highlights real-world performance differences between storage devices. After an initial break-in cycle and three rounds of the testing, we are given a file score and bandwidth amount. The higher the score/bandwidth, the better the drive performs.

The SN850 provided performance in PCMark 8 somewhat in the area that we might have expected, although we had hoped it might hit just a bit higher.



For our Real World File Transfer Comparison of the world’s top M.2 NVMe SSDs, we have included several of the top Gen 4 SSDs tested to date, to include the Samsung 980 Ppro, Corsair MP600, Seagate FireCuda 520, Sabrent Rocket. and the Silicon Power US70. This test is conducted through the transfer of data from one spot on the test drive to another to give us the truest of transfer speed results for that device.


The WD_Black Sn850 Gen 4 NVMe SSD performed as we had never seen before in our True Data Transfer Comparison.  It actually cut the transfer time of the OS file sample in half, in comparison to every other drive tested.  We didn’t believe this and subsequently repeated the test three times with the same results.


The strength of the  WD_Black SN850 Gen 4 NVMe SSD is a very welcome introduction to the SSD arena as it contains a WD/SanDisk proprietary 8-channel controller that nobody really expected to perform as it does.  It is the poker hand that nobody saw coming.  Performance of the SN850 was found to be very strong throughout our test regimen, given exception to the issue of heat with ATTO itself.

The high temperatures that have become commonplace in PCIe 4 have to be a paramount concern to manufacturers.  We are not going to see Gen 4 full power SSDs in laptops or ultrabooks any time soon if the temperature isn’t brought down to present Gen 3 levels.


Totally unexpected was our true data testing where the transfer of very small OS files was done at half the time of any other SSD we had ever tested.  Thinking this was a fluke, we repeated this test over and over again with the same results.  We have passed over something else in hopes that the reader might simply pick this up over time… Our synthetic benchmarks collectively are the best we have seen yet from a released product and surpass the Samsung 980 Pro by a stretch.  CDM. AS SSD. Anvil. AJA. TxBench….as well as our True Data Transfer Tests.

The WD Black SN580 Gen 4 NVMe SSD is a strong performer with a 5-year warranty, and pricing as we might expect to see from such a release.  Included with this is the ability to download a free copy of Acronis true Image but, even better yet, Western Digital’s SSD Dashboard is one of the best we have seen yet with a very professional appearance, simple navigation with a bevy of features to maintain the performance of your SSD. The only suggestion we might put forward would be to drop pricing just a bit to make it competitive with the Samsung 980 Pro.

Check WD_Black SN850 Pricing at Amazon.



WD_Black SN850 Gen 4 NVMe SSD Ratings

Product Build
5-Year Warranty
Pricing And Availability

Pure Speed!

The WD_Black SN850 is a proven performer with a 5-year warranty, mass availability, as well as a decent price.
