Lexar Professional Gold 2TB CFExpress Type B Memory Card Review

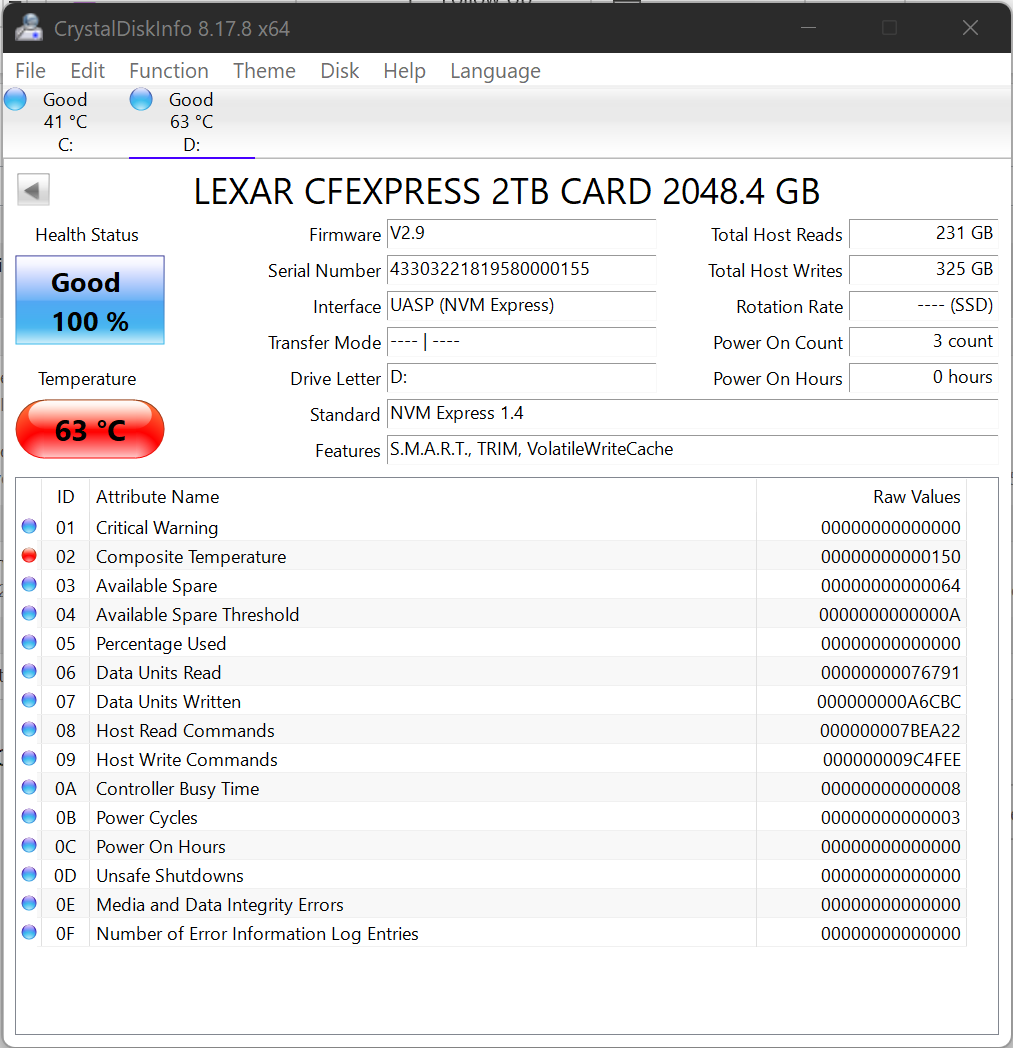

CRYSTAL DISK INFO VER. 8.17.8 X64

Crystal Disk Info is a great tool for displaying the characteristics and health of storage devices. It displays everything from temperatures, the number of hours the device has been powered, and even to the extent of informing you of the firmware of the device.

In posting this Crystal DiskInfo result, it is our practice of identifying the highest recorded temperature reached during our test regimen. 63°C is a bit higher than we recently had in our Lexar Diamond Professional CFExpress B testing but really not that bad, considering the demands of our test regimen.

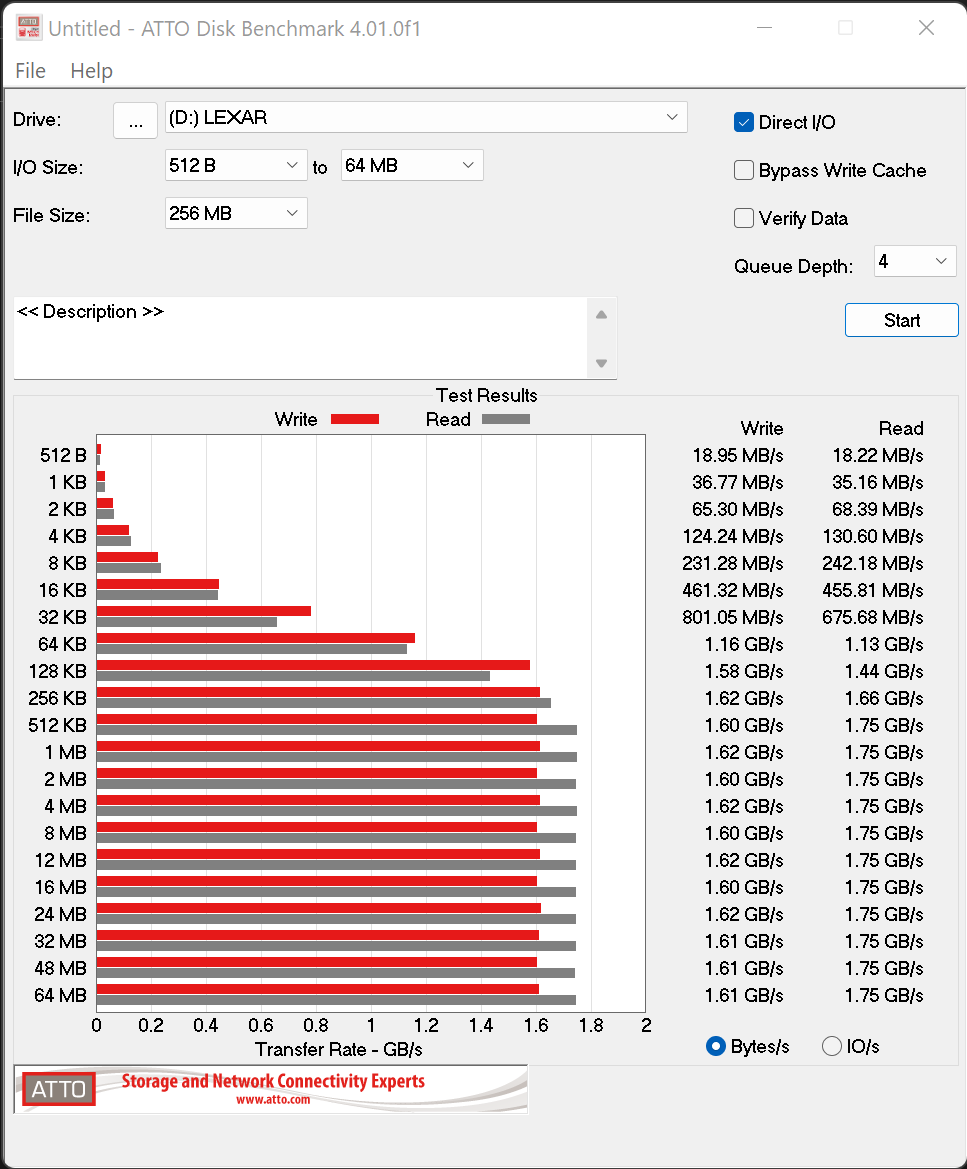

ATTO DISK BENCHMARK VER. 4.01

ATTO Disk Benchmark is perhaps one of the oldest benchmarks going and is definitely the main staple for manufacturer performance specifications. ATTO uses RAW or compressible data and, for our benchmarks, we use a set length of 256mb and test both the read and write performance of various transfer sizes ranging from 0.5 to 8192kb. Manufacturers prefer this method of testing as it deals with raw (compressible) data rather than random (includes incompressible data) which, although more realistic, results in lower performance results.

blank

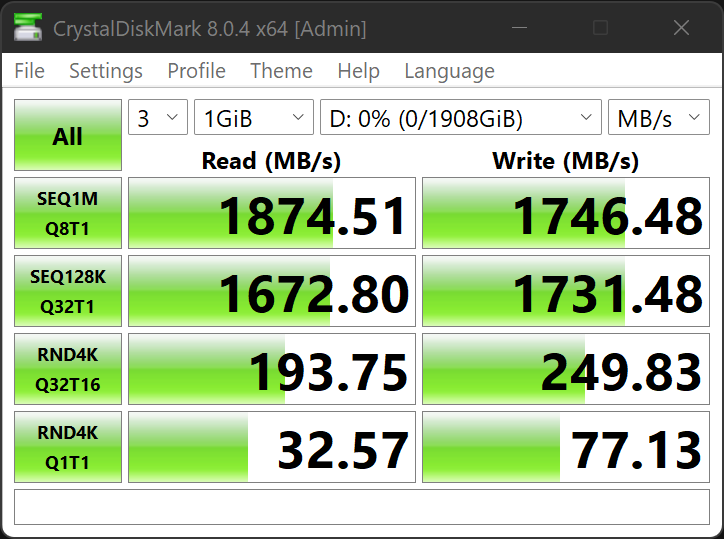

CRYSTAL DISK BENCHMARK VER. 8. 0.4 X64

Crystal Disk Benchmark is used to measure read and write performance through sampling of random data which is, for the most part, incompressible. Performance is virtually identical, regardless of data sample so we have included only that using random data samples.

THROUGHPUT

blank

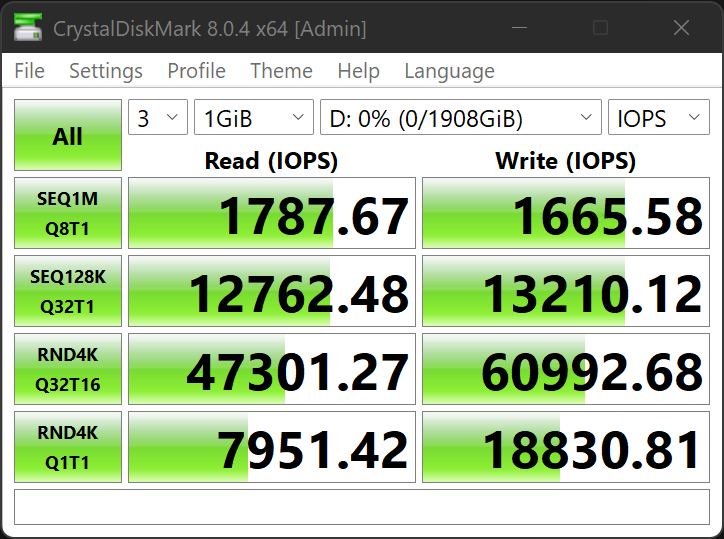

IOPS

blank

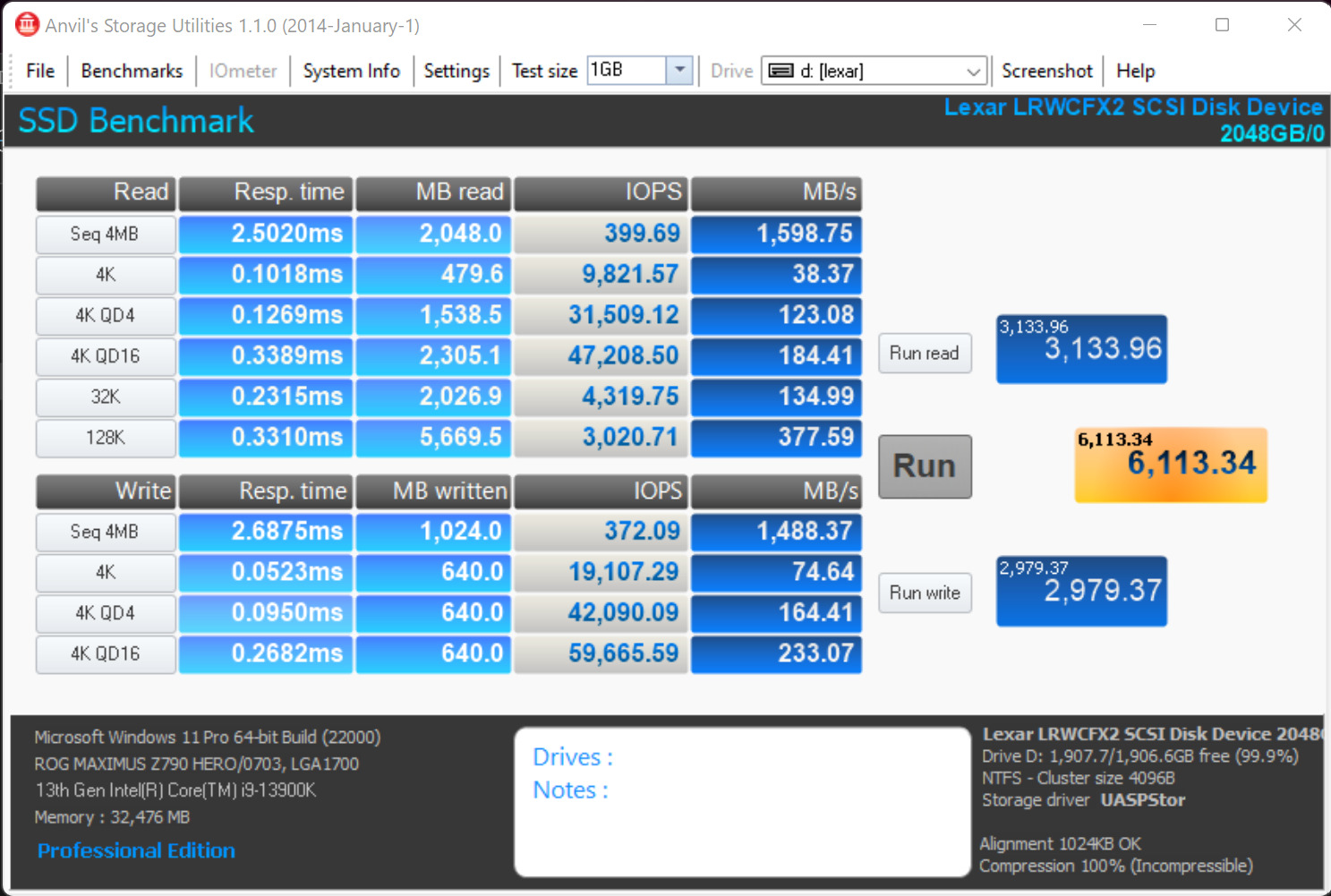

ANVIL STORAGE UTILITIES PROFESSIONAL

Anvil’s Storage Utilities (ASU) are the most complete test bed available for the solid state drive today. The benchmark displays test results for, not only throughput but also, IOPS and Disk Access Times. Not only does it have a preset SSD benchmark, but also, it has included such things as endurance testing and threaded I/O read, write and mixed tests, all of which are very simple to understand and use in our benchmark testing.

blank

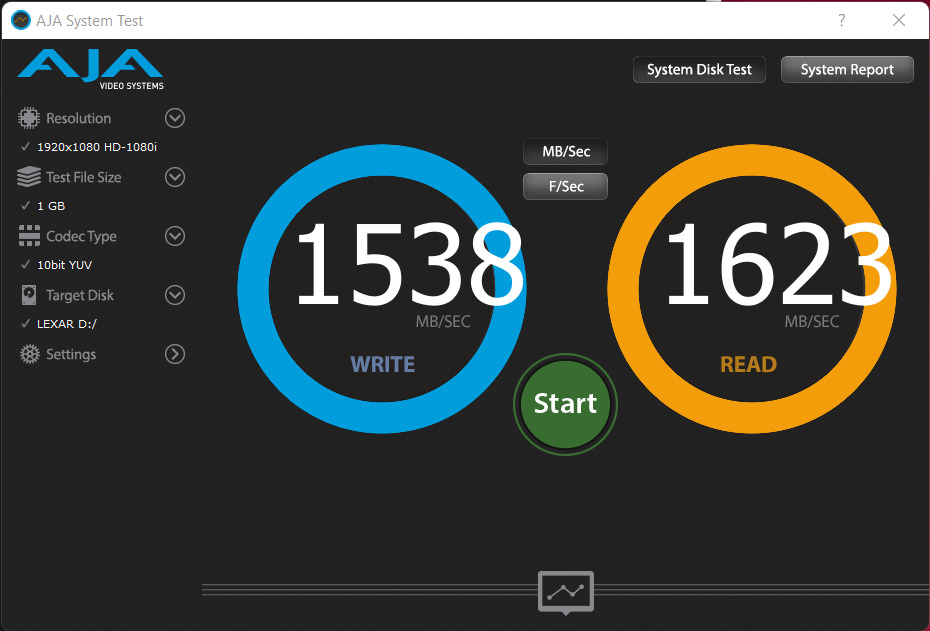

AJA VIDEO SYSTEM DISK TEST

The AJA Video Systems Disk Test is relatively new to our testing and tests the transfer speed of video files with different resolutions and Codec.

blank

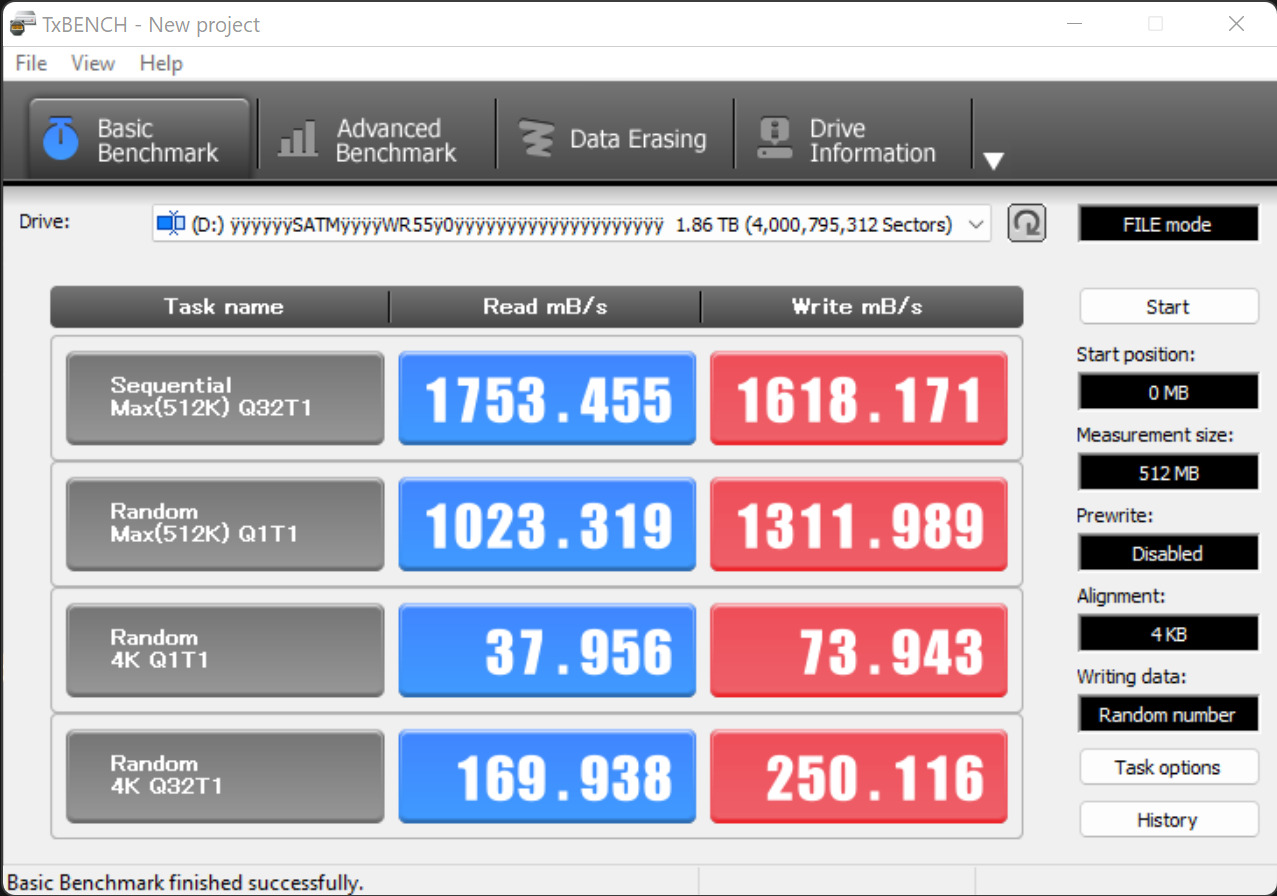

TxBENCH

TxBench is one of our newly discovered benchmarks that we works much the same as Crystal Diskmark, but with several other features. Advanced load bench-marking can be configured, as well as full drive information and data erasing via secure erase, enhanced secure erase, TRIM and overwriting. Simply click on the title for a free copy.

blank

One comment

  1. blank

    Would be interesting to do a larger write test to see if it is simply an MLC/TLC/QLC buffer issue?

    Like all of your performance is within the range of common SLC cache sizes, but what happens at 300GB+ of sustained writes?

    Modern 2TB SSDs tend to have ~200+GB of SLC caching before performance tanks severely.
