TSSDR Z97 TEST BENCH
SSD Testing at TSSDR differs slightly depending on whether we are looking at consumer or enterprise SSDs. For consumer SSDs, our goal is to test in a system that has been optimized with our SSD Optimization Guide, although CPU C States have not been changed at all. Benchmarks for consumer testing are also benchmarks with a fresh drive so, not only can we verify that manufacturer specifications are in line but also, so the consumer can replicate our tests to confirm that they have an SSD that is top-notch. We even provide links to most of the benchmarks used in the report.
This is a brand new test bench and, as such, we would love to thank those who jumped in specifically to help the cause. Key contributors to this build are our friends at ASRock, Corsair, Kingston with components from past contributors to include In-Win, EVGA, beQuiet, Plextor, Samsung, QNIX and RamCity, this still being a key resource in the acquisition of the XP941. We have detailed all components in the table below and they are all linked should you wish to make a duplicate our system as so many seem to do, or check out the price of any soul component. As always, we appreciate your support in any purchase though our links!
This Test Bench build was the result of some great relationships and purchase; our appreciation goes to the below mentioned manufacturers for their support in our project. Our choice of components is very narrow, in that, we choose only what we believe to be among the best available and links are provided to each that will assist in hardware pricing and availability, should the reader be interested in purchase.
|PC CHASSIS:||InWin D-Frame Open Air Chassis|
|MOTHERBOARD:||ASRock Z97 Extreme6 Socket 1150|
|CPU:||Intel Core i7-4790|
|CPU COOLER:||Corsair Hydro Series H105 Extreme Water Cooled
|POWER SUPPLY:||be quiet Dark Power Pro 10 1000W PSU|
|SYSTEM COOLING:||be quiet Silent Wings 2 PC Fans|
|GRAPHICS CARD:||EVGA GTX 770 Superclocked with ACX Cooler|
|MEMORY:||Kingston HyperX Beast
|KEYBOARD:||Corsair Vengeance K95 Mechanical Gaming Keyboard|
|MOUSE:||Corsair Vengeance M95 MMO/RTS Laser Mouse|
|MONITOR:||QNIX 27″ QX2710 2560×1440
|HBA||HighPoint RocketU 1144C 4 x USB 3.0 20Gb/s HBA|
The software we will be using for today’s analysis is typical of many of our reviews and consists of ATTO Disk Benchmark, Crystal Disk Info, Crystal DiskMark, AS SSD, PCMark Vantage, Anvil Storage Utilities, and PCMark 8. In consumer reports, we prefer to test with easily accessible software that the consumer can obtain, and in many cases, we even provide links. Our selection of software allows each to build on the last and to provide validation to results already obtained.

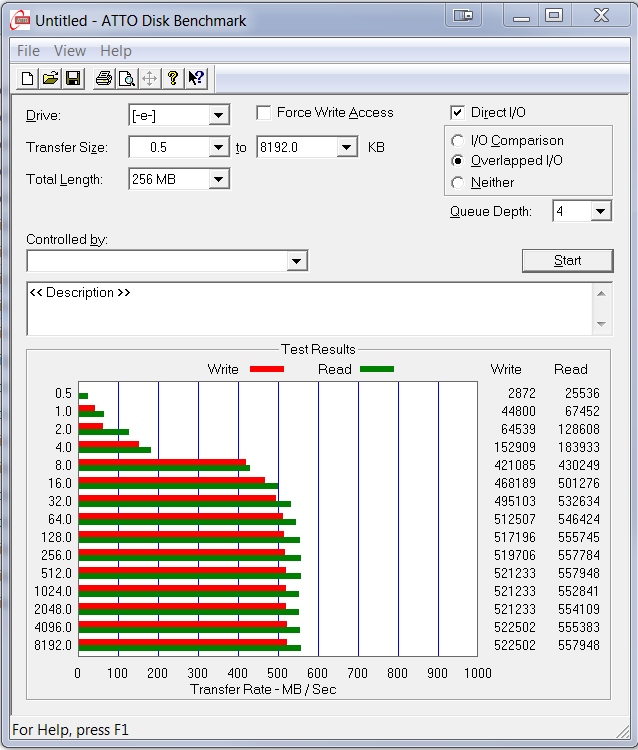

ATTO Disk Benchmark is perhaps one of the oldest benchmarks going and is definitely the main staple for manufacturer performance specifications. ATTO uses RAW or compressible data and, for our benchmarks, we use a set length of 256mb and test both the read and write performance of various transfer sizes ranging from 0.5 to 8192kb. Manufacturers prefer this method of testing as it deals with raw (compressible) data rather than random (includes incompressible data) which, although more realistic, results in lower performance results.
The performance seen here is relative to all three capacities tested. Ideally, the best one can ask for is to see 6Gbps performance at the 4K file size, but this is rarely accomplished. What SanDisk has done here is definitely the next best thing and something that we have yet to see before the Extreme Pro; this being steady performance above 420MB/s for all files 8K and higher. This will definitely manifest itself in faster visible performance through quicker transfer of those small 8K files. Where many aren’t big supporters of the ATTO Disk Benchmark as it represents sequential performance, it provides a very promising outlook for the Extreme Pro.
