XPG GAMMIX S70 Blade NVMe M.2 SSD Review – 7GB/s at Low Temps in a 11th Gen Laptop

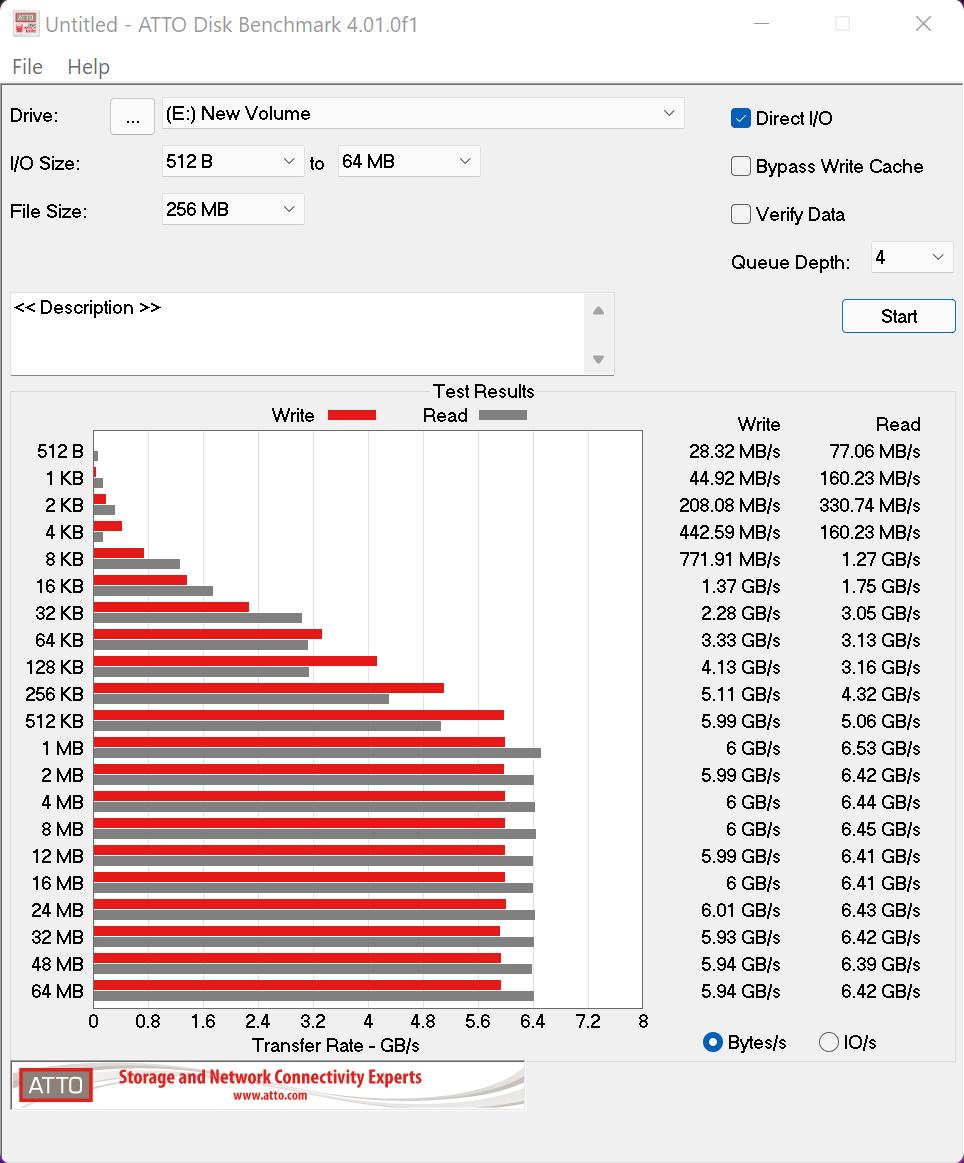

ATTO DISK BENCHMARK VER. 4.01

ATTO Disk Benchmark is perhaps one of the oldest benchmarks going and is definitely the main staple for manufacturer performance specifications. ATTO uses RAW or compressible data and, for our benchmarks, we use a set length of 256mb and test both the read and write performance of various transfer sizes ranging from 0.5 to 8192kb. Manufacturers prefer this method of testing as it deals with raw (compressible) data rather than random (includes incompressible data) which, although more realistic, results in lower performance results.

ATTO performance is a bit lower than listed specifications with result highs of 6.53GB/s read and 6.01GB/s write.

CRYSTAL DISK BENCHMARK VER. 8.0.1 x64

Crystal Disk Benchmark is used to measure read and write performance through sampling of random data which is, for the most part, incompressible. Performance is virtually identical, regardless of data sample so we have included only that using random data samples.

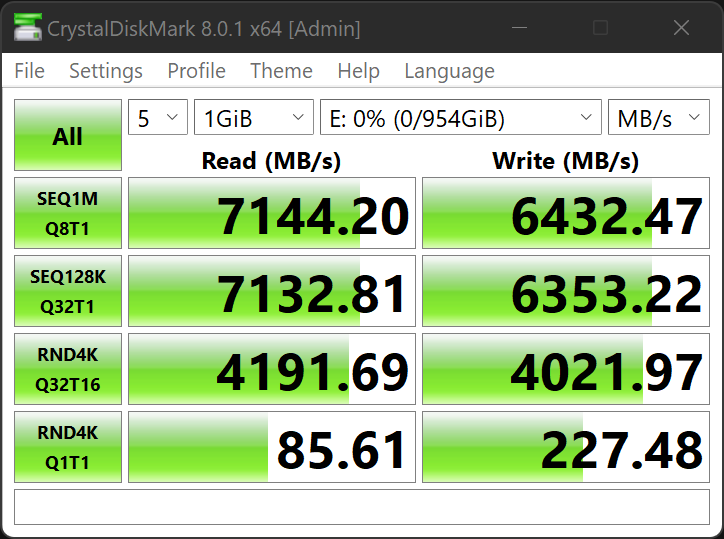

THROUGHPUT

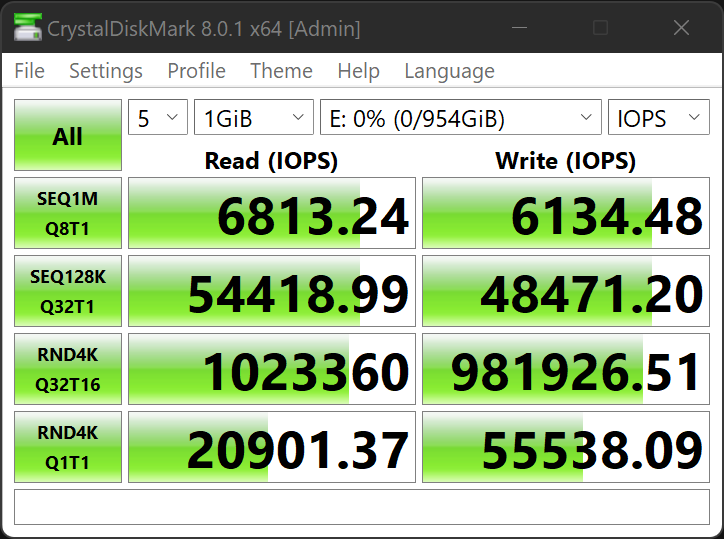

IOPS

Crystal DiskMark results for the XPG GAMMIX S70 Blade are right up there with highs of 7.1GB/s throughput and over a million IOPS as well.  These results are a bit lower than we might find in an AMD Ryzen test.

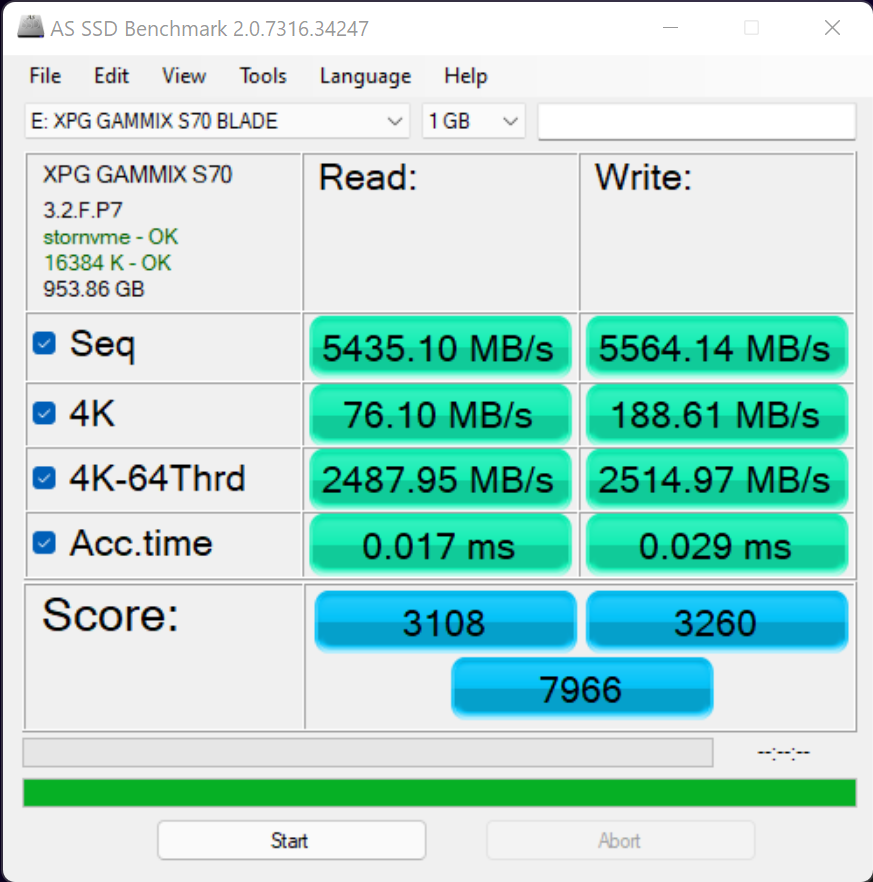

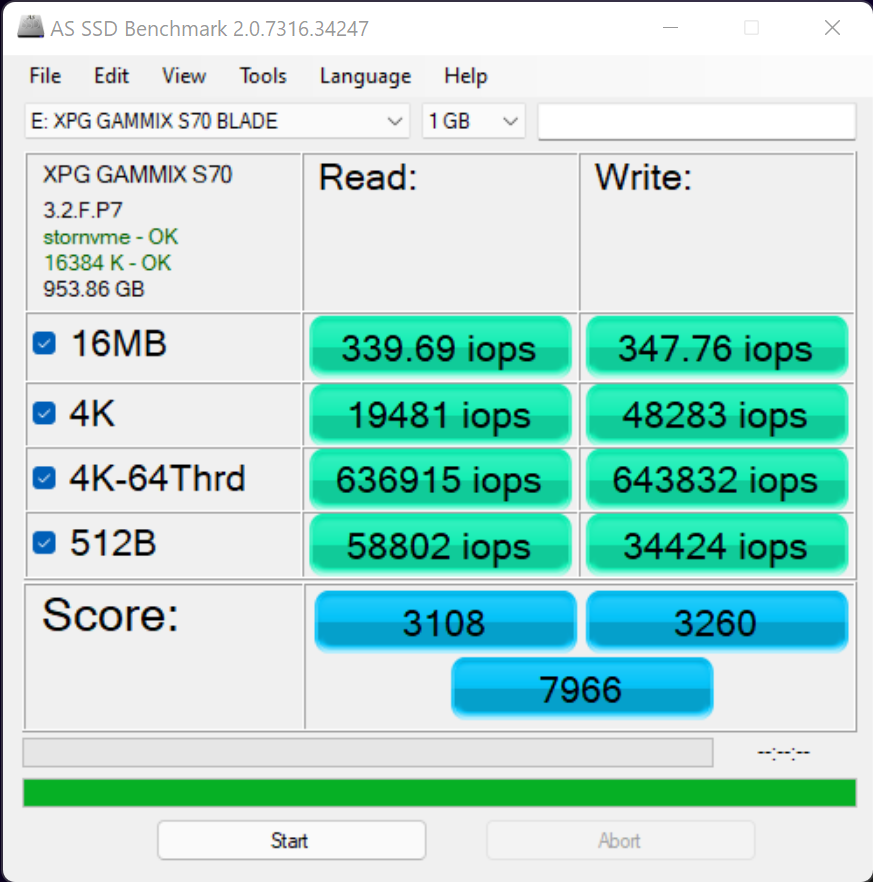

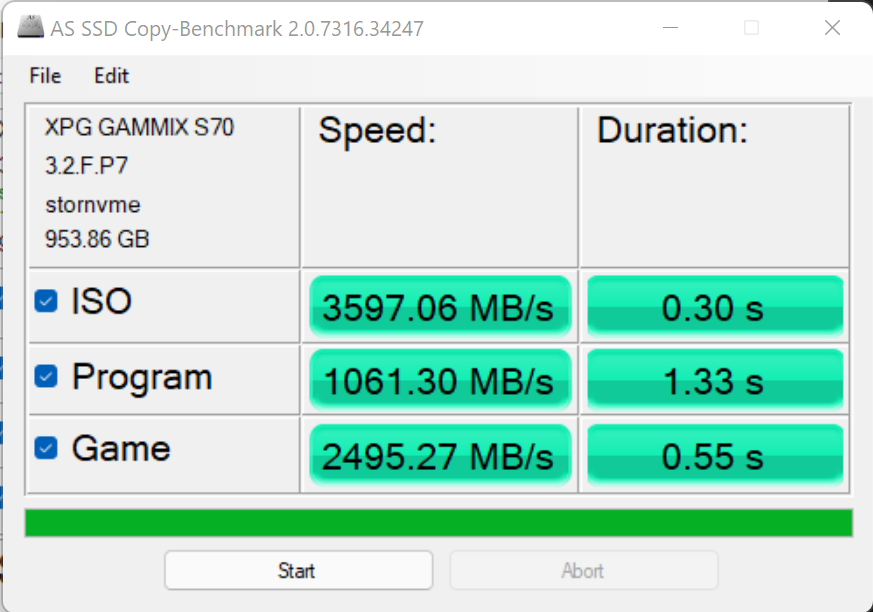

AS SSD BENCHMARK VER 2.0

The toughest benchmark available for solid state drives is AS SSD as it relies solely on incompressible data samples when testing performance. For the most part, AS SSD tests can be considered the ‘worst case scenario’ in obtaining data transfer speeds and many enthusiasts like AS SSD for their needs.
