Renice X3 50mm 240GB mSATA SSD Review

TEST BENCH AND PROTOCOL

Our analysis today will be conducted with our Z68 Extreme 7 Test Bench, full description of which can be found here.

In testing, our main objective is to obtain results as pure and as accurate as possible and we want to ensure that no anomalies slip through. Simply put, we want to provide you with the absolute best results the tested hardware can provide. Repetition in testing is standard and, if necessary, we may conduct specific tests in Windows 7 safe mode to ensure the OS has little to no influence on the end result.

In order to validate and confirm our findings, testing is supported by industry accepted benchmark programs. All results are displayed through capture of the actual benchmark for better understanding of the testing process by the reader.

We would like to thank ASRock (Z68 Extreme 7), Intel (Core i7-2600), Crucial (Ballistix), Corsair (H80), Be Quiet (PSU/Fans), and Fractal Design (Define XL) for supporting the build of our Z68 Extreme 7 Test Bench.

SSD COMPRESSION AND TESTING FLUCTUATIONS

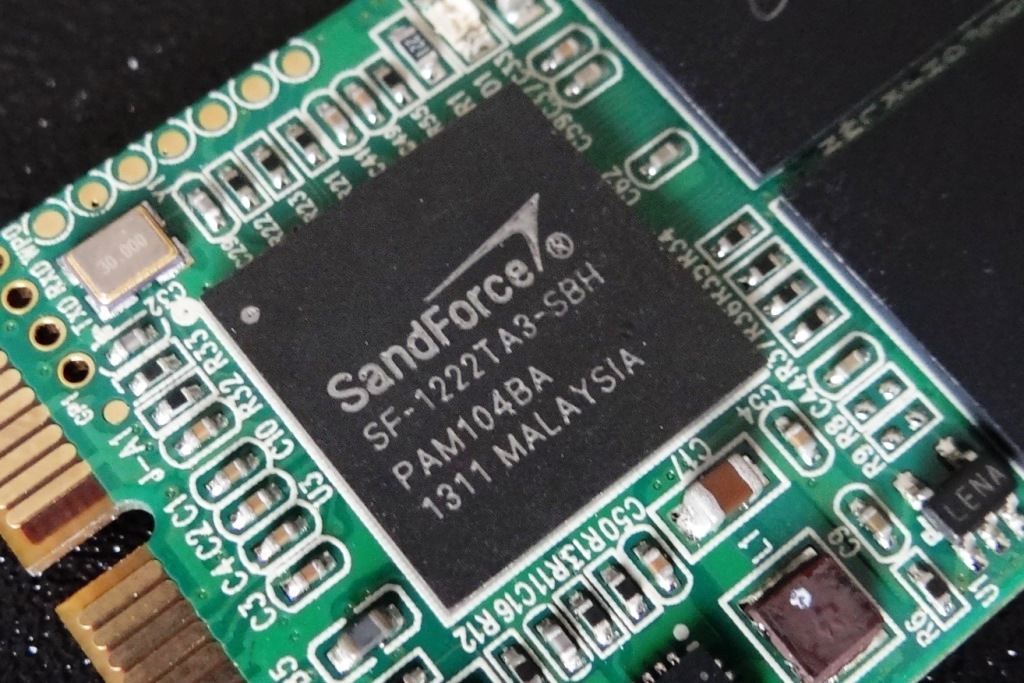

All SSDs are not created equal and many new SSD enthusiasts realize that when they test their new drive to confirm specifications and ensure all is in order. SandForce controlled SSDs, as in the Renice X3 240GB mSATA SSD we are testing today, use compression techniques in storage whereas many others do not. This creates a bit of confusion when enthusiasts test the drive with random data through benchmarking programs such as AS SSD and Crystal Diskmark. The results seem to be lower than the listed specifications.

The results actually present a false portrayal of the drives ability when compared to other drives such as Samsung, Crucial or Intel. It is for this reason that all of our comparison testing is done through PCMark Vantage. PCMark Vantage HDD Suite simply provides evaluation results based on transfer speeds reached through typical user patterns. Vantage provides a better testing medium, in that, it sees through the typical synthetic benchmarks and provides us with true to life results of the drive.

BENCHMARK SOFTWARE

The software we will be using for todays analysis is typical of many of our reviews and consist of ATTO Disk Benchmark, Crystal DiskMark, AS SSD, Anvil Storage Utilities and PCMark Vantage.  We rely on these as they each have a way of supporting one another yet, at the same time, adding a new performance benchmark to the total picture.  Much of the software is free and can be downloaded simply by clicking on the linked title.

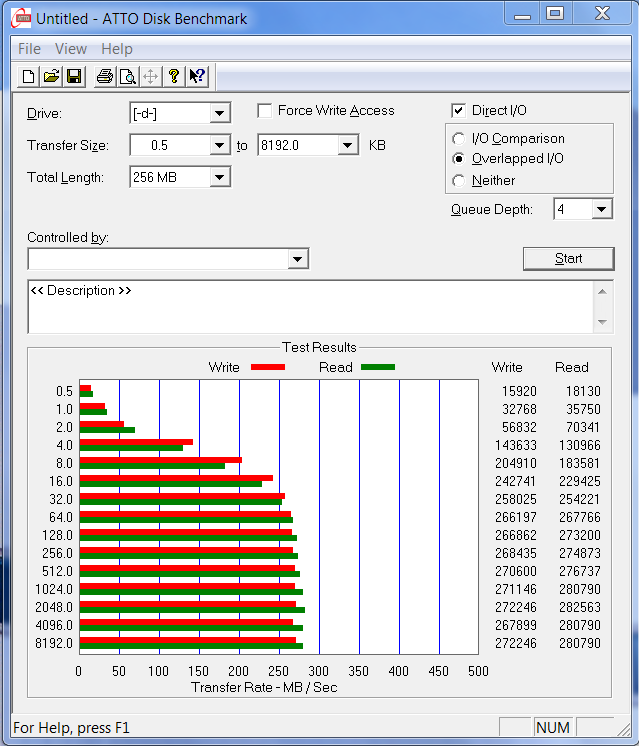

ATTO DISK BENCHMARK VER. 2.46

ATTO Disk Benchmark is perhaps one of the oldest benchmarks going and is definitely the main staple for manufacturer performance specifications. ATTO uses RAW or compressible data and, for our benchmarks, we use a set length of 256mb and test both the read and write performance of various transfer sizes ranging from 0.5 to 8192kb. Manufacturers prefer this method of testing as it deals with raw (compressible) data rather than random (includes incompressible data) which, although more realistic, results in lower performance results.

Renice’s specifications list the X3 mSATA at 260MB/s read and 200MB/s write while our results are significantly higher and match typical ‘SandForce Driven’ speeds of 280MB/s read and 272MB/s write.  As some manufacturers like to be a bit conservative, this is understandable however, ATTO is a standard software that many use to determine their specifications.  I might suggest bumping advertised performance  just a bit.
