XPG GAMMIX S70 2TB Gen4 NVMe M.2 SSD Review – As Fast as They Come

TSSDR TEST BENCH AND PROTOCOL

SSD testing at TSSDR differs slightly, depending on whether we are looking at consumer or enterprise storage media. For our XPG GAMMIX S70 2TB Gen 4 NVMe M.2 SSD testing today, our goal is to test in a system that has been optimized and will reach top speeds possible.

We are using our ASRock X570 Creator Test Bench which is AMD based and contains the AMD Ryzen 3700x Gen 4 CPU. Our PC has been overclocked from 3600Mhz to 4300MHz and memory has been set at a XMP profile of 2667MHz,

blank
SYSTEM COMPONENTS

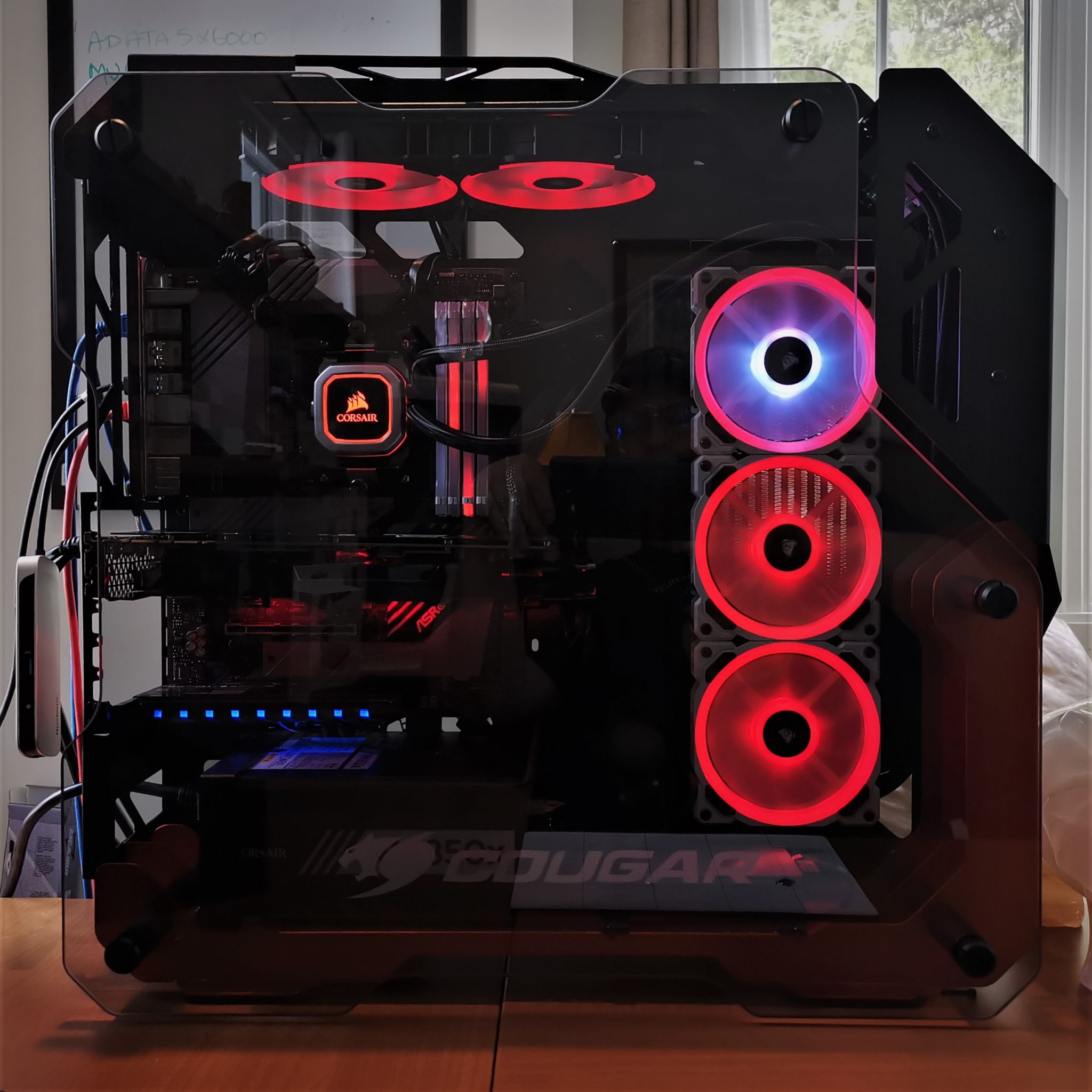

The components of this Test Bench are detailed below. All hardware is linked for purchase and product sales may be reached by a simple click on the individual item. As well, the title is linked back to the individual build article where performance testing can be validated. Tons of credit to this Cougar Blazer Gaming Case paired with Corsair fans and Corsair iCue RGB software which make this our most attractive case to date.

TSSDR ASROCK CREATOR GEN 4 X570 TEST BENCH (link)

PC CHASSIS: Cougar Blazer Open Frame Gaming Mid-Tower Case
MOTHERBOARD: ASRock X570 Creator PCIe 4.0
CPU: AMD Ryzen 3700x
CPU COOLER: Corsair Hydro H150i Pro RGB 360mm Liquid Cooling
POWER SUPPLY: Corsair RM850x 80Plus
GRAPHICS: MSI Armor Mk 2 Radeon RX570 OC
MEMORY: Corsair Vengeance LPX DDR4 3600MHz
STORAGE: Intel Optane 905P 1.5TB SSD
KEYBOARD: Corsair K57 Wireless Gaming
MOUSE: Corsair Dark Core RGB SE Wireless BT Gaming
OS Microsoft Windows 10 Pro 64 Bitblank

BENCHMARK SOFTWARE

The software in use for today’s analysis is typical of many of our reviews and consists of Crystal Disk Info, ATTO Disk Benchmark, Crystal Disk Mark, AS SSD, Anvil’s Storage Utilities, AJA, TxBench, PCMark 8, and we will be conducting true testing data transfer comparisons. Our selection of software allows each to build on the last and to provide validation to results already obtained.

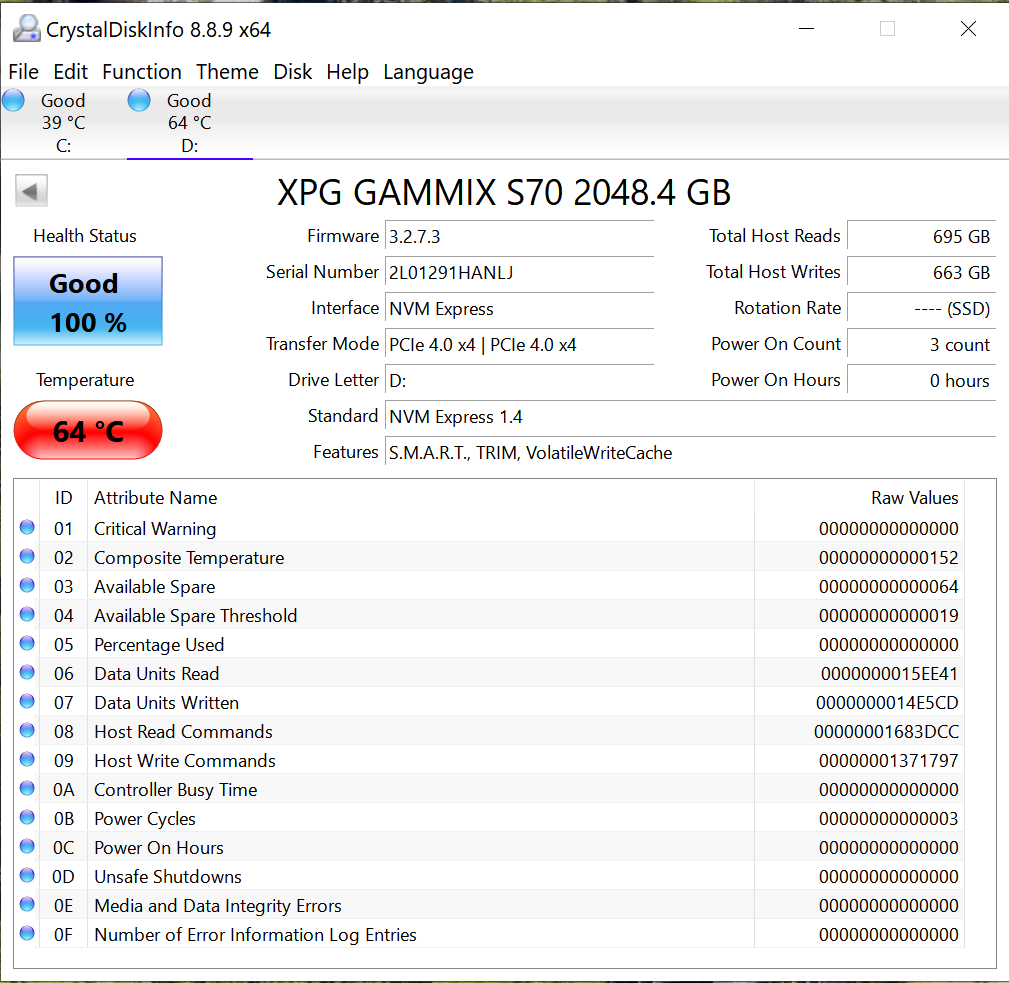

CRYSTAL DISK INFO VER. 8.8.9 X64

Crystal Disk Info is a great tool for displaying the characteristics and health of storage devices. It displays everything from temperatures, the number of hours the device has been powered, and even to the extent of informing you of the firmware of the device.

blank

Crystal Disk Info validates that our SSD is running in PCIe 4.0 x4 (four lane), and also that NVMe 1.4 protocol is in use with features to include SMART, TRIM and VWC.  The temperature you are also seeing is the ambient temperature of this SSD in the system as a secondary drive and having not been used for several hours.

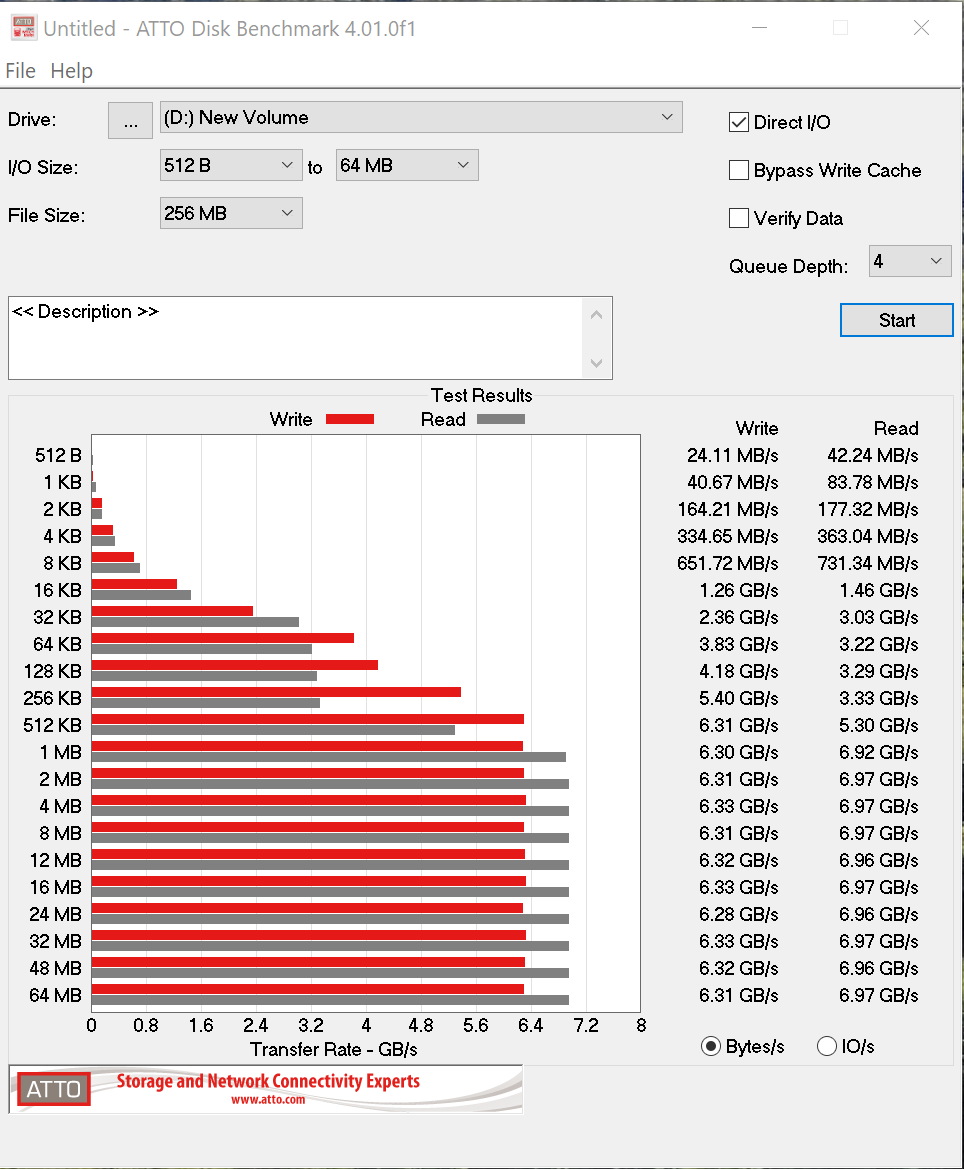

ATTO DISK BENCHMARK VER. 4.01

ATTO Disk Benchmark is perhaps one of the oldest benchmarks going and is definitely the main staple for manufacturer performance specifications. ATTO uses RAW or compressible data and, for our benchmarks, we use a set length of 256mb and test both the read and write performance of various transfer sizes ranging from 512b to 65mb. Manufacturers prefer this method of testing as it deals with raw (compressible) data rather than random (includes incompressible data) which, although more realistic, results in lower performance results.

blank

These are some of the strongest results we have seen from ATTO with highs of 6.97GB/s read and 6.33GB/s write.
