KIOXIA CD9P-R Gen5 7.68 Data Center SSD Review – This SSD Screams Mainstream Storage Success

8K RANDOM READ/WRITE

We precondition our enterprise SSDs using 100% random 8K writes at QD256  for two drive fills. Performance data is recorded every second.  We track this data to monitor the enterprise SSDs transition to steady-state and to verify that steady-state conditions are achieved before initiating queue depth testing.

blank

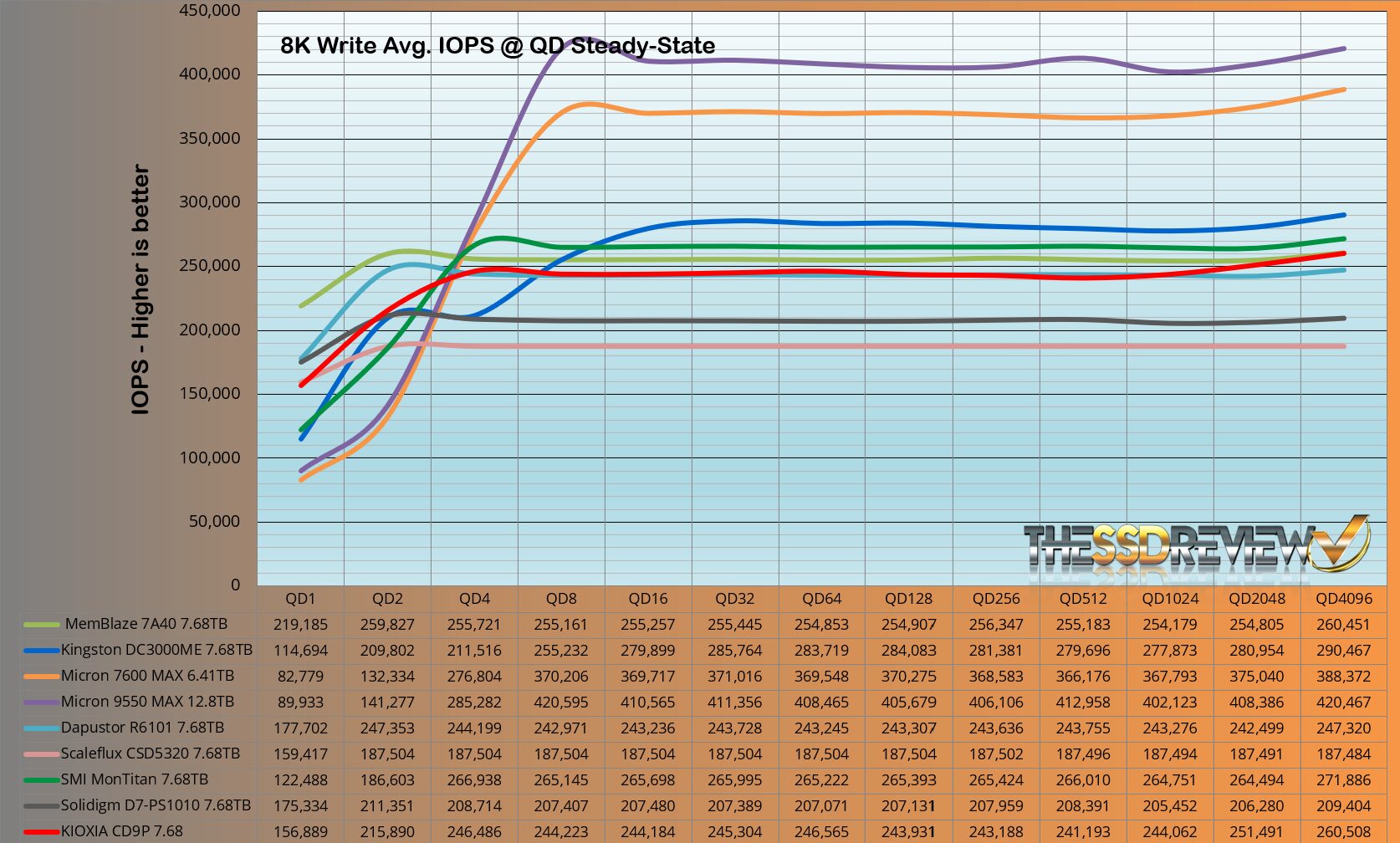

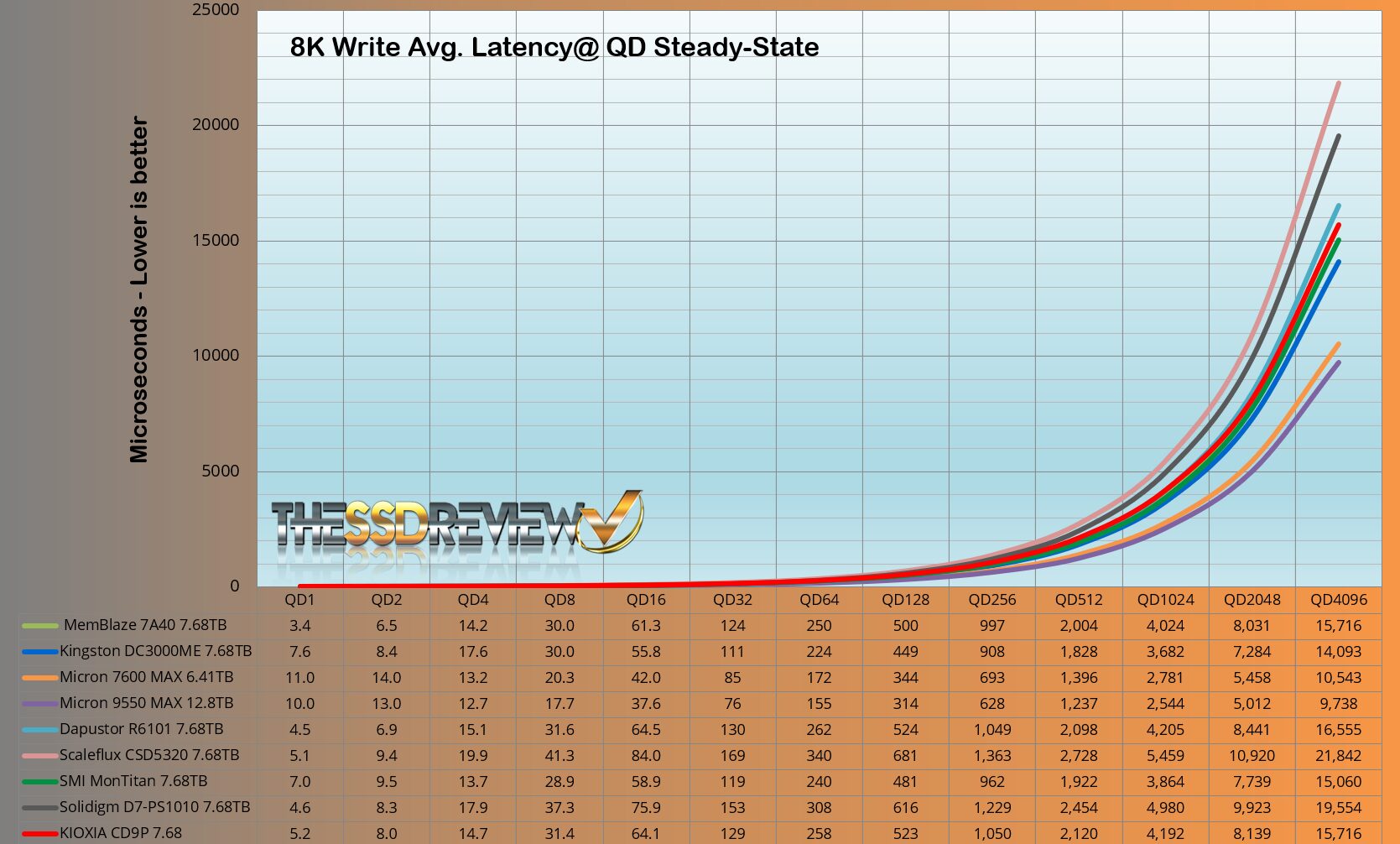

Steady-state is established after a full drive fill and the average steady-state 8K random write performance is approximately 245K IOPS.

blank

blank

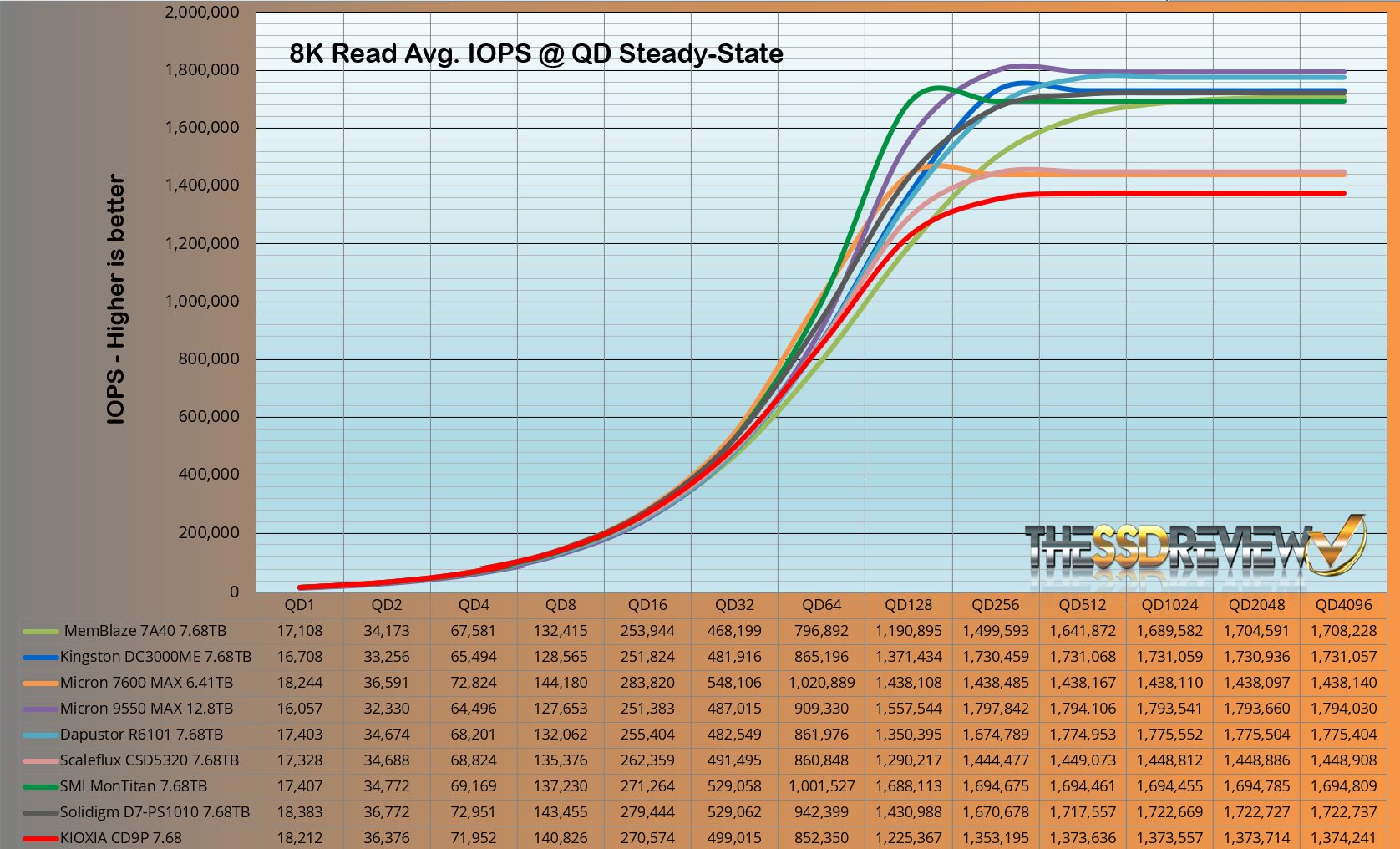

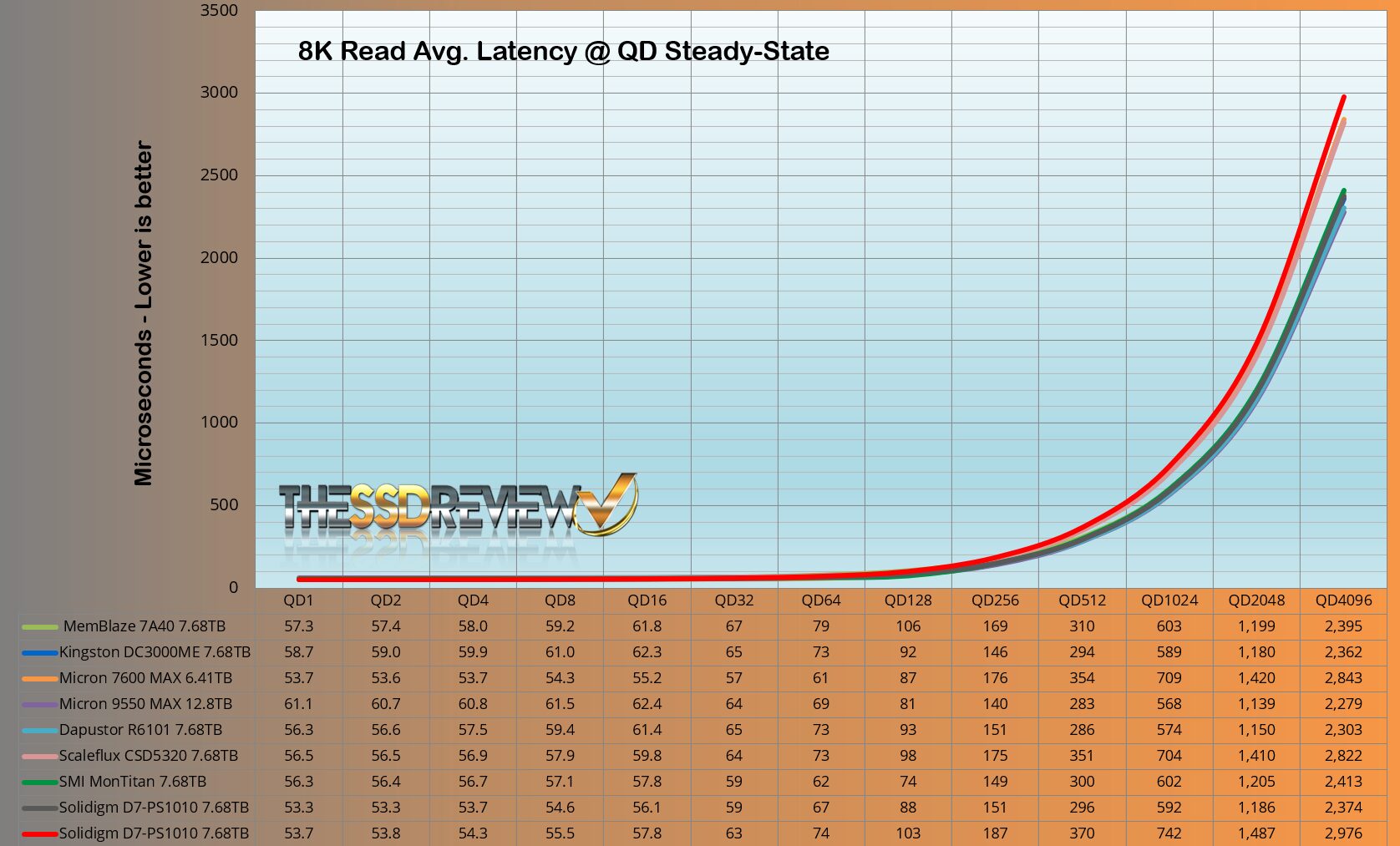

The CD9P 8K read average performance of 1300K is excellent.

8K 70/30

blank

blank

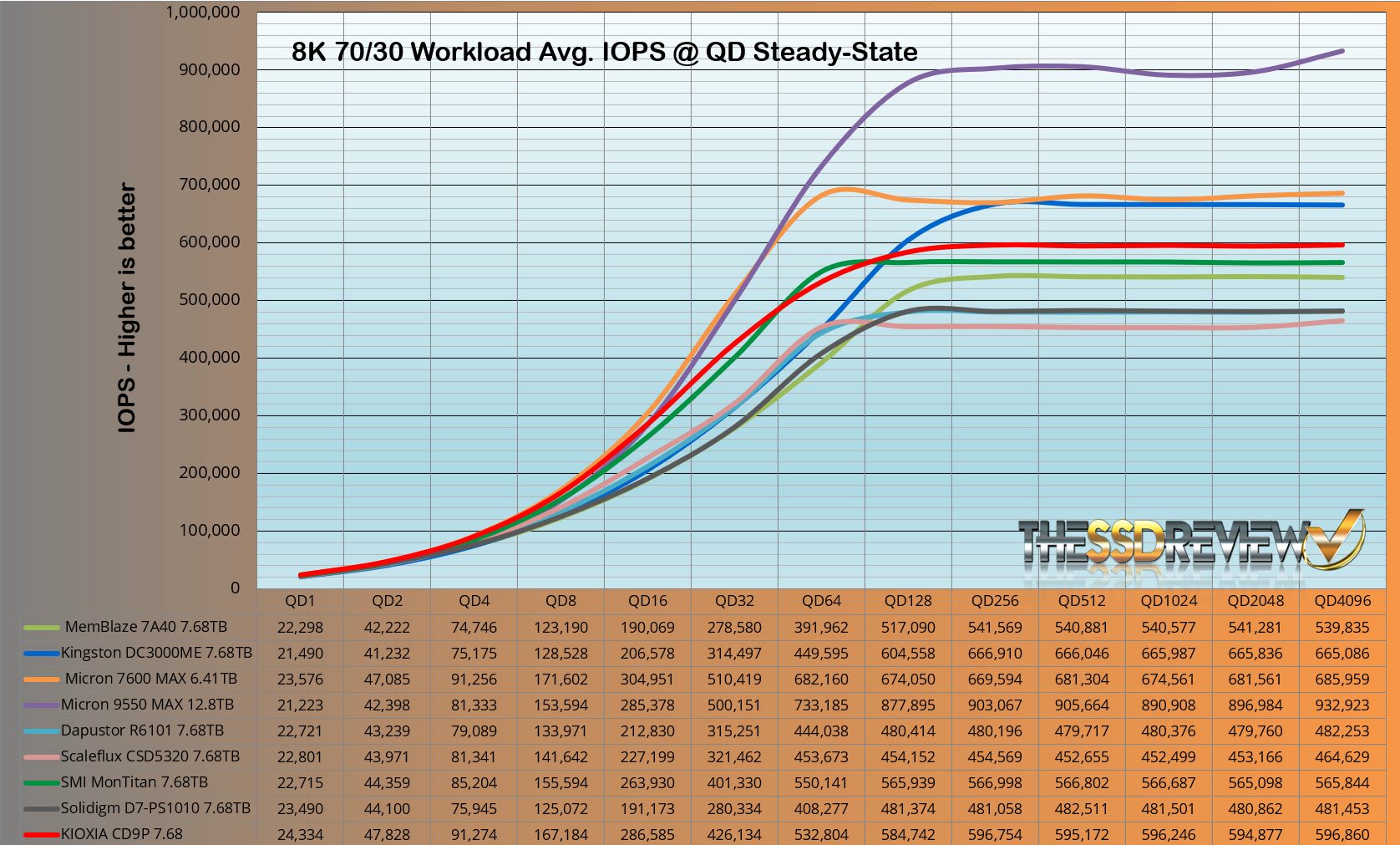

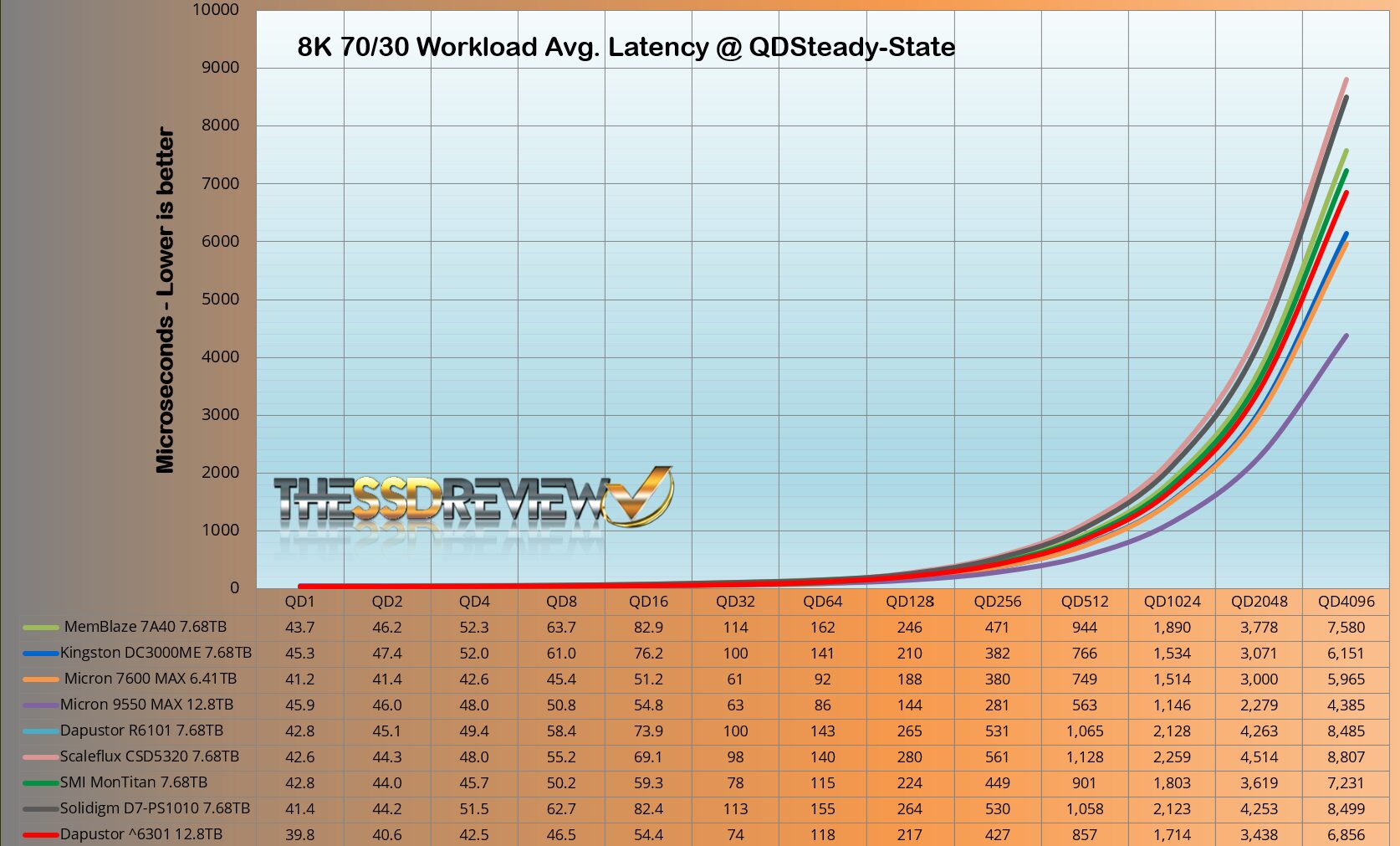

8K 70/30 is representative of a typical database workload and 595K IOPS is great.

8K 50/50

blank

blank

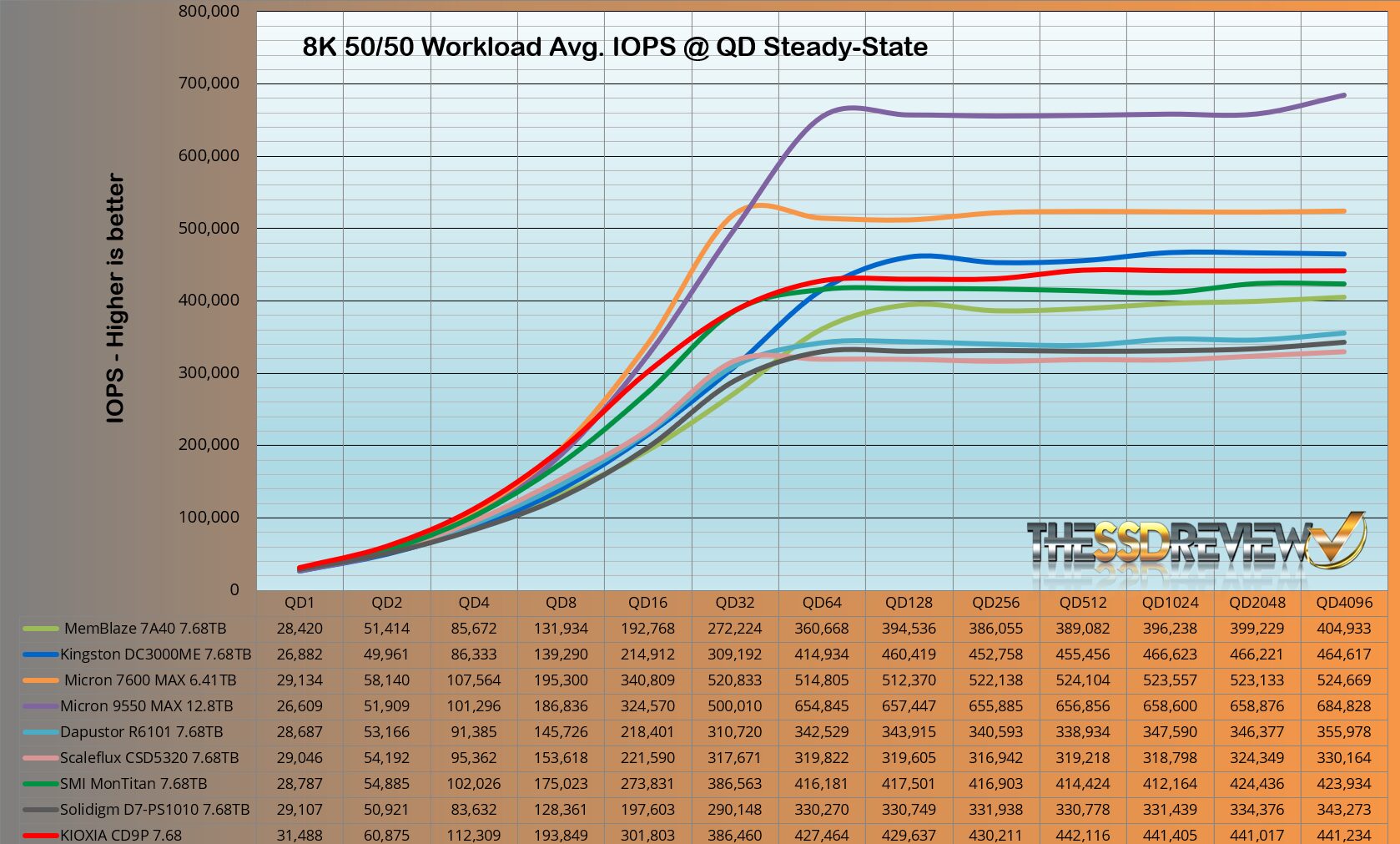

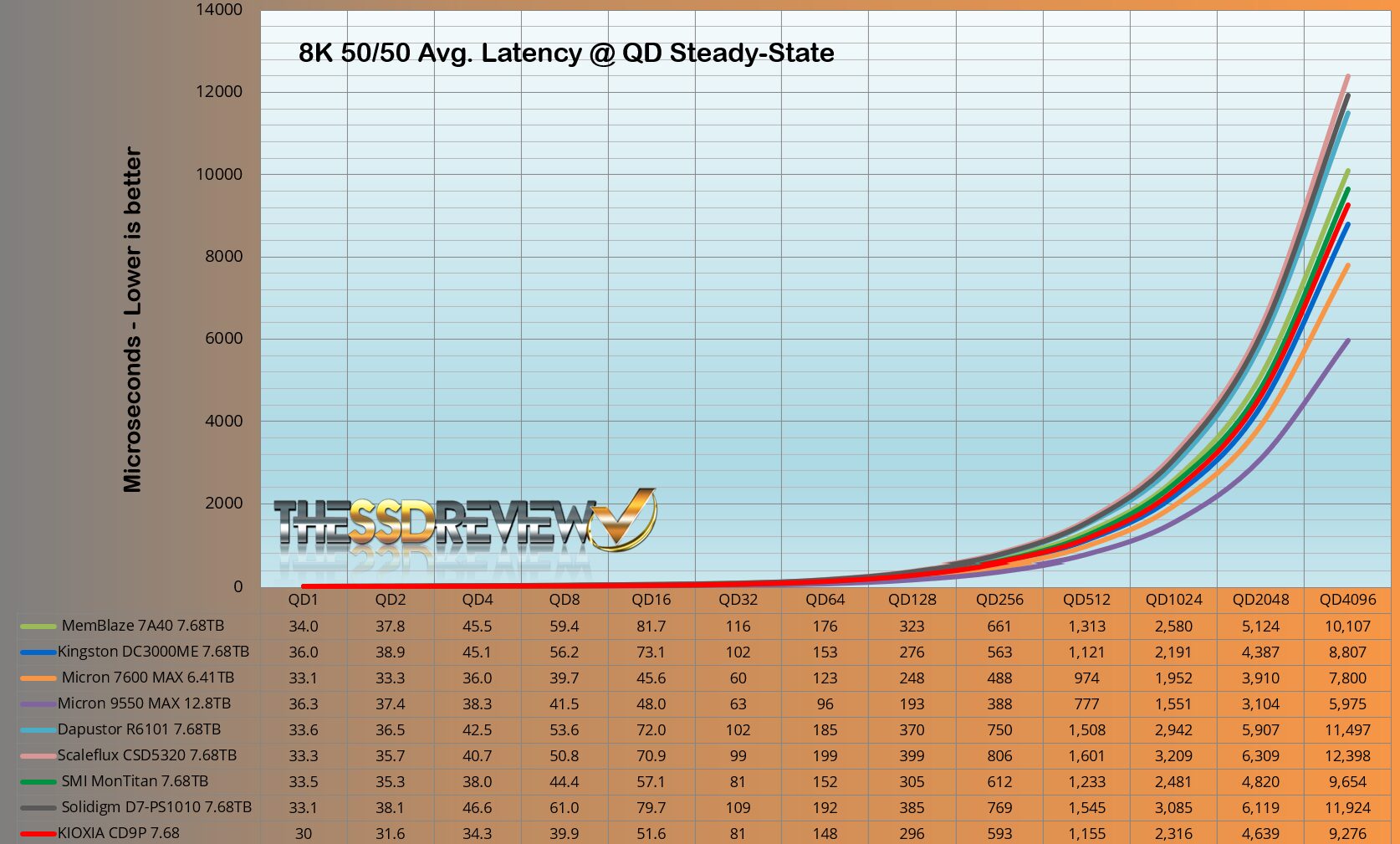

441K 8K 50/50 write IOPS is a decent result, especially watching its performance level out as it does.
