SanDisk Professional PRO-BLADE Transport and 2/4GB PRO-BLADE SSD Mag Review – Perfection Realized

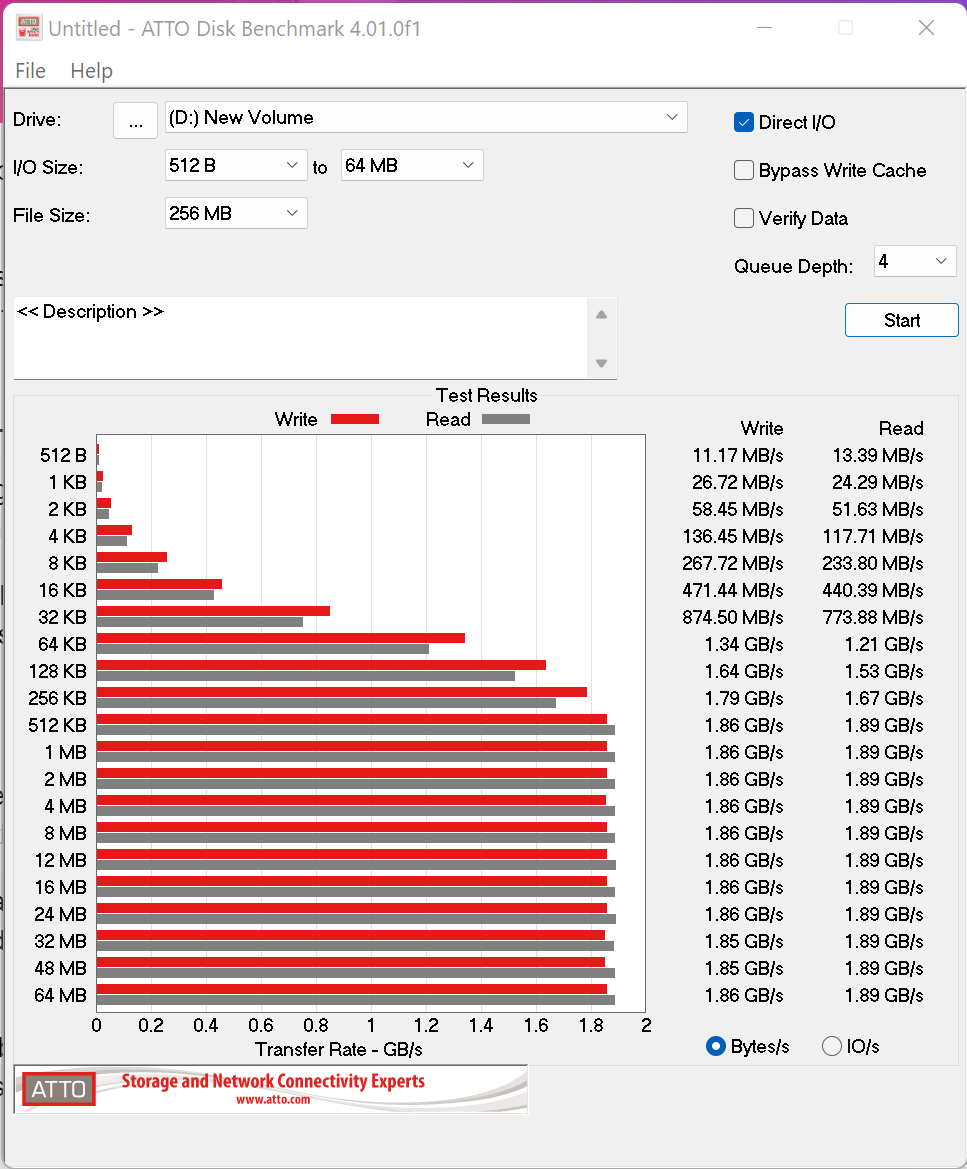

ATTO DISK BENCHMARK VER. 4.01

ATTO Disk Benchmark is perhaps one of the oldest benchmarks going and is definitely the main staple for manufacturer performance specifications. ATTO uses RAW or compressible data and, for our benchmarks, we use a set length of 256mb and test both the read and write performance of various transfer sizes ranging from 0.5 to 8192kb. Manufacturers prefer this method of testing as it deals with raw (compressible) data rather than random (includes incompressible data) which, although more realistic, results in lower performance results.

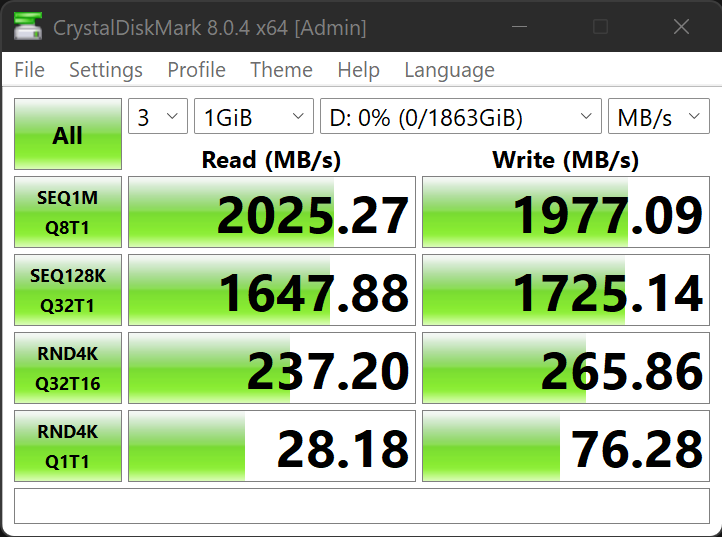

CRYSTAL DISK BENCHMARK VER. 8. 0.4 X64

Crystal Disk Benchmark is used to measure read and write performance through sampling of random data which is, for the most part, incompressible. Performance is virtually identical, regardless of data sample so we have included only that using random data samples.

THROUGHPUT

blank

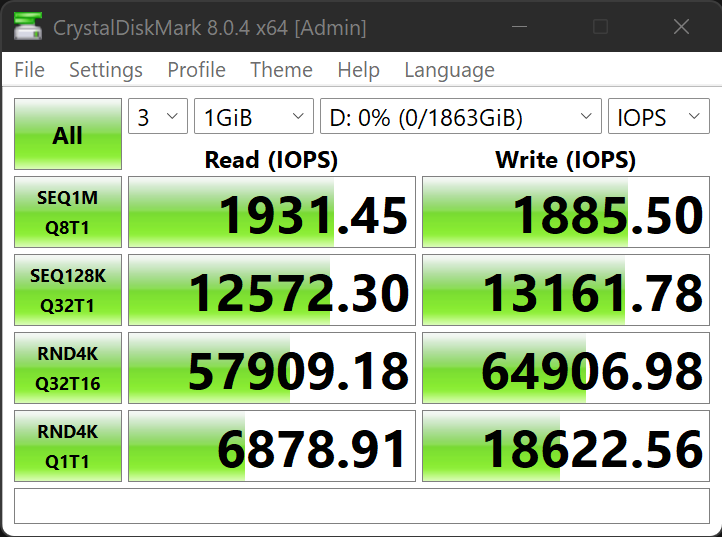

IOPS

blank

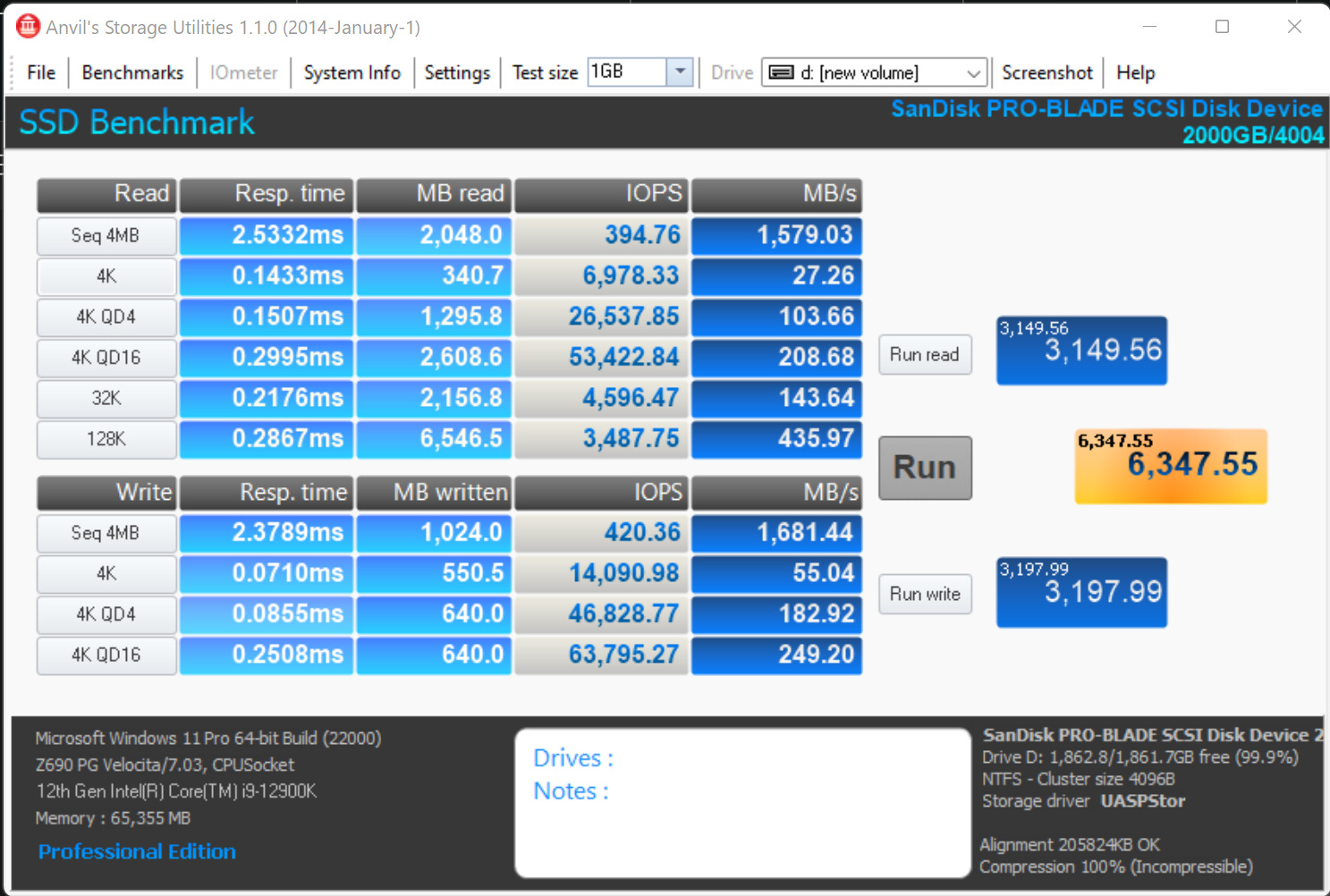

ANVIL STORAGE UTILITIES PROFESSIONAL

Anvil’s Storage Utilities (ASU) are the most complete test bed available for the solid state drive today. The benchmark displays test results for, not only throughput but also, IOPS and Disk Access Times. Not only does it have a preset SSD benchmark, but also, it has included such things as endurance testing and threaded I/O read, write and mixed tests, all of which are very simple to understand and use in our benchmark testing.

blank

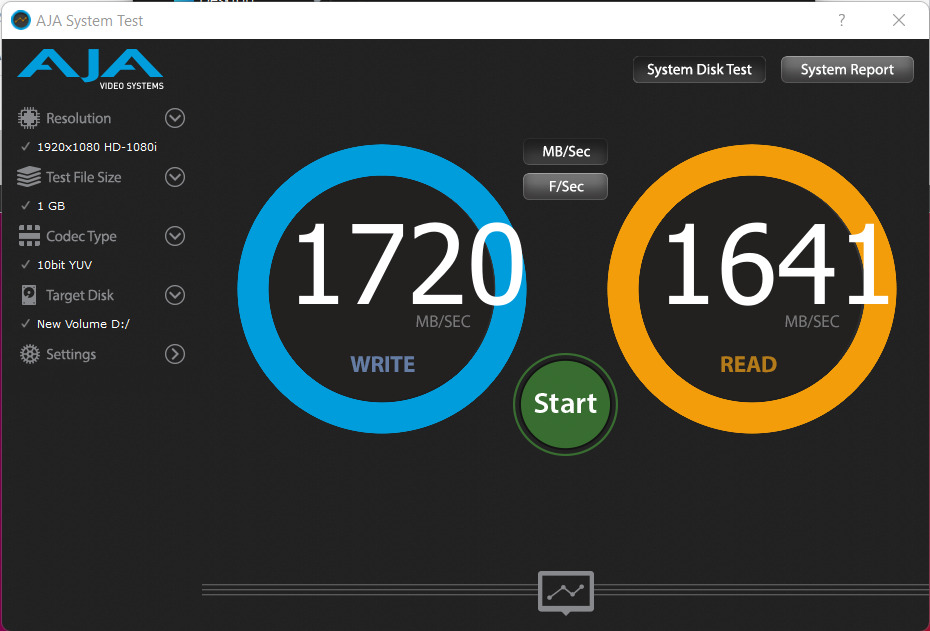

AJA VIDEO SYSTEM DISK TEST

The AJA Video Systems Disk Test is relatively new to our testing and tests the transfer speed of video files with different resolutions and Codec.

blank

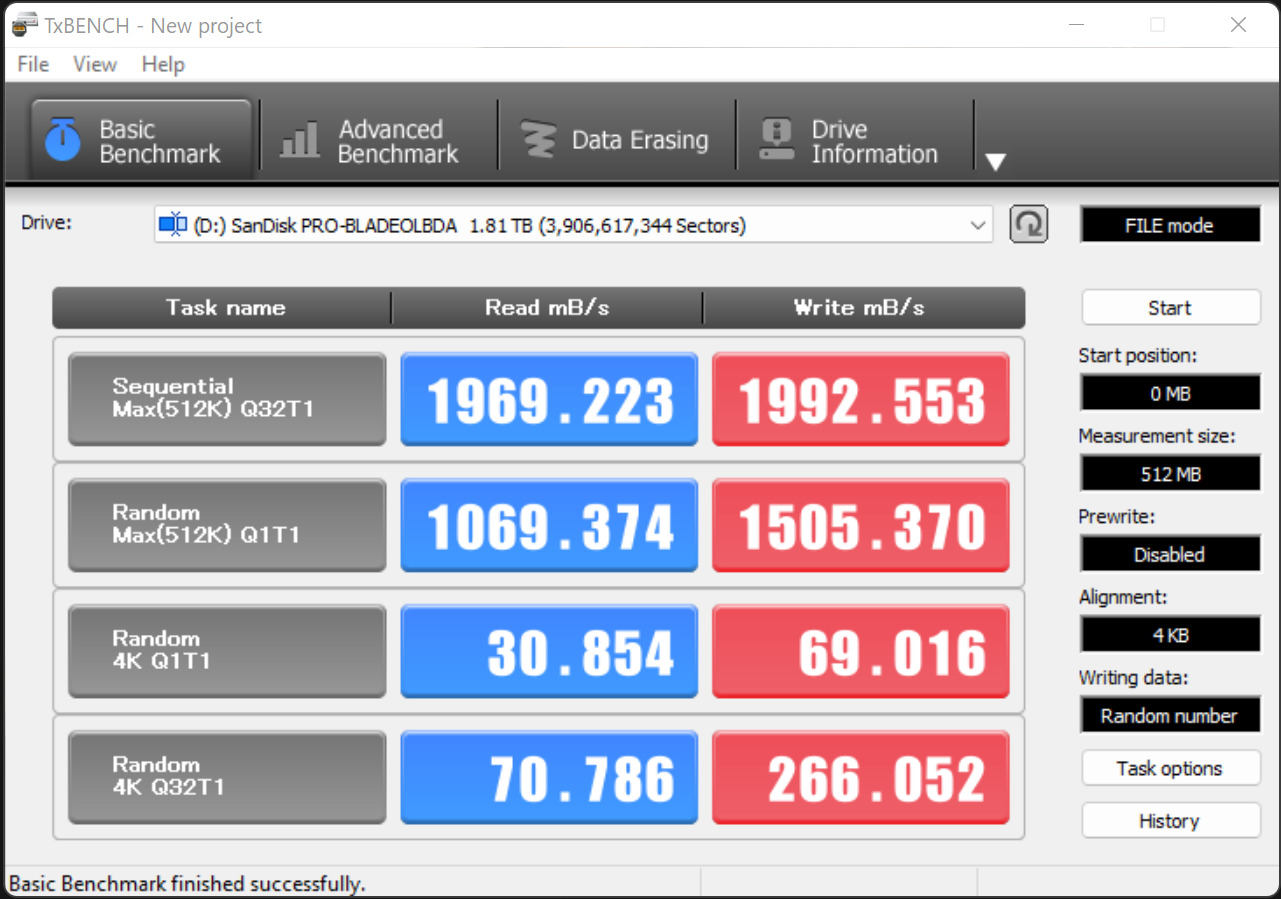

TxBENCH

TxBench is one of our newly discovered benchmarks that we works much the same as Crystal Diskmark, but with several other features. Advanced load bench-marking can be configured, as well as full drive information and data erasing via secure erase, enhanced secure erase, TRIM and overwriting. Simply click on the title for a free copy.

blank

4 comments

  1. blank

    I have a feeling that in the future you will dissect a 1TB Mag and insert an 8TB SSD to see if it works, and I’ll be interested in finding out whether it does or not.
    However I see no reason why it wouldn’t. If it does, then the option of purchasing bare Mags would be very nice!

  2. blank

    The PRO-BLADE SSD Mags are constructed of an anodized grey aluminum two-piece shell which is secured by three Torx screws.

  3. blank
    Jim Richards Richards

    What brought me to this site is that I just purchased the transport and a couple of mags only to find that the USB a ports on my 3-year-old computer won’t handle the data transfer. Foo!!! do you have a recommendation for a card reader with USB c 3.2 ports that would work for me? Thanks.

    • blank

      No. Sorry and understand your frustration completely. Just building our new Hero maximus Z790 Bench in order to take full advantage of these. Stay tuned!
