MyDigitalSSD M2X Type-C External M.2 SSD Enclosure Review

Not to often that we have to eat crow (figuratively speaking) but our review today is just that.  A few months ago, we reviewed the JMicron Type-C NVMe M.2 SSD to USB 3.1 Gen 2 adapter and quoted it as being ‘not quite ready for prime time.’  Simply, I was wrong.  As a reviewer, we sometimes get caught up in the hype of SSD speeds and, well I just didn’t think there would be a marketplace for an adapter with 1GB/s read and write speeds, especially since I had reported on similar pushing 2.8GB/s on a few occasions prior.  Our report today is on the MyDigitalSSD version of this JMicron prototype, aptly named the MyDigitalSSD M2X Type-C External M.2 SSD Enclosure.

Available on Amazon, or directly from the MyDigitalSSD website, the M2X houses a green M.2 PCB containing the JMicron JMS 583 USB 3.1 Gen 2 to PCIe Gen3 x 2 bridge controller which accommodates speeds up to 10Gbps.  The exterior casing is aluminum and exterior adapters include Type-C to Type-C and Type-C to USB 3.1.

One can only achieve 10Gbps speeds with the Type-C to Type-C adapter.  Also shown below the SSD in this picture is a strip of thermal adhesive which allows heat from the SSD to dissipate via the external case which is ribbed on one side.  Pricing for the MyDigitalSSD M2X on the manufacturers website is very low at $36.14 and this enclosure will accommodate just about any NVMe M.2 SSD. Check out the Amazon price.

For our report today, we are going just a bit overboard, but will be testing with the MyDigitalSSD BPX Pro 2TB NVMe SSDs that we have also recently completed our evaluation on.  At 3.4GB/s a second throughput and over 500K IOPS, we know that this enclosure will not even come close to maximizing performance potential, but 2TB capacity in such a small device can’t be beat.

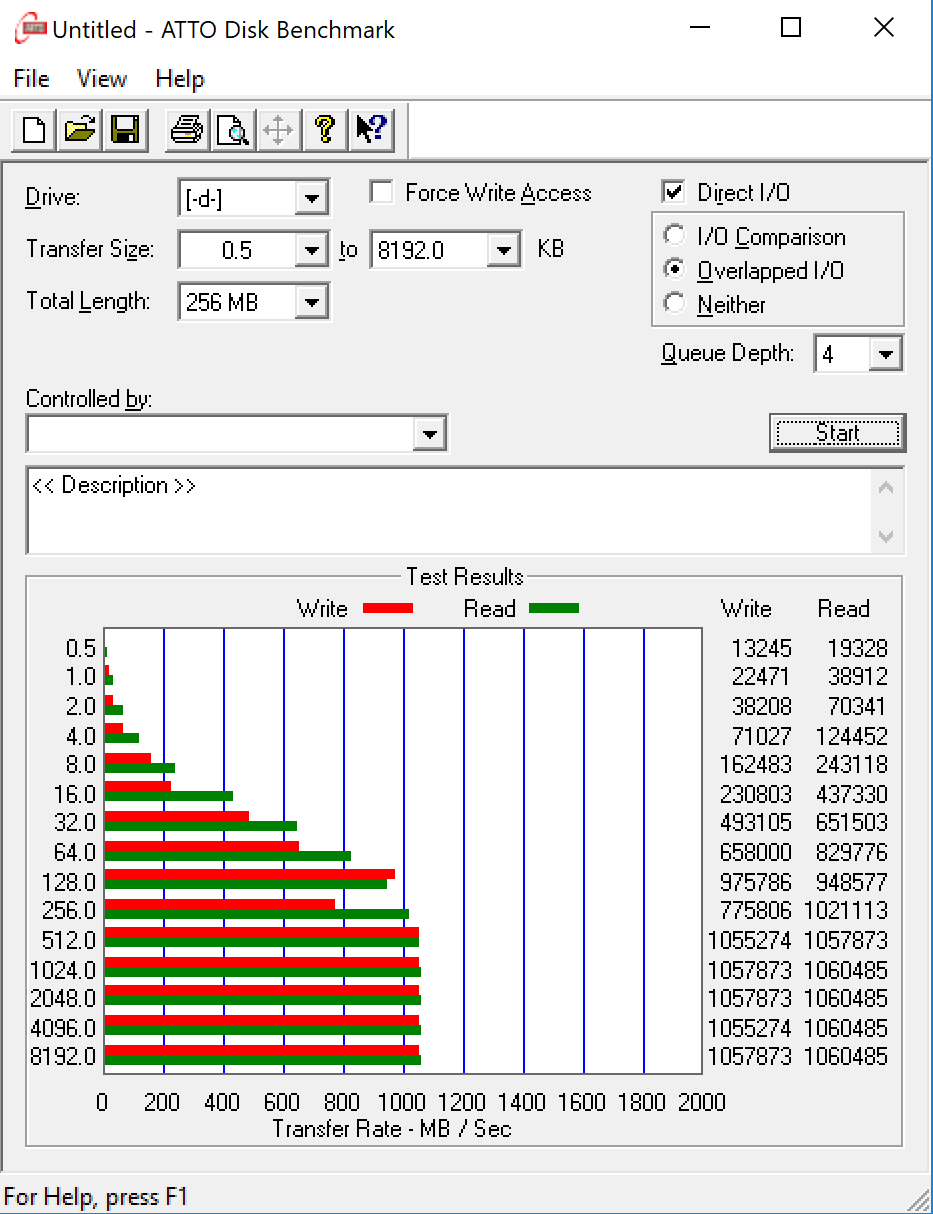

ATTO DISK BENCHMARK VER. 3.05

ATTO Disk Benchmark is perhaps one of the oldest benchmarks going and is definitely the main staple for manufacturer performance specifications. ATTO uses RAW or compressible data and, for our benchmarks, we use a set length of 256mb and test both the read and write performance of various transfer sizes ranging from 0.5 to 8192kb. Manufacturers prefer this method of testing as it deals with raw (compressible) data rather than random (includes incompressible data) which, although more realistic, results in lower performance results.

3
