TEST BENCH CONFIGURATION
|Motherboard||Asus Rampage III Gene SATA 6Gb/s USB3|
|CPU||Intel i7-930 CPU@2.80Ghz (OC’d to 3.2Ghz)|
|RAM||6Gb G.Skill 1600 Triple Channel|
|Graphics||MSI N460GTX DDR5 768MB|
|Power Supply||OCZ ModXStream-Pro 600w|
|CPU Cooler||Cooler Master Hyper 212+|
|OS||Windows 7 64 Bit Ultimate|
|Wifi||Belkin Surf & Share Wireless USB Adapter|
|Monitor||Dell E228WFP 22″ Flat Panel|
|Desktop Case||BitFenix Survivor Mid-Tower ATX Gaming Case (x)|
|Front Loading Mobile SSD Rack||Icy Dock SSD 4 x 2.5″ Mobile Rack (x)|
Software used for testing by The SSD Review consists of Crystal Disk Mark, HDTune Pro, ATTO Benchmark, HDTach, along with FutureMark PCMark Vantage. The first four do a great job of showing us the numbers that we want to see, or don’t want to see in some cases, while PCMark Vantage x64 is an excellent program which recreates tests that mimic the average users activity, all the while providing a medium to measure each.
All tests are conducted in Windows 7 safe mode, wherever possible, as this gives the truest result for evaluation purposes; the sole exception being PCMark Vantage which would not function in safe mode. Where the opportunity exists, tests are repeated to ensure accuracy and consistency of results.

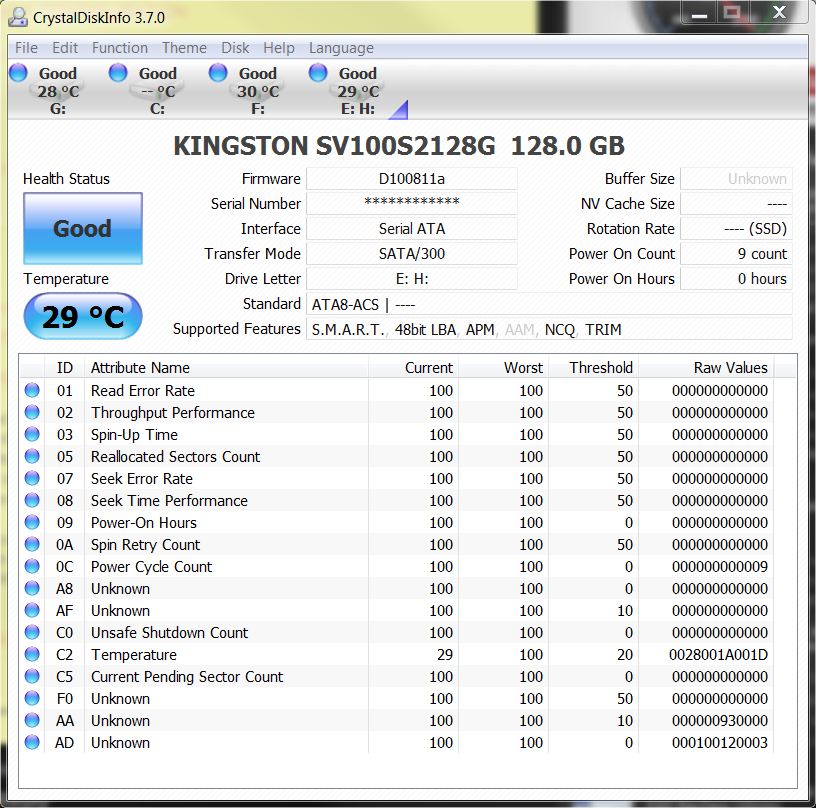

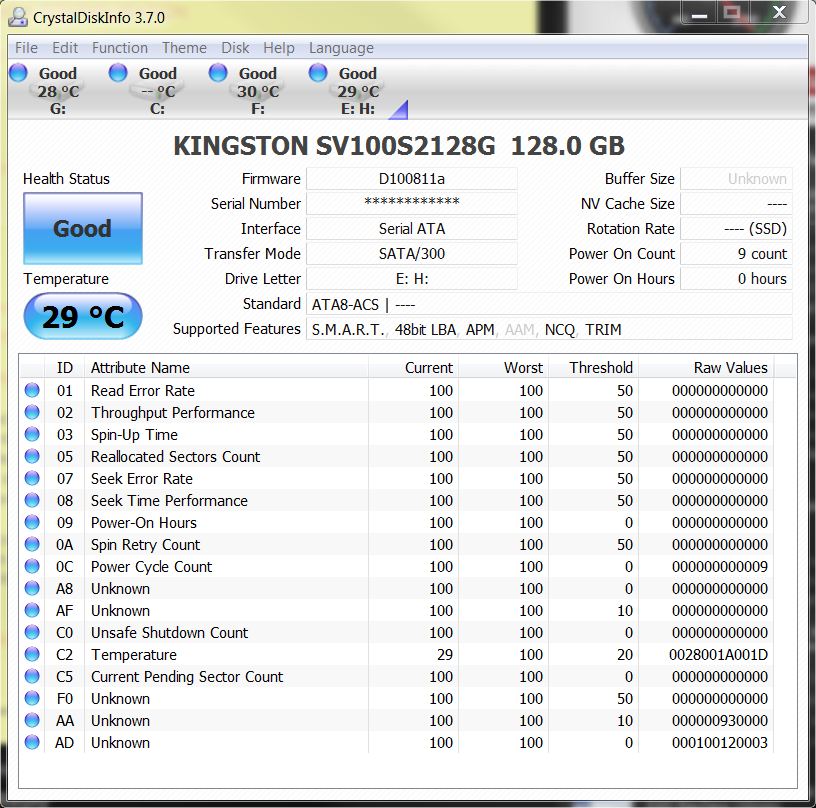

SSD INFORMATION – CRYSTAL DISK INFO

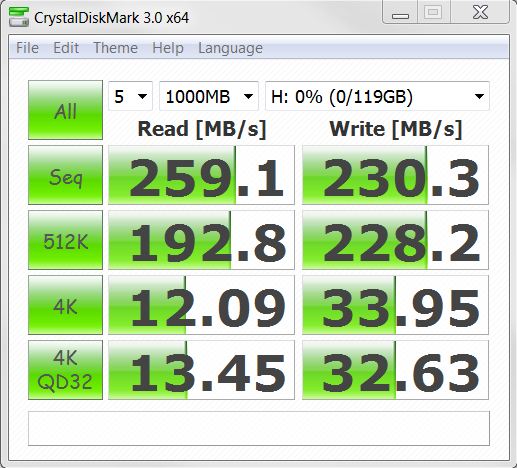

1. Crystal DiskMark Ver. 3.0
We are pleased to say that this certainly isn’t the JMicron 6** series that we have been used to seeing. The drive has TRIM and is pushing these kind of performance scores top end and, as an added bonus, the all important 4k random write performance scores are 5 times better than they have ever been with the earlier 612 and prior JM controllers. . We can’t wait until Vantage testing but lets take a look at a few others for now.

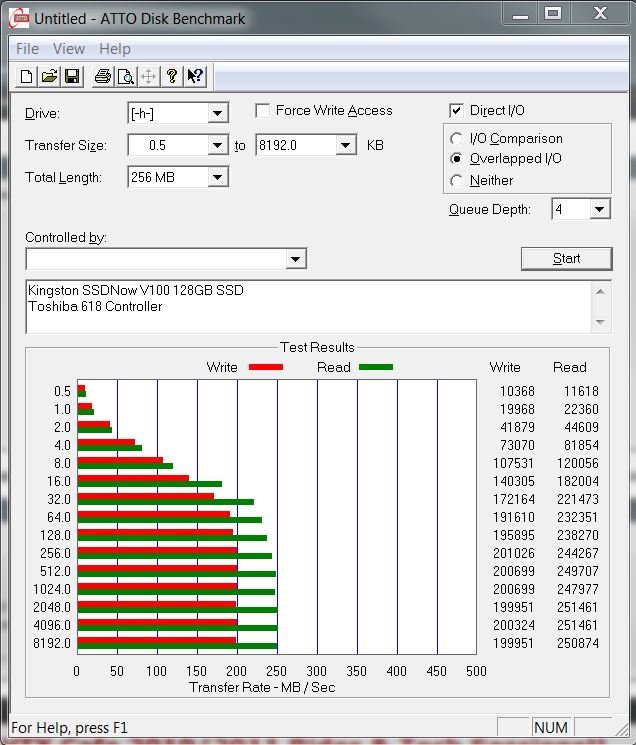

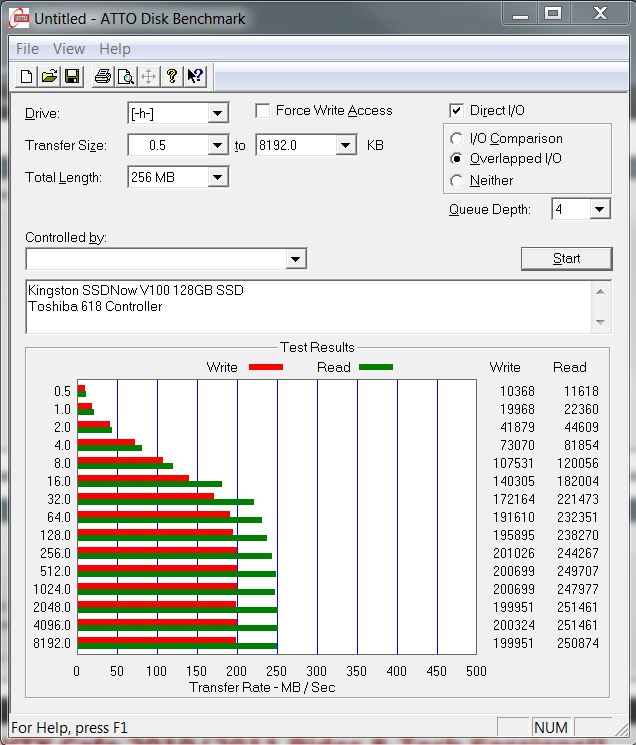

2. ATTO Disk BenchMark Ver. 2.46

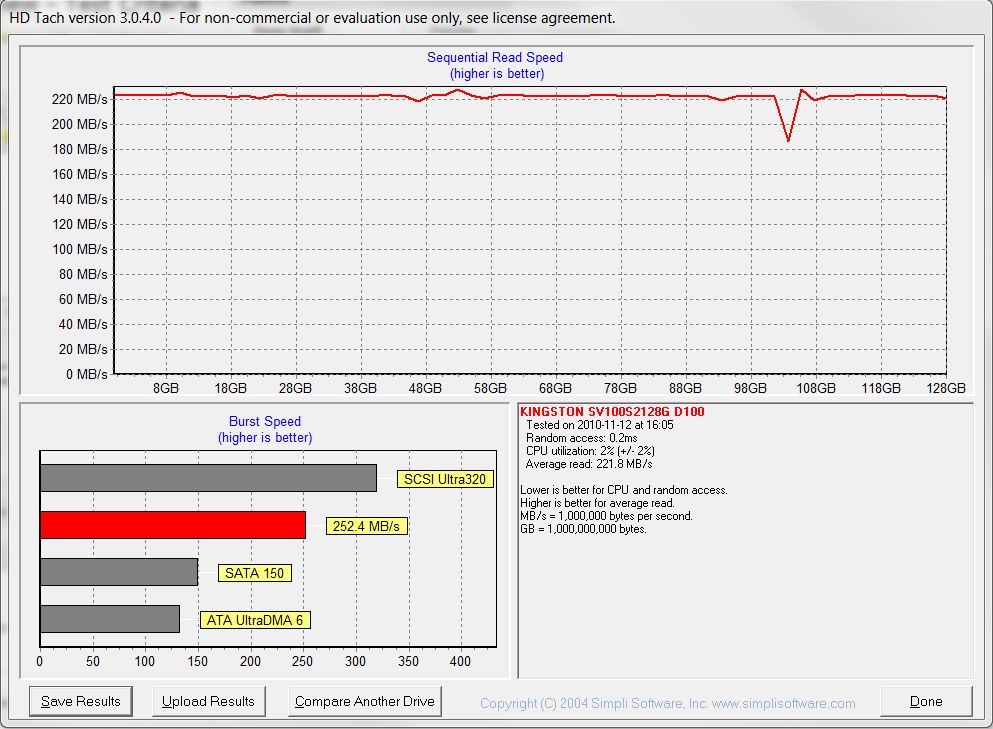

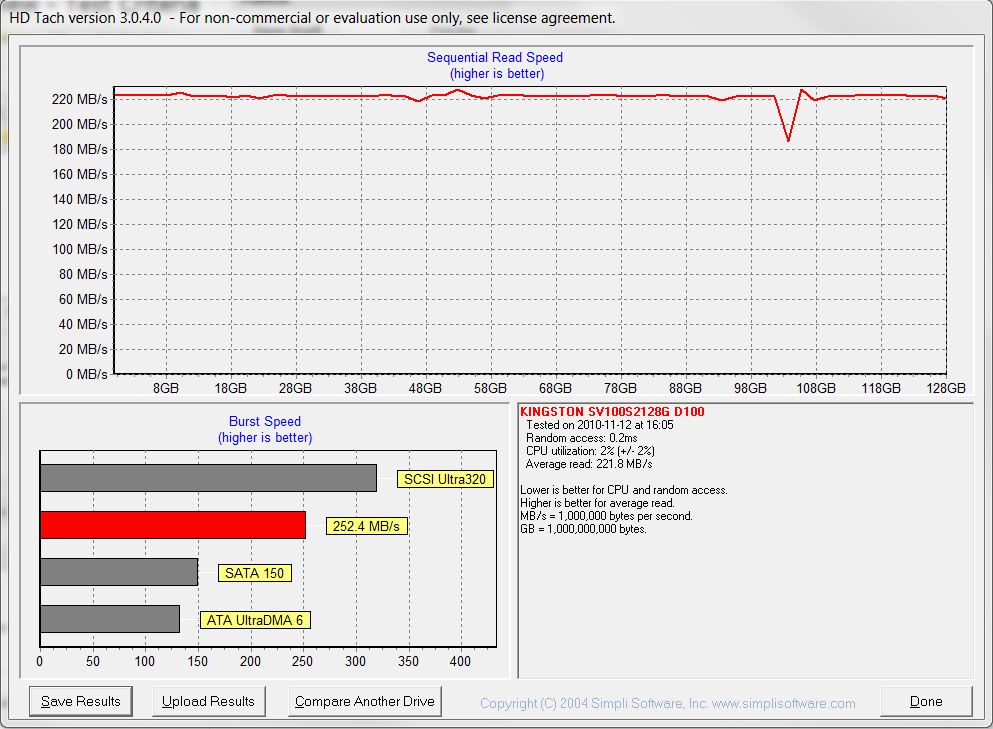

3. HDTach Ver. 22.214.171.124
