Sony VAIO Pro 13 Ultrabook M.2 Native PCIe SSD Review – 1GB/s Performance Fastest Ultra Speed To Date

CRYSTAL DISK BENCHMARK VER. 3.0 X64

Crystal Disk Benchmark is used to measure read and write performance through sampling of highly compressible data (oFill/1Fill), or random data which is, for the most part, incompressible.

VAIO Pro 13 256GB SSD CDM

Once again, very good high sequential data transfer is seen and, as well, the low 4K random write performance result of 80MB/s is encouraging as well.

AS SSD BENCHMARK VER 1.6

Up until recently, AS SSD was the only benchmark created specifically for SSD testing and it uses incompressible data.  AS SSD, for the most part, gives us the ‘worst case scenario’ in SSD transfer speeds because of its use of incompressible data and many enthusiasts like to AS SSD for their needs. Transfer speeds are displayed on the left with IOPS results on the right.

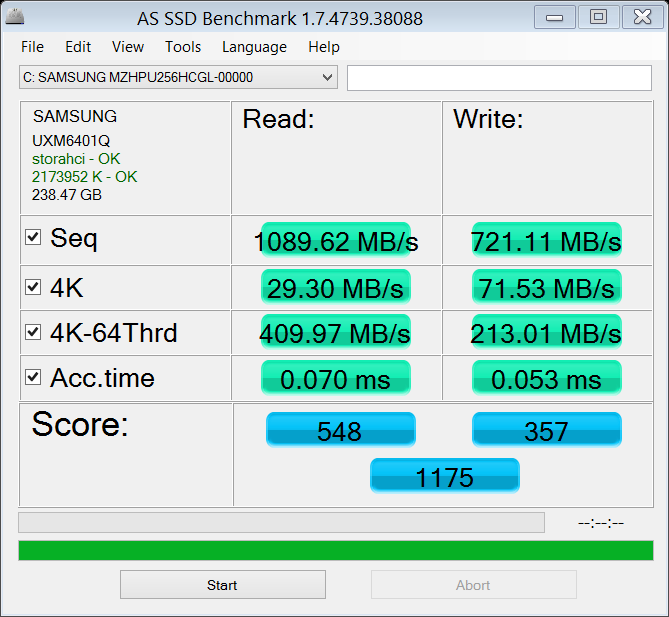

VAIO Pro 13 256GB SSD ASSD BenchVAIO Pro 13 256GB SSD ASSD IOPSAs with all Samsung SSDs, the performance remains stable through even the toughest of benchmarks.  The low 4K-64Thrd read IOPS of 104593 were actually higher than that received when testing our new 512GB sample. As well, the .ISO transfer speed of over 600MB/s in this Copy bench below is also one of the best received yet:

VAIO Pro 13 256GB SSD ASSSD Copy Bench

ANVIL STORAGE UTILITIES PROFESSIONAL (BETA)

You may not see this for long (and it’s definitely not common) but you get a freebee simply for reading! Over the last little while, we have been assisting with beta testing new benchmark software called Anvil Storage Utilities which is an absolutely amazing SSD benchmarking utility. Not only does it have a preset SSD benchmark, but also, it has included such things as endurance testing and threaded I/O read, write and mixed tests, all of which are very simple to understand and use in our benchmark testing.

VAIO Pro 13 256GB SSD Anvil

Anvil Storage utilities results are a bit lower than expected but the benchmark does give us an ideal look at disk access times, as well as ultrabook specifications in the lower left panel.  We wanted to see if we could duplicate the high IOPS we had seen earlier and did some custom IOPS testing:

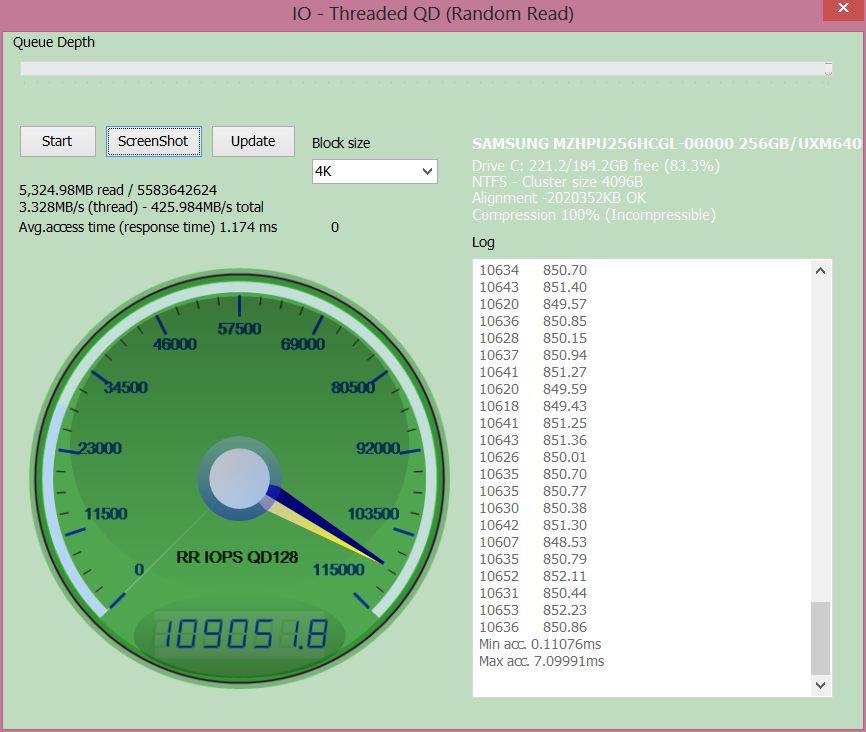

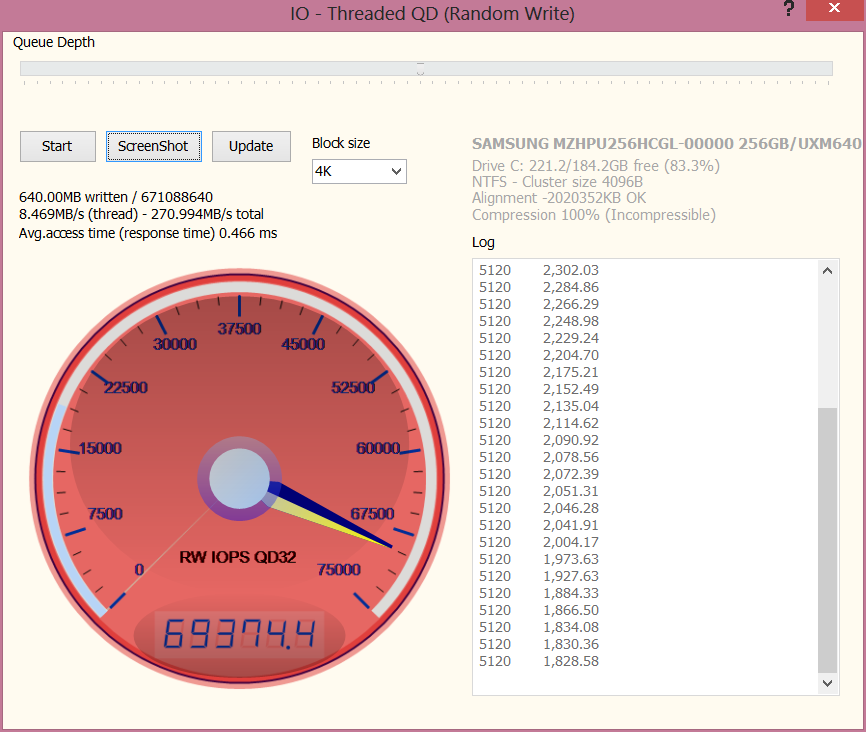

VAIO Pro 13 256GB SSD AnvilRead 109051 IOPSVAIO Pro 13 256GB SSD Anvil Write IOPS 69374When pushing the low 4K queue depth to 128, we were able to stretch IOPS to a high of 109051 read IOPS.

PCMARK VANTAGE X64 HDD SUITE

The SSD Review uses benchmark software called PCMark Vantage x64 HDD Suite to create testing scenarios that might be used in the typical user experience. There are eight tests in all and the tests performed record the speed of data movement in MB/s to which they are then given a numerical score after all of the tests are complete. The simulations are as follows:

  • Windows Defender In Use
  • Streaming Data from storage in games such as Alan Wake which allows for massive worlds and riveting non-stop action
  • Importing digital photos into Windows Photo Gallery
  • Starting the Vista Operating System
  • Home Video editing with Movie Maker which can be very time consuming
  • Media Center which can handle video recording, time shifting and streaming from Windows media center to an extender such as XBox
  • Cataloging a music library
  • Starting application

SONY VAIO PRO 13 PCMARK VANTAGE RESULTS

The Sony VAIO Pro 13 hit a Vantage Total Point high of 118574 with a high transfer speed of 786MB/s when testing in Windows Media Center.  This result was only 479 points short of the XP941 512GB test with a brand new SSD and a great indication of what this ultrabook is capable of.

VAIO Pro 13 256GB SSD Vantage

78 comments

  1. blank

    Hi,

    You say in the report that you were surprised by the power on count and the power hours count. Imagine my surprise to find that my brand new OCZ Vector had six power ons, twelve hours and – wait for it – 4.67 Terabytes of NAND writes on the clock !
    OCZ say that is due to testing but they make no mention of it in the owner manual , or anywhere else that I could find. Considering that the warranty is limited to 36 odd TB ( again not mentioned in the owner manual) then they should tell the consumer about these writes as they do , when questioned, say they make an allowance for this on top of the 36 Gb allowed.

    • blank

      Many companies do burn-in testing and none that we are aware of speak to it in any manuals or literature, albeit 4.67TB might be a bit excessive. It is hard to speak to the size of the write without knowing the size of the drive.

    • blank

      It’s quite possible that during the manufacturing process the controller chip itself is placed in a tester and run through tests using test NAND and/or simulated data feeds. After passing it is then inserted onto the actual SSD card. I don’t believe there’s a way to erase the counters on the controller.

  2. blank

    That adapter looks very interesting. Is one ngff slot hooked up to the slot on the pcb, and the other ngff slot hooked up to the ribbon cable pci-e?

  3. blank

    Is there a way to find out which module you have without opening up the VAIO Pro?

  4. blank

    With the PCIe SSD that’s in my iMac, I “only” get 720MB/s reads, 640MB/s writes. I just installed Win 8.1 Pro on it and I wonder what test results I will get with all the Windows utilities.

    I also wonder if the new iMacs have the same “specially configured” versions of the XP941 that are found in the Mid 2013 MacBook Airs. Apple wouldn’t need to artifically things down in an iMac, though, would they? The thermal considerations that apply in the ultra compact notebooks are not present here, the new and slimmer (2012) design notwithstanding. This thing doesn’t even get warm even though I have the 84W Core i5-4670 in it.

    Why am I not getting better than the aforementioned speeds, if the XP941 is supposed to get over 1GB/s. You mentioned the Mac version had some ridiculously high 118k IOPS, so is the Mac version better at 4K performance, but slower in sequential speeds?

  5. blank

    How can you warn us of the differences between the preconfigured (SATA SSD) and the customized (PCIe SSD) ones and then recommend an Amazon.com purchase?

    If the only way to guarantee a PCIe drive is to customize it from Sony, then that is the ONLY way to buy this ultrabook.

    • blank

      There have been a number of purchases from that link, regardless of the review and our opinion with respect to the storage medium. Our position is not to take away the opportunity to purchase pre-configured systems, but rather, provide the consumer with the best buying position possible. Visibly, there is not a person that could see a difference between either system in typical use.

      Thank you for jumping in and provided your thoughts!

  6. blank

    Regarding your comment;

    “It is interesting to note that, just as a native M.2 PCIe SSD can’t be switched off in a system for a SATA M.2 PCIe SSD, the same goes for adapters and separate adapters must be utilized for each type of M.2 SSD.”

    Waiting for the Samsung Ativ 9 Plus with 8GB RAM and 256GB SSD.
    This computer has a M.2 SSD, but how do I know if it is a native PCIe or Sata drive?
    Also, from my understanding, the first version, currently available has the sata version.

    Few questions:
    1. If i understand you correctly, I can’t just swap a M.2 sata stick, with a M.2 Pcie stick?
    2. Is the connection port the same, and If so, will this damage the motheboard, plugging in the wrong type?
    3. Is it possible that Samsung now comes with M.2 PCIe stick instead of sata, explaining the wait?

    • blank

      Hi Maria and thanks for the visit…

      1. No… You definitely cannot switch off a SATA 3 M.2 for a PCIe M.2 SSD with todays available technology;
      2. The connection would most likely be the same, however, the connection from the female M.2 connector to the system board that it is soldered to differs between types, one following the SATA 3 port and the other following the PCIe lane; and
      3. The ONLY way to answer that is by watching the specs of the product. Samsung presently has both SATA 3 M.2 and the XP941 which is a PCIe M.2 SSD; we haven’t had an opportunity to test the SATA 3 M.2 although we have the spec sheet.

      Hope this helps!

      • blank

        Thanks for the quick reply and good answers!
        Great site btw.
        This site, is really the only place that has good and valid information regarding this “new” m.2 ssd’s and the reviews are exciting!

        The only thing I can’t really understand, is why they made the M.2 sata3 ssd, clearly it would have been better with just one type of drive, preferably the PCIe SSD. Buying a premium ultrabook with SATA 3 M.2 feels wrong, when I know there is a better alternative, just my 2 cents 🙂

      • blank

        It all comes down to a smaller form factor, larger capacities and savings. Last year, when M.2 was first being looked at, they were all PCIe SATA 3 design and manufacturers invested in that, a smaller form factor.

      • blank

        Are you sure #1 and #2 are correct? Did you try swapping drives in one of these systems? I understand your HBAs are different but from my reading of the M.2 spec every interface type that supports SATA also has PCIe built in (types B and M). Is it that the manufacturers aren’t following the spec and leaving the PCIe lanes unconnected? That seems needlessly complicated to make 2 different boards depending on the type of M.2 drive going into it.
        The physical connector from drive to M.2 is definitely the same between them so I’m curious if the M.2 to system board is really different and if you confirmed this or are just guessing. Thanks for the great review by the way!

      • blank

        We tried both PCIe and SATA in several different devices and scenarios. Sony told me in an e-mail that of which we wrote which was that specific pre-configured systems were M.2 SATA based. In our tests, the Sony VAIO that was received initially (SATA) would not recognize the XP941 when inserted. I agree with what you wrote on the two different boards; the answer was also responded to with an affirmative by Sony. It is not just Sony though. Many people dont realize that the M.2 SSD got its name from a M.2 connector, one that can be used for several different purposes with the same ‘connector’ physical makeup. Remember, these are our opinions in our pretty detailed use of M.2. We understand that, by specs, a M and B keyed M.2 SSD should be able to do SATA or PCIe x2 because the specs say so, however, we haven’t seen this, and quite possible its because we only have a X4 PCIe and not a X2. ahem… Stay tuned as we may be receiving an X2 soon enough to tackle that.

      • blank

        Thanks for the quick and detailed reply. I am sad to hear that news. I was hoping M.2 would introduce a bit of standardization, miniPCIe/mSATA was a nightmare for consumers, no way to easily tell what devices/capabilities would actually work (lots of examples of latops with slots that couldn’t boot mSATA or would only work with specific cards, etc). My thought was that M.2 will be much more straight forward with capabilities defined by the connector key ID type, otherwise what is the point of even having key IDs. Oh well guess OEMs will continue to do whatever they want 🙁

        One question your reply does raise: so the PCIe XP941 is an X4 device, I wonder if Sony uses a B connector in the devices that ship with the SATA XP941 (B only supports X2) and then uses an M connector (which does X4 and SATA only) in the devices with the PCIe XP941? Did you try the reverse: putting the SATA XP941 in a VAIO that came with PCIe XP941? Or did you see a difference in the connectors? That would make more sense from a manufacturer perspective as the B slot gives them more options for device types (USB/PCM/UIM/SSIC/UART-12C) than the M connector, so the M is only special order.

        Will be interested to see your updates with X2 drives, and hopefully someone releases a real NVMe drive sometime soon!

      • blank

        NVMe will be with SP951 by Samsung sometime soon. It was announced about half a year ago to be released by end of 2014.

  7. blank

    “The negatives of constant fan noise and the resulting heat become much more manageable.”

    For me the noise would be a disqualification of an otherwise highly desirable machine.

  8. blank

    does the sony vaio have 2 ssd’s in raid 0? or is it one pcie ssd? some tech guy at a custom laptop website told me this sony vaio is 2 msata ssds in raid 0,
    do you recommend any custom high performance laptop compaines that offer the pcie ssd (like sony and macbook air)?
    thank you for detailed information about this new product

    • blank

      The only ultra released that has two SSDs in RAID is the Acer S7 we reviewed here, and they are still a custom dual sided single PCB SSD design. The Sony has a single Samsung XP931 M.2 PCIe design (or SATA M.2) as we pictured and tested with separate Sony systems. Link the article to the tech guy and tell him he might want to know his material before providing advise that could affect consumer purchase.

      • blank

        The only ultra released that has two SSDs in RAID is the Acer S7 we reviewed here, and they are still a custom dual sided single PCB SSD design. The Sony has a single Samsung XP931 M.2 PCIe design (or SATA M.2) as we pictured and tested with separate Sony systems. Link the article to the tech guy and tell him he might want to know his material before providing advise that could affect consumer purchase.

  9. blank

    Hi Les. I bought my own Vaio 13 Pro after Sony had announced they had sold the division to an investment fund. So I couldn’t chose the configuration of my product, which came with a 128 SSD only. I would like to upgrade to a 512 SSD but I am a complete neophyte. Would it be possible for you to indicate if there are any step by step tutorials on how to do this, starting from how you open the machine, please?

  10. blank

    I am just getting to this forum now. I purchased a Sony VAIO ultrabook 13 over a year ago. Per the discussion, I ran Crystal Diskinfo to discover that the installed SSD is SAMSUNG MZHPU128HCGM-00000 128.0GB. I show the interface method as Serial ATA and transfer mode as SATA/600 | SATA/600. It seems that I have a SATA version of the SSD.

    I have a few questions. 1) Is there an upgrade path to 256GB and 515GB for this SSD
    2) Is it certain, at this point that I cannot substitute the PCIe version of the SSD for my SATA version?
    3) If I upgrade, how difficult is it to transfer my current SSD’s OS, data, and applications to the new SSD (I’m running Windows 8.1)? Do I need commercial software to do that?

    Thanks for your thoughts here.

  11. blank

    Judging by the pictures I have a PCIe model, but when I try to clone the old 128 GB drive to a new 512 GB drive, the computer doesn’t recognize the new drive at all, even using a boot thumbdrive and looking at disk management through mini winxp. Any idea of why it wouldn’t?

  12. blank

    Hi, I have this laptop!! And I want to Know If I can upgrade to the new Samsung 950 PRO(256gb) NVMe or is Better the SM951(256gb) ?
    https://www.amazon.com/Samsung-950-256GB-PCIe-NVMe/dp/B01639696U/ref=sr_1_2?s=pc&ie=UTF8&qid=1446647886&sr=1-2&keywords=950+PRO

  13. blank

    I recently bought an xps 13 9350 with a SAMSUNG SSD CM871 M.2 2280 128GB (B+M key), would I be able to upgrade to a 950 PRO PCIe NVMe(M key) sometime down the line?

    • blank

      Did you ever find out on this one? I’m in EXACT situation…xps 13 9350 with the cm871 in it and the 950 pro will be here tomorrow. Not 100% sure this will work and/or if it does work if the controller on this version of it doesn’t have all 4 lanes available? I can’t seem to find definitive info on it.

      • blank

        The 950 Pro is a NVMe SSD asnd shouldn’t work in that system; please advise when you find out. That system is built for a AHCI SSD and not NVMe.

      • blank

        So did you get it to work?

      • blank

        Yup, worked fine, but you do have to disable data in bios and install the drivers for it as well. Don’t have the details handy here, but do some googling and you’ll find what you need. But, once installed, bios does pick it up immediately.

  14. blank

    Hello Les,
    According to your recommendation below, I have purchased new 512GB SSD (SAMSUNG MZHPV512HDGL-00000). However, Sony Vaio Pro13 bios can not detect new SSD (Hard Disk Driver : None), although the SSD is accessible when starting up with Bootable CD.
    Now, what can I do to solve this problem?

  15. blank

    Les@TheSSDReview:disqus hello!

    I have a sony svp1322 and MZNTE128HMGR-000SO is installed inside. As i figured out it’s a SATA III M.2 SSD.
    Now Im considering whether to buy 256gb ssd or 512 one. I have already found 256gb candidate.
    However, im curious about 512gb variants. Could u suggest smth? Will this one do the trick https://www.amazon.com/Samsung-512GB-PM851-MZ-NTE5120-MZNTE512HMJH-00H1/dp/B01A855VWS/ref=sr_1_1?s=pc&ie=UTF8&qid=1458174865&sr=1-1&keywords=mznte512hmjh ?
    Is there any possibility, that BIOS won’t recognize it as it went with AHCI ssd? How can i check this possibility?

    Thank you a lot for your time and attention!

  16. blank

    Hi, does anyone know what is the part next to the wifi card ? in the pictures it is covered in a metal holed case ?

  17. blank

    Hello , I have sony SVP13213CGB (Pro 13) and i would like to upgrade ssd , i was thinking to buy samsung pro 950 512 gb (MZ-VKV512) but after reading your articles, i have doubt if laptop works or not .. Is anyone tried before ? Thanks

  18. blank
    Angela Jennifer Aroemrasni

    hi, I need help,,, 🙁 Im using sony vaio pro 13. Recently I always have a problem with my laptop. It always turn into blue screen “yor pc run into a problem …… need restart” every 5 or 10 minute after I turn on the laptop. Is it because my SSD is broken?

    • blank

      Try to take out the SSD and put it back in after 5 or more minutes. I have similar problem lately and it does work for my computer.

    • blank

      I think so, have same problem like you. After i go to sony service station and test my SSD. Yes, it’s broken and fixing is so expensive. I’m considered to change SSD DIY.

  19. blank

    can we use a normal sata ssd in this pcie port? THX in advance.

  20. blank

    Hello Les, I have a SVP13215PXB with a MZHPU256HCGL.

    Device Manager as well as Amazon/Newegg reports the SSD model as a PCi-e
    CyrstalDiskInfo, however, reports it as a Serial ATA interface. Which should I believe or do I have to tear apart the laptop?

    Also: point of all of this is I planned to get a 1tb SAMSUNG (960 PRO or 960 EVO) when it releases in (hopefully) October. I see sparse unsupported posts in Sony Vaio Pro 13 threads saying sizes greater than 512gb won’t work. They don’t cite sources and they’re older posts. Do you happen to know if this is true?

    Thank you.

  21. blank

    Hello !
    Thanks for this enlighting article.
    I have a sony vaio multi-flip svf13n1c5e with a MZNTD256HAGL that seens to be a sata 3.
    Do you thing it would be possible to upgrade with a PCIe (or NVMe, is it the same ?) drive ? Like the samsung 960 EVO NVMe M.2 500GB ?
    Or must I use only sata, like the samsung SSD 850 EVO SATA M.2 ?
    How can I check if my system is compatible with PCIe and sata ?
    Thanks in advance !
    Regards

  22. blank

    hi les, the ssd of my Sony vaio duo svd11216pg seems damaged. what would you suggest me to get as a best replacement?

  23. blank

    dear all,

    I have a sony svp 132a1cw and Samsung XP941 128GB NGFF M.2 SSD HDD MZ-HPU128T/000 is installed inside. So i want to replace by SSD SAMSUNG M.2 850 EVO Sata3.
    I don’t knowmy system is compatible with it ?

    Thanks

  24. blank

    Its possible to replace the original M.2 AHCI SSD by a new M.2 NVMe SSD.
    This is how to: https://www.win-raid.com/t1072f16-Sony-VAIO-BIOS-modding-hacking-unlocking-Some-Questions-3.html#msg34551

  25. blank

    I have bought a Samsung 970 evo plus m.2
    I cannot seem to get it working on my Sony Vaio SVP132A1CM
    The ssd is a 1Tb

    Any idea on this why it may not be recognising the ssd hard drive

  26. blank

    The maximum size SSD is 512GB for that old machine ..

  27. blank

    Sony Vaio svp11213cxb

    Old ssd: Samsung 128gb
    mzntd128hagm

    Will new one work?
    Western digital black sn750 500gb

    And just to be sure form your previous reply,
    1tb will not work? 512gb limitation?
    Thanks

  28. blank

    From what I’ve read online it looks like bios modification is required. If that’s the case I will just settle for the WD 500 blue sata m2 for extra space and still faster than the original ssd.

  29. blank

    I kept a pcie ssd from a vaio pro 13 that failed. I bought a generic reader from ebay but it wouldn’t mount this drive. I think it was an issue of it being a b or b/m key reader not a m key. Can anyone with technical knowledge of this recommend a USB reader for one of the pcie based ssd drives from this laptop? If not specifically, then the spec requirement.

    • blank

      The difficulty here is that your SSD is a PCIe SSD that is not based on the NVMe protocol. I don’t know if there is a reader for that and, in fact, finding a replacement SSD might be a tad difficult as well.

  30. blank

    I have a Sony Vaio Pro 13 SVP132A1CL with 256GB MZHPU256HCGL-00000 SSD. Tried to upgrade with a M2 NVME PCIe SSD but BIOS won’t even detect it. Saw from youtube someone mentioning that only M2 SATA SSD would work, so went ahead to get a 1TB Timetec SATA 3 M2 2280 SSD. It worked, with Windows 10 freshly installed!!
    Now, I don’t seem to be able to find an enclosure for this 256GB MZHPU256HCGL-00000 SSD. None of my PCIe, SATA or Dual PCIe/SATA enclosures worked.
