TSSDR TEST BENCH AND PROTOCOL
SSD testing at TSSDR differs slightly, depending on whether we are looking at consumer or enterprise SSDs. For consumer SSDs, our goal is to test in a system that has been optimized with our SSD Optimization Guide. To see the best performance possible, the CPU C states have been disabled, C1E support has been disabled, Enhanced Intel SpeedStep Technology (EIST) has been disabled. Benchmarks for consumer testing are also benchmarks with a fresh drive so, not only can we verify that manufacturer specifications are in line but also, so the consumer can replicate our tests to confirm that they have an SSD that is top-notch. We even provide links to most of the benchmarks used in the report.
This Test Bench build was the result of some great relationships and purchase; our appreciation goes to those who jumped in specifically to help the cause. Key contributors to this build are our friends at ASRock for the motherboard and CPU and be quiet! for the PSU and cooling fans. Also, a big thank you to Thermaltake for the case and Kingston for the RAM. We have detailed all components in the table below and they are all linked should you wish to make a duplicate of our system as so many seem to do, or check out the price of any single component. As always, we appreciate your support in any purchase through our links!
|PC CHASSIS:||be quiet! DARK BASE 900|
|MOTHERBOARD:||ASRock Z170 OC Formula|
|CPU:||Intel Core i7-6700K|
|CPU COOLER:||Corsair H75|
|POWER SUPPLY:||be quiet! Dark Power Pro 11 1000W|
|SYSTEM COOLING:||be quiet! Silent Wings 2|
|MEMORY:||Patriot Viper Elite Series DDR4|
|STORAGE:||Samsung 950 Pro|
|OS STORAGE:||Samsung 960 EVO|
|OS:||Windows 10 Anniversary 64-bit|
The software in use for today’s analysis is typical of many of our reviews and consists of Crystal Disk Info, TRIMcheck, ATTO Disk Benchmark, Crystal Disk Mark, AS SSD, Anvil’s Storage Utilities, HDTune, and PCMark 8. We prefer to test with easily accessible software that the consumer can obtain, and in many cases, we even provide links. Our selection of software allows each to build on the last and to provide validation to results already obtained.
Crystal Disk Info is a great tool for displaying the characteristics and health of storage devices. It displays everything from temperatures, the number of hours the device has been powered, and even to the extent of informing you of the firmware of the device.

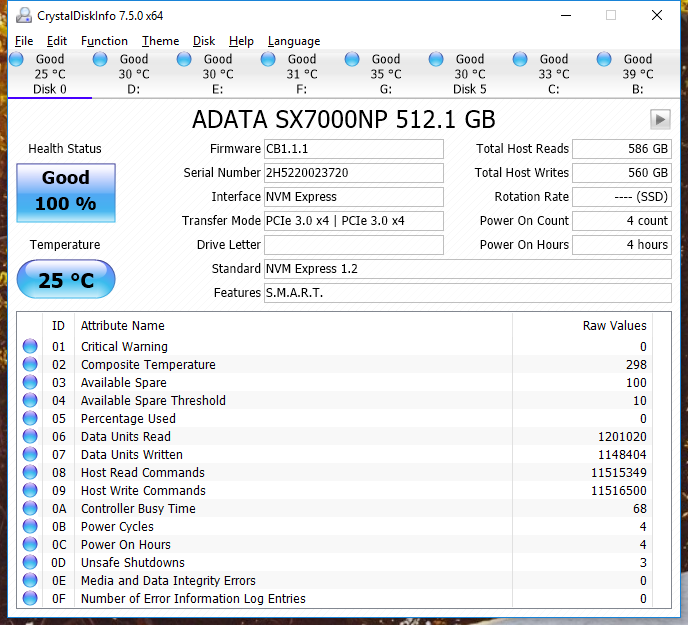

In Crystal Disk Info we can see quite a few useful attributes we can monitor. You can easily monitor total Host Reads and Writes as well as the temperature and power on count and hours. CDI also reveals that the XPG Gammix S10 is an NVMe 1.2 spec’d device. The firmware we are testing today is CB1.1.1.
We’ve covered TRIMcheck in the past. It is a great tool that easily lets us see if TRIM is actually functioning on an SSD volume in your system.

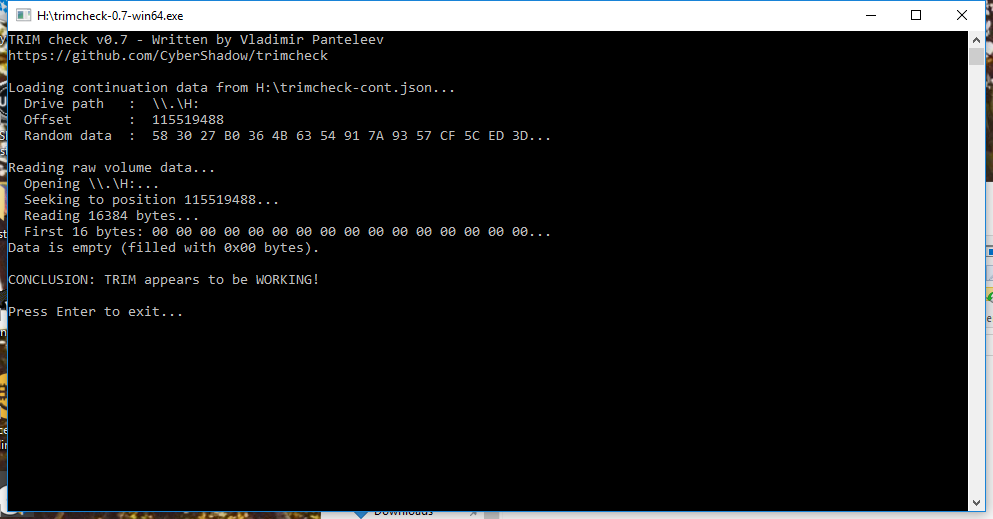

As can be seen in the screenshot above, TRIMcheck’s result is positive. TRIM is indeed working on the ADATA XPG Gammix S10.
