Memoright MS-701 mSATA SSD Review – SF-2281 Performance and 240GB Capacity Earns Top Marks

Our report today will examine the Memoright MS-701 mSATA SSD. The MS-701 is the first of it’s kind as it is the only SATA 3 SandForce Driven mSATA SSD in existence at the 240GB capacity point.

Even better news is the fact that Memoright, a company that has remained loyal to enterprise and business sales traditionally, has set up shop in the ‘good ole’ USA and the MS-701 will be available through the consumer channel soon enough. Stay tuned for our update on this!

INTRODUCTION

It is no secret that I have a particular fondness for the presence and advance of mSATA SSDs.  I have to admit that, other than the fact that such high performance can be thrown into an SSD 1/3rd the size of a business card, even I haven’t the ability to use these drives at their full potential just yet.

I can’t even pinpoint the one thing that I like most about mSATA SSDs but their potential always comes to mind.  It’s true that my favorite past time is seeking the lightest, highest performing and highest capacity ultrabook in existence.  I also enjoy watching the advance of caching solutions, such as NVELO Dataplex, and the possibilities that exist with mSATA SSDs. The thought of mSATA SSDs allows my mid to wander a bit as well.  For instance, why can’t something this small be built right into the systems motherboard from the start?  Wouldn’t it be cheaper?

Or, if I can fit four of these into a typical 2.5″ form factor, can I not technically RAID 4 x SF-2281 processors and also have 960GB capacity in a single SSD.  Ok….yes I am wandering a bit and understand that the SATA interface presently restricts my dream but these are the ideas that the mSATA form factor creates.  It’s potential is limitless and it is still in its infancy.

SPECIFICATIONS

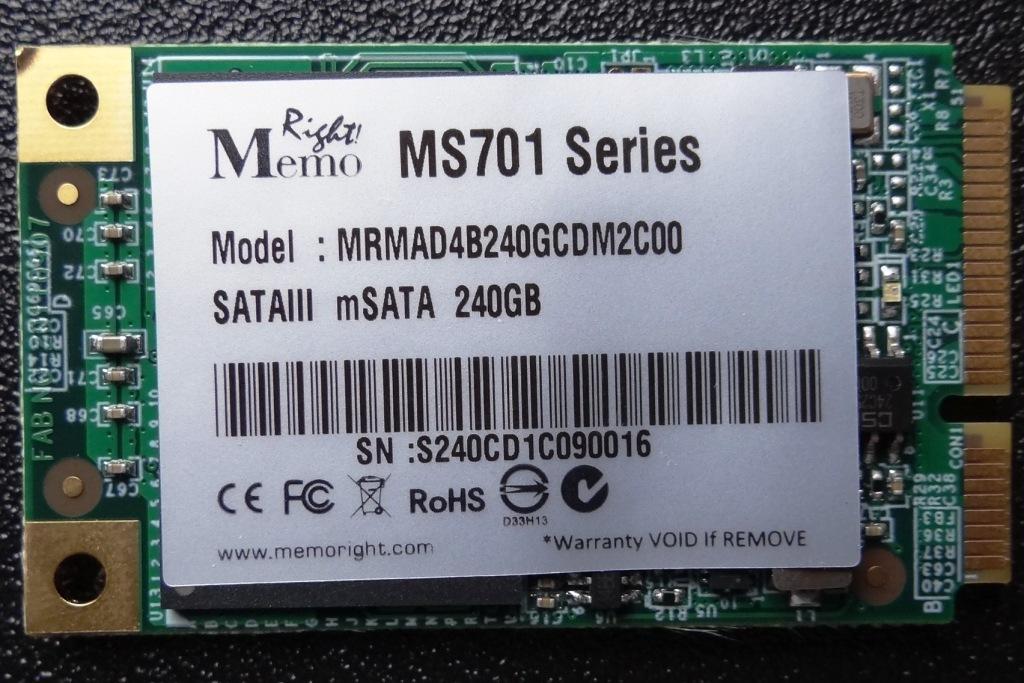

Memoright is marketing both the MS-700 and MS-701 family of mSATA SSDs, both of which are ‘SandForce Driven’ with the MS-700 being SATA 2 and available in capacities of 30 and 60GB, which would be ideal for caching.  The MS-701 is SATA 3, available in capacities of 30, 60, 120 and 240GB (our test sample) and specifications list performance at 550MB/s read and 500MB/s write with 25,000 IOPS at 4k random aligned write disk access.

MS-701 COMPONENTS

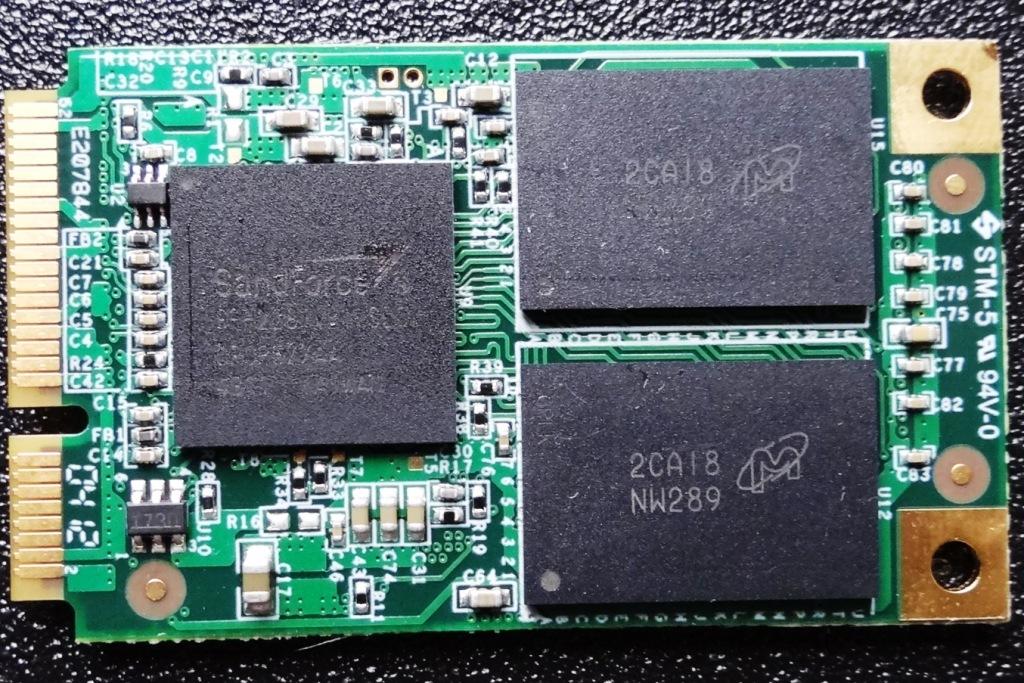

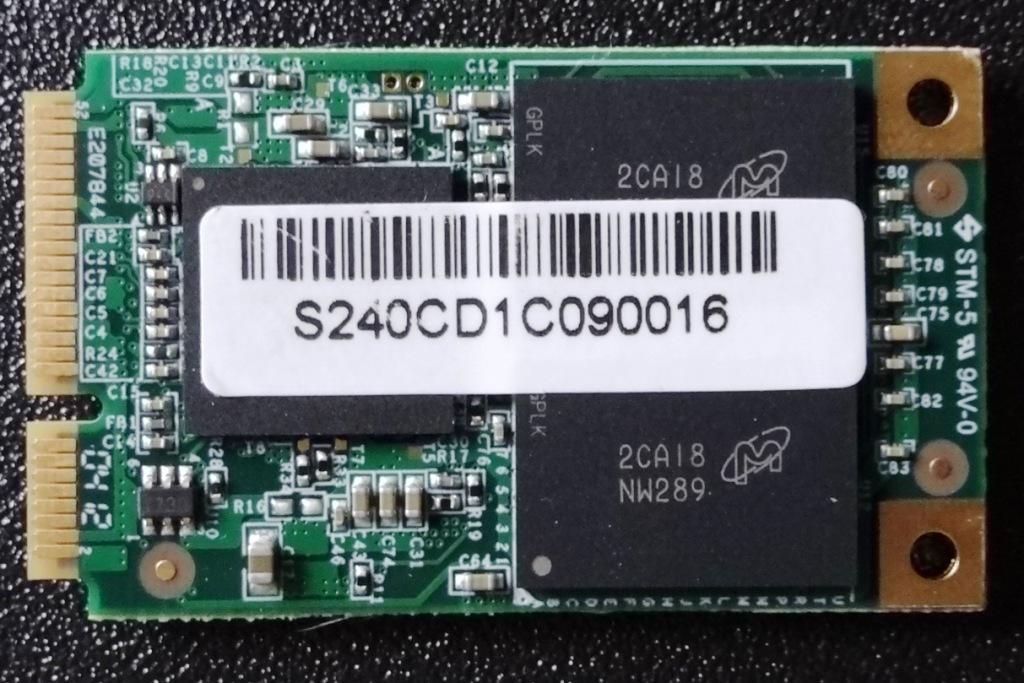

The MS-701 is the second mSATA SSD to contain the LSI SandForce SF-2281 SATA 3 processor, the first being the Runcore T50 mSATA which we reviewed previously.  It also contains four modules of Micron 25nm mlc asynchronous NAND flash memory with each module being 64GB in capacity.

Total RAW capacity of the MS-701 is 256GB, however, 16GB remains proprietary to the SSDs over provisioning and firmware needs which reduces it to the advertised capacity of 240GB.  After formatting, the end user capacity is brought down a bit further to 224GB.
