Crucial MX300 SSD Review (1050GB) – Micron 3D NAND Meets RAID 0

CRYSTAL DISK BENCHMARK VER. 4.0.3 X64

Crystal Disk Benchmark is used to measure read and write performance through sampling of random data which is, for the most part, incompressible. Performance is virtually identical, regardless of data sample so we have included only that using random data samples.

Single

1TB Crucial MX300 cdm

RAID 0

1TB Crucial MX300 RAID 0 cdm

Crystal Disk Mark also shows that the 1050GB MX300 delivers very good mainstream performance. Nearly 1GB/s read and write were reached in RAID 0. 4K numbers are good in both single drive and RAID 0 configurations. On an interesting note, 4K QD 32 speeds didn’t increase much when utilizing one worker, therefore to get the most out of the RAID 0 config, the software needs to utilize multiple threads, not just one.

AS SSD BENCHMARK VER 1.8

The toughest benchmark available for solid state drives is AS SSD as it relies solely on incompressible data samples when testing performance. For the most part, AS SSD tests can be considered the ‘worst case scenario’ in obtaining data transfer speeds and many enthusiasts like AS SSD for their needs. Transfer speeds are displayed on the left with IOPS results on the right.

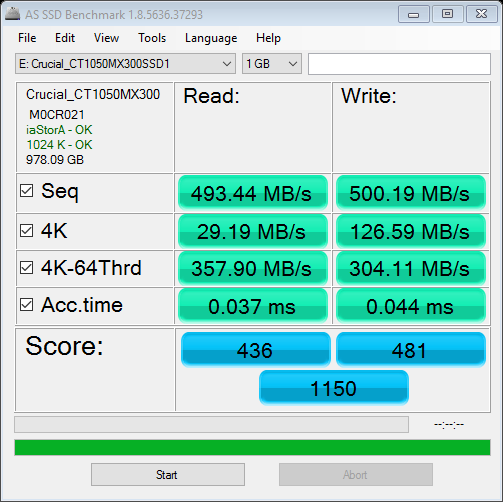

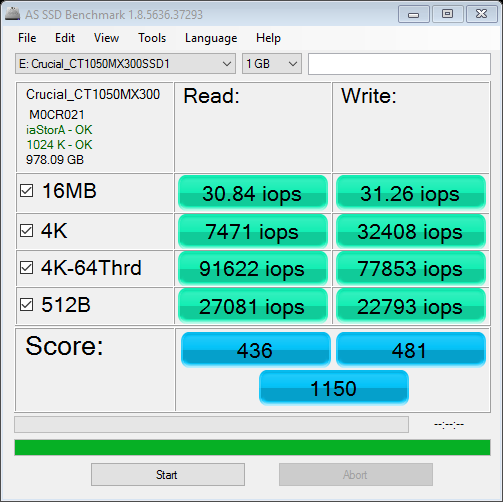

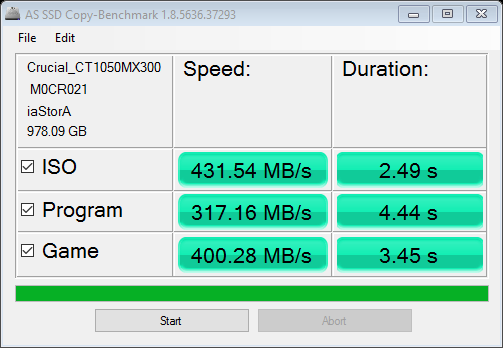

Single

1TB Crucial MX300 as ssd 1TB Crucial MX300 as ssd iops 1TB Crucial MX300 AS SSD Copy

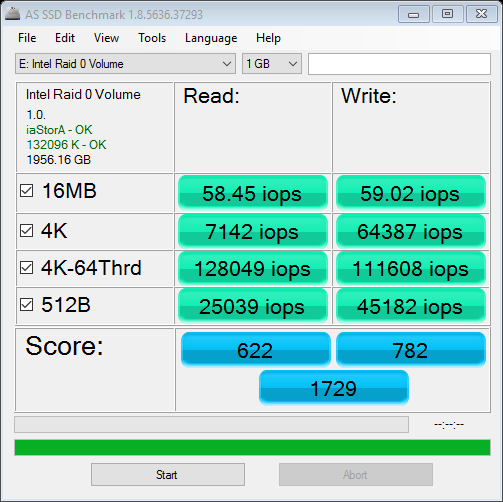

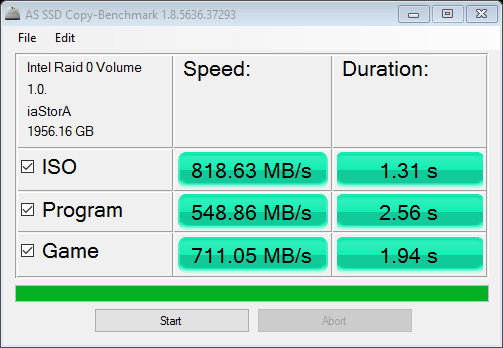

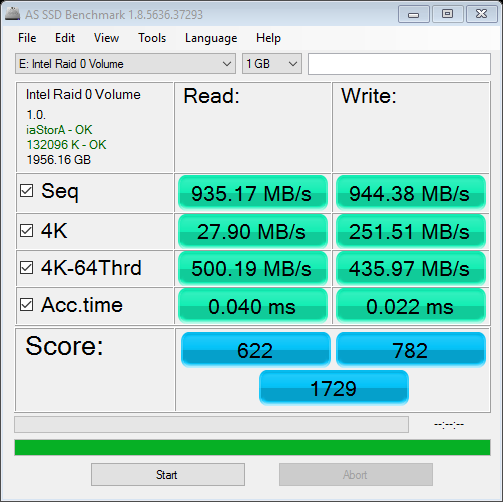

RAID 0

1TB Crucial MX300 RAID 0 as ssd 1TB Crucial MX300 RAID 0 as ssd iops 1TB Crucial MX300 RAID 0 as ssd copy

In AS SSD, the 1050GB Crucial MX300 attained an overall score of 1150 points and 1729 in RAID 0. Overall, the speeds are very similar to that of the 750GB model. In RAID 0 the sequential speeds reached 935MB/s read and 944MB/s write. QD1 4K read speed decreased slightly, but write speed doubled. Furthermore, we were able to reach 128K IOPS read and 111K IOPS write when in RAID 0. During the copy test the speed nearly doubled in all benchmarks. A best of 818MB/s was achieved during the ISO portion.

ANVIL STORAGE UTILITIES PROFESSIONAL

Anvil’s Storage Utilities (ASU) are the most complete test bed available for the solid state drive today. The benchmark displays test results for, not only throughput but also, IOPS and Disk Access Times. Not only does it have a preset SSD benchmark, but also, it has included such things as endurance testing and threaded I/O read, write and mixed tests, all of which are very simple to understand and use in our benchmark testing.

Single

1TB Crucial MX300 anvil

RAID 0

1TB Crucial MX300 RAID 0 anvil

Finally, AS SSD mirrors over the results we have seen in our other benchmarks. Sequential speeds double in RAID 0, 4K write doubles while read does not, but overall, we see a nice improvement in performance.
