The Memoright FTM Plus SATA 3 240GB SSD Review


ATTO Disk Benchmark is perhaps one of the oldest benchmarks going and is definitely the main staple for manufacturer performance specifications. ATTO uses RAW or compressible data and, for our benchmarks, we use a set length of 256mb and test both the read and write performance of various transfer sizes ranging from 0.5 to 8192kb. Manufacturers prefer this method of testing as it deals with raw (compressible) data rather than random (includes incompressible data) which, although more realistic, results in lower performance results.

The specifications of the FTM Plus detail performance at  550MB/s read and 500MB/s write and our results bettered that with highs of 559MB/s and 523MB/s which is a great start!

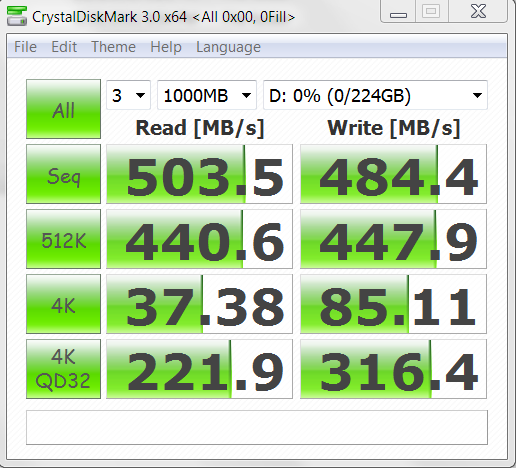

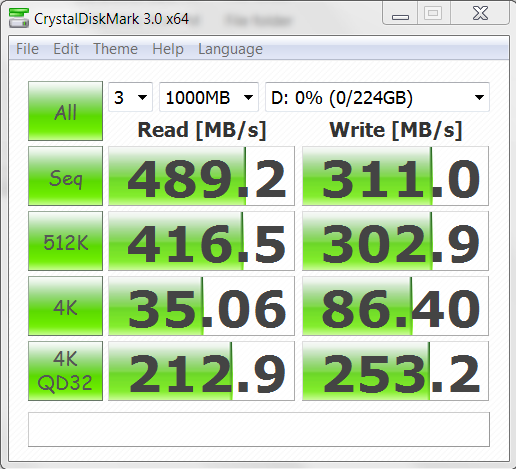

Crystal Disk Benchmark is used to measure read and write performance through sampling of raw (0/1 Fill/compressible) or random data which is, for the most part, incompressible. Many new SandForce Driven SSD owners who cant wait to test the performance of their SSD often grab this program and run a quick test, not realizing that they are testing with incompressible data rather than compressible data used in testing by manufacturers.  We have provided compressible (oFill) results on the left with incompressible (random data) results on the right.

blankblank We can see that the  4k random write performance sits at 85-86MB/s which is a great result along with a decent sequential write score of 311MB/s for incompressible data on the right.

Having performance results in the area of 300MB/s for sequential disk access tests of incompressible data is an excellent indicator that the SSD utilizes premium synchronous NAND flash memory.  Asynchronous memory would have shown results much lower.

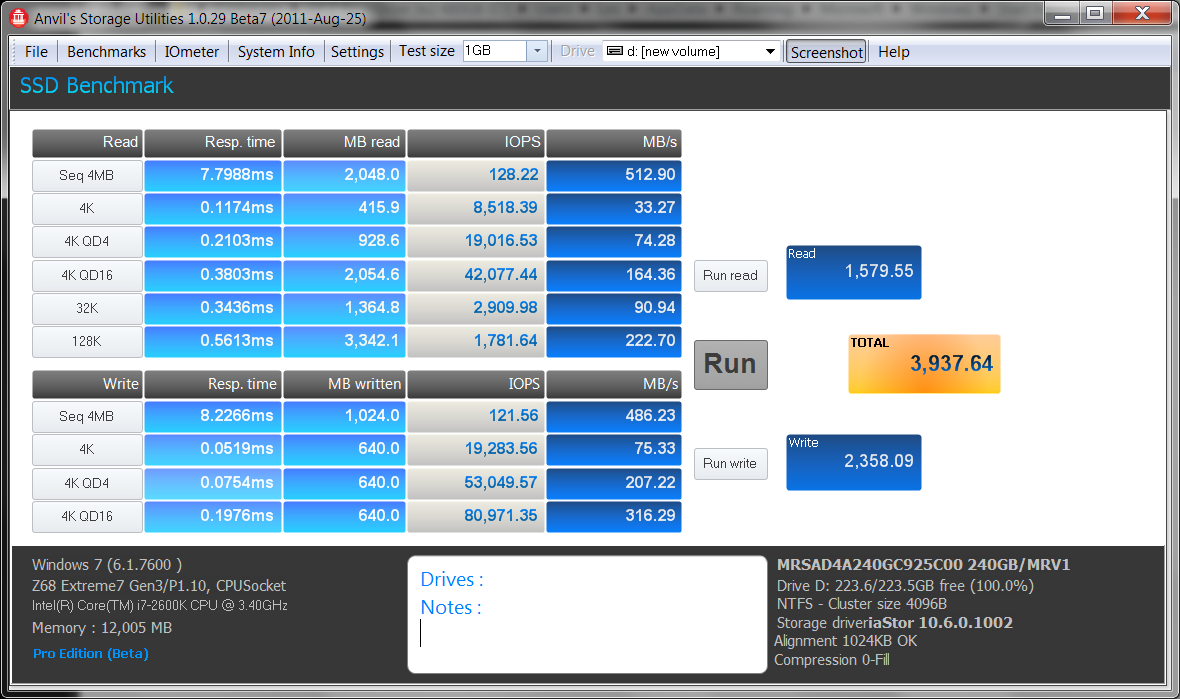

You may not see this for long (and its definitely not common) but you get a freebee simply for reading!  Over the last little while, we have been assisting with beta testing new benchmark software called Anvil Storage Utilities which is an absolutely amazing SSD benchmarking utility.  Not only does it have a preset SSD benchmark, but also, it has included such things as endurance testing and threaded I/O read, write and mixed tests, all of which are very simple to understand and utilize in our benchmark testing.  Recently, we published the exclusive public release here and, if you happen to check it out, there is a FREE download of the software!  Lets see how the Memoright FTM Plus SATA 3 240GB SSD fares on Anvil Pro:

blankAnvil Storage Utilities is a valuable tool in performance testing because EVERYTHING is tested and all results are available in a single screen.  Not only are we provided with system and disk information, but also, all tests detail the response time and MB read as well as results in for both IOPS and transfer speed (MB/s). The 4k-QD16 IOPS result of 80,971 IOPS stands out in this shot and easily justifies an upgrade in Memorights listed specifications for the FTM Plus.
