Plextor M9P Plus NVMe SSD Review (512GB)

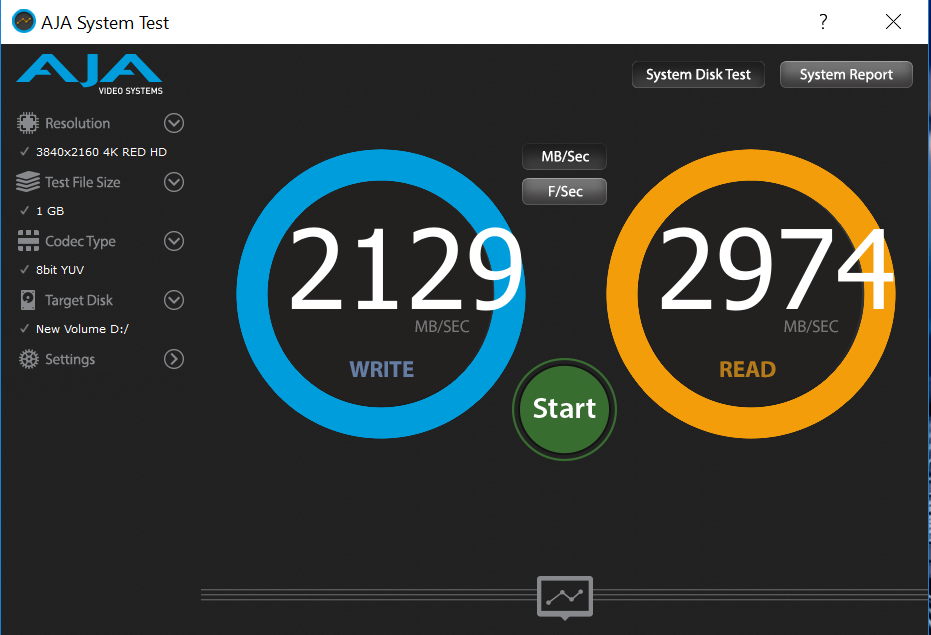

The AJA Video Systems Disk Test is relatively new to our testing and tests the transfer speed of video files with different resolutions and Codec.

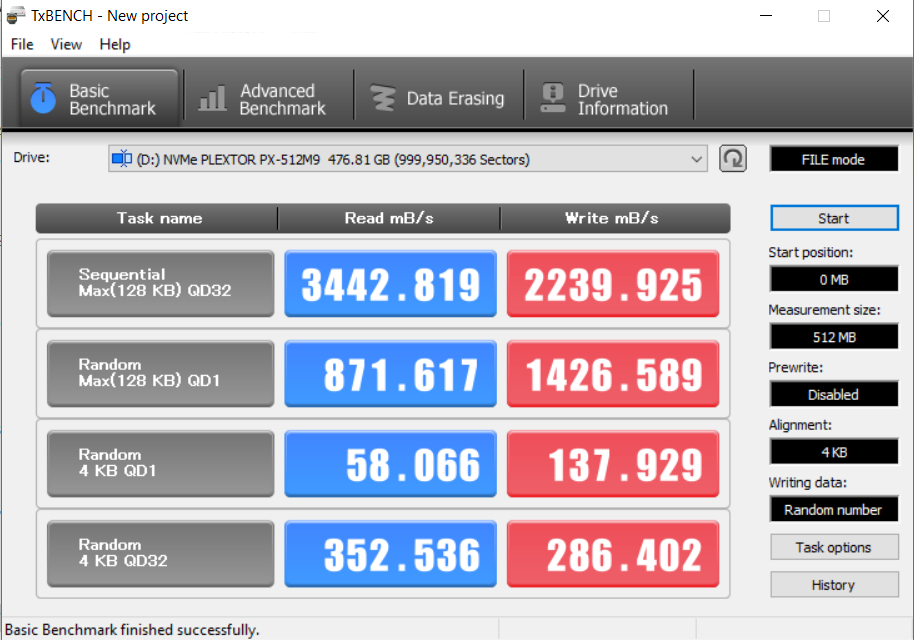

TxBench is one of our newly discovered benchmarks that we works much the same as Crystal Diskmark, but with several other features.  Advanced load benchmarking can be configured, as well as full drive information and data erasing via secure erase, enhanced secure erase, TRIM and overwriting.  Simply click on the title for a free copy.

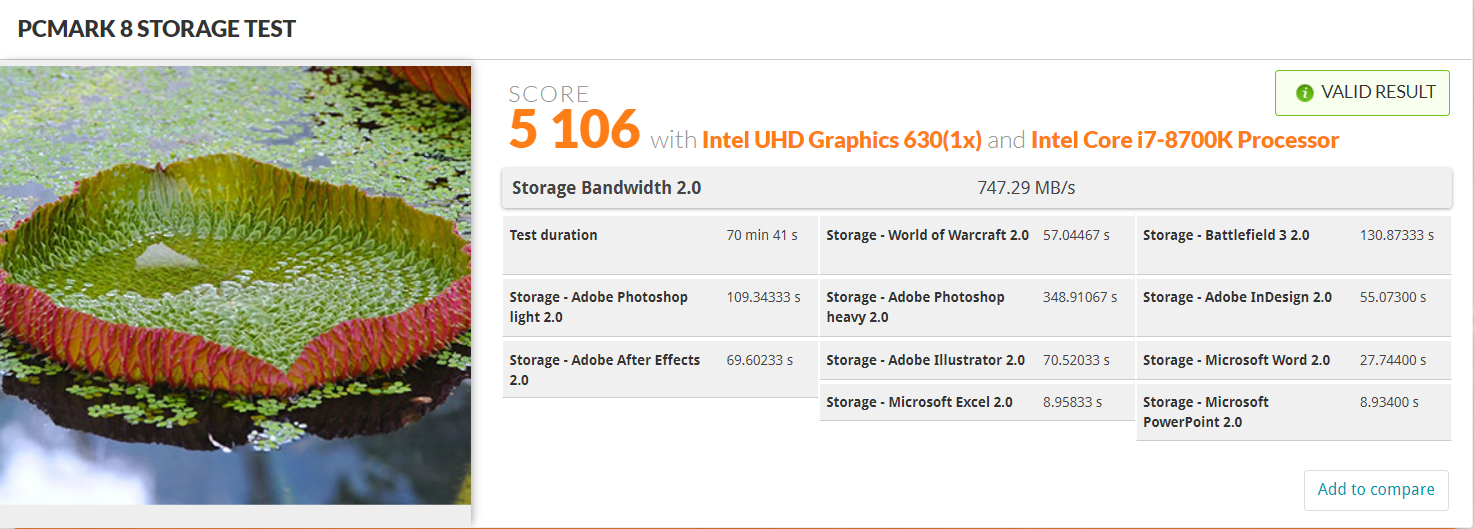

The SSD Review uses PCMark 8’s Storage test suite to create testing scenarios that might be used in the typical user experience. With 10 traces recorded from Adobe Creative Suite, Microsoft Office and a selection of popular games, it covers some of the most popular light to heavy workloads. Unlike synthetic storage tests, the PCMark 8 Storage benchmark highlights real-world performance differences between storage devices. After an initial break-in cycle and three rounds of the testing, we are given a file score and bandwidth amount. The higher the score/bandwidth, the better the drive performs.

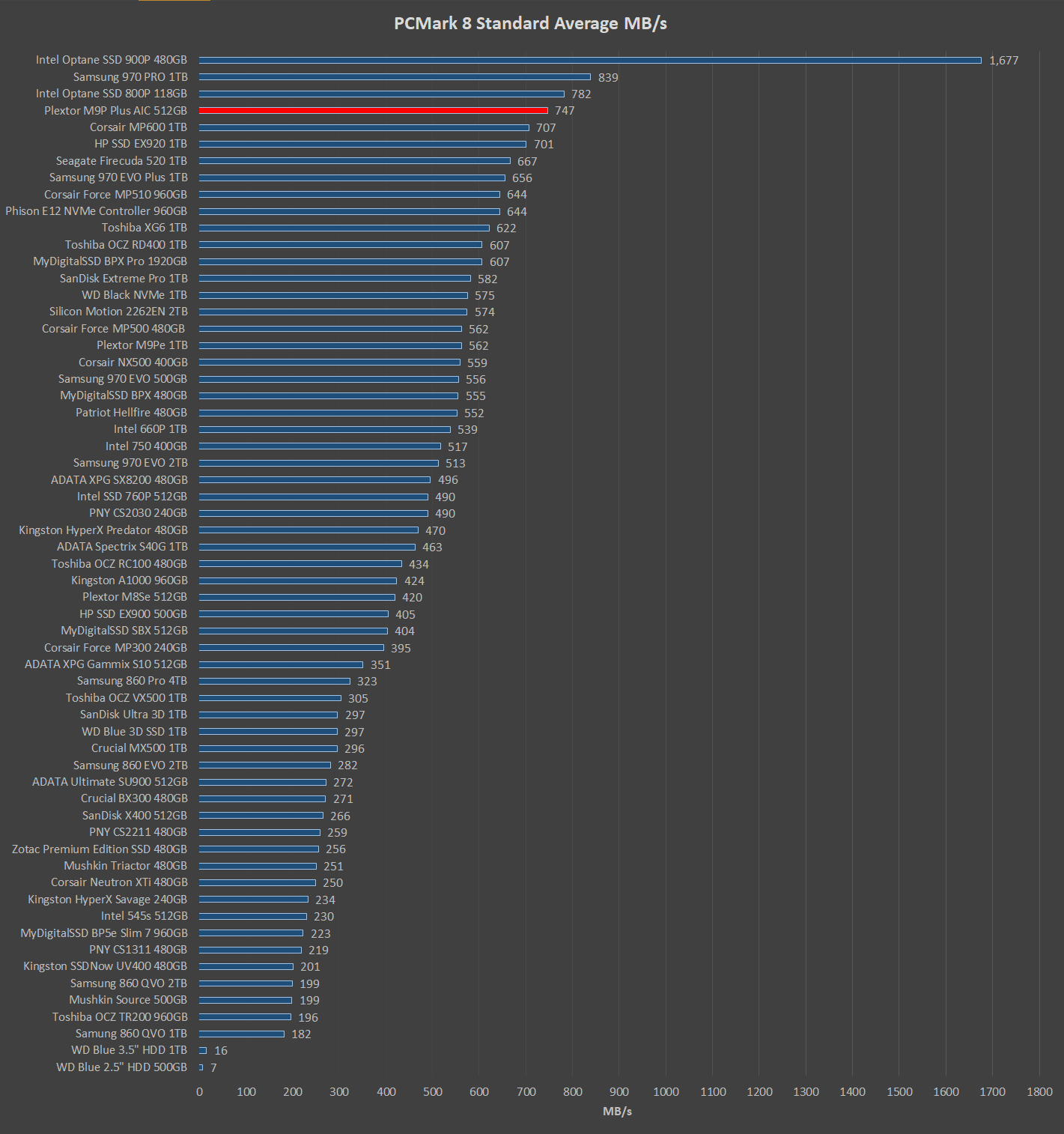

The Score and Storage bandwidth we are seeing with the Plextor M9P Plus NVMe SSD is one of the best we have seen yet. With an average bandwidth of 747MB/s, the M9P Plus placed just below the Intel Optane 800P.

One comment

  1. By the looks of your reviews, it seems that the PCIE 4.0 SSDs are really no better than what we see here, considering the extra heat which must be dealt with, even if sequential R/W is faster. I did notice the excellent 4K Randoms of the PCIE 4.0 SSDs though, very nice.
    It seems to me that for even demanding PC users that in real world use they wouldn’t notice much, if any, differences between them.
    I was all gung-ho over PCIE 4.0 SSDs, however even though the PCIE 4.0 platform is great, the SSDs just seem to not be as important at this time yet.
    Thanks for yet another excellent review, Les.
