Phison E18 B47R Fortis NVMe Gen 4 SSD Evaluation Sample Preview – The Great Intel/AMD Test Bench Comparison

ATTO DISK BENCHMARK VER. 3.05

ATTO Disk Benchmark is perhaps one of the oldest benchmarks going and is definitely the main staple for manufacturer performance specifications. ATTO uses RAW or compressible data and, for our benchmarks, we use a set length of 256mb and test both the read and write performance of various transfer sizes ranging from 0.5 to 8192kb. Manufacturers prefer this method of testing as it deals with raw (compressible) data rather than random (includes incompressible data) which, although more realistic, results in lower performance results.

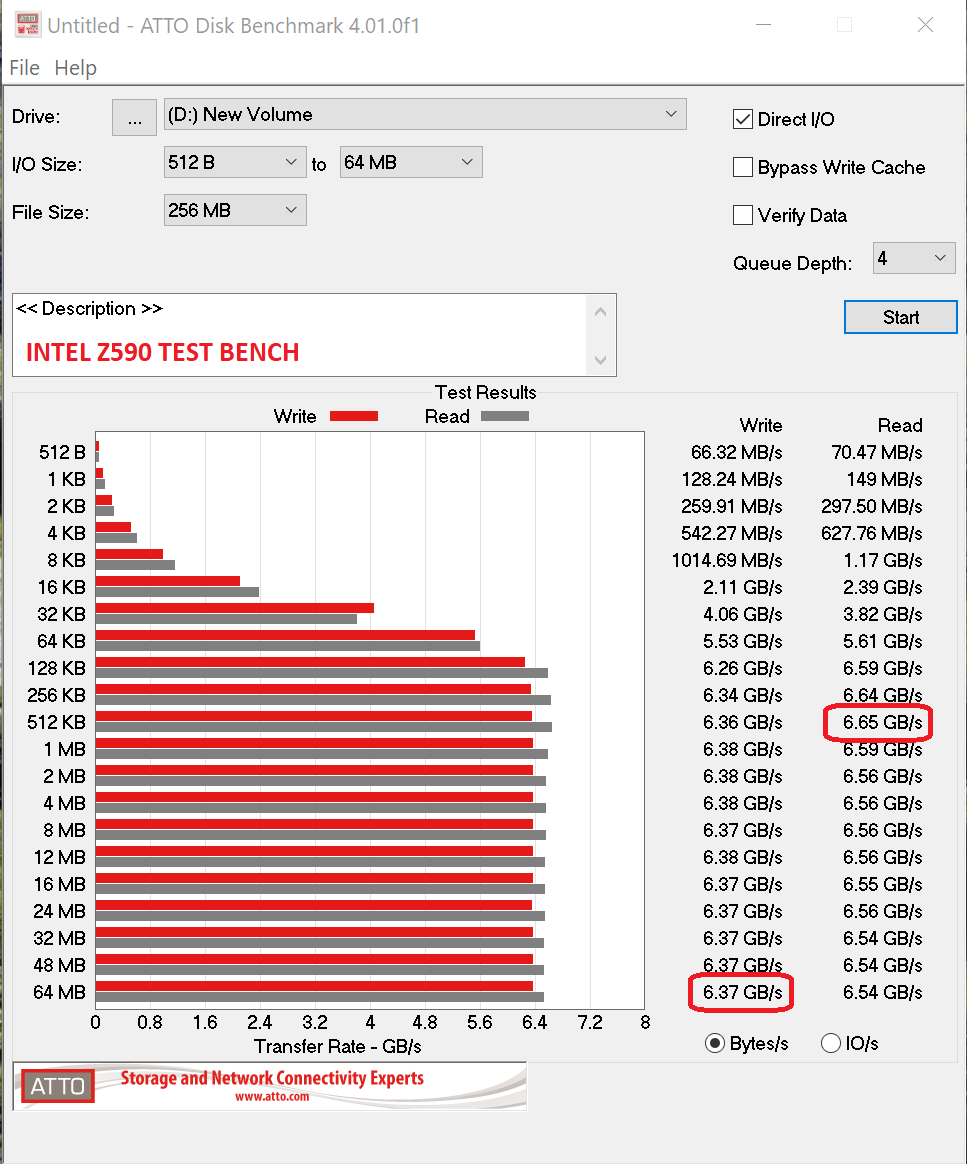

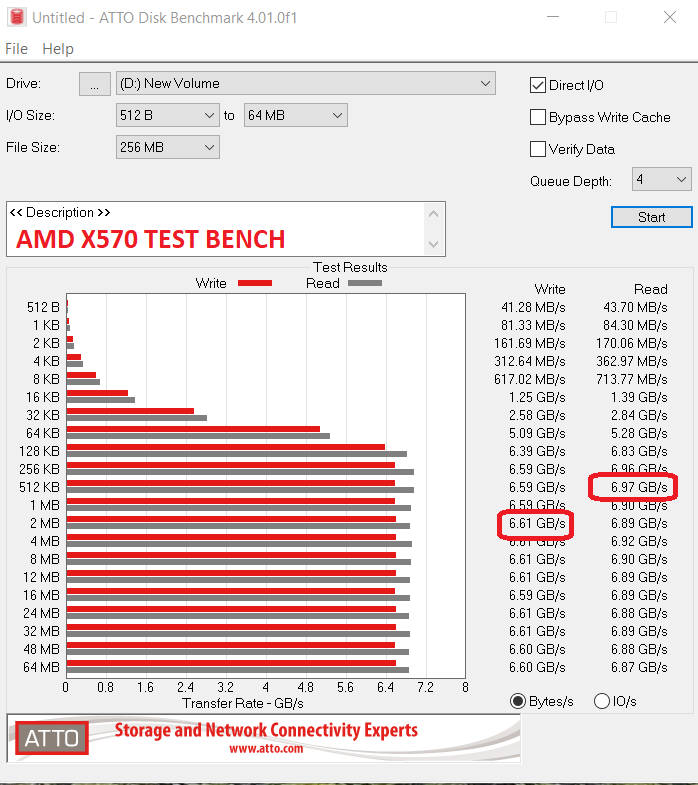

As ATTO seems to display, Intel results are lower than the AMD right off the hop. Both samples display something we like to see which is a steady speed increase with data file size increase.

AS SSD BENCHMARK VER 1.9

The toughest benchmark available for solid state drives is AS SSD as it relies solely on incompressible data samples when testing performance. For the most part, AS SSD tests can be considered the ‘worst case scenario’ in obtaining data transfer speeds and many enthusiasts like AS SSD for their needs.

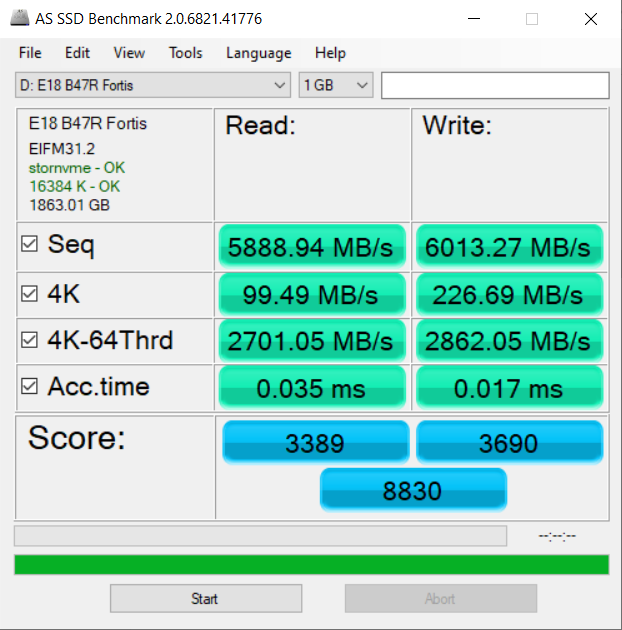

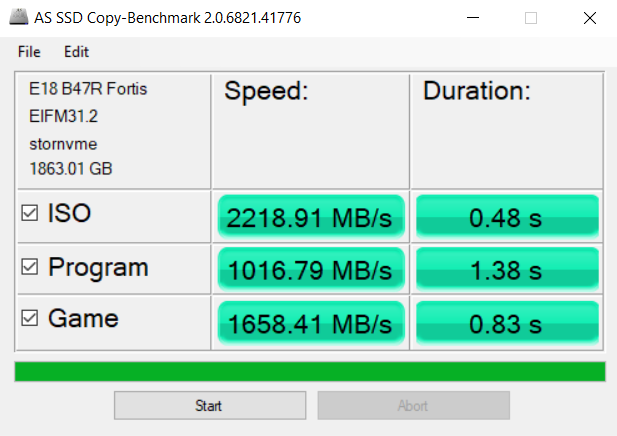

AMD X570 TEST BENCH

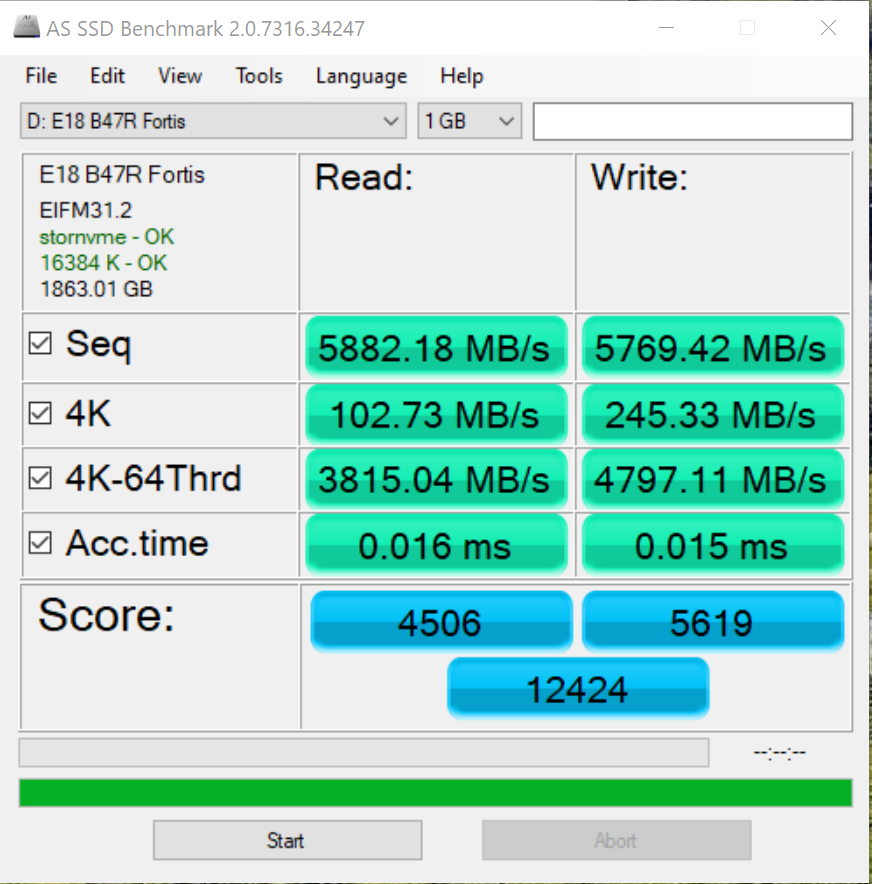

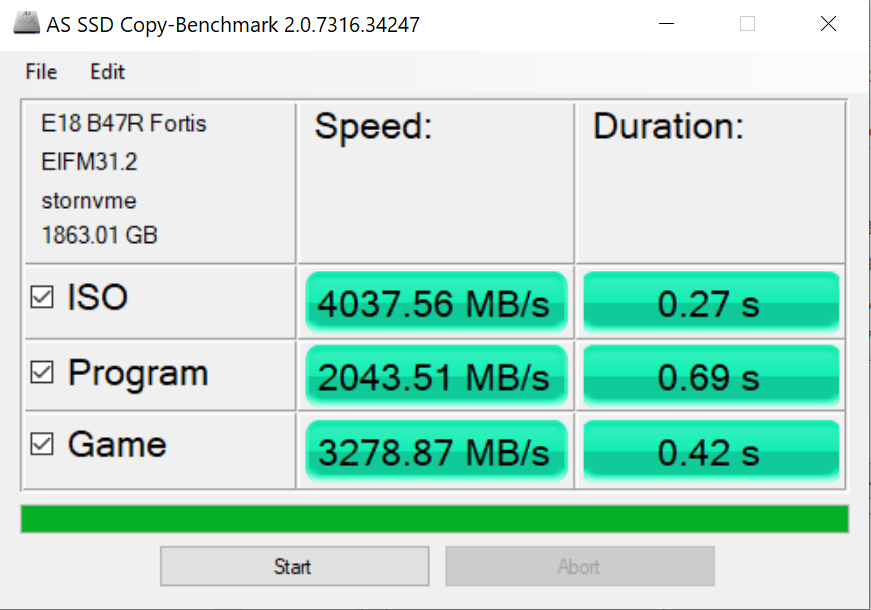

INTEL Z590 TEST BENCH

Looking specifically at the 4k Read result in the top left benchmark result of both the AMD and Intel Test Benches, we see first hand what Phison had mentioned with respect to low QD read performance. 99MB/s (AMD) and 102MB/s (Intel) low 4K random read performance are two of the best results we have ever received, short of the Intel Optane Testing some time back. This performance specifically is where one might recognize faster visible PC activities.

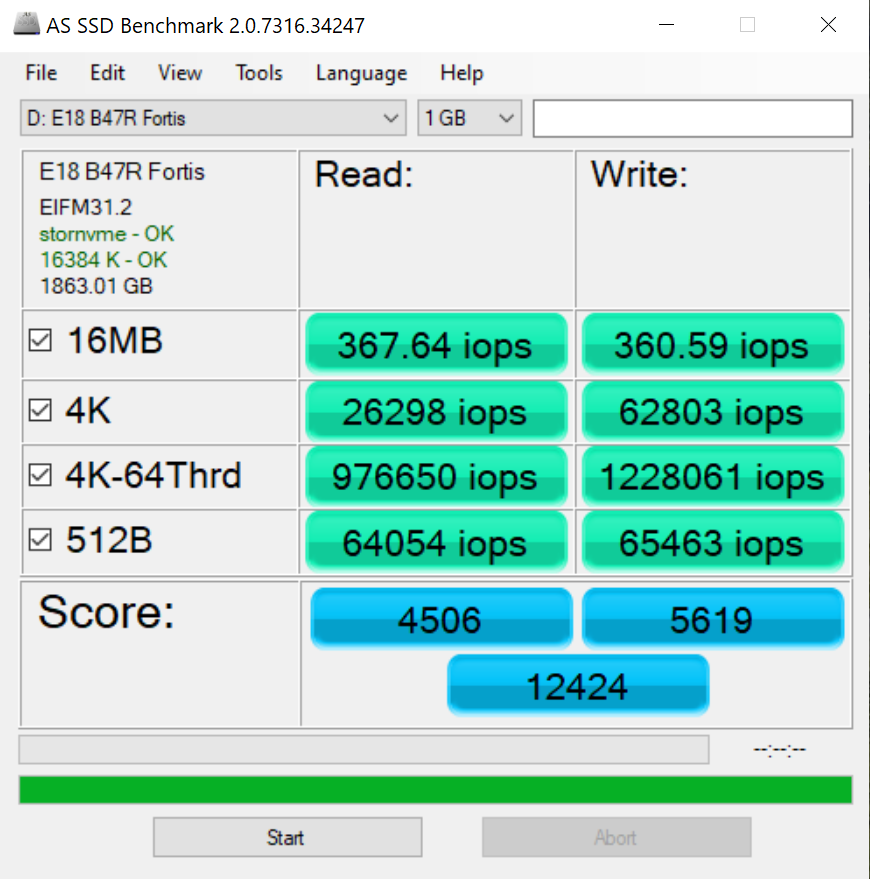

Aside from that, there are so many takeaways from a comparison of these results, the most obvious being that AMD provides higher sequential performance results consistently, whereas, we find better IOPS with the Intel Bench.

6 comments

  1. Any hints on what endurance rating we can expect? (TBW for 2TB model)

    • Can’t speak for the TBW – that is, warrantied writes – but the endurance on this flash should be quite good. Possibly in the 5K P/E range.

      • Thanks for jumping in NewMaxx…welcome anytime.

      • Abdulaziz Al Sane

        Les, would really like to see you guys adding a detailed thermal performance test for nvme drives. Thanks and keep up the good work.
        Abdulaziz.

  2. Pls pls pls, run one of these benchmarks with such modern PCIe 4 drive on “old” PCIe 3.

    PCIe 3 should not tamper with those 4K random low QD speeds (but only with the sequential high QD ones) and, if that’s the case, maybe it’s time to consider such PCIe 4 drive for my PCIe 3 laptop. Really, this kind of modern drive is 2.5x faster than good PCIe 3 ones where it matters most.

  3. I’m sorry but why is a site that is solely focused around testing SSDs not including ANY figures or testing regarding power management?

    Anandtech does, and their site isn’t focused solely on SSDs
