Acer Chromebook C720 SSD Upgrade To MyDigitalSSD M.2 (NGFF) 128GB SSD – Worlds Easiest Upgrade

SPEED COMPARISON AND WHAT WE STAND TO GAIN

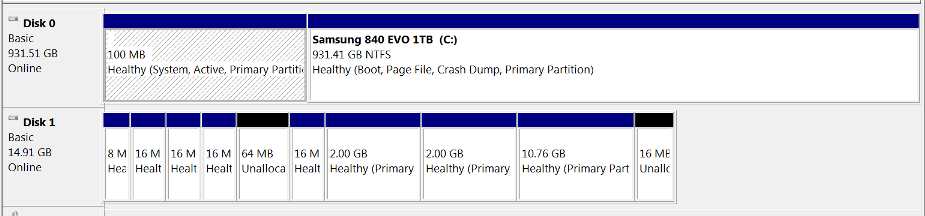

If you look at the image below, you will see a screen grab of the Disk Management Interface of the system we tested the Kingston 16GB M.2 SSD on.  The first is our main drive and the second the Kingston M.2 SSD with the operating system intact as if it were new.

Admin1

Looking at the standard Chromebook SSD, we can see that there is 14GB available after formatting, and then only 10.76GB after the OS backup and other files are included.  The difficulty with this is that a SSD slows as it get full and, well let’s face it…a few piks, movies and songs and this SSD is full.  Let’s take a look at performance and a realistic example of how it is affected. The first test we will look at is ATTO which will give us an idea of how these SSDs match up according to specs:

KINGSTON SSD

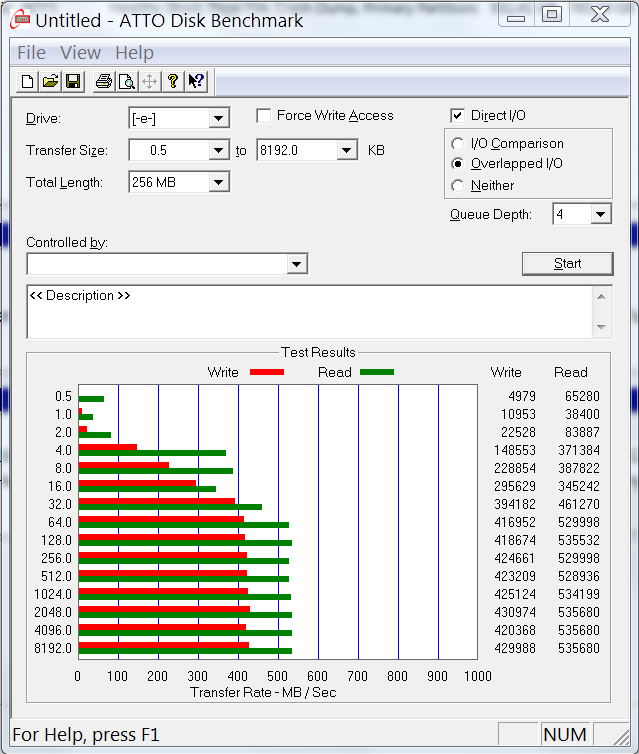

Kingston 16GB SSD ATTO

MYDIGITALSSD 128GB SSD

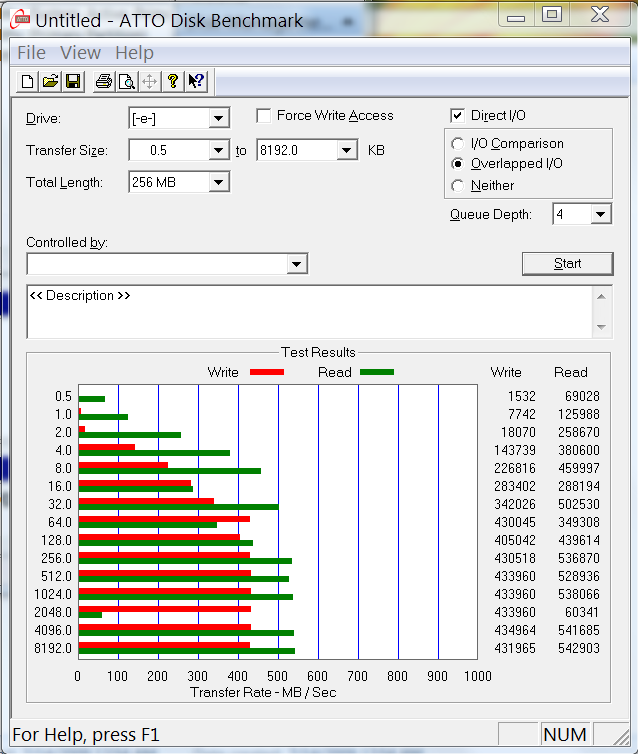

MyDigitalSSD SC2 128GB SSD ATTO

As we can see by these tests, the performance of both SSDs seems to be closely matched.  This is not the case though as ATTO tests with highly compressible data only and not compressible data, that of which photos, music and media are comprised.  We are able to sort out the differences when testing in incompressible data because this type of data is more difficult to write than the former.  Let’s look at our Crystal DiskMark results:

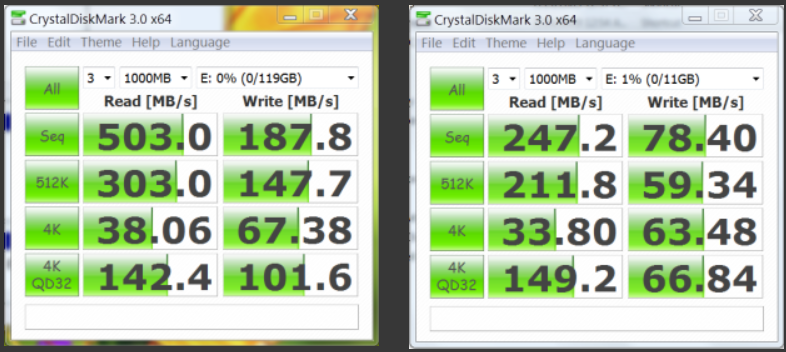

Crystal Pair

The MyDigitalSSD SC2 M.2 SSD result is left with the Kingston SSD on the right and we can see the difference in SSDs now when we test with incompressible data.  Will you visibly see this in your Google Chromebook?  Not initially but these slow downs will become visible as the SSD fills.  Do you remember the original remaining capacity of the standard SSD being 10GB total available space?  AS SSD is a benchmark program that will stress both SSDs a bit more.  let’s take a look at how the Kingston fares now:

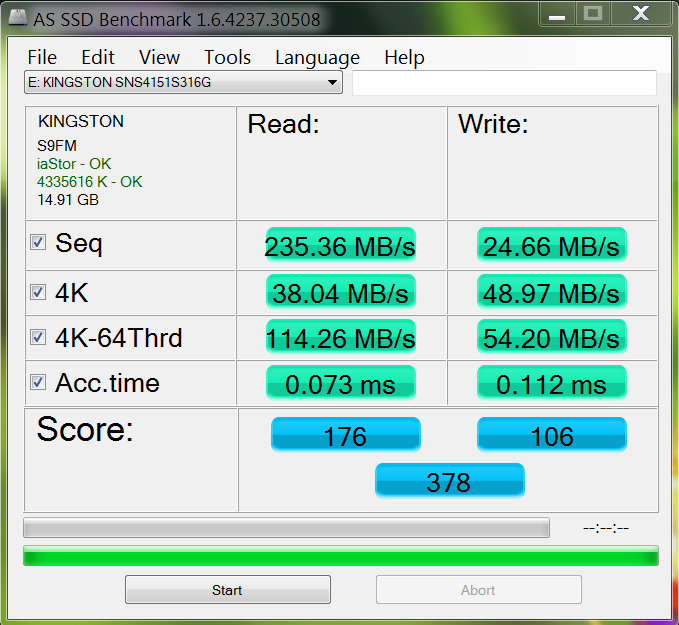

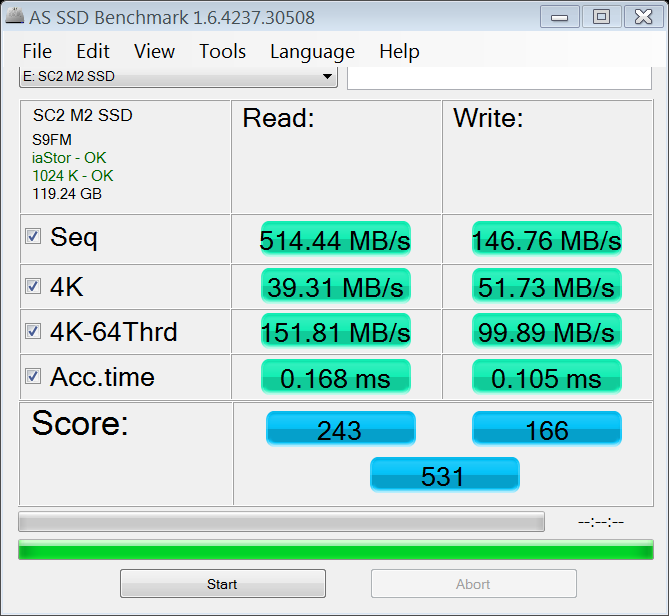

MyDigitalSSD SC2 128GB SSD AS SSDKingston 16GB SSD AS SSDTake a close look at the high sequential write transfer speeds of both disks; again the MyDigitalSSD is on the left and Kingston 16GB SSD on the right.  The Kingston write speeds are well below that of a hard drive, much less SSD and, if you compare the two, the MyDigitalSSD SC2 M.2 SSD is almost 6 times faster with respect to high sequential write transfer speeds.

HEAD TO HEAD ANALYSIS

In examining both SSDs, we can see that the MyDigitalSSD SC2 is clearly a higher performing SSD all around, solely by its performance when testing with incompressible data (media files).  As much as performance may be a consideration, however, we need to consider that any system with only 16GB of memory is doomed for anyone who plans to save anything on that SSD.  Just like you and I, an SSD needs an adequate breathing space to perform at its best and upgrading this system with a higher capacity SSD will improve capacity, as well as guaranteeing long-term performance of the system.

Turn to Page 3 to experience the worlds easiest SSD upgrade and system migration.
