Samsung PM800 128GB mSATA SSD Review – Samsung Quietly Releases another Top Tier SSD

Our feature picture depicts the new Samsung PM800 mSATA 128GB SSD as it sits on top of our new Samsung 9 Series laptop.

A few months ago, we reviewed the Samsung 470 Series 256GB SSD and were the first to identify it as a top tier SSD. The results and review did so well that Samsung as well as other review sites hadn’t a clue.

A flurry of 470 reviews followed and we think history is about to repeat itself.

INTRODUCTION

As with the Samsung 470 Series SSD, we once again find ourself evaluating a solid state drive that has been out for a few months.  Although it is new to the  Samsung Series 9 laptop we just purchased, a quick internet shows that it started appearing in Dell laptops in January. We dug as deep as we could and couldn’t find a review anywhere on the internet that spoke of the PM800 so we decided to rip the back off of our Series 9, remove the drive, and test it.

The photo displays the Samsung mSATA SSD highlighted with a red rectangle and, as we found out here and here, DO NOT REMOVE THE BACK on your Series 9 as it immediately voids the manufacturers   warranty.  The Series 9 seems to be amongst the first of the Samsung family where the user cannot upgrade RAM or HDD/SSD themselves.  Fortunately for us, the unit shown was the subject of a return not related to this article.

SPECIFICATIONS AND COMPONENTS

As it stands, the Samsung PM800 mSATA SSD is not available as a consumer release but can be found in the series 9 and other select Samsung laptops as well laptops of other manufacturers.  It is available in a 32, 64 and 128GB version and we just received word that there would be a 256GB version of this mSATA SSD out within the year.  This capacity in a SSD that is 1/3 the size of a business card and only as high as a twenty-five cent piece is absolutely amazing.

Samsung has the advantage of being able to create such a drive with totally ‘in house’ components. The controller of the PM800 is a SATA 2.0 Samsung S3C29MAX01 controller which sits beside 2 modules of Samsung K9PFGD8U7M 30nm 32GB NAND flash memory.  Combining these with the two other flash modules on the back side of the PCB results in a total of 128GB raw capacity. There is also Samsungs own K4T2G314OE on-board cache below the controller.

We find it interesting that the S3C29MAX01 controller in use is exactly the same controller used in the Samsung 470 Series SSD.

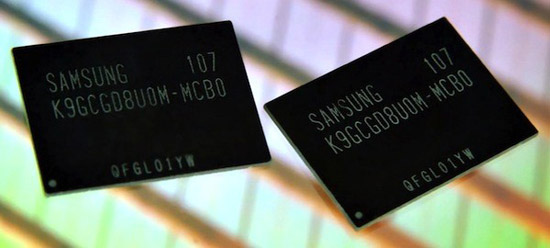

The model number of the drive is MZMPA128HMFU and, as stated above, we will be seeing a 256GB version in the same form factor in the very near future.  We might venture to guess that the 256GB version will be one of the first products released that utilize Samsungs new 64Gb toggle DDR 2.0 NAND flash memory.

This new flash is 20nm in size and is capable of an amazing 400Mbps transfer rate which makes its DDR 2.0 chips about three times faster than toggle DDR 1.0 (a 133Mbps interface) or ten times faster than the 40Mbps SDR NAND flash in widespread use today.

This truly opens the door as to what we may be seeing in the Samsung line of solid state drives in the very near future.

Pg1 – Introduction

Pg2 – Test Bench and Initial Tests

Pg3 – Crystal and AS SSD Benchmarks

Pg4 – HDTune Testing

Pg5 – PCMark Vantage and Conclusions

FOLLOW OUR FORUM DISCUSSION!

About Les Tokar

is a technology nut and Founder of The SSD Review. His early work includes the first consumer SSD review along with MS Vista, Win 7 and SSD Optimization Guides. Les is fortunate to, not only evaluate and provide opinion on consumer and enterprise solid state storage but also, travel the world in search of new technologies and great friendships. Google+
  • Tomy B.

    S3C29MAX controller is PM810, same as in 470 Series.

  • Mike

    Do you know when if ever we’ll be able to buy these? At this point it’s not even listed as a product on Samsung’s SSD page.

    • http://www.thessdreview.com Les Tokar

      No unfortunately not. The article stated right off that they were, as of yet, not a consumer release.

  • David

    You can buy this today. I just ordered one straight from Dell for $269.99 free shipping. The Dell part number is A4527685 it is not listed on their website yet but just call sales and give them the part number. This is exactly what I have been looking to add to my Lenovo W520

    • David

      My mistake, I did call Dell, Dell lied!, I have being shipped to me a 2.5″ SSD, I now have to return it. I was so happy now I am very upset.

      Mu apologizes.

  • Rob

    Will you be doing a review of the 128 GB mSATA MyDigitalSSD? Might be nice to see it compared to this drive and the Intel 310.

  • Brian

    The 128GB and 256GB SSD drives are available for purchase on SamsungParts.com Part #s BA59-02995A and BA59-02992A.

    • Paul

      samsungparts.com only lists the full size 2.5 inch SSDs — this article is about the mSATA PCI-e drives — very different things.

  • Cheryl Sawyer

    How do you get Samsung to let you know when the 256 is available?

    • http://www.thessdreview.com Les@TheSSDReview

      When available, I will be the first to purchase here although they pulled a fast one and went to a 1.8 256 for their Series 9 upgrades…

  • Jeffg

    Hi I have the Samsung Series nine 128GB laptop. My question is why can I oly see 99GB of this SSD?

    Ta,
    Jeff

    • http://www.thessdreview.com Les@TheSSDReview

      This is because Sammy has a hidden restore partition just in case you do something that merits bringing back the drive to its original condition. The only way to eliminate such is through creation and installation of a fresh OS and SSD format. We did this in our review if I recall correctly.

  • Joaquin Miranda Olivera

    Do you know If can I use it in a DELL XPS 16?

    • http://www.thessdreview.com Les@TheSSDReview

      If the XPS 16 has an mSATA slot, the standard for Dell is typically that mSATA SSD I believe.
