HGST SSD800MM SAS 12Gbps SSD and LSI SAS 9300-8e HBA Review – LSI and HGST Intro 12Gbps To The World

SNIA IOPS TESTING

The Storage Networking Industry Association has an entire industry accepted performance test specification for solid state storage devices. Some of the tests are complicated to perform, but they allow us to look at some important performance metrics in a standard, objective way.

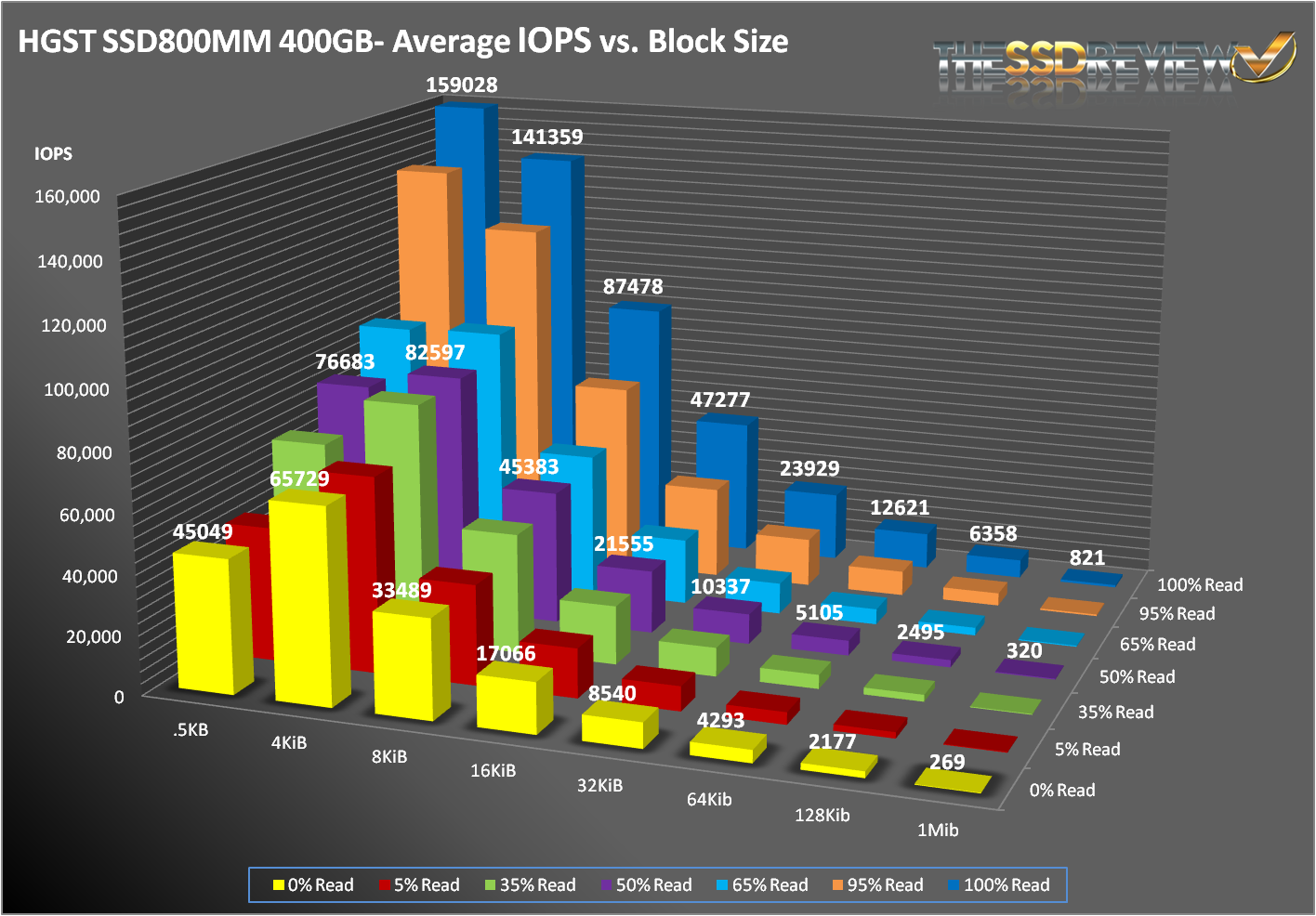

HGST-SNIA

SNIA’s Performance Test Specification (PTS) includes IOPS testing, but it is much more comprehensive than just running 4KB writes with IOMeter. SNIA testing is more like a marathon than a sprint. In total, there are 25 rounds of tests, each lasting 56 minutes. Each round consists of 8 different block sizes (512 bytes through 1MB) and 7 different access patterns (100% reads to 100% writes). After 25 rounds are finished (just a bit longer than 23 hours), we record the average performance of 4 rounds after we enter steady state.

  • Preconditioning: 3x capacity fill with 128K sequential writes
  • Each round is composed of .5K, 4K, 8K, 16K, 32K, 64K, 128K, and 1MB accesses
  • Each access size is run at 100%, 95%, 65%, 50%, 35%, 5%, and 0% Read/Write Mixes, each for one minute.
  • The test is composed of 25 rounds (one round takes 56 minutes, 25 rounds = 1,400 minutes)

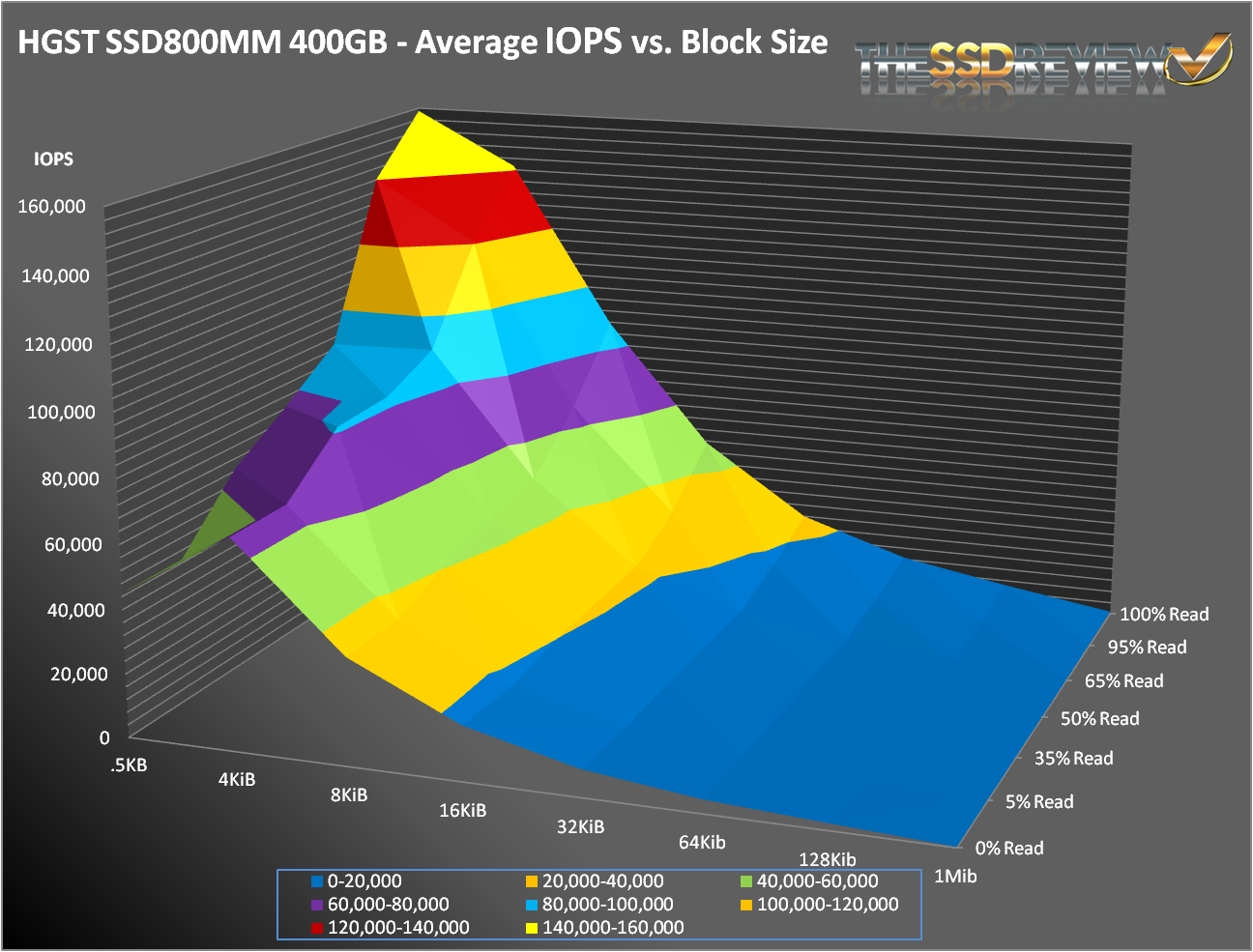

HGST-SNIA2

You can check off SNIA as another test where the SSD800MM absolutely destroys the competition.  For 50% read/write split at 4KB, it posted an impressive 85K IOPS.  At that same 4KB transfer size, with a 95/5 read/write split, the SSD800MM still managed 120K IOPS.

Unlike our other performance tests, the SNIA tests only last for a relatively short period of time each (1 minute), but they cover many more access patterns and transfer sizes. You may have noticed that some of the SNIA results are higher or lower than in our other tests.  The reason for this is because SSD performance is heavily predicated on previous workloads.  Toggling between large and small blocks and reads to writes is stressful on the drive and results can vary.  This is why we take the average of multiple runs. What it does show is how well a drive’s firmware can perform garbage collection, TRIM and many other internal housekeeping tasks.
