Areca ARC-1882x 2nd Gen 6Gb/s SAS/SATA RAID Card Review – 4.7GB/s Transfer Performance!

SSDs and Enclosure

We are using our trusty ARC-4036 external enclosure for the review, as it will allow us to utilize the SSDs easily and we can switch controllers easily. A very nice feature with the Areca controllers is that you can create the Test Array and configuration, and then merely switch it to the other controller, and no additional setup will be required. The 1880 and the 1882 allow us to switch back and forth with the same array easily! This will also afford a bit of continuity with the state of the SSD array as we test. A quick click on the picture will also bring up our review of the enclosure.

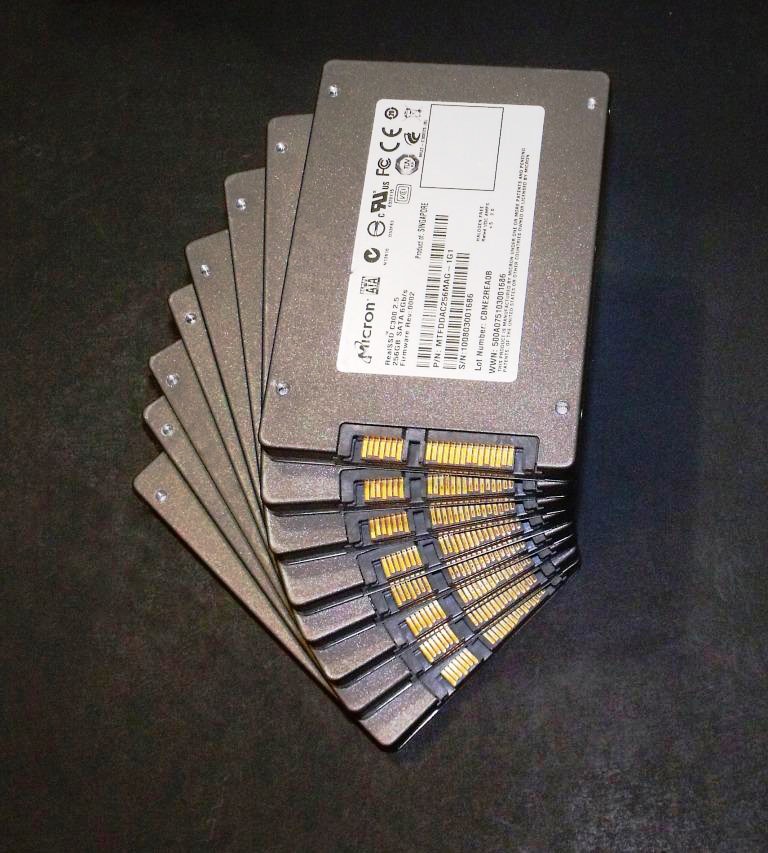

MICRON C300 6GB/s 256GB SSDs

blankMicron has graciously donated us an array of 8 x 256 GB C300. These SSDs have become a staple in our test bench, and with their impressive speeds, they still continue to generate excellent results. The speed of these devices in RAID is certainly enviable, and continues to push the boundaries of many raid controllers.

The 4k random access of these drives is particularly excellent, and is very instrumental for great performance in any scenario. With an 6GB/s interface the C300 can bring some impressive performance to the table.

Sequential read up to 355MB/Sec and sequential write speeds of 215MB/s, coupled with 60,000 4k random read IOPS, and 45,000 Random Write IOPS should be more than enough to test the sequential power of the card easily.

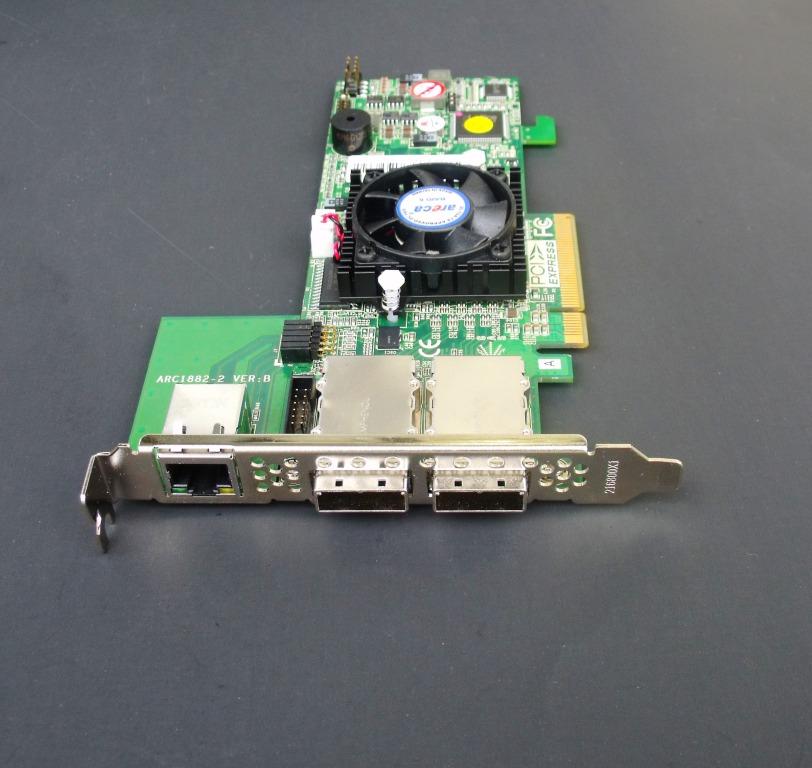

The rear ports of the Areca 1882x are 8088 mini-SAS connectors. We utilize these two ports to connect directly to the ARC-4036 expander via 8088-to-8088 cabling.



We did remove the 4GB stick of cache from the 1880IX-12 and replaced it with a 1GB module. This allows both controllers to use the same amount of cache for testing. Some results of these testing regimens will be affected by the cache of the cards but that is to be expected.  A big difference in these controllers is the generational differences in the cache. The 1882x leverages DDR3 1333mhz, while the 1880IX-12 uses the older DDR2 800MHZ.  Both controllers will be using a 64k stripe for all testing, and they will both be tested with the same settings.

The arrays themselves will be swapped between the controllers to minimize the differences in the ‘state’ of the arrays. SSDs can vary in performance naturally depending upon a number of factors, from the state of GC, and the level of fill. These arrays were intentionally left empty, for the purposes of eking out the most performance. The purpose of this test is to test the power of the cards, not necessarily the SSD array.

Settings are:

System: Aggressive Read Ahead, Disk Write Cache Enabled, Tagged Command Queue Enabled, NCQ Enabled, HDD QD @ 32, and Volume Cache Mode: Write Back


  1. blank

    Need another 8 to 16 SSD’s to fully load RAID card setup. Would also like to see the impact of the 4GB cache and higher IOPS.

    • blank

      The dropoff you see with the dual setup is just a programming glitch in atto disk benchmark. It used to be the same with transfers above 1GB/sec in earlier versions. Downloadn an older version to test with and you’ll see what I mean.

      Kind regards.

    • blank

      I’ve got a setup with 20 SSDs across multiple RAIDs and, at least with ATTO, I get ***MUCH*** better results with non-cached/unbuffered (Direct I/O) tests… can’t figure out why this is though. Very frustrating.
      The Areca documentation is pretty awful, giving the briefest of descriptions on card functions, and even those are open to interpretation, leaving me to wonder what the heck they’re actually talking about (I mean, what does this mean, in practice, “The “Read Performance Margin” is for controller to reserve n% read margin during AV stream recording.” Can the card magically determine that you’re system is streaming A/V, versus a very large sequential DB write, and what is the ‘read margin’ it’s reserving n% of??? Do they mean it reserves n% of the read cache you’ve set?
      In practice, I’m getting better performance from an HP P410i with only 512 MB memory than I am with the 1882 with 4GB. I’d really like to have some more informative instructions about the configuration options.
      I also think it would be much more effective if these setting cold be by array, like the P410i, and not for the card as a whole.

      • blank

        You know at one time I thought ATTO only made the disk benchmark tool! Wish it was better publicized that they make great RAID Adapters too!!

  2. blank

    “After that the results do drop off a cliff with the larger file sizes, as we get away from the stripe limitations of the dynamic disk.”
    What limit is this??? Have you ever considered that the ATTO benchmark uses 32 bit unsigned integers to store the results, so it cannot display numbers bigger than 4294967295 bytes/sec.

  3. blank

    There’s a typo on pg 9 – right top picture is for 1880ix, not 1882ix.

  4. blank

    Does the Crucial m4 drives compatible with the 1882 ?

    • blank

      Yes, I’m using Crucial M4s, both the 256 and 512GB versions. Be sure to update ALL SSDs with the latest FW rev 000F because the previous versions (0009 and 0309) have fatal flaws.

  5. blank

    I’ve used Areca products for years in the corporate environment and like them quite a bit. The below statement about service, however, is laughable.
    > Customer service is a hallmark of Areca and fast timely resolution
    > to any issues that may crop up is assured

    Have you ever tried to get a card serviced? I have. When there is hardware failure you mail off your card and wait 2-3 weeks for it to come back. There is no option to provide a credit card & have another refurbished card cross-shipped to you right away. This means whatever system just failed is down for 2-3 weeks. RAID cards are about reliability, it means you need spare card hanging around if you’re worried about failure. Not exactly a cost effective solution.

    • blank

      I’ve had the same problem. I am a reseller and have had two Areca cards fail on servers. One had been in the server for about a year. The other failed within two weeks. They took 1 month to repair the cards both times. We had to purchase a new card the first time to get the customer up and running, and the second time, we had to use the card Areca had previously repaired. Areca’s response? Buy an extra card to replace your customer’s card when it fails. This is unacceptable. I’m switching to LSI. Areca lost my business.

    • blank

      I honestly don’t see the point of buying an Areca card. For the most part, they use LSI chips and have crap support. However much money the author was paid to write about their “hallmark” support — who knows, but from my experience, their support is TERRIBLE — LSI on the other hand has great support. Why not just go straight to the source and get an LSI MegaRAID card? I don’t see any reason to buy an Areca card.

    • blank

      Personally I agree. I have had trouble with Areca, 3ware and some success with LSI but the best service I have ever had was from ATTO, they seem to understand our business is our lifeblood and want to help us however they can!

    • blank

      I know it’s an old thread. But I just have to add that my experience with Areca is as bad as any of you have described. Emailed the support person and we told to contact my reseller about replacing a defective card. I then contacted Tekram which I bought the card from and my impression is they are reluctant to deal with the card. However, I managed to get a RMA. But after sending in the card for more than 3 weeks, I haven’t heard anything, and two emails requesting update has been ignored.

      At one point, I was going to replace 50+ old LSI/Supermicro cards with Areca. Now, I am removing all my Areca cards. No way can we afford to use them in production servers.

      • blank

        Stay tuned… we have a brand new Adaptec card in the hopper with 24 SMART SSDs and we don’t think these numbers can be beat anywhere!

      • blank

        Les, I think you write good information here. Over time it seems that you’ve started to skew towards SSD solutions for the server. In the server world performance isn’t the only consideration. It’s also about the other factors: reliability, getting service when something fails, and most relevant to you: getting accurate information. Personally, I would hold your site in higher regard if you provided an edit at the top of the article about the trouble with Areca’s customer service.

      • blank

        Thank you for your input but our reports can only encompass the information we have at hand; this of course wouldn’t include that of which you speak. We don’t court ANY manufacturer and have plenty examples of publishings that many others might not have put to print. We believe every piece of equipment gets a fair kick at the cat once it is received without exception. Having said that, we would not be inclined to jump into any area, or report on any area, that we did not experience personally. Thanks ahead.

      • blank

        I didn’t mean to imply an impropriety — apologies. One point to make, however. If you don’t have persona experirence about reliability or service then printing “customer service is a hallmark of Areca and fast timely resolution to any issues” is conjecture. I guess that’s why my earlier comment touched a nerve that a bunch of others have echoed.h I guelmark of Arasdf

      • blank

        No need to aplogize and I appreciated your comment, not believing anything other than an honest opinion was provided. I took a look at the report and, as it was written by Paul Alcorn some time ago, I cannot comment on customer service then or present day. We have to rely on the honesty of our reporters and I believe Paul was sincere in his thoughts at the time and, there was probably reasoning for this statement as he is very well established in the Forum community. To bring this to the view of the reader, unfortunately we cannot alter reports to reader viewpoints for many reasons, the first of course being the possibility that this may simply be a disgruntled owner…which I am not saying that it is.

        Thanks again.

    • blank
      Steven W. Elling

      I know this is an old thread but I thought I would chime in with my experiences with my unreliable Areca RAID card (ARC-1222).

      First, the card failed within the first 6 months of purchase. The card would not initialize and I had to send it off for repair to Taiwan and waited 3 weeks to get it back. Areca support stated they had to replace the flash chip on the card.

      Second, the card is marking drives as failed every few months. If I remove then re-insert the drive it rebuilds the RAID set and functions just fine for a while.

      Third, most of the time when the card drops a drive, it starts timing out. The cli command can’t talk to the card over the PCI bus, plus, the Web and telnet interfaces time out as well.

      Fourth, when the card starts timing out, the file systems sitting on top of the failed RAID set start to fail because the card drops the SCSI device out from underneath the OS. My only recourse at this point is to shutdown the system, then start it back up so that it re-initializes the card.

  6. blank
    Sofoklis Oikonomou


    How did you span both the controllers ? What did you do ? Thanks in advance.

    • blank

      As mentioned on page 13 of the article, they made a striped array on each of the controllers and then made a software stripe of those two arrays (effectively RAID00) within the diskmanagement console of Windows 7.
