Maxiotek MK8115 Controller Preview – MLC & TLC NAND Put To The Test


We also wanted to see how performance was in a real-world use when transferring large files to the SSD. For this test, we are going to simply stress write performance by transferring over a 30GB folder of movies off of a 512GB Samsung 950 Pro to the test SSDs and time how long it takes. Once complete we can calculate the average speed.

Maxiotek MK8115 Av Speed 30GB

At a steady 512MB/s, the maxiotek MK8115 is probably a bit lower than where we want to be, but when you consider that it is a DRAM-less set up, this just might be a bit encouraging.


For our power consumption testing, we have the drive connected to the system as a secondary drive. To record the wattage, we are now utilizing a Quarch Technology Programmable Power Module. It allows us to accurately measure power consumption over time and is flexible enough to allow us to test any SSD that comes our way.

Quarch Technology Power Module Angle

Our power analysis may change as time goes on, but for now, we are looking at just a few metrics with the main goal of measuring our results against the manufacturer’s ratings. Because most consumer systems are at idle for about 80% of the time, idle power consumption is an important measure to look at when understanding the efficiency of a drive.

Maxiotek MK8115 Idle

During idle, the Maxiotek MK8115 sits right there with the Corsair Neutron XT. It consumes more power than many others, but is still well under 1W where it should be.  This particular test is the highlight of SATA SSDs.

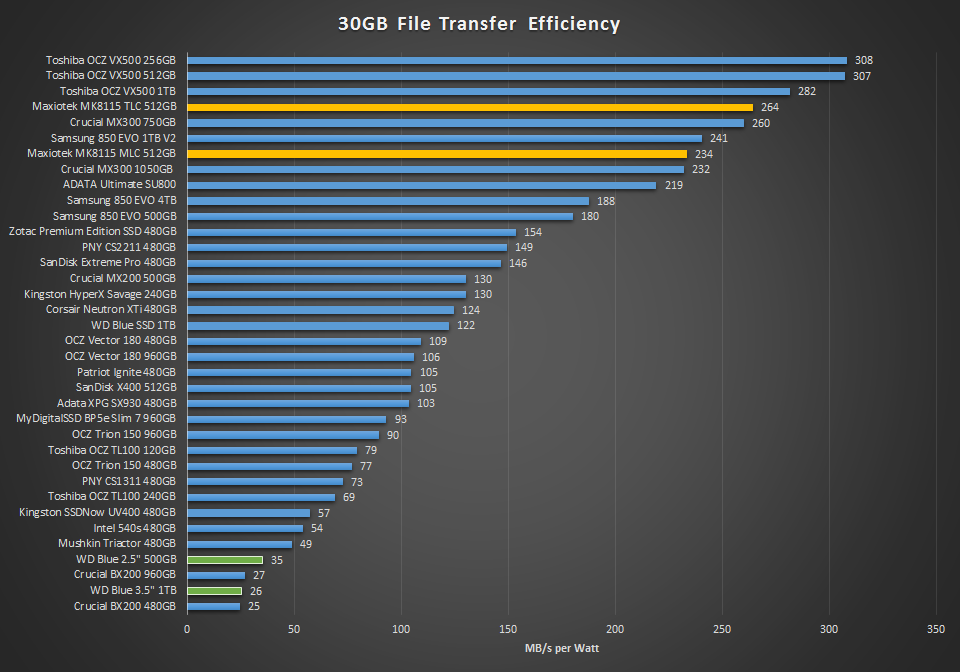

Finally, we wanted to post up a graph of the power efficiency of the SSDs in comparison. We are looking at MB/s per Watt in this graph. The higher the result, the better.

Maxiotek MK8115 Eff 30GB
