Samsung 840 EVO SSD Review – Samsung Caches In On Value and Performance


You may not see this for long (and its definitely not common) but you get a freebee simply for reading! Over the last little while, we have been assisting with beta testing new benchmark software called Anvil Storage Utilities which is an absolutely amazing SSD benchmarking utility. Not only does it have a preset SSD benchmark, but also, it has included such things as endurance testing and threaded I/O read, write and mixed tests, all of which are very simple to understand and utilize in our benchmark testing.


Samsung 840 EVO 1TB SSD Anvil Bench

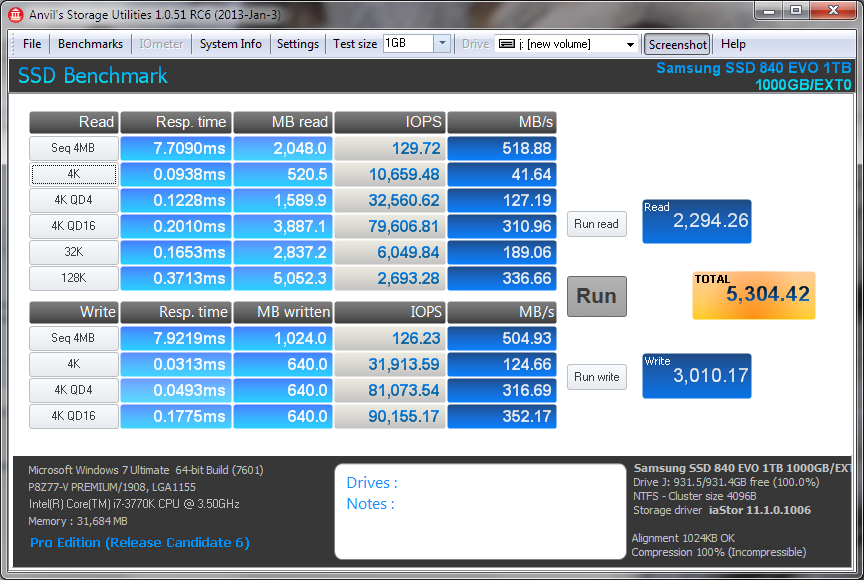

 CPU Optimized Samsung 840 EVO 1TB SSD Anvil Bench

 ASU provides some great information about system and SSD identification and also once again gives us a great vantage point with respect to the difference in a standard PC and that which has been optimized.  It is becoming more common for manufacturers to provide test results that display the latter.


The SSD Review uses benchmark software called PCMark Vantage x64 HDD Suite to create testing scenarios that might be used in the typical user experience. There are eight tests in all and the tests performed record the speed of data movement in MB/s to which they are then given a numerical score after all of the tests are complete. The simulations are as follows:

  • Windows Defender In Use
  • Streaming Data from storage in games such as Alan Wake which allows for massive worlds and riveting non-stop action
  • Importing digital photos into Windows Photo Gallery
  • Starting the Vista Operating System
  • Home Video editing with Movie Maker which can be very time consuming
  • Media Center which can handle video recording, time shifting and streaming from Windows media center to an extender such as XBox
  • Cataloging a music library
  • Starting applications


Our SSD hierarchy of all SSDs ever tested in PCMark Vantage reflects that of only a standard system and the highest score ever attained was 76569 points.  The Samsung 840 Evo SSD tested in standard mode today beat that with a score of 76770 points.  That being said, when we optimized the system, that score jumped even further to 87245 points, the two results seen here:

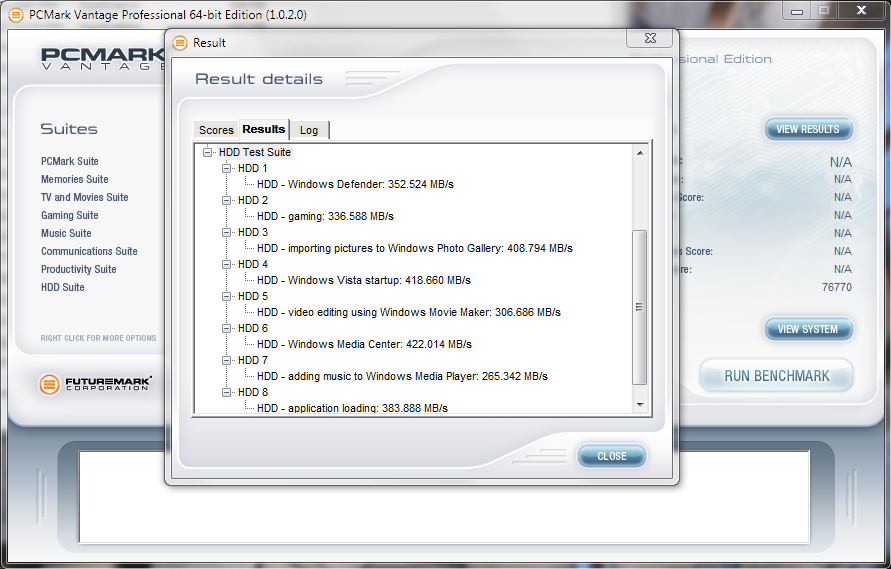

Samsung 840 EVO 1TB SSD PCMark Vantage

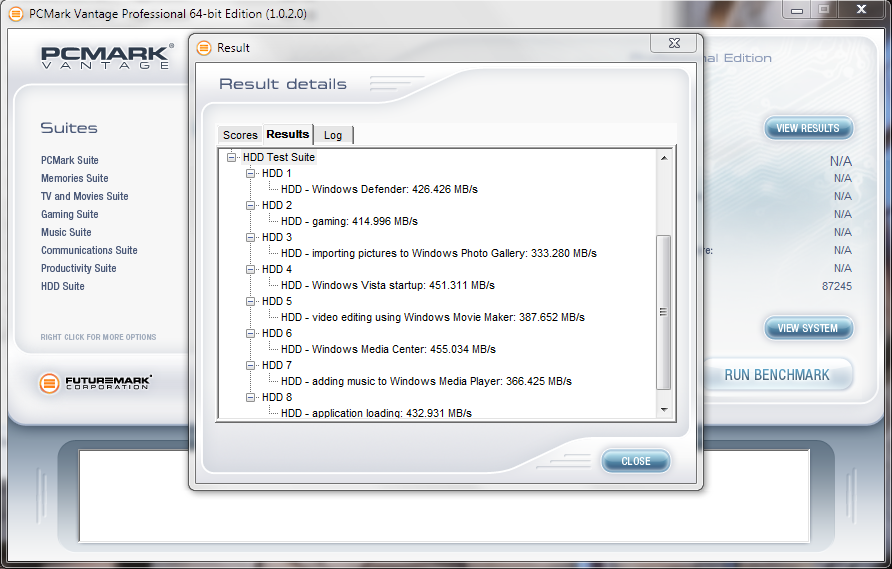

CPU Optimized Samsung 840 EVO 1TB SSD PCMark Vantage

Both results are the best we have seen to date and reflect some amazing transfer speeds.


  1. blank

    super fast review – love ie

  2. blank

    Great review Les. This drive is probably the most exciting development in the consumer SSD space to date. We can’t wait to get our hands on these down under in Australia.

  3. blank

    Seems like a great SATA3 drive. However, I can’t help but feel like it’s a “bridge” drive. I mean, NGFF m.2 drives with direct PCIe connection are starting to appear, and they should have over 1GB/s read/write without any RAPID technology involved. This drive is for current systems that use a SATA port (99.999% of the market), but direct PCIe connection is the better way to go.

    • blank

      Wow….this could be a long response. You are absolutely right when you say that PCIe will be the future. It will take a few years, if not longer to completely implement, however, and manufacturers have already stated that it will have OEM, and not, retail availability initially. This makes great sense as there just isn’t the need for PCIe just yet.

      Samsung is striking at the present and want to get those that are yet to migrate, which is the majority of the population. The biggest obstacle with SSD transition has always been lack of knowledge and then fear of difficulty in migration. I feel Samsung has hit this head on and made this the most attractive opportunity for the consumer today. Considering that SSDs are still in their infancy, that’s a very big market.

      • blank

        Agreed. However, for those of us regularly visiting this site, I think we are mostly looking for the latest and the greatest, which the EVO certainly represents, except for the SATA III bottleneck. Just like with 4G LTE data speeds being discussed in terms of “fast enough for most people”, and the same being the case as far as prowess of CPUs are concerned, we still want PCIe now instead of later. Mid-2013 MacBook Air owners are already there with Samsung again leading the way. Of course, there is also the issue of where would we plug in a PCIe SSD in a small form-factor computer.

        I also have a separate question on the EVO being sold as a “consumer drive”, mostly being compared to only the 840, instead of the 840 Pro, at least in addition to the 840. Does this mean that some kind “EVO Pro” version is in the offing? If you know, that is. I don’t remember reading about such a drive or any leads from Samsung?

        Thanks again! 🙂

      • blank

        There will be no 840 Evo Pro, but rather a future release of Samsung Magician with RAPID for the present Samsung Pro. Samsung is very happy with where they are at with the 840 Pro.

      • blank

        OK, so the 840 EVO replaces the 840 and then there’s the 840 Pro that remains, is that about right? Thanks so much for quick responses, Les. I need to choose a new SSD to buy either today or tomorrow, so I guess I can still buy the 840 Pro and get (most? all?) of the benefits of the EVO just with a software update?

        Thanks again, you rule! (but you knew that… ;-P)

      • blank

        Will the Samsung Magician update for the 840 Pro ALSO help the 840 ?

      • blank

        You will have to clarify this a bit more.

  4. blank

    Great and timely coverage. Thanks!

  5. blank

    Am I the only one who believes that all SSDs (enterprise, prosumer and consumer) should have the supercaps installed?? The threat of data loss caused by a power interruption is rather nasty regardless of the users classification. I had hoped the EVOs would address this once and for all. With onboard memory caches getting larger and larger the potential for substantial data loss/corruption grows as well. It’s time for vendors to stop using supercaps as a marketing gimmick.

  6. blank

    Wow! This thing comes so close to the Pro and actually surpasses it in some tests!
    The 4k reads are better and access times are on par!
    Can’t help but think that at that price it will Dominate!
    Rapid is great too. I mean who runs a high end system without UPS anyway…
    I can’t wait to see 840Pro performance with rapid though!

    • blank

      Yes, UPS would be a nice standard addition to consumer SSDs as we are starting to see it trickle down. Personally, I believe there is a demographic that will look for power loss protection as a requisite to their purchase.

    • blank

      A UPS will only protect you if the AC power fails. If you blow the power supply or mobo your SSDs data is toast without the supercaps.

      • blank

        Exactly! But it’s just a button!
        Can’t you turn it off when testing out your OC settings?
        And if you don’t OC then what, can’t you just verify your systems stability with some bench tools?
        After all if you fry your mobo, who cares about the windows installation? I don’t think you Store your family fotos on an ssd.
        To me it’s just common sense. FREE performance!

  7. blank

    OK, so who would get the 840 Pro over an 840 EVO at this price point? You mentioned that the Pro is not going away and is “suited” for certain applications? (as in better than the EVO?)

    Also, as far as this new RAPID technology is concerned, why is it not an always-ON feature? Why would anyone turn it off other than maybe for what, power savings reasons or wear and tear? Do we have availability now or soon?

    Thanks for a great review of what looks to become my next SSD and SOOON!!! 😀

    • blank

      Availability is expected within the next two weeks. RAPID is an always on feature and I spoke to that in the article. As for whether I would get one or another…. I really like RAPID. If it was an immediate necessity, I might grab the 840 EVO for that and the capacity. If I was to wait, I might go with the pro with the new version of Samsung Magician when it comes out but there is not a definite date on that, hence we dont know when RAPID will be available for the 840 Pro.

      • blank

        I see. Thank you for that!

        Alright, so let me please ask you to clarify that as the SOFTware will be compatible with the 840 Pro – perhaps for the sake of features such as manual provisioning – this software does NOT have ANY effect on the speediness of the 840 Pro as far as certain HARDware components are concerned, is that right? And those being certain features and technologies, which the software can only enable in “next-gen” 840 EVO SSD’s, because only the EVO supports it/them?

      • blank

        Current Magician software allows manual over provisioning and only the next for the Pro (TBA) will allow RAPID.

  8. blank

    I noticed that most of your benchmarks show the write speed while it’s in burst mode. For longer sequential writes (maybe after 5-10seconds), it seems like the data rate drops a LOT (from 450->320 or so).

    Given that, if you could get the Plextor M5P (256gb) on sale for $190 like it was recently, which would be a better purchase? I believe the Samsung 840 EVO 256gb would be slightly faster in reads, about the same speed for small writes, but considerably (35% slower) in long sequential writes.

  9. blank

    So, first I want to say thanks reading your reviews have helped me out with choosing a hard drive. I have a question do you know if it is a definite that Samsung is going to release RAPID for the 840 Pro software?

    • blank

      Yes this is an absolute which will be seen in a future release of Samsung Magician and this Fall.

      • blank

        I actually never got a chance to see this until after I already put my Samsung pro in rapid mode, and it definitely an awesome feature. I am having a hard time knowing what data to transfer to my mechanical drive from the SSD boot drive, because I do not know what will affected if I do. I have like 10 gb on a 256 boot drive and you can definitely see the difference in speed from when it has more free space on there. Especially with loading windows which everything would be in a rush to load up for first place before. Now it is more inconsistent, but I believe I will just look up on google about how to safely and efficiently transfer the data.

        Oh and btw thanks a lot for the reply about the release date of Rapid to the 840 pro. It was still appreciated none the less even if I never saw the reply until now.

      • blank

        I am glad you got everything set up properly. Enjoy!

  10. blank

    Strange, the new magician software v4.2 includes the new rapid mode but my Samsung 840 pro ssd is shown as not a supported ssd. Will it be supported in the future?

  11. blank

    Hi Les, just curious – in terms of real world performance – would you go for a SanDisk extreme 2 or a Samsung Evo 250gb? These are the 2 i’m looking at. Based on the specs the Evo wins hands down but is this the case for real world performance? Is everything “lightning fast” in loading and booting?

  12. blank

    Am pleased to hear this; because I have just finished building my i7 4770 Sabertooth Z87 PC and This SSD running Test Windows 8.1 and the Samsung Magician software told me the SSD RAPID MODE is not supported, which seemed odd as this is the Samsung software for the SSD.
    Patience is a virtue which brings rewards.
    I hope 20% of 128 GB is enough Over-provisioning.

  13. blank

    Les, I’ve noticed a lack of reporting on any “real world” experiences with RAPID mode turned on. Benchmarks seem amazing with RAPID, but can any of that be felt in real world use? Or does the feature blur the line even further between what’s seen on benchmarks and what’s experienced? Ie. making something really fast, faster, will still be really fast.

  14. blank

    Hey Les, I’m looking to build a RAID 0 out of 2 drives to write WAV files to via a DAW such as Pro Tools, Ableton, etc. Would you recommend the 840 Pro or 840 Evo for such a setup? Thanks.

  15. blank

    Hi! Sombody knows if its really compatible with SATA 1?
    In Samsung´s manual say its is, but in the box says its only compatible with SATA 2. Somebody really use this disk in SATA 1?
    PD: Sorry for my English!!!!
