Samsung 830 256GB SATA 3 SSD Review – Make Way For Incredible Performance & Lower Prices

CRYSTAL DISK BENCHMARK VER. 3.0 X64

Crystal Disk Benchmark is used to measure read and write performance through sampling of raw (0/1 Fill/compressible) or random data which is, for the most part, incompressible. Many new ‘SandForce Driven’ SSD owners who cant wait to test the performance of their SSD often grab this program and run a quick test, not realizing that they are testing with incompressible data rather than compressible data used in testing by manufacturers.  Samsung does not use compression in storage and the best we can show you for this drive is our result with Crystal’s random data sampling.

I am pretty certain that their are many SSD enthusiasts out there who are going to cherish this result as it is the best high sequential write result we have ever seen for a 2.5″ form factor SSD through testing of random or incompressible data.  The average for high sequential testing of random data is actually close to 75MB/s lower so this is an incredible achievement.  Lets take a look at AS SSD benchmark performance for confirmation of this.

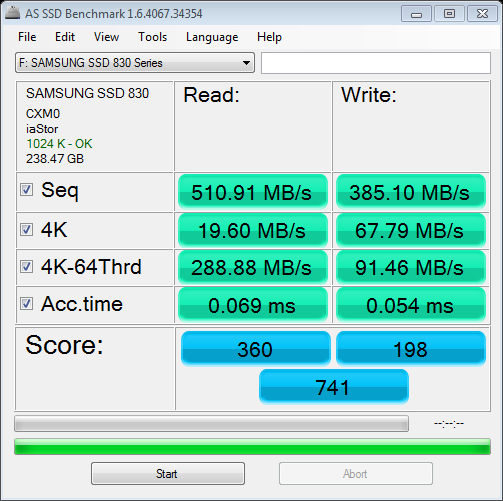

AS SSD BENCHMARK VER 1.64

Up until recently, AS SSD was the only benchmark created specifically for SSD testing and it tests through use of incompressible data which shows us the ‘worse case’ performance scenario in SSD transfer speeds.  Many enthusiasts prefer benchmarking with AS SSD for their needs.

We will always see a bit of a dip between the Crystal random data scores and the AS SSD results as the end result of AS SSD is the average of all tests while Crystal provides the highest result.  The high sequential read of 385MB/s is still going to be one heck of a reach for other manufacturers to make.

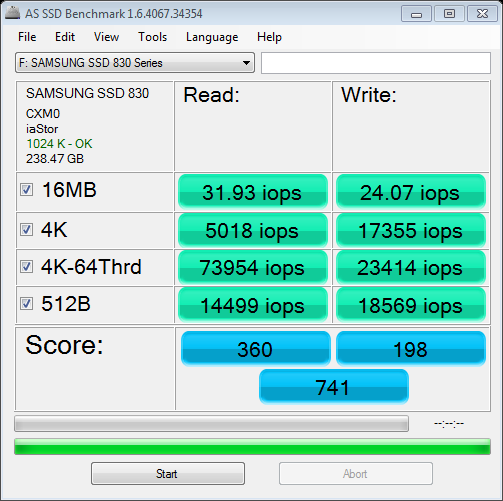

There is another difference with the 830 compared to most other drives, in that, it has been tuned to provide high 4k random READ scores whereas we have become comfortable with the 4k random aligned write disk access IOPS result.  Their specs list 80,000 and 36000 IOPS for read and write at 4k aligned random disk access, respectively, whereas we are just a bit under at 73954 and 23414 IOPS.

ANVIL STORAGE UTILITIES PROFESSIONAL

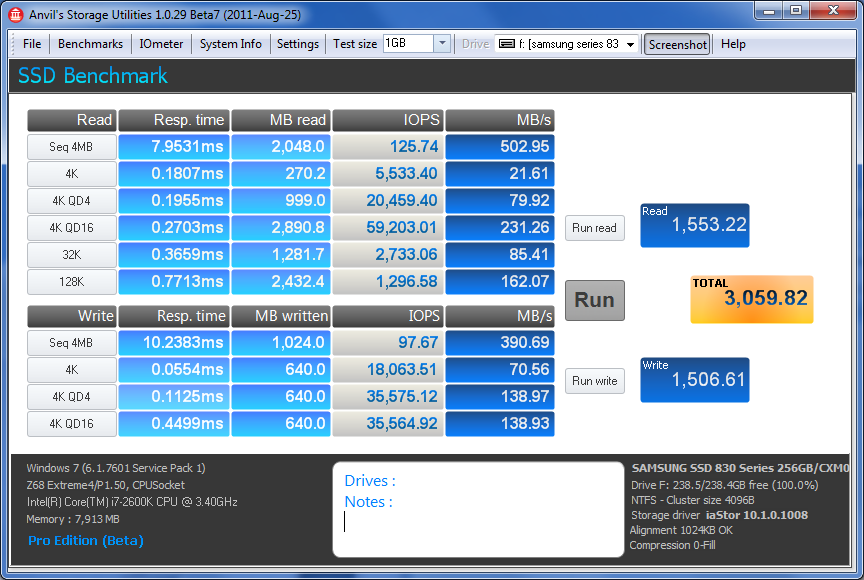

You may not see this for long (and its definitely not common) but you get a freebee simply for reading!  Over the last little while, we have been assisting with beta testing new benchmark software called Anvil Storage Utilities which is an absolutely amazing SSD benchmarking utility.  Not only does it have a preset SSD benchmark, but also, it has included such things as endurance testing and threaded I/O read, write and mixed tests, all of which are very simple to understand and utilize in our benchmark testing.  Recently, we published the exclusive public release here and, if you happen to check it out, there is a FREE download of the software!  Lets see how the Samsung 830 Series 6Gbps 256GB SSD fares on Anvil Pro:

Like ATTO Disk Benchmark, Anvil Pro tests with relatively compressible data, by default,  and there is not much difference observed.  We enjoy using Anvil Storage Utilities as its result tells a complete story.  This can be seen with the system identification on the bottom left, SSD identification on the bottom right and results that are a great deal more encompassing than other available benchmark software.

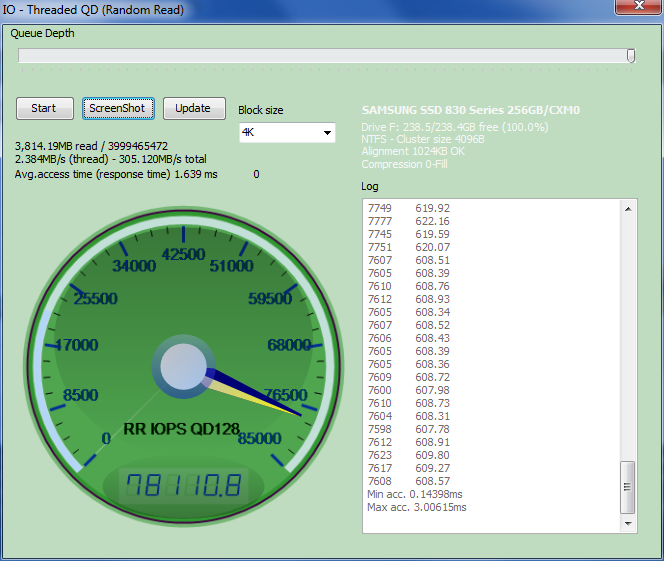

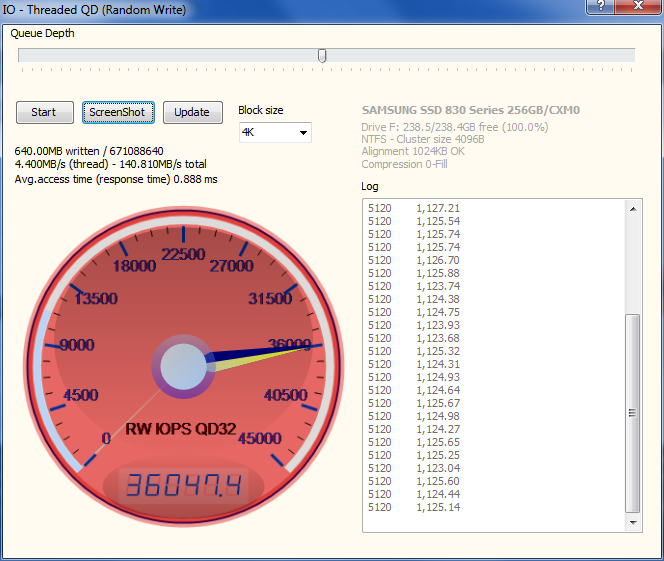

We decided to try and achieve the highest IOPS possible through Anvils user configurable tests and achieved slightly better results.  A close look will show that the READ result of 78110 IOPS on the left was done at 4K – QD128!

14
Leave a Reply

avatar
5 Comment threads
9 Thread replies
0 Followers

Most reacted comment
Hottest comment thread
9 Comment authors
khmeryinLes@TheSSDReviewHarpalAlexSanthosh Kumar Recent comment authors
  Subscribe
newest oldest most voted
Notify of
Anonymous
Guest
Anonymous

So when it comes to firmware do you know or has Samsung said anything about ease of updating it? Like if I have AHCI enabled on the BIOS and the Samsung SSD is within the notebook will I have to take it OUT and connect it to another computer that isn’t AHCI enabled to update it?

Les@TheSSDReview
Guest

There hasn’t been word on that other than the fect that it will be built into their new SSD Magician.

Anonymous
Guest
Anonymous

Thanks for replying man! I hope it comes in stock soon. I need this for my laptop to perfect.

Les@TheSSDReview
Guest

See our latest article this morning for pricing and availability!!!Type your reply…

Anonymous
Guest
Anonymous

It’s not an everyday occurrence (in the past anyway) where I can boast the company that makes the SSD for my workstations also makes the machine that washes my clothes and cleans my dishes

Les@TheSSDReview
Guest

Very interesting thought… similar to going to Walmart for groceries and a toilet.

Alexion0001
Guest
Alexion0001

can one of these Samsung 830 series 256 GB drives, stripped of its case, work as a replacement drive for a Toshiba Portege R830/835 Ultrabook (like the one that you tote around)?

Santhosh Kumar
Guest
Santhosh Kumar

You can use it with the case .. I dont think you need to remove the casing. .these things are small enough.. the pictures really dont show their tiny size

Les@TheSSDReview
Guest

The 835 is an mSATA so I am not sure how you might accomplish that. There also is not that much room within.

Alex
Guest
Alex

Hello.
My Samsung 830 SSD 256 Gb is working relatively slow. Sequential speed result usin CrystalDisk show 218 Mb/s read, 196 Mb/s write and other parameters are also 2 times slower.
What reason could it be?

khmeryin
Guest
khmeryin

u probably got it connected to the sata 3gb/s port, should be connected to the sata 6gb/s port

Harpal
Guest
Harpal

Is it possible to use this ssd in express card slot?

Les@TheSSDReview
Guest

No sorry…
