Kingfast F3 Plus SSD Review (240GB) – Looks Like The Real Thing

TEST BENCH AND PROTOCOL

Our analysis today will be conducted with our Asus Z77 Premium Test Bench. Clicking on any pictures or benchmarks will bring up a more easily viewable high resolution image.

In testing, our main objective is to obtain results as pure and as accurate as possible and we want to ensure that no anomalies slip through. Simply put, we want to provide you with the absolute best results the tested hardware can provide. Repetition in testing is standard and, if necessary, we may conduct specific tests in Windows 7 safe mode to ensure the OS has little to no influence on the end result.

In order to validate and confirm our findings, testing is supported by industry accepted benchmark programs. All results are displayed through capture of the actual benchmark for better understanding of the testing process by the reader.

We would like to thank ASUS (P8Z77-V Premium), Intel (Core i7-3770K), Crucial (Ballistix), Corsair (H100) and Be Quiet (PSU/Fans) for supporting the build of our Z77 Premium Test Bench.

BENCHMARK SOFTWARE

The software we will be using for today’s analysis is typical of many of our reviews and consists of ATTO Disk Benchmark, Crystal DiskMark, AS SSD, Anvil Storage Utilities and PCMark Vantage.  We rely on these as they each have a way of supporting one another yet, at the same time, adding a new performance benchmark to the total picture.  Much of the software is free and can be downloaded simply by clicking on the linked title.

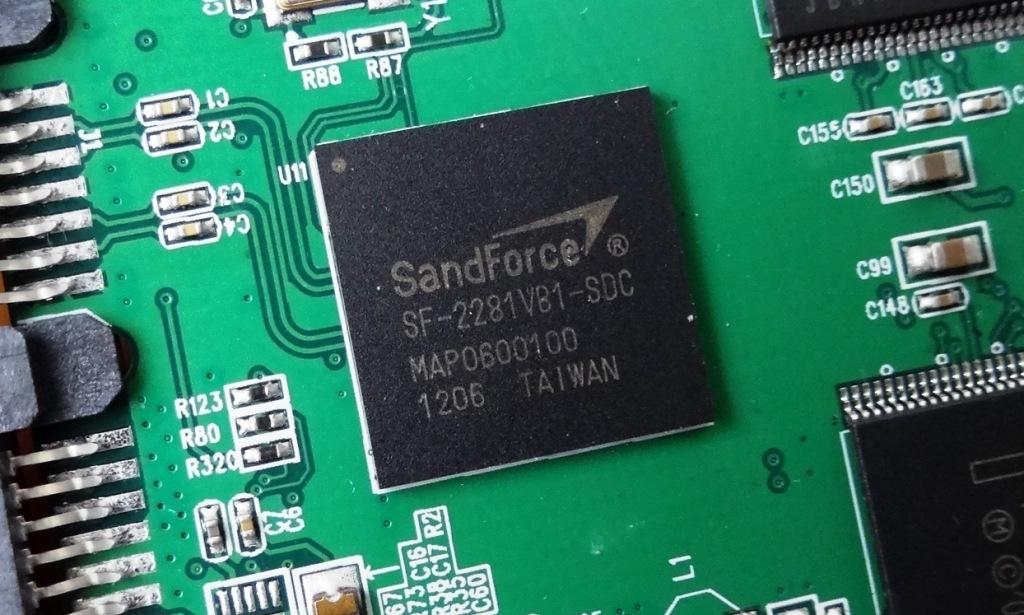

THE LSI SANDFORCE SF-2281 CONTROLLER

All SSDs are not created equal and many new SSD enthusiasts realize that when they test their new drive to confirm specifications and ensure all is in order. SandForce controlled SSDs, as in the KingFast F3 Plus SSD we are testing today, use compression techniques in storage whereas many others do not. This creates a bit of confusion when enthusiasts test the drive with random data through benchmarking programs such as AS SSD and Crystal DiskMark. The results seem to be lower than the listed specifications.

Kingfast F3 Plus SandForce FSP

The results actually present a false portrayal of the drives ability when compared to other drives such as Samsung, Crucial or Intel. It is for this reason that all of our comparison testing is done through PCMark Vantage. PCMark Vantage HDD Suite simply provides evaluation results based on transfer speeds reached through typical user patterns. Vantage provides a better testing medium, in that, it sees through the typical synthetic benchmarks and provides us with ‘true to life’ results of the drive.

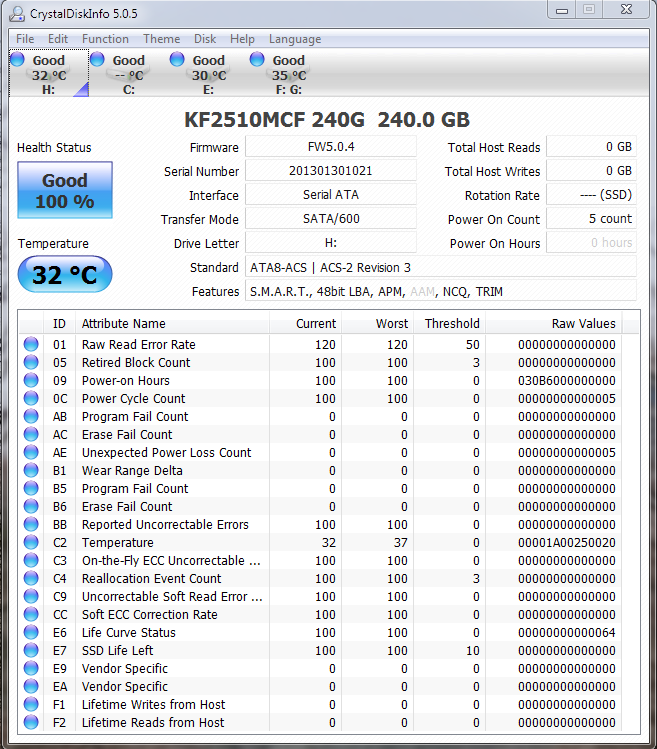

CRYSTAL DISK INFO VER 5.0.5

Crystal Disk Info provides some excellent information about the SSD itself to include its health, product information, power on information as well as the characteristics of the SSD. We can see that the F3 Plus is capable of TRIM as it is not greyed out, much like AAM.

KingFast F3 Plus New CDI

 For new SSD owners, CDI is a free program that we would definitely recommend as it can set their mind at ease that the SSD is new, TRIM is functional, as well as confirming the LSI SandForce firmware in use to be 5.04, at least in the case of LSI SandForce Driven SSDs.

About Les Tokar

is a technology nut and Founder of The SSD Review. His early work includes the first consumer SSD review along with MS Vista, Win 7 and SSD Optimization Guides. Les is fortunate to, not only evaluate and provide opinion on consumer and enterprise solid state storage but also, travel the world in search of new technologies and great friendships. Google+
  • Winkey

    Any reason the OCZ Vector still is missing in the Vantage chart.

    Any chance of seeing how the drive does with 25%/50%/75% data on it?

    • http://www.thessdreview.com Les@TheSSDReview

      It is a midrange chart displaying only the highest performing SSD for comparison and our site doesn’t fill test in our benchmarks at this point.

    • johndoe

      Look up on how a SandForce SF-2281 based SSD does over TPU. W1zzard has fill in tests and goes down to %50. [H] does the same at %75. W1zzard’s reviews are more likeable than [H]‘s BTW.
