Corsair Force Series LS 240GB SSD Review – Phison Controller Displays Increased Write Speeds

When it comes to SSD controllers, up until recent times LSI/SandForce and Marvell have pretty much “ruled the roost”.¬†¬†¬† Other than a few instances of utilizing proprietary controllers (such as Samsung does in most of their SSDs), and a smaller player in Indilinx (acquired by OCZ), ¬†there were no other options for¬†manufacturers to engineer a new SSD with.¬† That has recently begun to change, as other controllers¬†are beginning¬†to appear on the scene.

Force LS 240GB angled left

The last Corsair SSDs (the Neutron and Neutron GTX) that we reviewed back in August featured the new Link A Media (LAMD) 6 GB/s controller.  Corsair was one of the first SSD manufacturers to hit the retail market, and although they have proceeded a bit more carefully than other manufacturers, they have earned a reputation as providing some of the top performing SSDs that money can buy.  Their success in SSDs has shown with their willingness to explore different controllers in search of the best, as well as bringing out non-standard SSD capacities that few others offer.  The Corsair Performance Pro was one of the better SSDs we have tested, and it surprised everyone as it is based on the Marvell 9174 controller, and Corsair truly found the sweet spot in its performance.

THE CORSAIR FORCE SERIES LS 240GB SSD

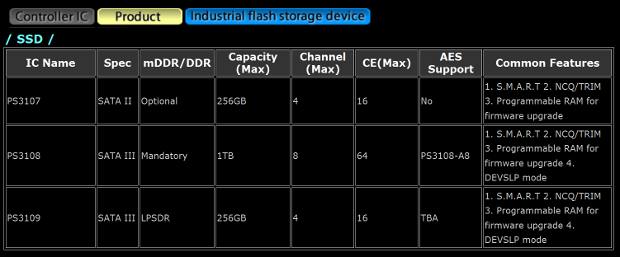

Today’s analysis is of the new Corsair Force Series LS 240GB SSD, and its new Phison PS31080-S8 controller.¬† The PS3108 is a SATA III, 6 GB/s, 8-channel controller that supports up to 1TB of flash storage capacity.¬† As you can see in the graphic below (pulled from Phison’s global website), the PS3108 supports AES encryption, S.M.A.R.T., NCQ/TRIM and Device Sleep (DEVSLP) mode.¬† The PS3108 is Phison’s current top controller, so let’s see if Corsair can implement it into another winner with the Force Series LS 240GB SSD.

Phison controller features

The Corsair Force Series LS is being offered in capacities of 60GB, 120GB and 240GB.¬† Corsair’s global website shows pricing of $94.99 for the 60GB model, $144.99 for the 120GB model, and $259.99 for the 240GB version.¬† Oddly enough, the Force Series LS SSDs are not presently available in the United States, nor are they even presently listed on Corsair’s United States webpage.¬† We did find¬†it on Amazon for $246.33 and free international shipping. ¬†We would like to extend our thanks to Corsair for providing us with a sample 240GB model to review.

The Force Series LS is listed as having sequential read speeds of up to 560 MB/s, and sequential write speeds of up to 535 MB/s (using ATTO benchmark software).  The 7mm height form factor makes it compatible with most laptop, notebook and ultrabook PCs.  Mean time between failures (MTBF) is stated as 1,000,000 hours.  Power consumption is listed as 4.6W maximum (active), and 0.6W maximum (idle/standby/sleep).

Force LS 240GB retail box

The retail box the Force Series LS 240GB ships in is a combination of black, white, and turquoise graphics.¬† The front of the box pictures the drive, along with the capacity and a list of key features.¬† The rear of the box has an area with the model and serial number, an area showing compliances and certifications, and a paragraph (in no less than six languages) highlighting the drive’s compatibilities.

Force LS 240GB open case

About Scot Strong

Scot Strong is an automotive parts professional with 30 years experience in proprietary dealership computer systems, He is also a technology freak the rest of the time. He has been repairing, upgrading, and building personal and business computers for over ten years. He has also written articles for automotive parts management publications, and is a regular contributor at our sister site, TechnologyX.com
  • jsfitz54

    On page 3 of the review your yellow heading for “Crystal Disk Info Ver 3.9.3″ appears to need correcting to keep in line with the version used in the test: 5.6.2.

  • iCrunch

    It’s just amazing, the time we live in. SATA III just came out a couple of years back and some of us are disappointed with the 6Gbps speed, which constituted “the latest and the greatest” what feels like just yesterday.

    I am very much part of that group. When I heard about the newly refreshed iMacs, I was disappointed that Thunderbolt 2 wasn’t part of the equation, as I am very much looking forward to a 4K monitor as soon as they’re less cost-prohibitive, but when I read down the press release and found out the new specs included a new PCIe SSD, I immediately sold off my now former souped-up Mac mini, and placed my order for one of those babies.
