Kingston DCP1000 NVMe SSD Reaches 7GB/s – Is This the Worlds Fastest?

Quick post to let all know what we have in store in the next few weeks.  We just got the Kingston DCP1000 Data Center NVMe SSD in today and this SSD is rather special.  With advertised capacities up to 3.2TB and performance up to 6.8GB/s and 1.2mil IOPS, this SSD just could be the fastest single SSD solution worldwide right now.

DCP1000 Alone

Based on both Kingston and Liqid technologies, the DCP1000 is an NVMe SSD using PCIe 3.0 x 8 ultrafast lanes and it looks no different than any other PCIe card, but for a few capacitors that become visible when she is sitting in the Test Bench.

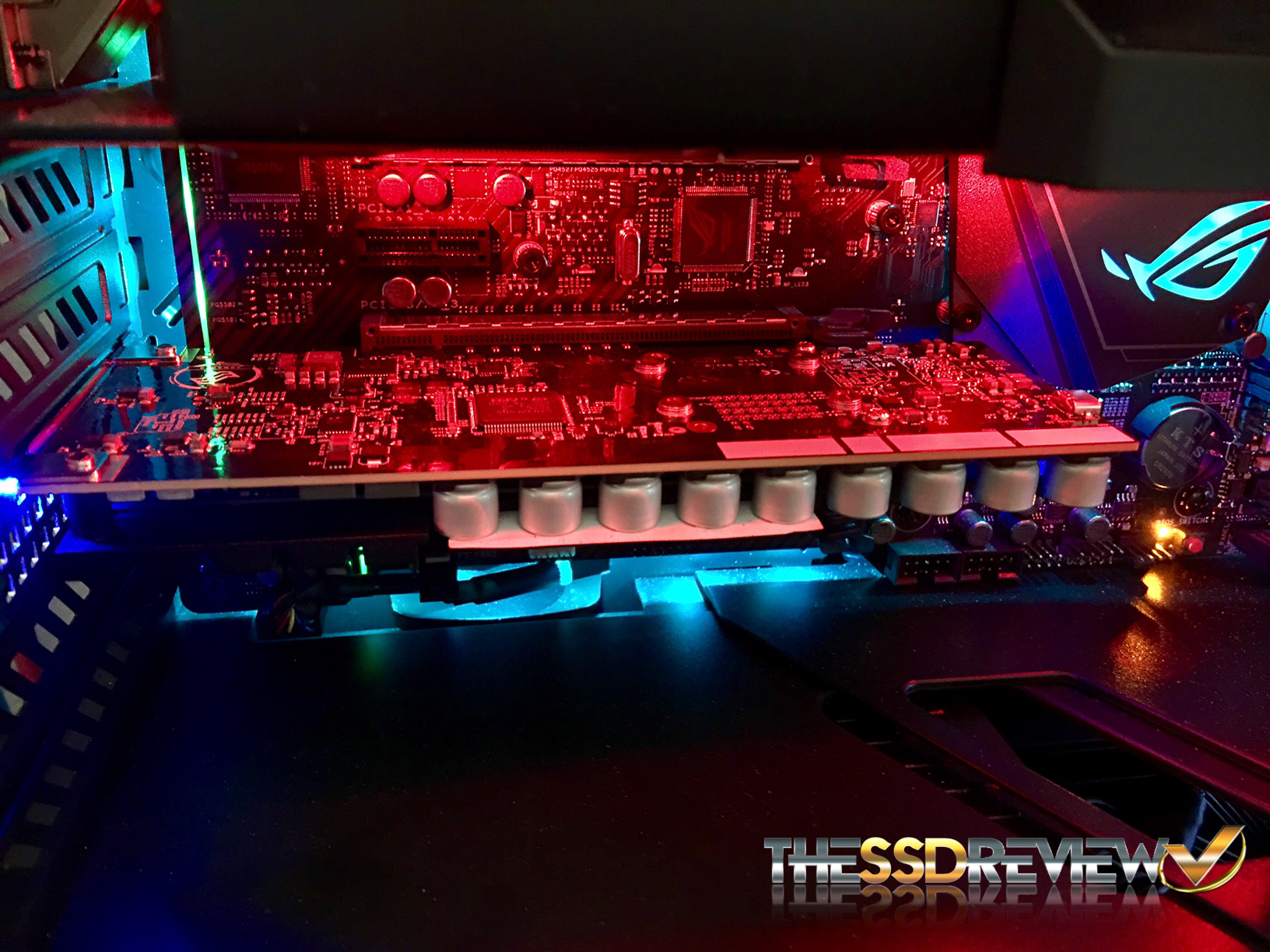

DCP1000 in the machine

Installation was very simple, consisting of plugging her into our Z270 Test bench, creating a RAID volume of the 4 x 400GB logical drives, and then formatting.  We had this SSD running in less than 10 minutes and check this out:

DCP1000 CDM

I could be wrong but this result could be the absolute fastest speed ever pulled off from a solid state drive of this nature, granted the performance is the result of a RAID volume but we have never seen anything even remotely close from a single SSD prior.  Will it hit 1.2 million IOPS though?  Stay tuned as we are going to publish both an enthusiast and enterprise review of the DCP1000.  Just to give you a taste of things to come, we couldn’t resist a quick transfer test of 15GB of HD video…. 6.8 seconds.  Yup… the DCP1000 is transferring HD video at more than 2GB/sec.  More to come!!!

12
Leave a Reply

avatar
6 Comment threads
6 Thread replies
0 Followers

Most reacted comment
Hottest comment thread
9 Comment authors
jamesvasrasRados?aw Or?owskiLes@TheSSDReviewrenosablast Recent comment authors
  Subscribe
newest oldest most voted
Notify of
sumit puri
Guest
sumit puri

Insane speed …. Can’t wait to see the full results .. very exciting !!

dravo1
Guest
dravo1

Definitely want to see the thermal images on this bad boy.

Greg Zeng
Guest
Greg Zeng

http://www.thessdreview.com/hardware/system-builds/new-kaby-lake-z270-test-bench-gets-built/
“The New Kaby Lake Z270 Test Bench Gets Built – 5GHz”, Les Tokar February 25, 2017
… is your test-bench?

Which version of Windows are you running. Or does this not matter? Similarly with the versions of drivers?

renosablast
Guest
renosablast

Les advised that he would be publishing a review (enthusiast version) in the near future, at which point your questions should be answered.

Les@TheSSDReview
Guest

Windows 10 … all updated drivers.

Eduardo Solanas Esteban
Guest
Eduardo Solanas Esteban

41.54 at 4k is what matters and it is like a normal ssd

Les@TheSSDReview
Guest

To the someone that doesn’t work in media perhaps. People tend to overlook that of which they take advantage of so frequently in life (FB/Banks/television etc) relies on data centers that value those high numbers dearly.

Rados?aw Or?owski
Guest
Rados?aw Or?owski

for small files yes. But you do not work with 2-4 KB files alone ?

anything bigger like movie editing or anything ….

vasras
Guest
vasras

How come the 4K random r/w speeds are so abysmal? That is not “world’s fastest” by any measure.

Les@TheSSDReview
Guest

It is a data center drive, not meant for you to throw in your desktop and surf the web. Having said that, the 4k’s are typical and anything but abysmal. Perhaps you should look up and try to find a comparable drive anywhere with those high sequentials.
