Crucial Micron Introduces M500 SSD Family With 1TB Under $600 And Standard Power Loss Protection

Crucial Micron is making serious SSD strides forward this morning with the much anticipated announcement of their new M500 Series SSD family.  The good news isn’t limited to the typical consumer notebook form factor SSD, however, as mSATA and a new M.2 form factor are also included with this release.  Add to that the news that the M500 will also be available in a 960GB version AT UNDER $600 and Crucial Micron is once again heating up the SSD pricing wars!

To start, both the Micron business/OEM version and Crucial consumer version of this new release carries the M500 nameright. The M500 contains the Marvell 88SS9187 controller and Micron’s own 20nm 128Gb MLC NAND flash memory which will be the first release on the market to enable 1TB capacities at sub $600 price points.

M500

The M500 2.5″ form factor is available in capacities of 120, 240, 480 and 960GB and speaks to performance of 500MB/s read and 400MB/s write with up to 80,000 IOPS with a three year warranty. The M500 SSD also incorporates the following specially designed features to provide users with peace of mind that their data is protected:

  • Hardware encryption technology (TCG Opal 2.0 + IEEE 1667) designed to maintain data security in the event of device theft or loss3;
  • Greater thermal management enables the drive to work with the host computer to dynamically adjust power consumption based on usage demands, helping designers face the challenges of ultra-small, thermally constrained systems; and
  • Expanded power-loss protection and advanced error recovery techniques deliver class-leading reliability. Data integrity is protected even during unexpected power loss.

The M500 is also available in both mSATA and the newer M.2 NGFF (Next generation Form Factor) specification with capacities available in 120, 240 and 480GB which will be an amazing storage capacity for todays new ultrabook family.

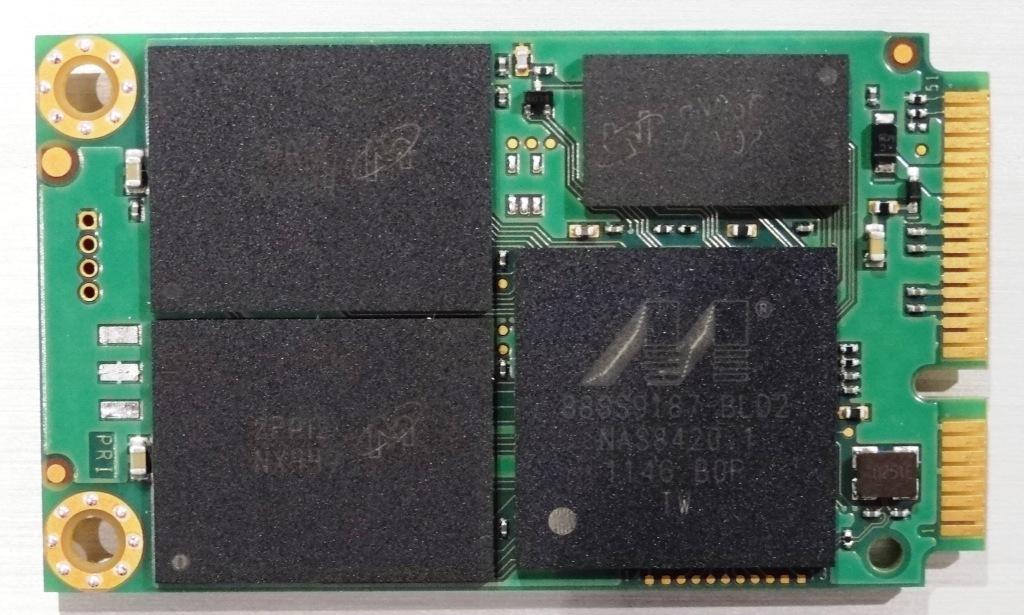

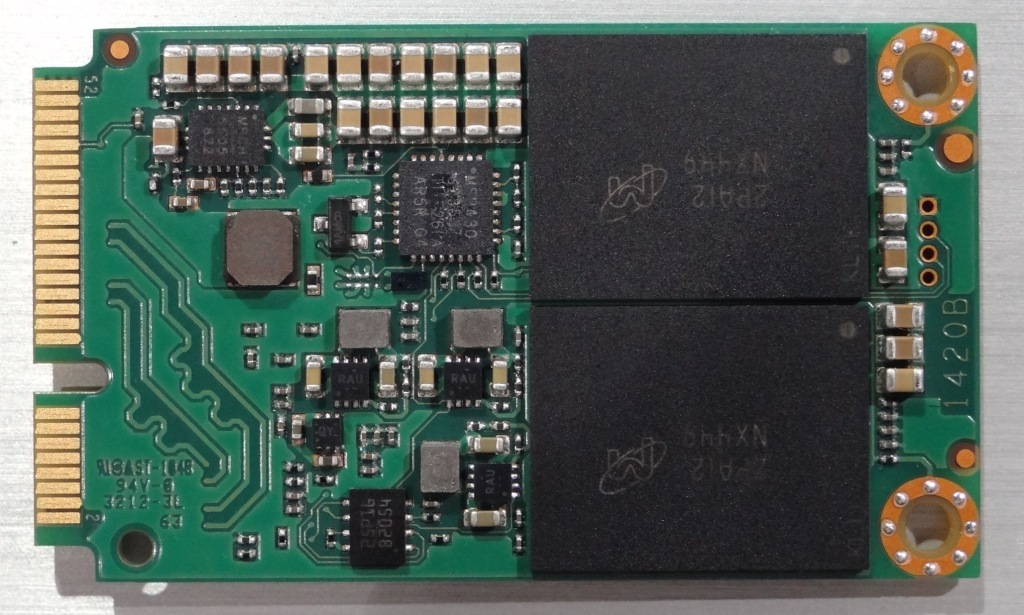

m500 mSATA BackM5 mSATA FrontSomething that we can see with the mSATA version and that will be present in all M500 SSDs are the inclusion of several very small power capacitors.  These capacitors enable the SSD to ensure that all active data reaches safe storage in the memory should a power failure occur.  Although this has been commonplace for the more expensive enterprise varients for some time, Crucial Micron is now making this standard with the entire M500 family.

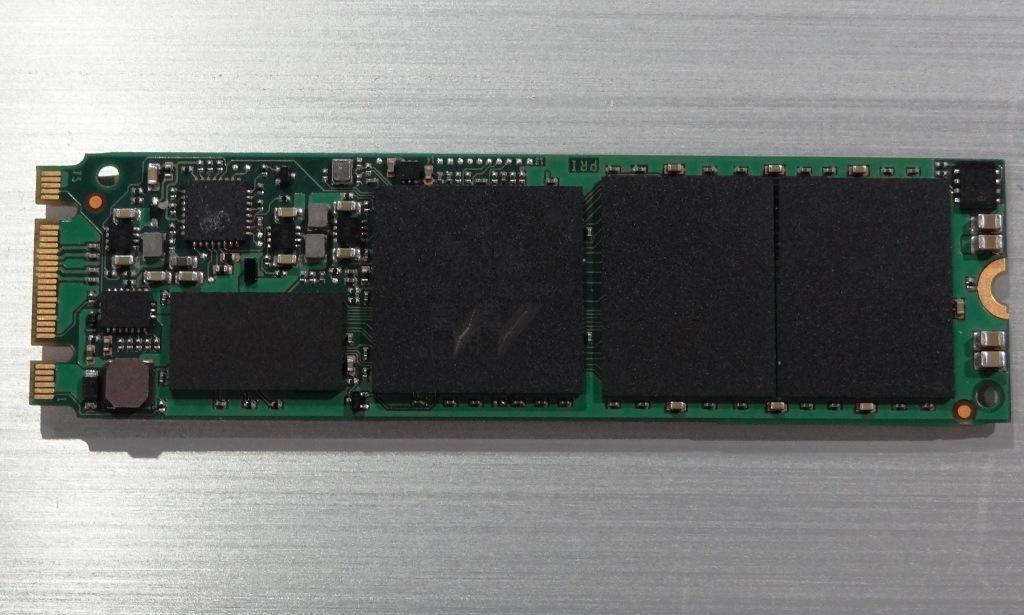

M500NGFF Back M500NGFF FrontHere is an initial look at the new M.2 NGFF form factor which is expected to become the new industry standard.  One thing this design is expected to enable is a seperate dual sided SSD that is capable of actual hosing two seperate SSDs on one ‘gumstick’ or ‘blade’.  This form factor also enables higher capacities such as we will see with the 480GB Micron release.

M500 NGFF Pins

About Les Tokar

is a technology nut and Founder of The SSD Review. His early work includes the first consumer SSD review along with MS Vista, Win 7 and SSD Optimization Guides. Les is fortunate to, not only evaluate and provide opinion on consumer and enterprise solid state storage but also, travel the world in search of new technologies and great friendships. Google+
  • Kimmono

    Fantastic that they added power capacitors. 960GB will be great for mass storage in servers.

    • Visigoth

      Agreed. And with Micron’s sensible pricing, this looks like the best SSD upgrade for the year. I can’t wait to see how much these will fetch on Black Friday/Cyber Monday later this year!

    • Zzyzx

      I do a lot of audio editing on my laptop on the road. A reasonably priced 2.5 in drive approaching 1 TB will be great!

      It doesn’t sound like the mSATA will be available in 480 GB, just M.2 NGFF — or am i misreading that?

      • http://www.thessdreview.com Les@TheSSDReview

        MSata will be available in 480GB capacities.

      • Zzyzx

        Cool, thanks. That means I can likely load up my laptop with a 480 GM mSATA primary/boot drive, and a 960 GB secondary 2.5 in SSD to hold all my 192 KHz 32 bit audio for editing. Happy, happy! :)

      • http://www.facebook.com/rick.kirpestein Rick Kirpestein

        Hi, I am new to this forum. Can you hear audible differences when playing from SSD? No jitter and so on?

  • felix

    According to another news website, “Crucial has announced its latest range of SSDs, which it claims are the first to offer ‘terabyte class’ drives for under £450″
    Is there a marketing trick in the expression “terabyte class” , or the 960GB drive will cost what is claimed under £450 ?
    If real, it is great news….

  • David

    Any date on the msata release?
