Our complete testing methodology is described in our Solid State Storage Enterprise Test Protocol. We utilize the X79 Patsburg chipset in tandem with a LSI 9211-8i RAID controller card under the Windows Server 2008 R2 operating system.
The LSI 9211 allows us a stable platform that is relatively free from wild driver changes that motherboard chipsets are subjected to.
Utilizing software such as Iometer allows us the flexibility of testing these drives with direct attachment to the HBA, and a minimum of host processing limitations. This will eliminate all possible slow points and latency constraints that will be introduced into the testing by using network-based systems. We are focused on providing accurate measurements of the SSS itself, with no interference from performance-bound limitations introduced from other types of software and hardware that can be used. Different software-based approaches can be performance inhibited by many different aspects of the host systems CPU, RAM, and chipset limitations.
We utilize several key considerations of the industry-accepted SNIA Specification for our testing. The performance of enterprise SSDs has to be conducted at steady state levels. This can be accomplished only by placing the drive under a very heavy workload over an extended period of time. Simply writing the capacity of the SSD several times will not suffice, as there are many factors that must be taken into consideration when attaining true ‘Steady State’.
‘Steady State’ can vary based upon the workload and the type of data access that is being placed upon the SSD. There is a profound difference between sequential and random data loadings, and also between various read/write mixed percentage workloads. The first requirement is to assure that 3 steps are taken to assure Steady State under very specific circumstances, Preconditioning, Workload Independent Preconditioning (WIP), and Workload Based Preconditioning (WBP). All measurements will be taken after WIP and WBP.
After each round of Preconditioning has been accomplished, there must be a logging of performance data to assure that Steady State has been achieved for both. As our final round of testing, we will apply 20% over provisioning to the respective device to test performance. Over provisioning (OP) is the practice of leaving large amounts of unformatted spare area on the device to increase performance and endurance under very demanding workloads. The link above contains much more data on our testing procedures.
F.O.B. READ MEASUREMENTS
FOB (Fresh Out of Box) measurements are taken when the SSD is new and hasnt been subjected to any use. As the device is used more we will see some lower results with write activity. Read speeds largely remain unchanged, so we can use these numbers as a comparison for the overall performance of the SSD. Compressibility of data also has little effect on the read speeds as a whole, so we will be posting compression only, as there is minute variability.

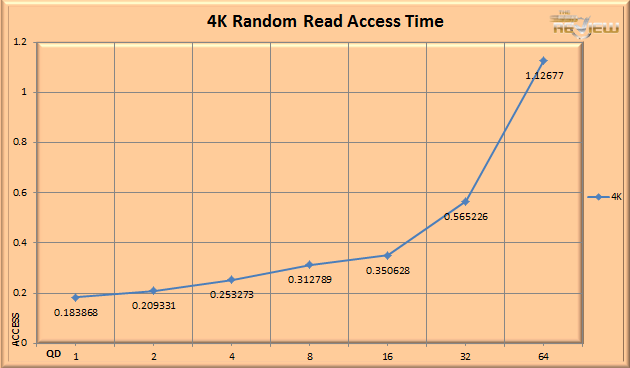

The 4k Read Latency is a very important measurement, as it shows the overall responsiveness of the SSD under varying Queue Depths (QD). At the QD of 1, the 4k random access time comes in at .18, which is a very good latency measurement.

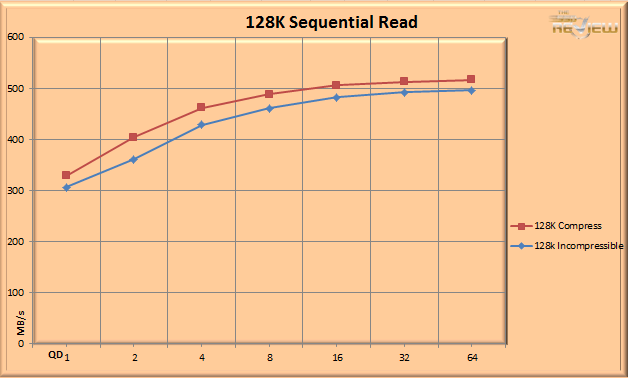

The 128K Sequential read shows the maximum throughput at a realistic file size that the SSD would come across in enterprise usage. The OWC Mercury Enterprise Pro 6G comes in with 325MB/s at a Queue Depth of 1, and tops out at 517 MB/s at a Queue Depth of 64.
