Netstor NA611TB3 Dual NVMe SSD TB3 Enclosure Review

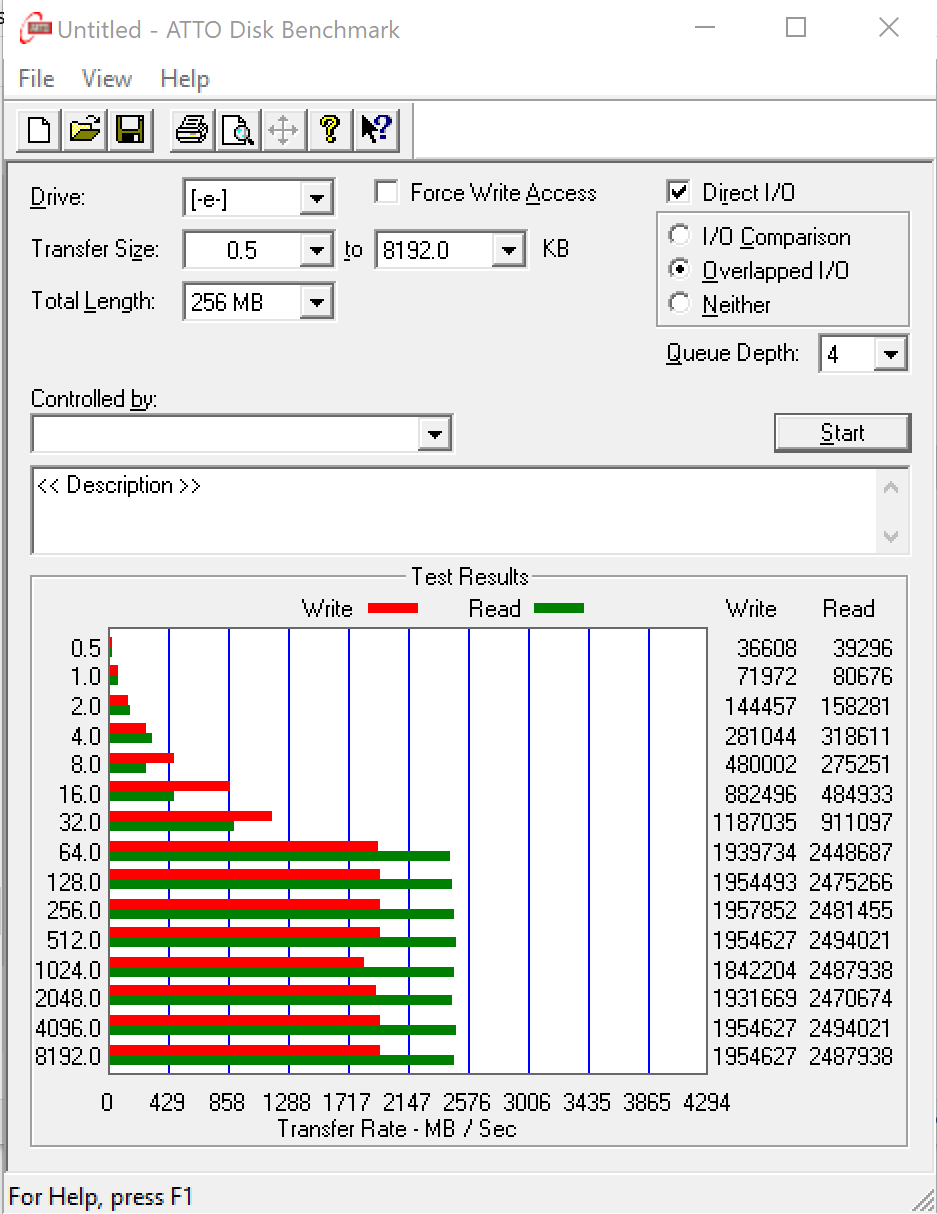

ATTO DISK BENCHMARK VER. 3.05

ATTO Disk Benchmark is perhaps one of the oldest benchmarks going and is definitely the main staple for manufacturer performance specifications. ATTO uses RAW or compressible data and, for our benchmarks, we use a set length of 256mb and test both the read and write performance of various transfer sizes ranging from 0.5 to 8192kb. Manufacturers prefer this method of testing as it deals with raw (compressible) data rather than random (includes incompressible data) which, although more realistic, results in lower performance results.

The key to TB3 performance is hitting 2.8GB/s read data throughput.  As we can see with ATTO, read performance fell short, although write speeds are as listed in specifications.

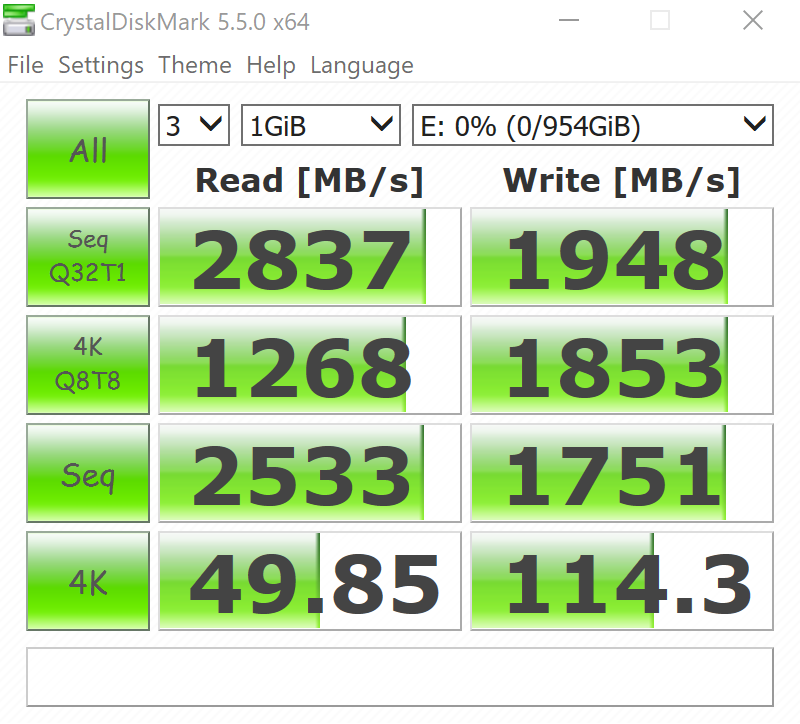

CRYSTAL DISK BENCHMARK VER. 5..5.0 X64

Crystal Disk Benchmark is used to measure read and write performance through sampling of random data which is, for the most part, incompressible. Performance is virtually identical, regardless of data sample so we have included only that using random data samples.

blank

Sequential results for Crystal Disk Mark are right where we want them to be, hitting 2.8GB/s read throughput.  Low 4K could be a bit better, however, we need to understand that external storage is for just that…storing very large media files.  This performance also makes it very easy to manipulate 4K media and larger.

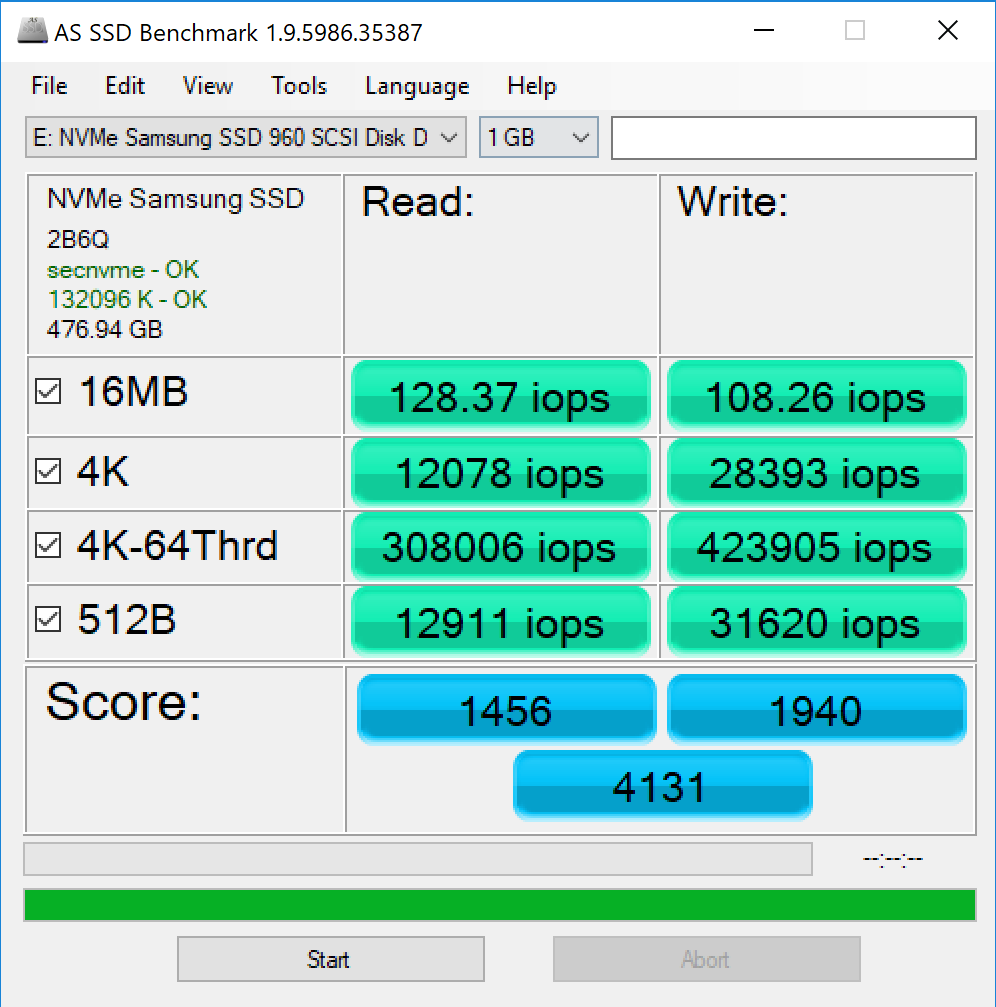

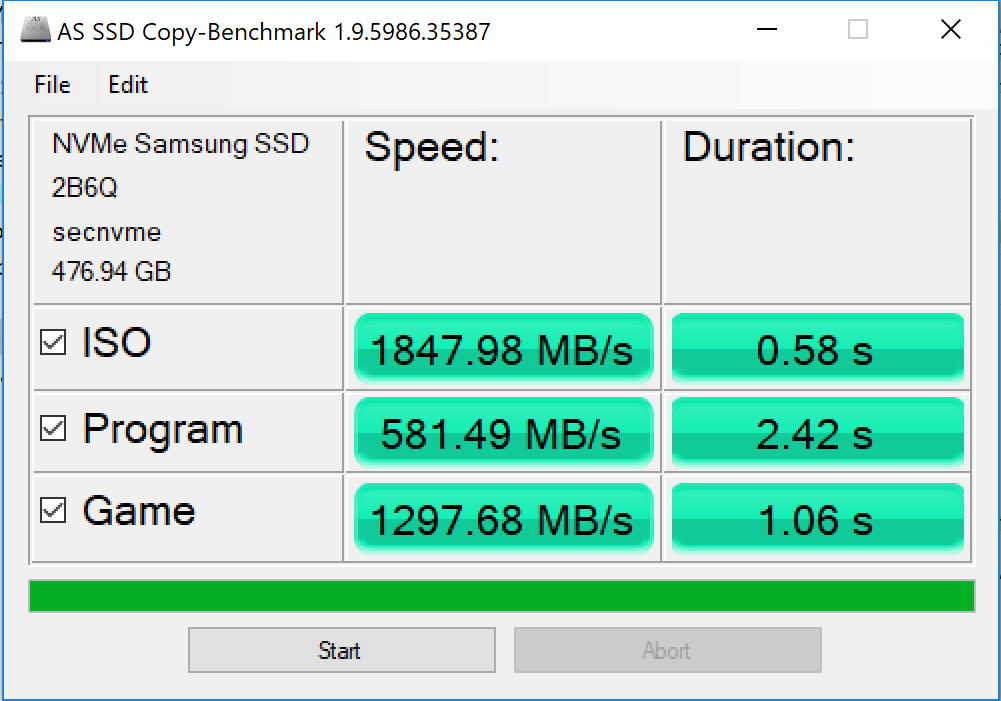

AS SSD BENCHMARK VER 1.9

The toughest benchmark available for solid state drives is AS SSD as it relies solely on incompressible data samples when testing performance. For the most part, AS SSD tests can be considered the ‘worst case scenario’ in obtaining data transfer speeds and many enthusiasts like AS SSD for their needs. Transfer speeds are displayed on the left with IOPS results on the right.

blankblank

blank







These results are consistent of what we might see in AS SSD and this gives us a great look at transfer speeds of different file types.  It is always nice to see rather high read and write 4K IOPS.

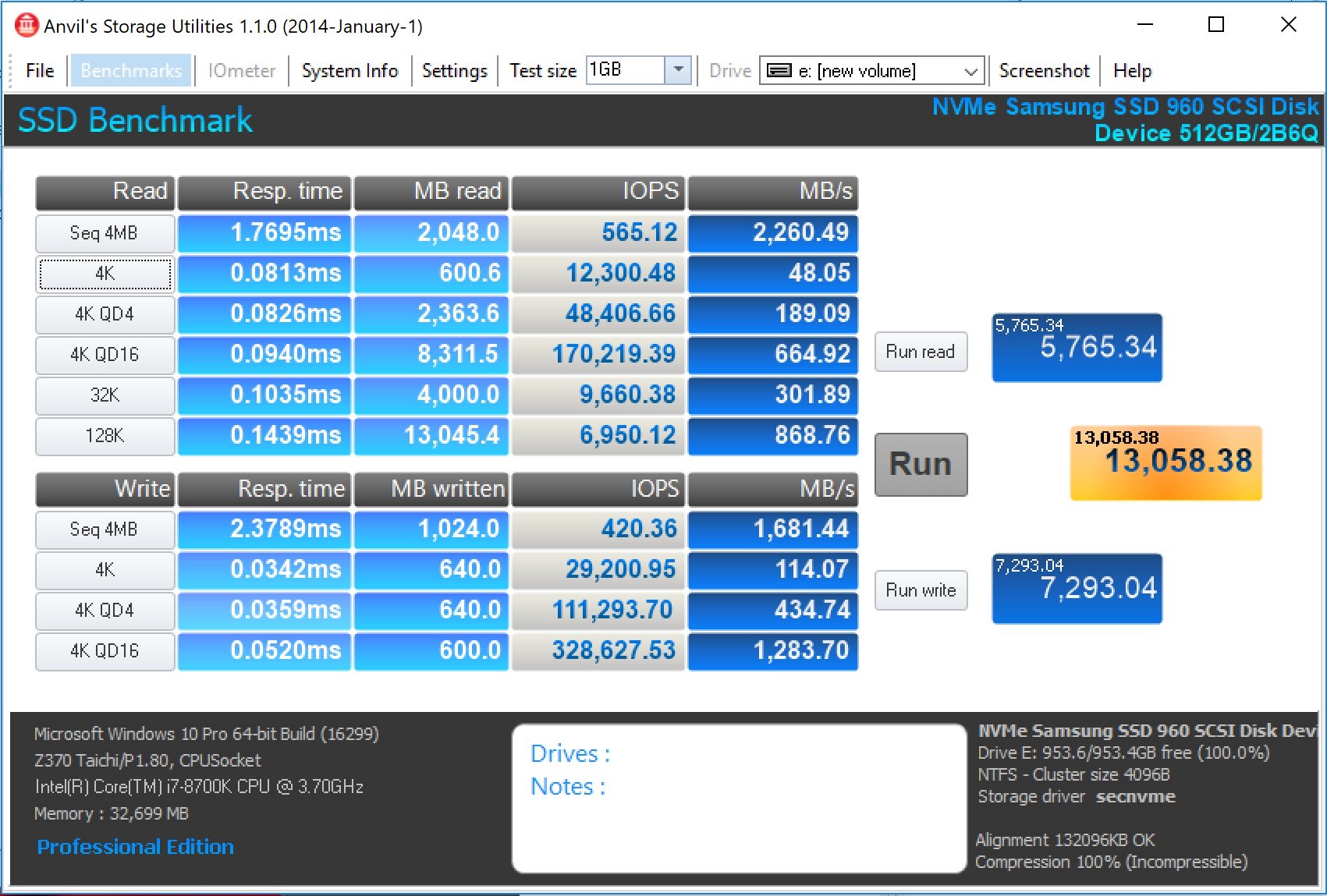

ANVIL STORAGE UTILITIES PROFESSIONAL

Anvil’s Storage Utilities (ASU) are the most complete test bed available for the solid state drive today. The benchmark displays test results for, not only throughput but also, IOPS and Disk Access Times. Not only does it have a preset SSD benchmark, but also, it has included such things as endurance testing and threaded I/O read, write and mixed tests, all of which are very simple to understand and use in our benchmark testing.

blank
