ASRock X99 Extreme11 Motherboard Review – Quad X16 SLI/ Crossfire Gfx and 6.1GB/s Speeds

 ACHIEVING 6.1GB/S TRANSFER SPEEDS

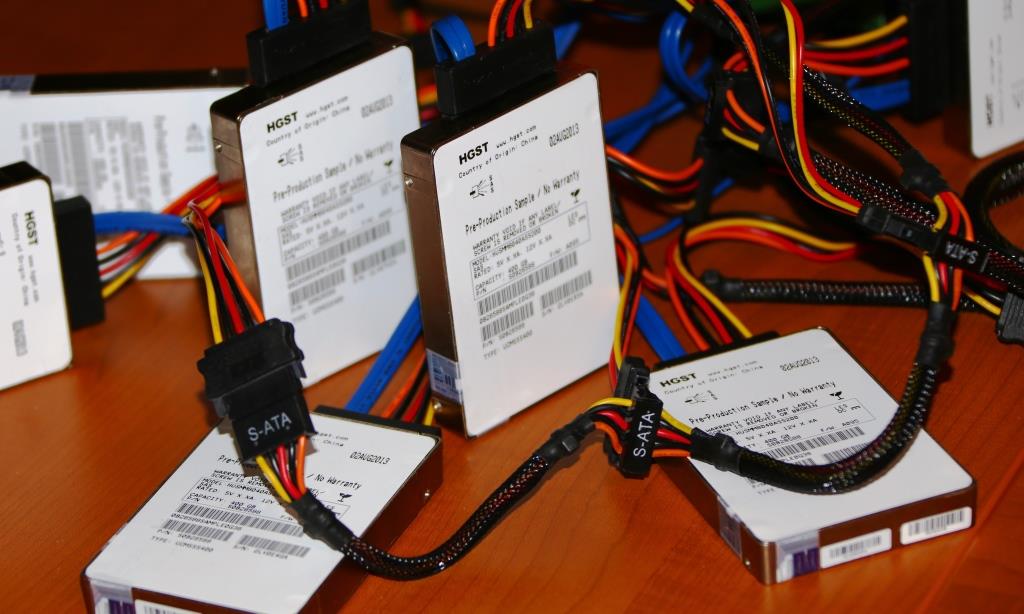

As a review resource, we have been fortunate to have had eight HGST SSD800mm 400GB SAS 12Gbps SSDs in our hands since even before the release of 12Gbps SAS drives.

IMG_3808

Checking out AS SSD with a single drive, we can see that we are getting even better performance through a single drive, than we did with the Z87 Extreme11 test results:

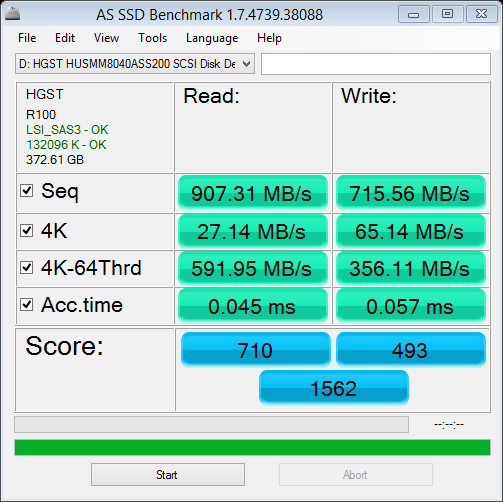

ASRock X99 Extreme11 12Gbps SAS Tests Throughput AS SSDASRock X99 Extreme11 12Gbps SAS Tests IOPS AS SSDTaking a closer look at these eight drives in a RAID 0 combination, we can see that AS SSD wasn’t quite intended for testing at this level as performance doesn’t scale quite as expected:

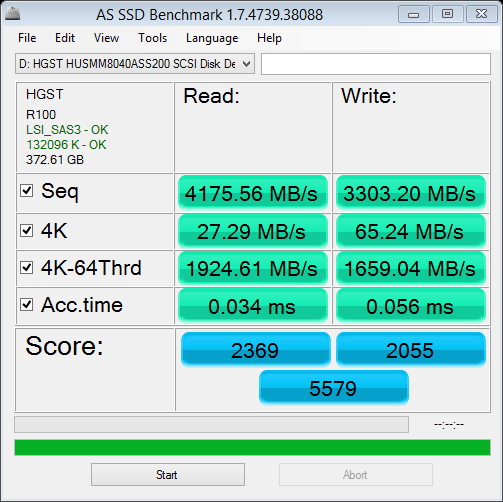

ASRock X99 Extreme11 12Gbps SAS RAIDx8 Tests IOPS AS SSD ThroughputASRock X99 Extreme11 12Gbps SAS RAIDx8 Tests IOPS AS SSD IOPSWe would have like to see throughput up around the 6GB/s mark, as well as IOPS above 500K.  Regardless, we can remember a point in time when one could never have imagined these type of speeds being pushed through a consumer motherboard.

IOMETER 1.1.0-rRC1

Relying on IOMeter, we can see that throughput scales much as expected, providing even better performance than we had seen previously.  Testing is set up with 8 workers, a 20GB file size, 64QD and normal cycling to run all selected targets for all workers.

THROUGHPUT READ

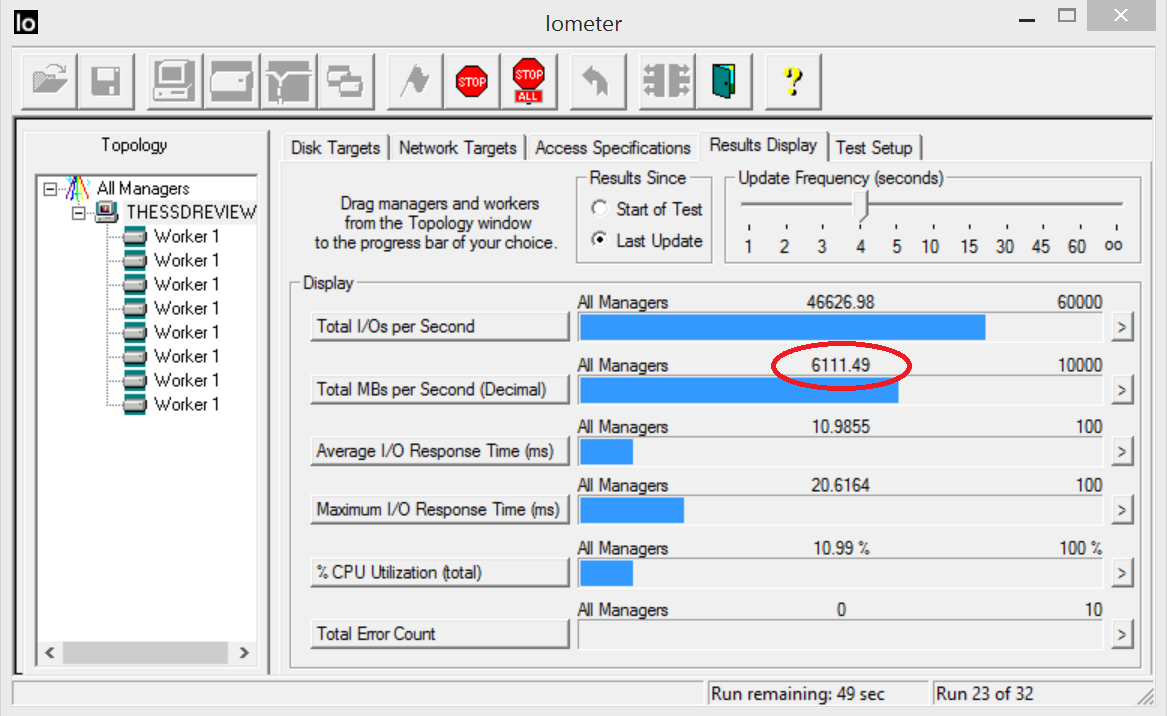

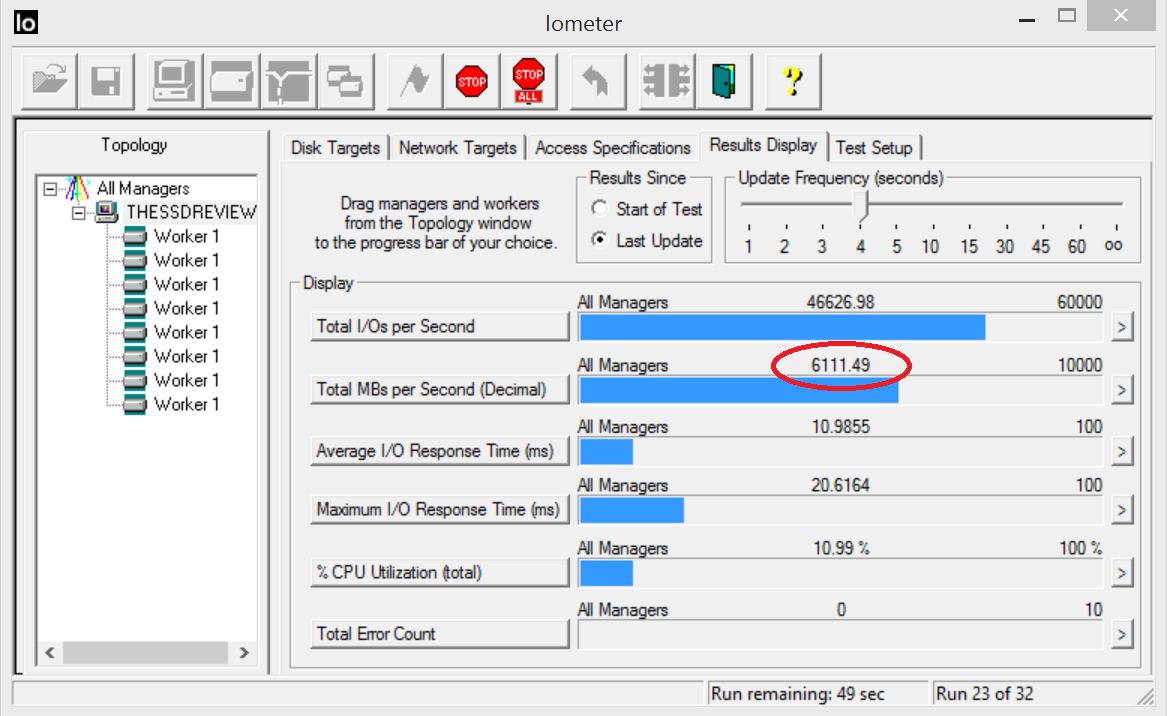

ASRock X99 Extreme11 SASx8 IOMeter 61GBs 128Kb Rd

THROUGHPUT WRITE

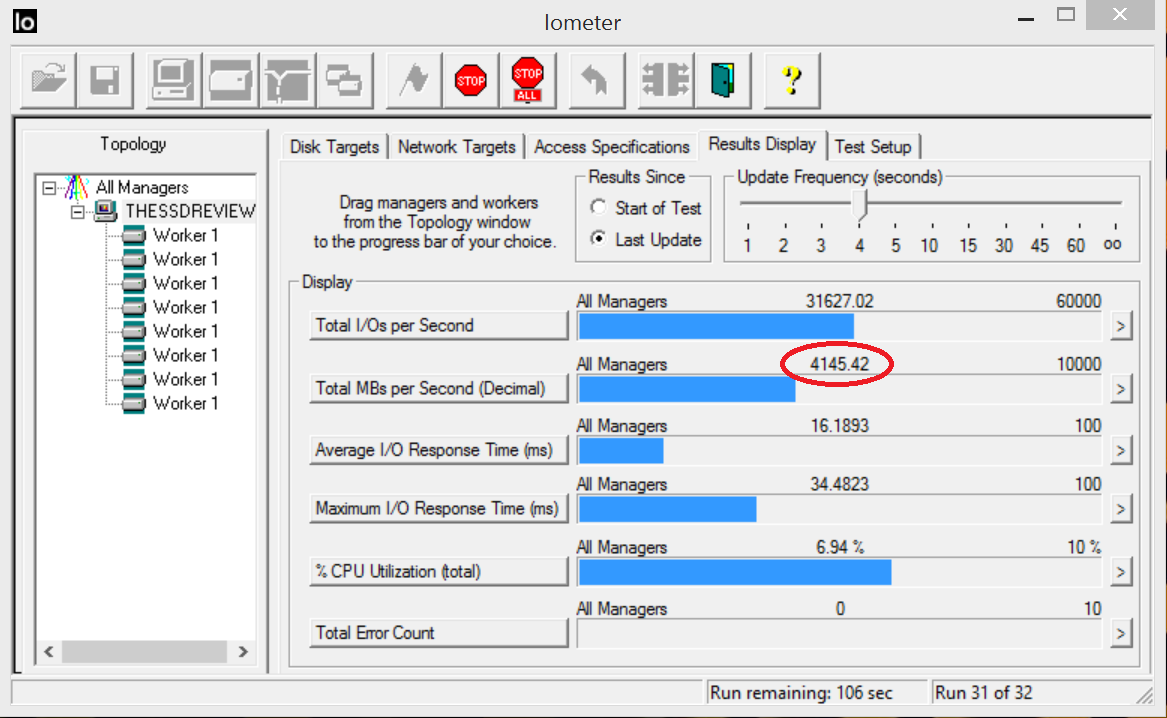

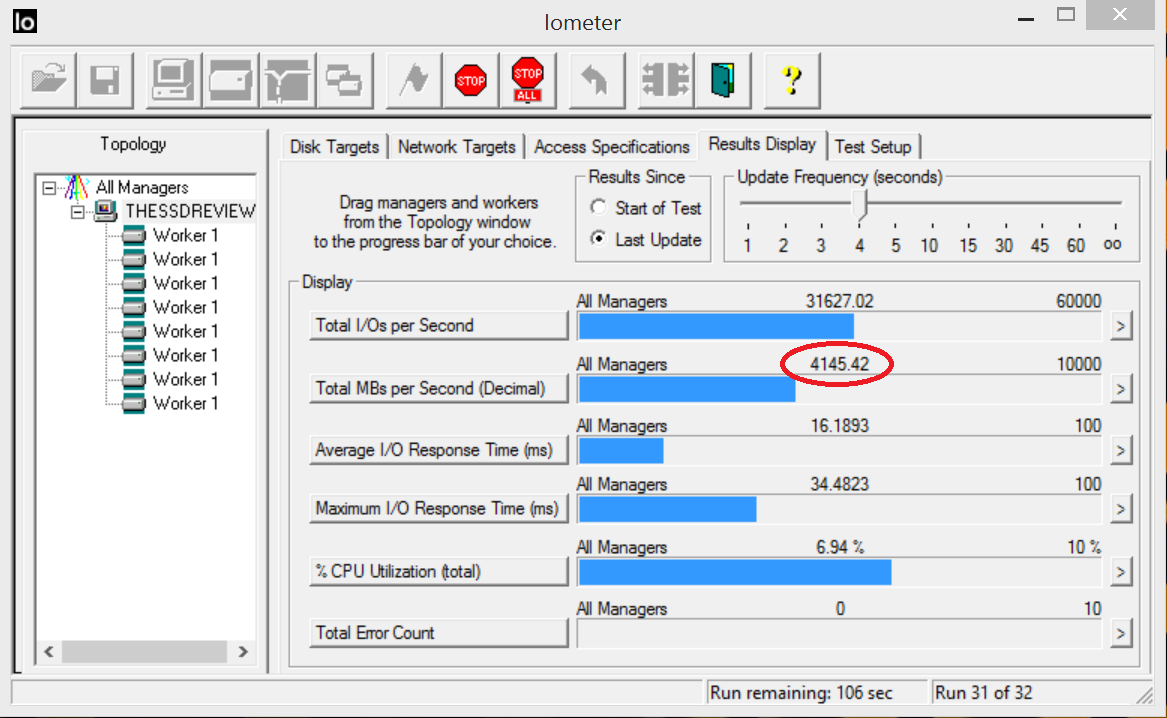

ASRock X99 Extreme11 SASx8 IOMeter 4145GBs 128Kb Wrt

Although our throughput was a bit higher than our previous testing on the Z87 Extreme11, IOPS tested dropped just a bit, however, is still a respectable 600+K

IOPS READ

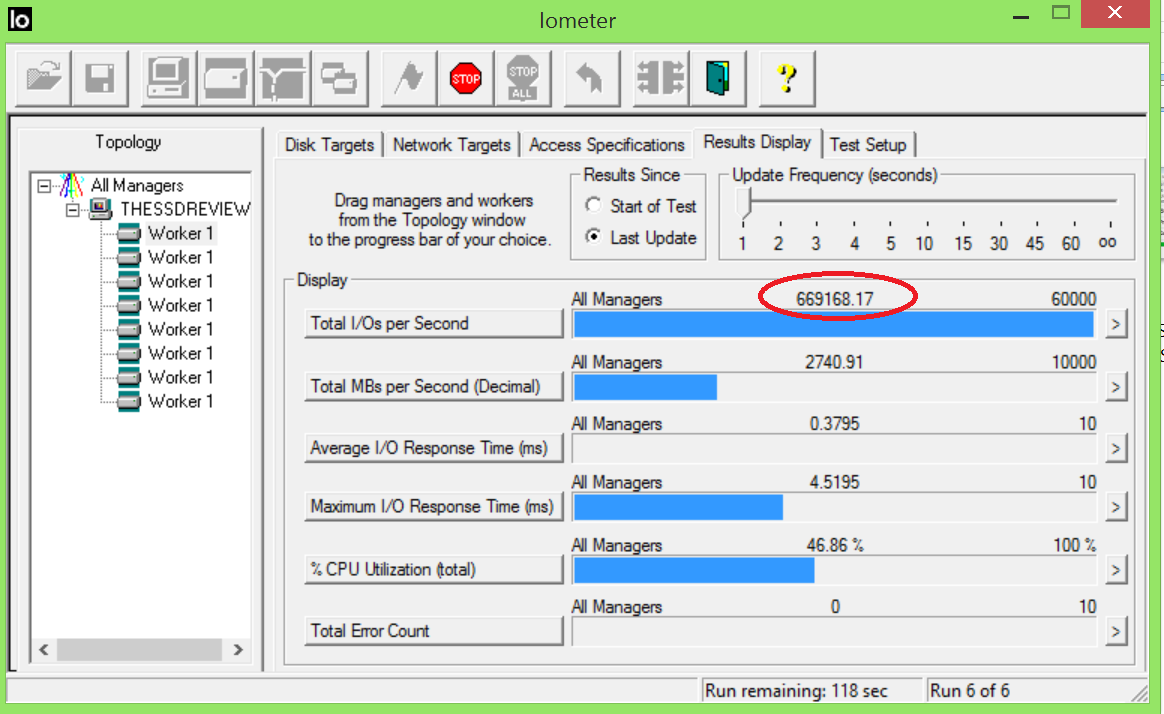

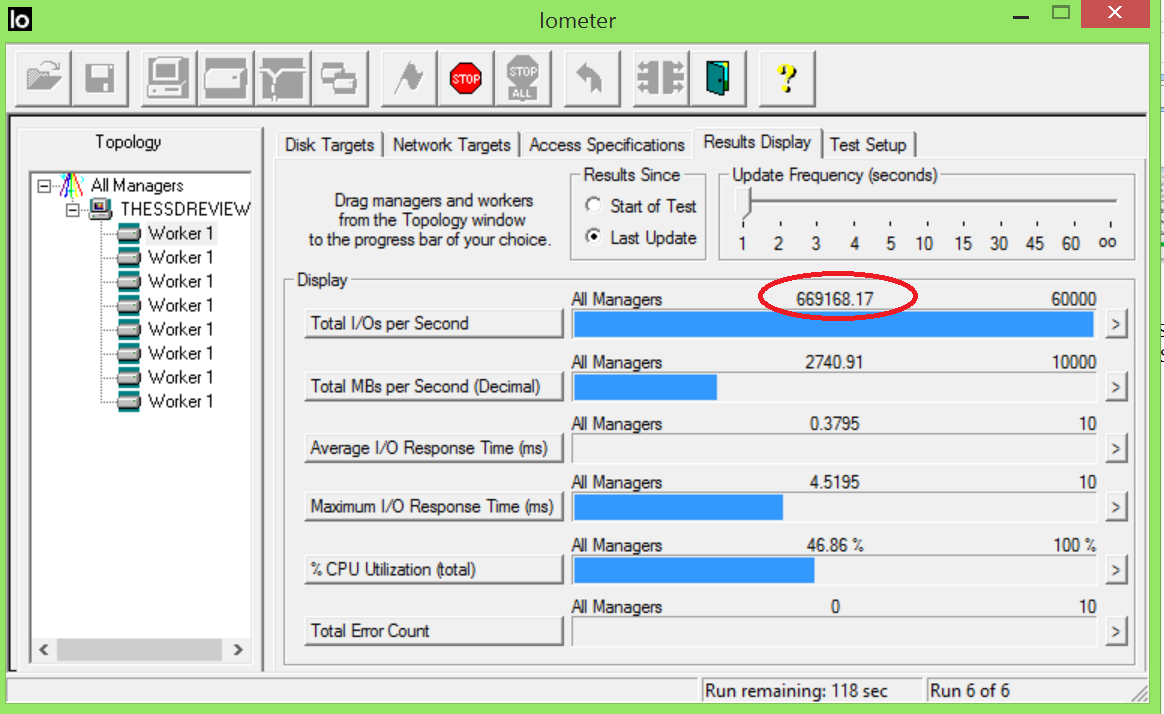

ASRock X99 Extreme11 Iometer 4k Rd 669K IOPSIOPS WRITE

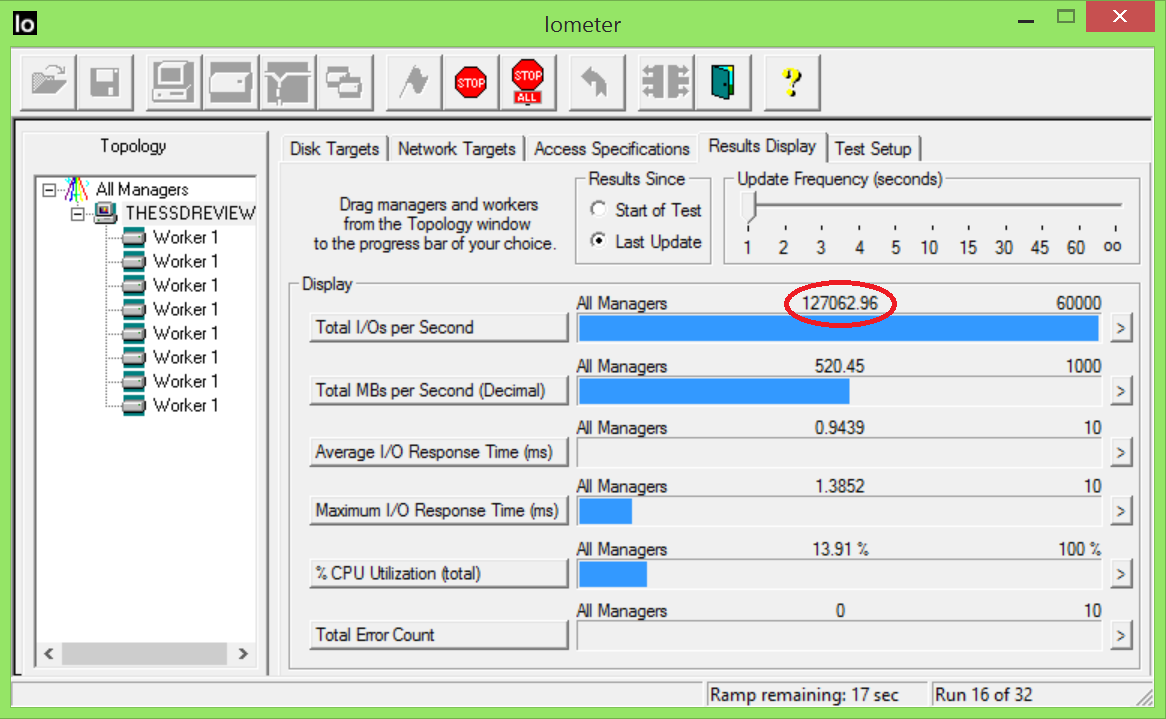

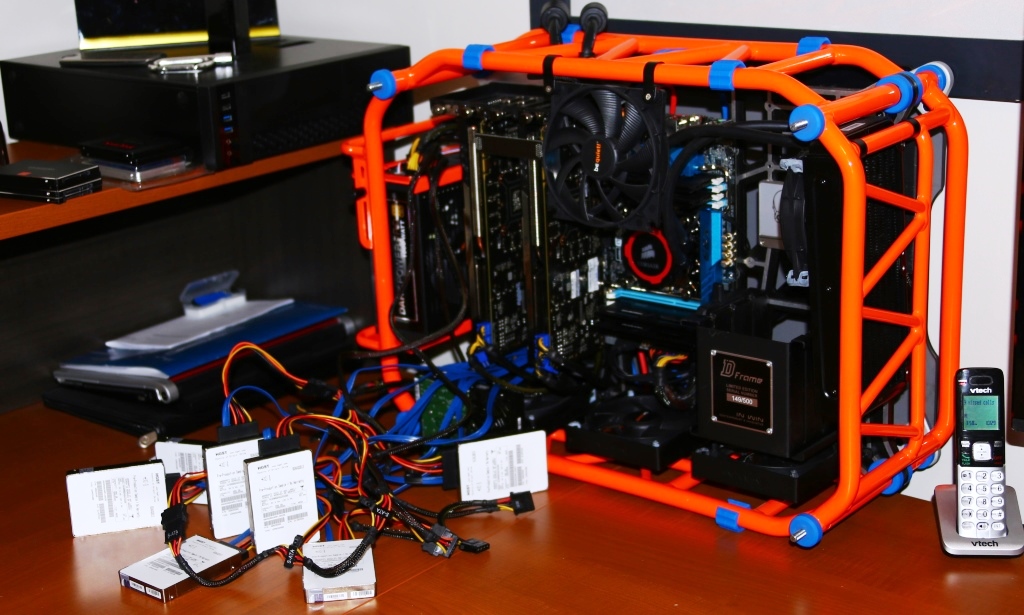

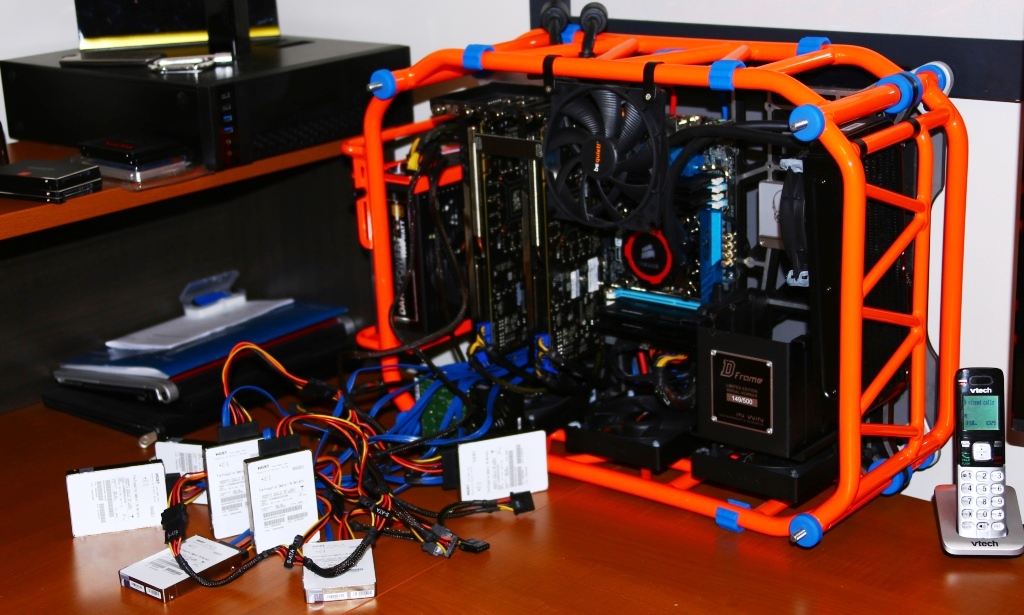

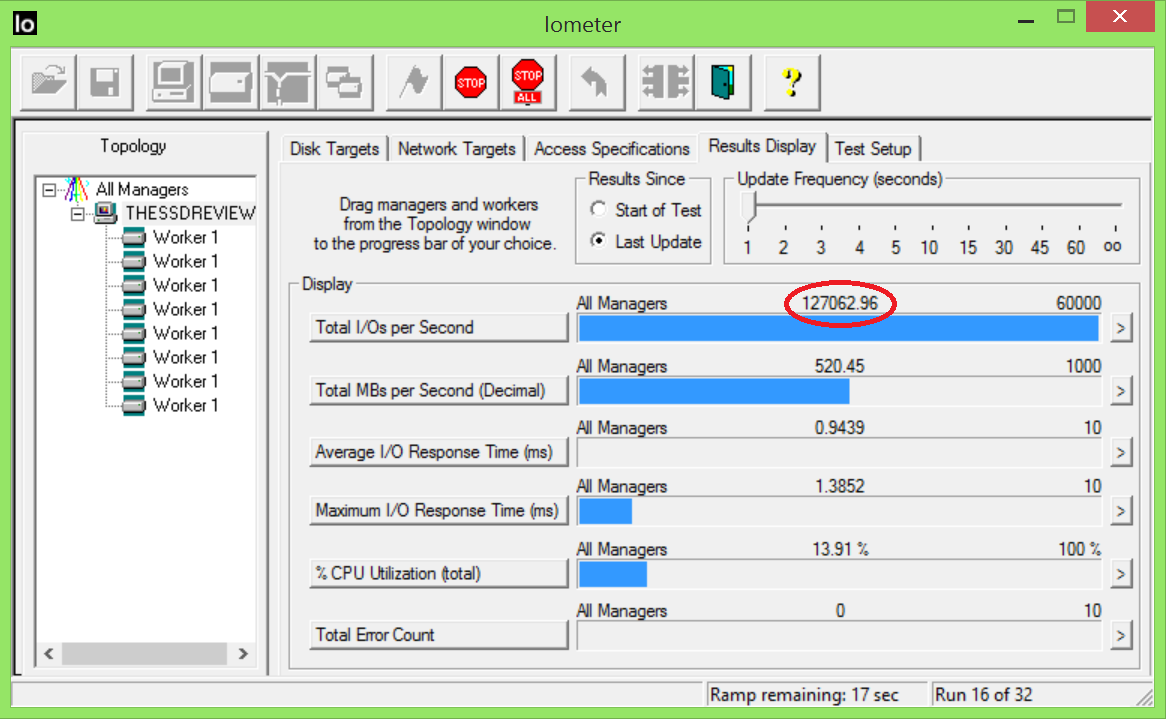

ASRock X99 Extreme11 Iometer 4k Wrt IOPS 127KIf you take a close look at this picture of the system with the HGST 12Gbps SAS drives, you just might note that we have doubled up on the EVGA 770 GTX graphics card and pushed both into a x16/x16 SLI solution.  As well, one cannot see the Intel P3700 NVMe SSD or both of the Samsung XP941 M.2 PCIe X4 SSDs.  My original intention was simply to start playing with SLI to improve the 3D Mark results that we saw earlier, but I couldn’t help but try to push PCIe just a biot.  Considering that both GFX cards are also teamed up with the PLX PEX chips, this was pretty much a self-defeating effort; the system runs without skipping a beat.

IMG_3813

As for PCMark 3D Mark, we saw our tests jump two levels higher from Sky Diver to Fire Strike Extreme, and even then, we were still tested with higher marks than 97% of systems tested and scores submitted.
