ATTO Disk Benchmark is perhaps one of the oldest benchmarks going and is definitely the main staple for manufacturer performance specifications. ATTO uses RAW or compressible data and, for our benchmarks, we use a set length of 256mb and test both the read and write performance of various transfer sizes ranging from 0.5 to 8192kb. Manufacturers prefer this method of testing as it deals with raw (compressible) data rather than random (includes incompressible data) which, although more realistic, results in lower performance results.
ATTO Disk Benchmark validates initial specifications for the most part but the speed increase while file size progresses also shows us that the SSD is a solid drive as it is a gradual steady progression. This performance is great to see in ATTO, but will be even better if it remains such while testing with incompressible data.

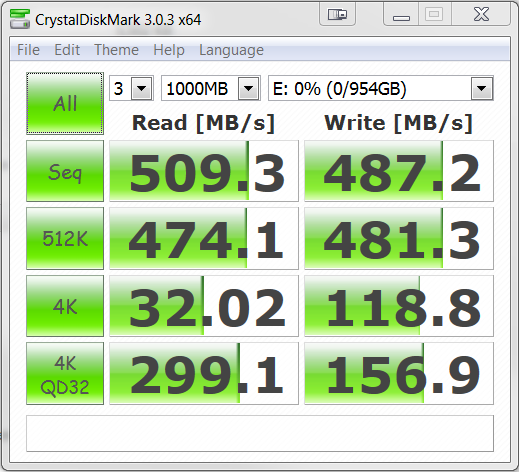

Crystal Disk Benchmark is used to measure read and write performance through sampling of highly compressible data (oFill/1Fill), or random data which is, for the most part, incompressible. Performance is virtually identical, regardless of data sample so we have included only that using random data samples.
High sequential throughput drops a bit as is normal with this benchmark program, but pay particular attention to the low 4K random write transfer speed of 118MB/s. This is a very high result and great to see out of a notebook SSD, the standard of which is still below 100MB/s in most SSDs.

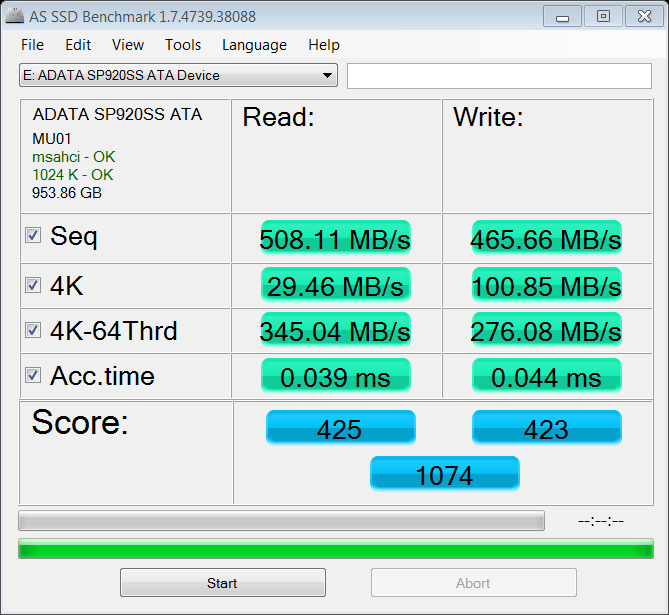

The toughest benchmark available for solid state drives is AS SSD as it relies solely on incompressible data samples when testing performance. For the most part, AS SSD tests can be considered the ‘worst case scenario’ in obtaining data transfer speeds and many enthusiasts like AS SSD for their needs. Transfer speeds are displayed on the left with IOPS results on the right.

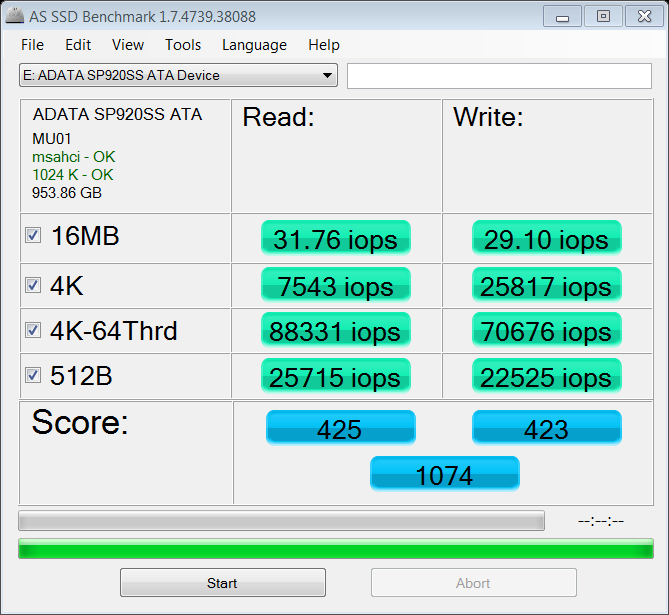

Definite positives of these results are that the Total Score is above 1000 and this is most likely the result of that high low 4K random write throughput at 100MB/s. Even the IOPS are decent, although a bit lower than specifications.

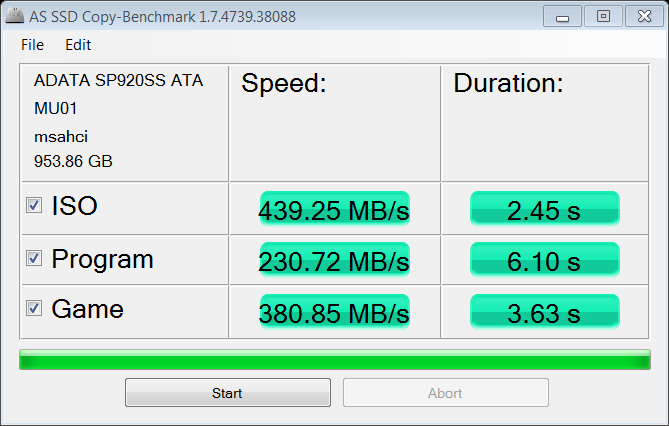

.ISO and Game transfer speeds and transfer times are excellent and both SATA 3, although many seem to have a bit of difficulty in the transfer of the program file.

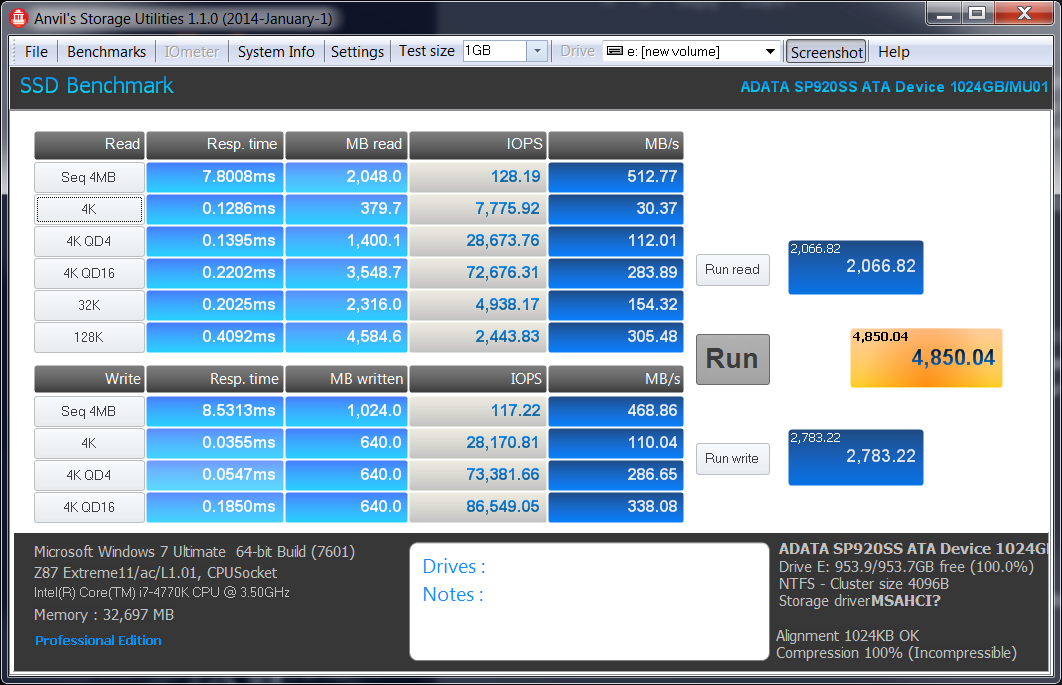

Anvil Storage Utilities (ASU) are the most complete test bed available for the solid state drive today. The benchmark displays test results for, not only throughput but also, IOPS and Disk Access Times. Not only does it have a preset SSD benchmark, but also, it has included such things as endurance testing and threaded I/O read, write and mixed tests, all of which are very simple to understand and use in our benchmark testing.

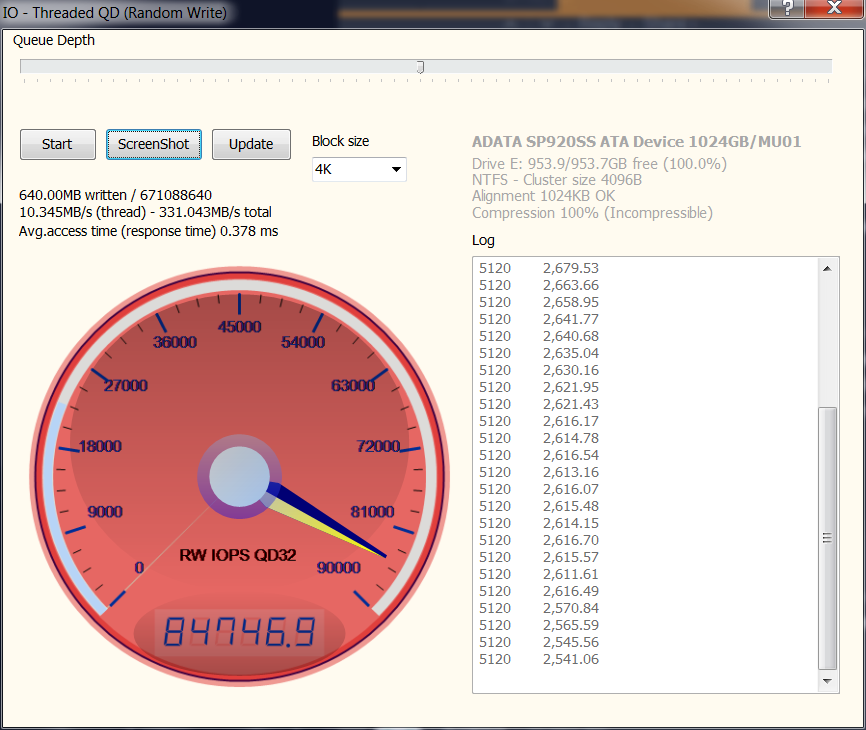

Anvil seems to confirm much of what we have seen and it also allows us the opportunity to configure our tests to see if we can match listed specifications, at least as far as IOPS go. IOPS results above 94K and 84K bring us a bit closer to what they had achieved in IOMeter.
