MyDigitalSSD Super Cache 2 M.2 SSD Review – Exploring M.2 With and Without FNet HybriDisk Caching

M.2 SSD REPLACEMENT AND HYBRIDISK INSTALLATION

Looking at our system in its pre-configured state, we might suggest that this is typical pre-configured laptop performance, thus wanting to build a better machine.  As we two MyDigitalSSD Super Cache 2 M.2 SSDs (64 and 128GB), we thought this the ideal opportunity to see just how much we could improve the system, all the while maintaining the pre-configured OS and data that was their prior.

MyDigitalSSD SC2 M.2 64GB SSD Dual SSDs 2

The bonus here is that FNet HybriDisk Caching software is included with the purchase of the MyDigitalSSD Super Cache 2 SSD, and also, MyDigitalSSD marketing reps had been bragging to us for some time that HybriDisk was as close as we were going to get to performance similar to what we saw with NVELO Dataplex some time ago.

Replacing the M.2 SATA 3 SSD was a matter of removing a screw and switching SSDs, exactly the same as it would be for a mSATA form factor.  Installation of FNet HybriDisk was a matter of downloading the software from MyDigitalSSD and following their instructions.  KEY POINT!  Ensure on your installation of HybriDisk that ‘Maximized Mode’ is selected.  If it is not, you will have substandard SSD write performance from the software.

HDD AND SUPER CACHE 2 SSD RAW PERFORMANCE

The best way to identify any performance increase would be to know the true speed of the hard drive, before caching, as well as the SSD.  Only then can we determine how close to true SSD speeds HybriDisk can get us.  Checking the performance of the Seagate HDD once again, performance hasn’t change with read and write speeds of the hard drive just over 100MB/s.  These ATTO and  Crystal DiskMark result depicts the new MyDigitalSSD Super Cache 2 64GB SATA 3 M.2 SSD performance in our Test Bench:

ATTO

Y510 MDSSDSC2 SSD ATTO

CRYSTAL DISKMARK

Y510 MDSSDSC2 SSD CDM

We think transferring incompressible data has a bit of an impact as we see write performance of  Crystal DiskMark drop below 1/2 of the 374MB/s high of ATTO Disk Benchmark.  Conversely, high sequential read performance of 523MB/s is a great performance benchmark for such an SSD.

FNET HYBRIDISK ENABLED

These tests demonstrate the performance of the hard drive with FNet HybriDisk and the tests were conducted immediately after HybriDisk was enabled:

ATTO

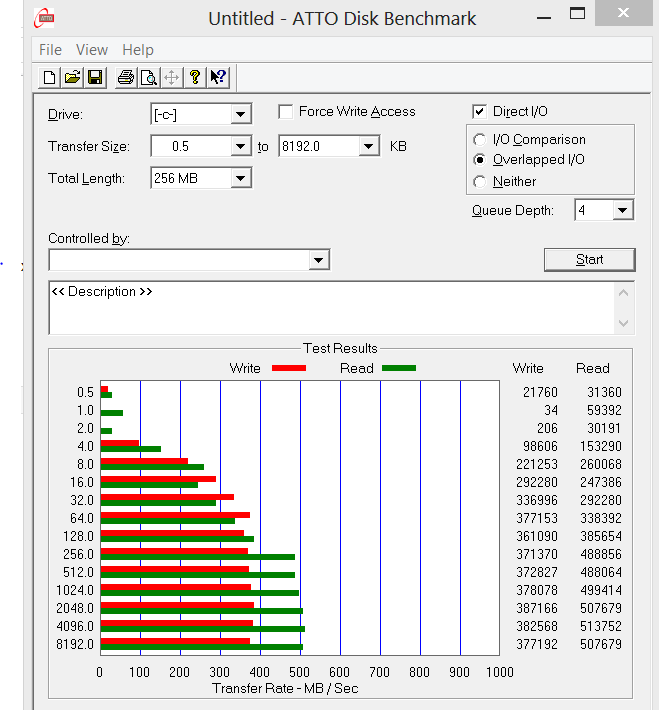

Hybridisk Y510 HDD SSD ATTO

CRYSTAL DISKMARK

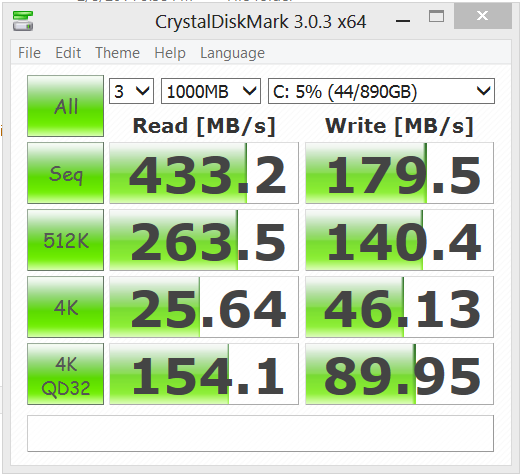

Hybridisk Y510 HDD SSD CDM

By comparing the benchmarks of the SSD alone above to that of the hard drive when cached with that SSD below, we can see that HybriDisk has accomplished what only Dataplex had done prior, almost equalling the SSD performance in HDD caching.

39 comments

  1. Can I use this on Intel’s next unit of computing, ie the one mentioned on this video – https://www.youtube.com/watch?v=xL4MX-0V8l4

  2. Intels Smart Response Technology caching solution also lets you set the cache size and use the rest of the ssd as you wish. I’ve had this setup for almost two years..

    • Yes this may be true but one cannot simply buy that cache software without buying a computer/MB that supports it.

  3. How do you copy or image the windows OS boot section from the current HDD to the SSD?

    • You need to use a cloning program. Also, you will need to remove the HDD and use a USB to SATA connector so that the drive is properly recognized for copying.

      • We typically use Paragon…

      • I think I used Acronis. After I figured out what I was doing it was painless…I have to admit I hadn’t tried cloning an OS HDD since Win XP days, and figuring out how to contend with UEFI was a small challenge. BTW, Les, your review is really spot-on with the gains from implementing this arrangement.

      • Hello. I stand in front that procedure with a lenovo y510p. Do I really have to remove the 1tb hdd and connect it via usb? I have no usb/sata adapter. Could I make a new installation from the scratch if nothing goes? Thank you.

      • That system accommodates both SSDs does it not? Of course you can.

      • It may depend on what cloning program you are using. With Acronis I had to remove the HDD, plug it in via usb/sata adapter, boot from an Acronis boot manager, clone the drive, change the boot drive in the BIOS to the SSD, and then reinstall the HDD. I wasted about 10 hours trying to clone the HDD in place, and was very frustrated!! Every time I tried with Acronis it kept giving me errors 🙁 I don’t know if the error was because of the cloning program, the UEFI boot loader (Win 8 Feature), or some sort of i/o hardware configuration issue with the new M.2 interface . Can you borrow a sata to usb connector from a friend? Or buy one, use it, and return it to the store?

        You may be able to do a fresh install if you can create a window8 boot dvd (or other media). I didn’t pursue this route, though, because my Y510P doesn’t have an optical drive…so I can’t speak to its effectiveness.

      • Ok I ve forgotten to say that it was Windows 7 I was going to install. I made also somehow the “lumber jack” method to prevent any Errors. Means: I plugged off the 1 TB HDD, plugged in MyDigital SC 128GB and switched on the Lenovo with the Windows DVD inside. After Windows was installed I replaced the HDD and wiped the (former) System partition. Everything is fine now. Just -it might be a stupid question – I wonder whether I ever need fnet hybrid Software since I have a pure SSD now with complete Windows 7 and Office 2007 on it. So caching is already on SSD. Do I still need fnet for better performance ?
        Many Thanks!

  4. Hi, planning to add this SSD to my y510p, however im not sure if should install the OS in this drive, having already a OCZ Vertex 4, which is faster ? which would you guys recommend to have the OS installed and why. Thanks

    • The difference will be minimal for the typical user. If you have the space available though, buying the larger SSD from this article, split partitioning it on say a 75/25 mix and using the lesser partition for a cache of your HDD that you just added for more capacity is ideal.

      That is of course ONLY plan to add a HDD for capacity. If not, the two SSDs make that machine a monster.

  5. I use the SC 2 as System ssd in BIOS AHCI mode. I do not Need Intel Rapid Storage Technology, right? And: what adjustments should I make for Optimum Cache managment, and where?
    Many thanks

  6. Hello there!
    I wanted to consult you as techno geeks since I am just moderate in those things. Because you also seem to be familiar with the lenovo notebooks I wanted to summ up the many questions I have in your forum. I appreciate your aids.
    1. The situation: I bought a lenovo y510p recently. It had 1 bay with DVD and another with Nividia GT 755 M in it. I chosed the model with 1TB HDD only and bought an samsung mSATA 128GB EVO to implant it. But neither the salesman nor lenovos data sheet made it clear that the empty slot was a ngff or mSATA .2 slot!! I was really p..sed off! After a strong research I found out that there were no mSata .2 to buy which met my wishes of 128GB and short in length and also had only 1 notch (I didnt know to that time that a platine with 2 notches could be plugged into a port with 1 notch).
    Thanks god I found your nice review and was able to gather some technical descriptions of the different mSATA .2 form factors. SC 2 was the thing i needed!!! Unfortuanally it was not available in Germany and sold out in German Amazon. But one fine day I could order it as it was again in stock. I was so happy!! But now I want to gain maximum performance and a clean installation. I already built up Win 7 ultimative on the SC 2, together with office 2007.
    In BIOS boot priority is legacy and sata controller are set to AHCI. So far so good, but how should I procced? I dont know whether I should install fnet as first of all the manual says that fnet needs clean partitions, so it will wipe windows 7 and force me to reinstall?
    Is this correct? And another thing: do I need cache managing, since it is the SSD only which is used for the system (The 1TB HDD has only my media files and a buch of other “data only”.)?? Last not least: I have still lenovos hidden recovery partition on the HDD. I dont think it has any use anymore but cloning this partition onto the SSD would be quite handy. What is the correct way to do so? And Intel Rapid Share Technology…is it really neccessary?
    I know these are many questions but I really dont know what to do, especially the fnet issue. I made a Windows Image with the native Windows Backup feature. So I am able to start from the scratch if needed. Please advice me.
    Many thanks!

    • Ok I made up my mind by let the system as it is. On SC 2 128 I installed the system and let all doing windows. Neither i tweaked superfetch nor I established the system cache on HDD. I trust Windows to be smart enough to manage RAM SSD and HDD. All this tweaks to decrease the write access on the ssd are bullsh.. I think. I am a normal user and if the Supercache cant bear a write of say at least 200 TB (would be enough lifetime for me) than it is nothing worth as hardware anyway.
      Cheers

  7. Hi! I am wondering if the software is compatible with the Windows 8.1 The FNet Hybridisk caused BSOD during the boot process so I had to reinstall the Windows 8.1. I tried many times but after a while I got BSOD. In this way I cannot use my 64GB ssd 🙁

  8. I had the same problem with a Lenovo T540p running Windows 8.1 after upgrading the firmware to 1.7… I got the error driver_irql_not_less_or_equal_fnethybrmdsd.sys while trying to restart. It ran though chkdsk and windows recovery and my computer hasn’t run the same since. I’ll probably try to reinstall the OS also.

  9. I can suggest the primocache instead of the original software. It has been running for a while without problem!

  10. If any of you are following this discussion: They’ve updated the HybriDisk software and say that it fixes the 8.1 issues.

    https://www.mydigitaldiscount.com/fnet/

  11. Hy… I’ve read the review, bought this SSD disk with M.2 NGFF. I want to know, how can I install the OS on the SSD with a portion (and is maybe there some minimum portion so that it can work… if… how much?) allotted to HDD caching?

    • Of course you can. You can designate just how much you want for caching, and use the remainder as the main system drive if you like. So… you can use your ‘C’ drive for pure SSD performance, and then cache a hard drive to similar with the remainder.

      • Thanks for reply!

        I’ve already tried. I put 7GB for cache with FNET Hybrid, restarted and installed OS. When I did that, I couldn’t cache HD with the remainder (7GG). That is why I asked if I should use more than 7GB.

      • 7GB? Will it even cache that? How large is the drive?

      • The drive is 64GB (realistic size is 59GB). How much size to use for cache?. I Will only put OS on SSD.

      • How didyou come up with 7GB then? 20GB cache and the rest leave for the OS.

      • I just wanted to try with the least of cache possible. Ok thanks, I will try.

      • Hy, it’s me again. I had a clean install of my OS. I put OS on SSD (59.43GB) disk, I left 40GB for OS, and 19GB remainder for cache. I did that than put FNET program for cache, but nothing. OS is on SSD. I open Hybri disk, under Master it says SSD disk 59,43 GB and under cache I can’t use anything.

      • Under C: i have 40GB, under Disk managment it says for SSD (C:) 40GB and 19GB (OEM partition).

      • Sorry…the best I can suggest is to contact MyDigitalSSD or bring this up in our forums where I know they monitor.

  12. Just to add to the stats here. I bought one of the 128GB modules. It was at firmware 1.3. HybriDisk saw it, but MyDigitalSSD strongly recommended updating to v1.7 due to potential data-loss issues.

    I performed that update, and the device bricked. It was visible, and the updater could see it, but it was not a drive anymore.

    Support replaced it via email correspondence and me paying to ship it back to them. The replacement took about 10 days from when I dropped the previous one in the mail. It was a whole new retail package at latest firmware.

    This one showed up as a drive, and works as a drive; however, FNet’s HybriDisk doesn’t work with it. I’ve followed for a few months of “the newest version should work”, but it does not.

    As an aside, two other companies offer 22×42 form factor M.2 devices in 256GB size. That’s large enough for an entire OS and applications, without having to just cache the drive.

    I’m glad the reviewer here was able to get it to work; but it feels VERY pre-release, and simply does not work as advertised. I’m still working with support, so maybe it will all get resolved, but I am fatigued by this product’s poor quality.

    • A special tool was prepared and sent after a couple weeks.
      This modified the drive name so that hybridisk would work.
      No real perf difference on file copies, but we’ll see once I have some boot and app restart cycles on it.

  13. I cannot boot from the SSD. I cloned my hdd onto my ssd, but my lenovo y510p will not boot from the ssd for some reason. Any help?

    • Hate to say this but not a fan of cloning…more often than not something just doesn’t go right. I actually spent the weekend building a new system because my Z97 didnt translate to X99 as it should. Try a fresh install suggested…

  14. I tried to clone from one 250Gb Samsung EVO SSD to a 500Gb Samsung V-Nand SSD three days ago; and I am still in the middle that non-stop day & night process.
    The problem being that ‘a fresh reinstall’ of the gash Windows 8.1 Pro will not re-create the Links to my other 3 hard drives with all the thousands of files on them. I have tried 3 cloning software packs, and a clone box/hardware; and all fail fail fail fail fail fail fail.
    I have cloned dozens of times before. From hard-drive to hard-drive and form hard-drive to SSD.
    My first successful clone was in 1995. But now, with progress (and the new error options that brings), its been made almost impossible.
    The i7 Haswell is in the middle of what has been a five-hour re-boot process.

    Damn windows to hell?; where I had a 3-second boot up with LinuxMint 17; and that is a 10-minute clone process for a back-up.

  15. PRIMO Drive is best

    PrimoCache is a 2 level cache that lets you run your PC at virtual RAM Drive speeds.

    https://www.romexsoftware.com/en-us/primo-cache/index.html

    Hard Drive files are pulled into a RAM Drive cache, and also copied to SSD Cache. So a huge 4 TB drive runs at RAM Speed, with needed files also copied from & to our SSD.

    VERY FAST !
