TSSDR TEST BENCH AND PROTOCOL
SSD testing at TSSDR differs slightly, depending on whether we are looking at consumer or enterprise storage media. For our Kingston A2000 NVMe M.2 SSD testing today, our goal is to test in a system that has been optimized with our SSD Optimization Guide. To see the best performance possible, the CPU C states have been disabled, C1E support has been disabled, and Enhanced Intel SpeedStep Technology (EIST) has been disabled. Benchmarks for client testing are also benchmarks with a fresh drive so, not only can we verify that manufacturer specifications are in line but also, so those buying pre-built systems with the A2000 can replicate our tests to confirm that they have an SSD that is top-notch. We even provide links to most of the benchmarks used in the report.
The components of this Test Bench are detailed below. All hardware is linked for purchase and product sales may be reached by a simple click on the individual item. As well, the title is linked back to the individual build article where performance testing can be validated.
|PC CHASSIS:||Corsair Crystal Series 460X RGB|
|MOTHERBOARD:||ASRock Z370 Taichi|
|CPU:||Intel Coffee Lake Core i7-8770K|
|CPU COOLER:||Corsair Hydro Series H110i GTX V.2|
|POWER SUPPLY:||Corsair RM850x 80Plus|
|GRAPHICS:||PNY GTX 1080 XLR8 Gaming OC|
|MEMORY:||Corsair Dominator Pl 32GB 2800|
|STORAGE:||Intel Optane 900P 480GB SSD|
|KEYBOARD:||Corsair Strafe RGB Silent Gaming|
|MOUSE:||Corsair M65 Pro Gaming|
|OS||Microsoft Windows 10 Pro 64 Bit|
The software in use for today’s analysis is typical of many of our reviews and consists of Crystal Disk Info, ATTO Disk Benchmark, Crystal Disk Mark, AS SSD, Anvil’s Storage Utilities, AJA, and TxBench. Our selection of software allows each to build on the last and to provide validation to results already obtained.

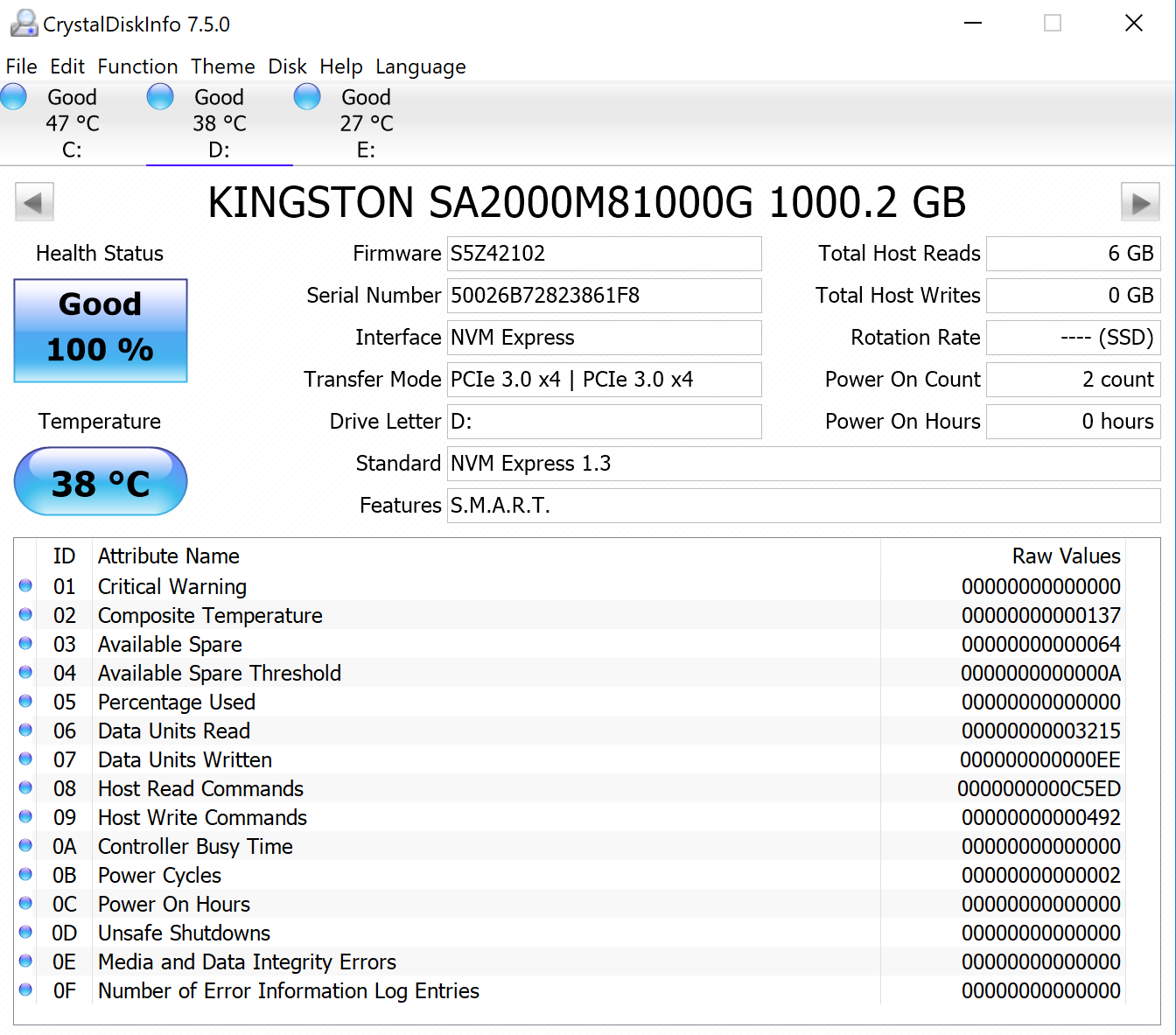

CRYSTAL DISK INFO VER. 7.5.0
Crystal Disk Info is a great tool for displaying the characteristics and health of storage devices. It displays everything from temperatures, the number of hours the device has been powered, and even to the extent of informing you of the firmware of the device.
Crystal Disk Info validates that our SSD is running in PCIe 3.0 x4 (four lane), and also that NVMe 1.3 protocol is in use.
