15. VERIFY TRIM

Verifying that TRIM is working is actually a next to impossible task which requires monitoring your computers activity closely as TRIM can take only a split second to complete.  There is truly no way for the user to confirm that it is working.  Verifying TRIM will confirm for the user that the TRIM commands are being sent from the software to the ssd.  This, unfortunately, is the closest one will come without trying to catch it in action for that split second.

1.  Using the Start Menu Search Box, Search CMD;
2.  Right click the Cmd Program and select Run as Administrator;

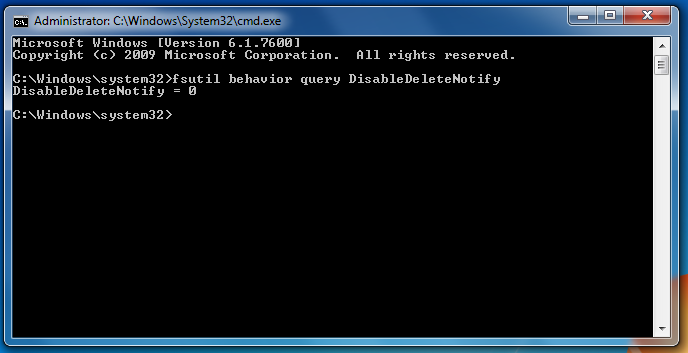

3.  In the command line type “fsutil behavior query DisableDeleteNotify”
If DisableDeleteNotify=0 TRIM is Enabled.
If DisableDeleteNotify=1 TRIM is Disabled.

————————————————————————————————————————

16. POWER SETTINGS.

1.  Go to Control Panel;

2.  Select System and Security;

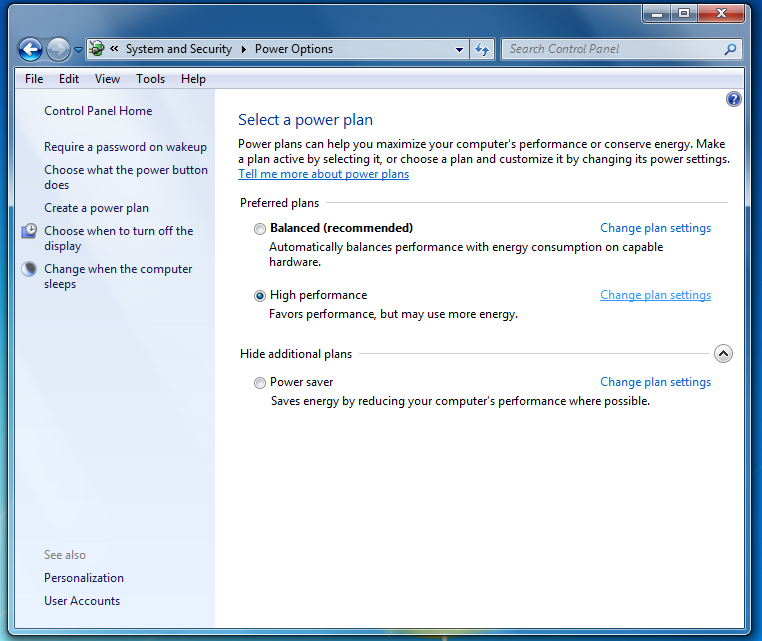

3.  Select Power Options and Click the drop down for Show Additional Plans;

4.  Select the High Performance bubble to apply it;

5.  Click Change Plan Settings for High performance;

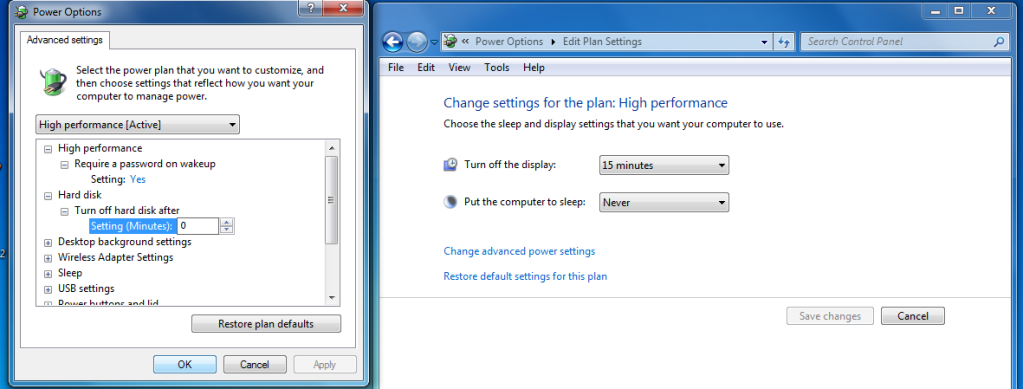

6.  Click Change Advanced Power Settings;

7.    Click the hard disk drop down option;

8.  Change Turn off hard disk after to 0 minutes (will display as never after applied);

9.  Select OK; and

10.  Select Save Settings.

.


————————————————————————————————————————

17.  DISABLE ‘CLEARPAGEFILEATSHUTDOWN’

AND ‘LARGESYSTEMCACHE‘.

1.  Type Regedit into the Start Menu box;

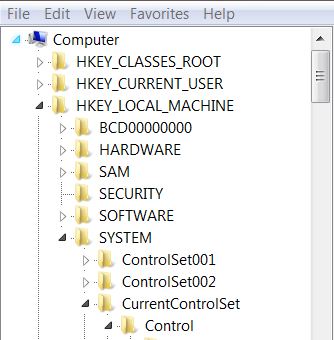

2.  Select the file path:

HKEY_LOCAL_MACHINE\SYSTEM\ CurrentControlSet\Control\SessionManager\

MemoryManagement”

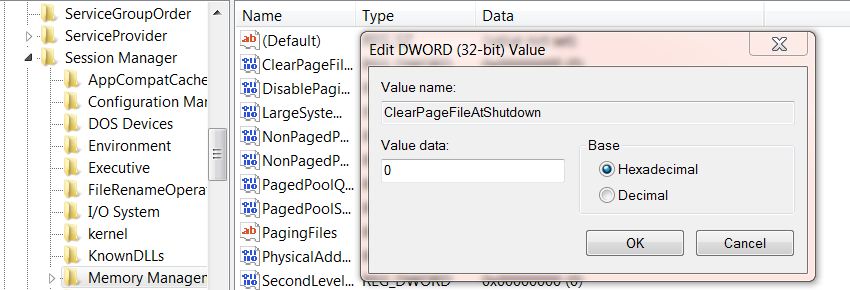

The 2nd and 5th files are ClearPageFileAtShutdown and LargeSystemCache.
3.  Right click and select Modify on each of these to change the value from 1 to 0 and Restart.




————————————————————————————————————————

18.  NTFS MEMORY USAGE & NTFS DISABLE NAME CREATION.

1.  Type Regedit into the Start Menu box;

2.  Select the file path:

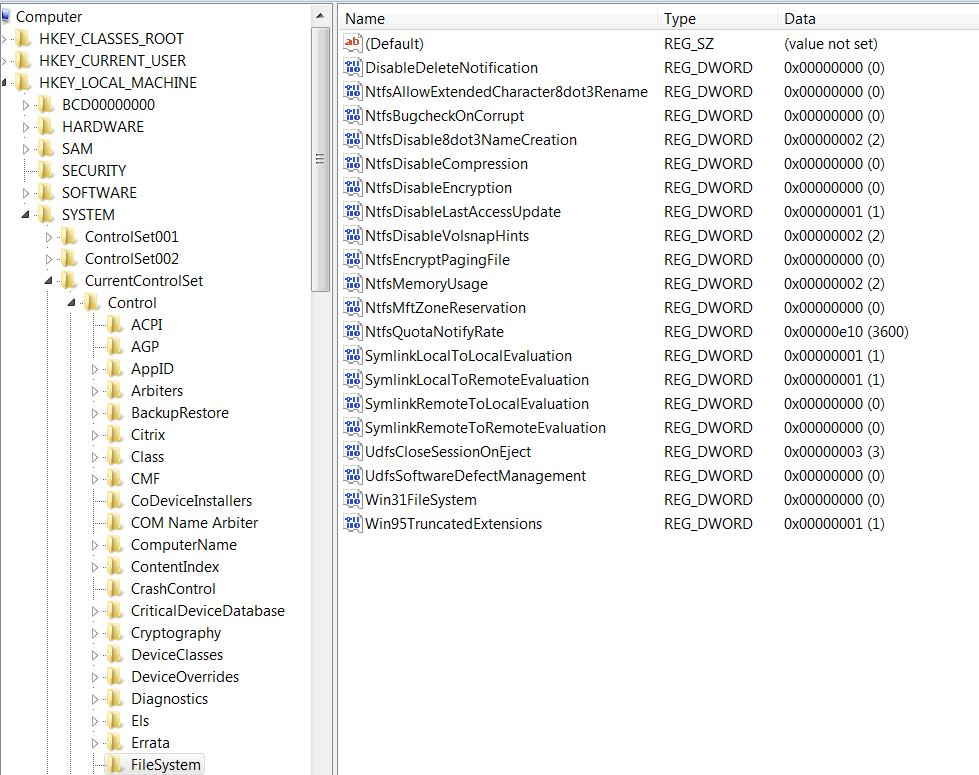

“HKEY_LOCAL_MACHINE\SYSTEM\ CurrentControlSet\Control\FileSystem”

3.  The 5th files is NtfsDisable8dot3NameCreation. Right click and modify to 1; and
4.  The 11th file is NtfsMemoryUsage right click and modify to 2 and Restart.
