Western Digital Black2 Dual Drive Review (1TB HDD/120GB SSD) – Combining SSD Performance with HDD Capacity

Recent designs in the laptop market are now seeing the availability of both an mSATA connector for SSDs, as well as the typical SATA connector for hard drives; the Lenovo Thinkpad is a great example of this.¬† With the demand for additional capacity, we had also seen adapters which allowed for the swapping of optical drives for an additional hard drive.¬† But what about newer models that have eliminated the optical drive altogether, or older models where you don’t want to give up the optical drive?

Although SSDs continue to narrow the cost per GB gap as compared to HDDs, we are still often left with the choice of either upgrading to a larger capacity HDD at a lower cost per GB, or to a smaller capacity SSD to achieve the speed and benefits of flash storage at that higher cost per GB price point.¬† Only having a single drive bay also eliminates a caching solution as an option to try and get some of the best of both worlds.¬† Enter Western Digital’s Black2 Dual Drive.¬† WD refers to it as the “Black Squared.”

Retail box and Black2

INTRODUCTION

We have on hand for review today the WD Black2 Dual Drive, which consists of a 120GB SSD sandwiched on top of a 1TB 5400 RPM HDD, both fitting into a single 2.5″ drive bay.¬† WD uses a Marvell bridge chip to allow both drives to connect through a single SATA interface connection.¬† But how does WD expect the Black2 to be able to achieve true SSD performance when it has to share a port with the HDD?¬† Will sharing a connection not compromise the performance of one or the other or both?

The solution lies in the proprietary partition management software that WD includes with the purchase of the Black2.¬† Their partition software allows your system to see the combination of the two drives as a single disk, yet still gives you the option to move larger files to the HDD using WD’s new Shift_Technology.¬† Your system will boot from the SSD portion, resulting in much quicker boot times, and main programs and applications will also run off the SSD at the much faster SSD speeds.

Black2 separated angled

With today’s report, we will benchmark the performance of both the HDD and the SSD that comprise the WD Black2 dual drive separately, and then the performance of the combined disk utilizing WD’s partition management software.¬† We will also walk you through the steps of downloading and installing the software, and getting¬†the WD Black2 up and running in its new configuration.

PACKAGING AND CONTENTS

The WD Black2 is offered up in an eye-catching, slickly designed retail box.¬† The black theme is predominant with a large numeral ’2′, along with the rear third of a¬†race car in gold and gray, and the script “WD Black2 Dual Drive”, again in gold.

Retail box front side

When we begin to slide out the inner portion of the retail box, we see the other two thirds of the race car featured on the outer box.  At about halfway removed, the race car becomes a compete picture, depicting the essence of speed.

Retail box extended

Once we open the inner box, we see a user guide, and a black card that contains a removable USB “key”.¬† The USB “key” is what will take us to WD’s product page for the Black2, where we will find the partition software download, along with a free download for a version of Acronis TrueImage drive cloning software.¬† At this point, the Black2 is still hidden under the upper layers of contents.

Retail box contents

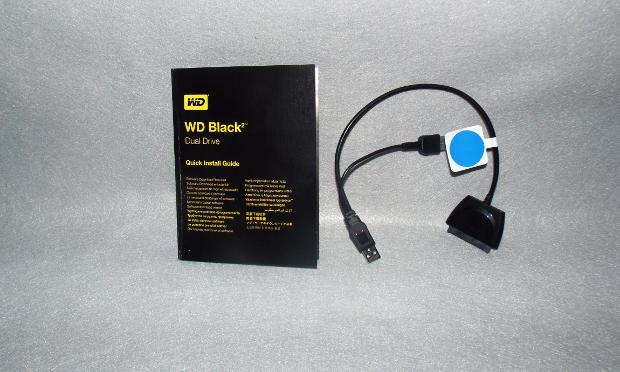

Here we see the user guide, and the included USB to SATA adapter to assist with cloning.  The adapter utilizes a USB 3.0 connection for data transfer, and a USB 2.0 connection to power the Black2 during the cloning process.  The WD Black2 product page also features a couple of very well done installation tutorial videos on either cloning your current drive over to the Black2, or for a fresh install of your operating system.  As is always the case with SSDs, it is recommended to perform a fresh installation of your operating system as opposed to cloning whenever possible.

User guide and adapter cable

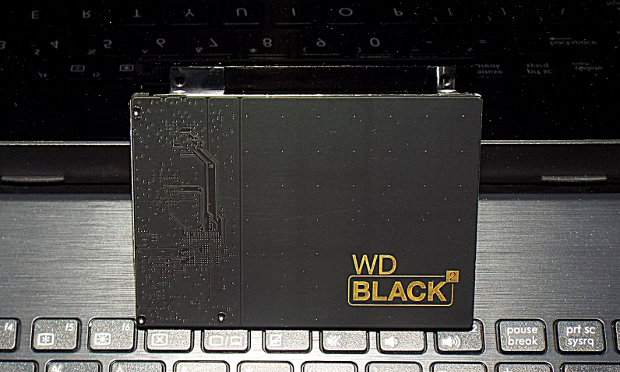

Now then, we finally get to see the focus of today’s report — the unique Black2 dual drive.¬† The top side is solid glossy black, and this is the 120GB SSD portion of the Black2.¬† If you look closely, you can even see the tracing of the underside of the PCB circuits showing through the glossy black finish.

WD Black2 front

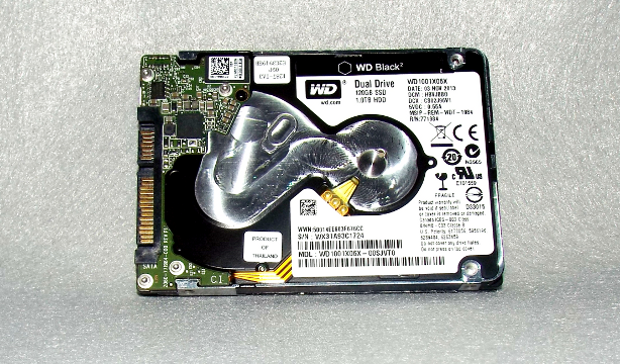

Flipping the WD Black2 dual drive over, we see the 1TB 5400 RPM HDD portion.¬† You can also see at the connection end the Marvell bridge chip that marries the two drives together through the single SATA interface.¬† The HDD utilized is WD’s Blue Slim notebook drive.¬† The use of a 5400 RPM HDD is done in the interest of prolonging the battery life of your laptop or notebook.

Black2 bottom

Recent designs in the laptop market are now seeing the availability of both an mSATA connector for SSDs, as well as the typical SATA connector for hard drives; the Lenovo Thinkpad is a great example of this.¬† With the demand for additional capacity, we had also seen adapters which allowed for the swapping of optical drives for an additional hard drive.¬† But what about newer models that have eliminated the optical drive altogether, or older models where you don't want to give up the optical drive? Although SSDs continue to narrow the cost per GB gap as compared to HDDs,…

Review Overview

Product Build
Product Performance
Capacity
5 Year Warranty
Pricing and Availability

SSD/HDD Combination!

Summary : IN a new approach, Western Digital creates the Black2 Dual Drive taking advantage of both the performance of the SSD and capacity of the HDD. They then tap on a 5 year warranty for a promising product.

User Rating: Be the first one !
86

About Scot Strong

Scot Strong is an automotive parts professional with 30 years experience in proprietary dealership computer systems, He is also a technology freak the rest of the time. He has been repairing, upgrading, and building personal and business computers for over ten years. He has also written articles for automotive parts management publications, and is a regular contributor at our sister site, TechnologyX.com
  • Ivan Ivanov

    I’m no much of a laptop person and i think it wont do me any good since i use mine for work(not on desk) and its constantly moving, and hdds parts are kind a risky, so 100% SSDs for laptops or any mobile device. But i wike to see bigger HDD for work at home ! Very helpful review !

  • emv

    the NAND is known to be 20nm but you don’t know the vendor? how is that? technically Sandisk and Tosh do not have 20nm process.

    • http://thessdreview.com Les@TheSSDReview

      The memory is not marked and the manufacturer didn’t provide the information at the time of the report. We don’t guess.

  • George

    I bought one of these and have installed it with programs on SSD and data on the 1TB HDD.
    I find the 1TB HDD slow to respond to document opening etc. I would have preferred a 7,200 rpm HDD connected to the SSD

    • http://thessdreview.com Les@TheSSDReview

      Being a pure SSD lover, I can’t say as I blame you.
