OCZ RevoDrive x2 100GB PCIe SSD Review – PCMark Vantage and Final Thoughts

4. PCMark Vantage x64 HDD Suite

The SSD Review uses benchmark software called PCMark Vantage x64 HDD Suite to create testing scenarios that might be used in the typical user experience. There are eight tests in all and the tests performed record the speed of data movement in MB/s to which they are then given a numerical score after all of the tests are complete. The simulations are as follows:

  • Windows Defender In Use
  • Streaming Data from storage in games such as Alan Wake which allows for massive worlds and riveting non-stop action
  • Importing digital photos into Windows Photo Gallery
  • Starting the Vista Operating System
  • Home Video editing with Movie Maker which can be very time consuming
  • Media Center which can handle video recording, time shifting and streaming from Windows media center to an extender such as XBox
  • Cataloging a music library
  • Starting applications

This is our favorite evaluation program and, if you have been following along through our reviews, its a bit obvious. It’s with good reason though. It is the only test that can match any drive to another, regardless of what controller is in use. It measures speed, plain and simple and when you are testing the monster that we have here today, you simply need such an application.

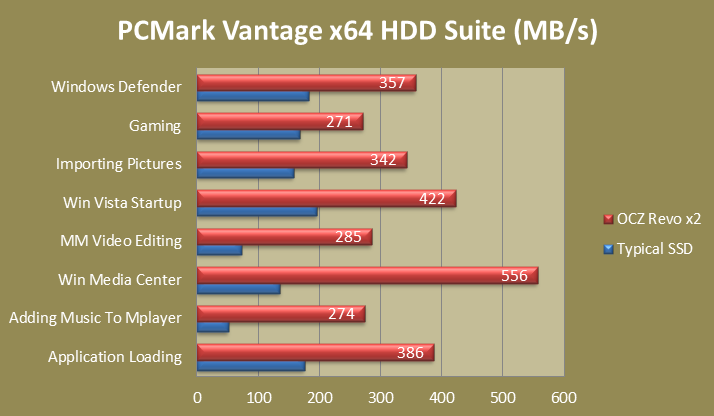

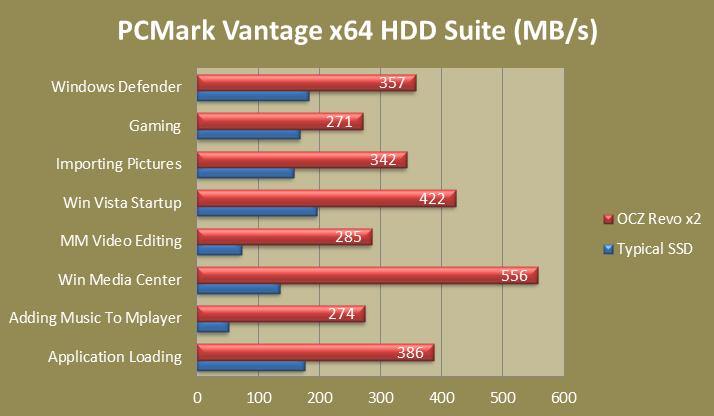

This chart shows the speed in MB/s that resulted from each test above. Just for kicks, we have thrown in a SSD that was the top running SSD not even a year ago for comparison and no, there is no need to mention any names. This test simply shows the speed that we have today and the direction that we are heading:

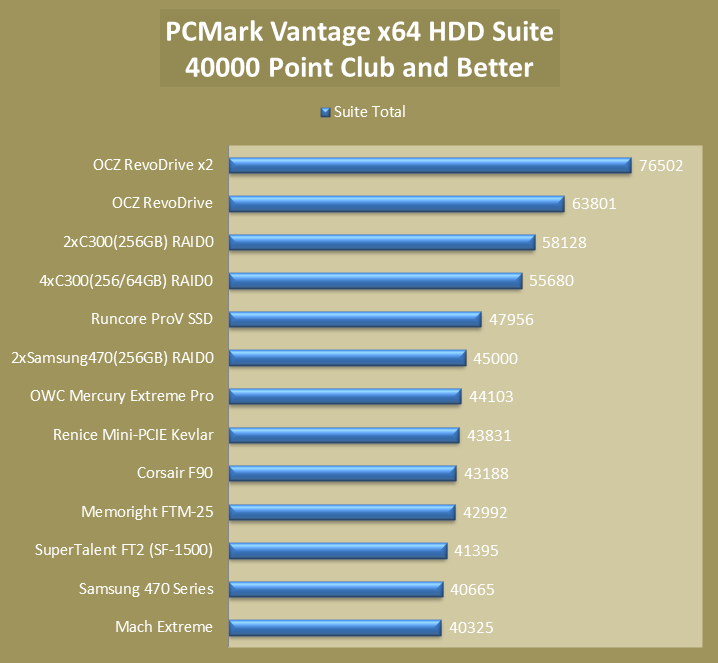

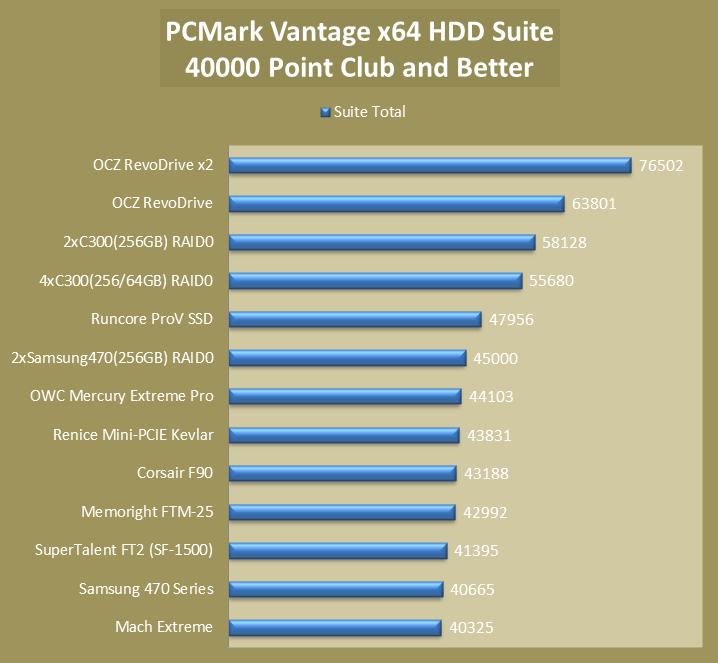

As we can see, yesterdays SSD pales in comparison to what is available today as we add PCIe SSDs to the mix and do away with trivial SATA 2.0 and even SATA 3.0 bottleneck concerns. Our final chart is going to display the overall suite score which is calculated by the software in considering resulting speeds of each test. The only way we can show any basis of comparison for this drive is to include, not only the RevoDrive that we tested a few weeks back, but also, our RAID 0 tests of SSDs and even a few of the top SSDs

CONCLUSIONS

If you are looking for the absolute fastest consumer SSD available that money can by, look no further. The OCZ RevoDrive x2 has more punch than one can imagine and during a time when other manufacturers are busy preparing for their SATA 3.0 releases, most with ideas of a consumer PCIe still on the chalkboard.

There has to be a trade off of course and, with speed comes a price premium as this SSD averages around the $459 mark. Simply put, thats the cost of speed and its price point will create second thoughts to those considering new SATA 3 releases with a bit more capacity. We think the OCZ RevoDrive x2 will win solely for the fact that it is geared for the desktop where capacity can still be found in the trade off for a 2TB hard drive at less than $100.

Is there a doubt that the OCZ RevoDrive x2 is deserving of  our Top Performing honours?

PG 1 – Introduction

PG 2 – Test Protocol and Initial Testing

PG 3 – BenchMarks

PG 4 – PCMark Vantage Scoring & Conclusions

DISCUSS THE REVIEW HERE!

1
Leave a Reply

avatar
1 Comment threads
0 Thread replies
0 Followers

Most reacted comment
Hottest comment thread
1 Comment authors
RCAT Recent comment authors
  Subscribe
newest oldest most voted
Notify of
RCAT
Guest
RCAT

Havent done any benchs on mine yet, doesnt it do some harm or take some of the life out of it? REVOx2 160 PCIX SSD

Testing with Crystal and ASSD will add to the total write count and theoretically reduce endlife but its not nothing to be c oncerned of. The Revo will last well past your need for such.
