Toshiba XG5 NVMe SSD Review – 3D BiCS 64-Layer Flash Shines

TSSDR TEST BENCH AND PROTOCOL

SSD testing at TSSDR differs slightly, depending on whether we are looking at consumer or enterprise SSDs. For our enthusiast testing today, our goal is to test in a system that has been optimized with our SSD Optimization Guide. To see the best performance possible, the CPU C states have been disabled, C1E support has been disabled, Enhanced Intel SpeedStep Technology (EIST) has been disabled. Benchmarks for consumer testing are also benchmarks with a fresh drive so, not only can we verify that manufacturer specifications are in line but also, so the consumer can replicate our tests to confirm that they have an SSD that is top-notch. We even provide links to most of the benchmarks used in the report.

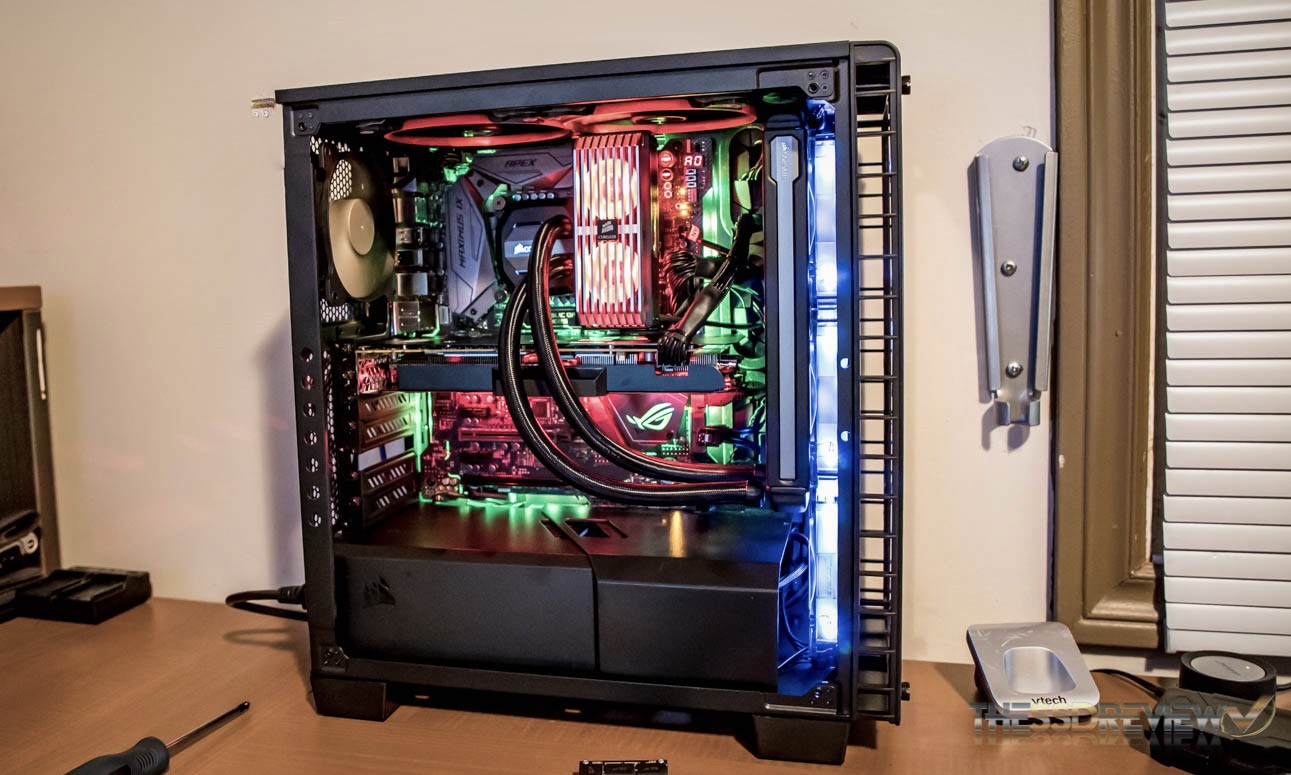

TSSDR Test Bench

SYSTEM COMPONENTS

The components of this Test Bench are detailed below.  All hardware is linked for purchase and product sales may be reached by a simple click on the individual item. As well, the title is linked back to the individual build article where performance testing can be validated.

TSSDR ASUS Z270 APEX TEST BENCH  (link)

PC CHASSIS: Corsair Crystal Series 460X RGB
MOTHERBOARD: ASUS Z270 ROG Maximus IX Apex
CPU: Intel Kaby Lake I7-7700K
CPU COOLER: Corsair Hydro Series H110i GTXblank V.2
POWER SUPPLY: Corsair RM850x 80Plus
GRAPHICS: PNY GTX 1080 XLR8 Gaming OC
MEMORY: Corsair Dominator Pl 32GB 2800
STORAGE: Samsung 2TB 960 Pro M.2 SSD
KEYBOARD: Corsair Strafe RGB Silent Gaming
MOUSE: Corsair M65 Pro Gaming
OS Microsoft Windows 10 Pro 64 Bitblank

BENCHMARK SOFTWARE

The software in use for today’s analysis is typical of many of our reviews and consists of Crystal Disk Info, ATTO Disk Benchmark, Crystal Disk Mark, AS SSD, Anvil’s Storage Utilities, PCMark Vantage, PCMark 8 as well real data transfer testing. Our selection of software allows each to build on the last and to provide validation to results already obtained.

CRYSTAL DISK INFO VER. 7.0.5

Crystal Disk Info is a great tool for displaying the characteristics and health of storage devices. It displays everything from temperatures, the number of hours the device has been powered, and even to the extent of informing you of the firmware of the device.

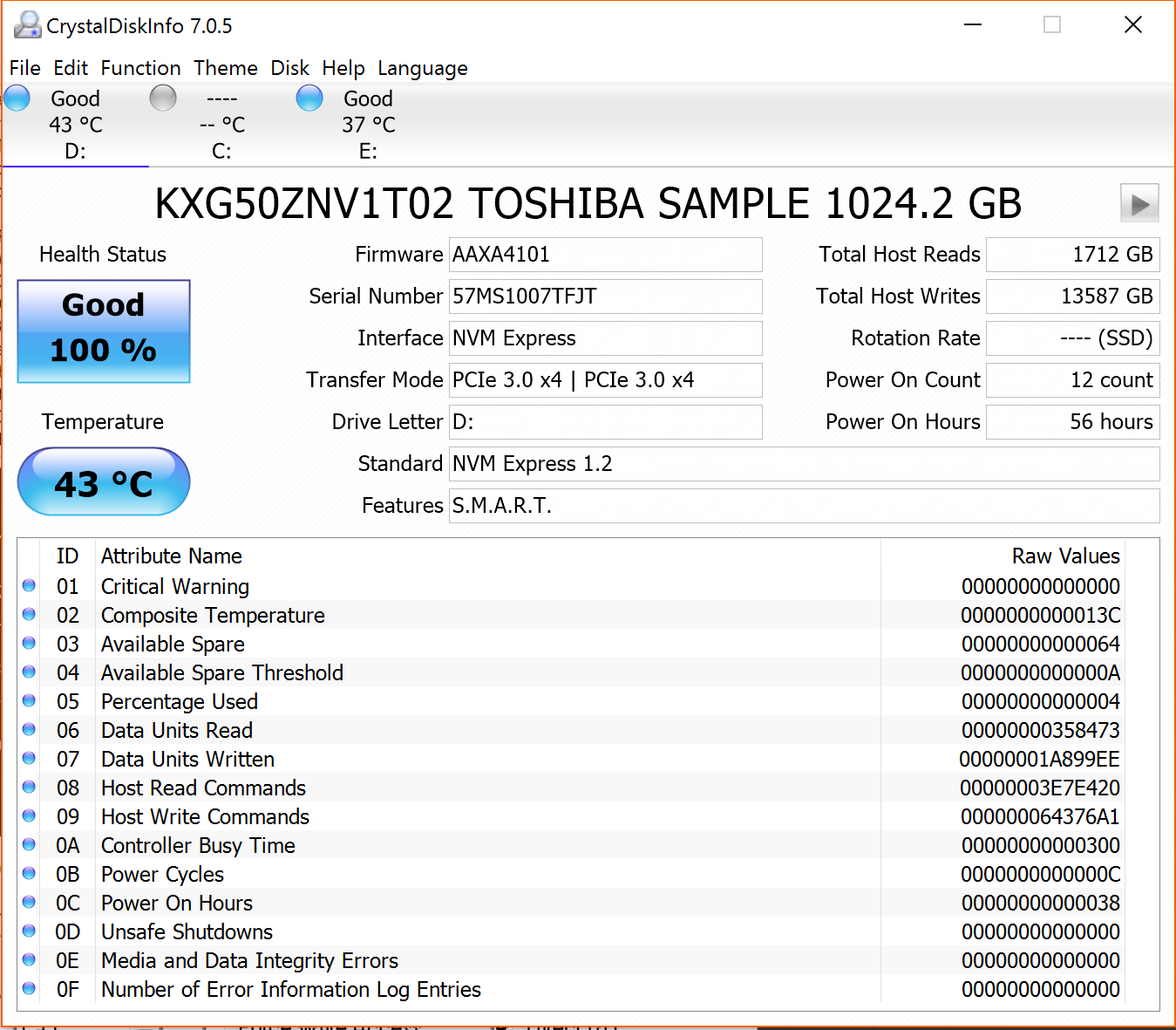

Toshiba 1TB XG5 CDI After Testing

A quick look at the Total Host Reads and Total Host Writes gives you a great indication of how much actually goes into our testing.  This SSD arrived with both at 0GB.

 ATTO DISK BENCHMARK VER. 3.05

ATTO Disk Benchmark is perhaps one of the oldest benchmarks going and is definitely the main staple for manufacturer performance specifications. ATTO uses RAW or compressible data and, for our benchmarks, we use a set length of 256mb and test both the read and write performance of various transfer sizes ranging from 0.5 to 8192kb. Manufacturers prefer this method of testing as it deals with raw (compressible) data rather than random (includes incompressible data) which, although more realistic, results in lower performance results.

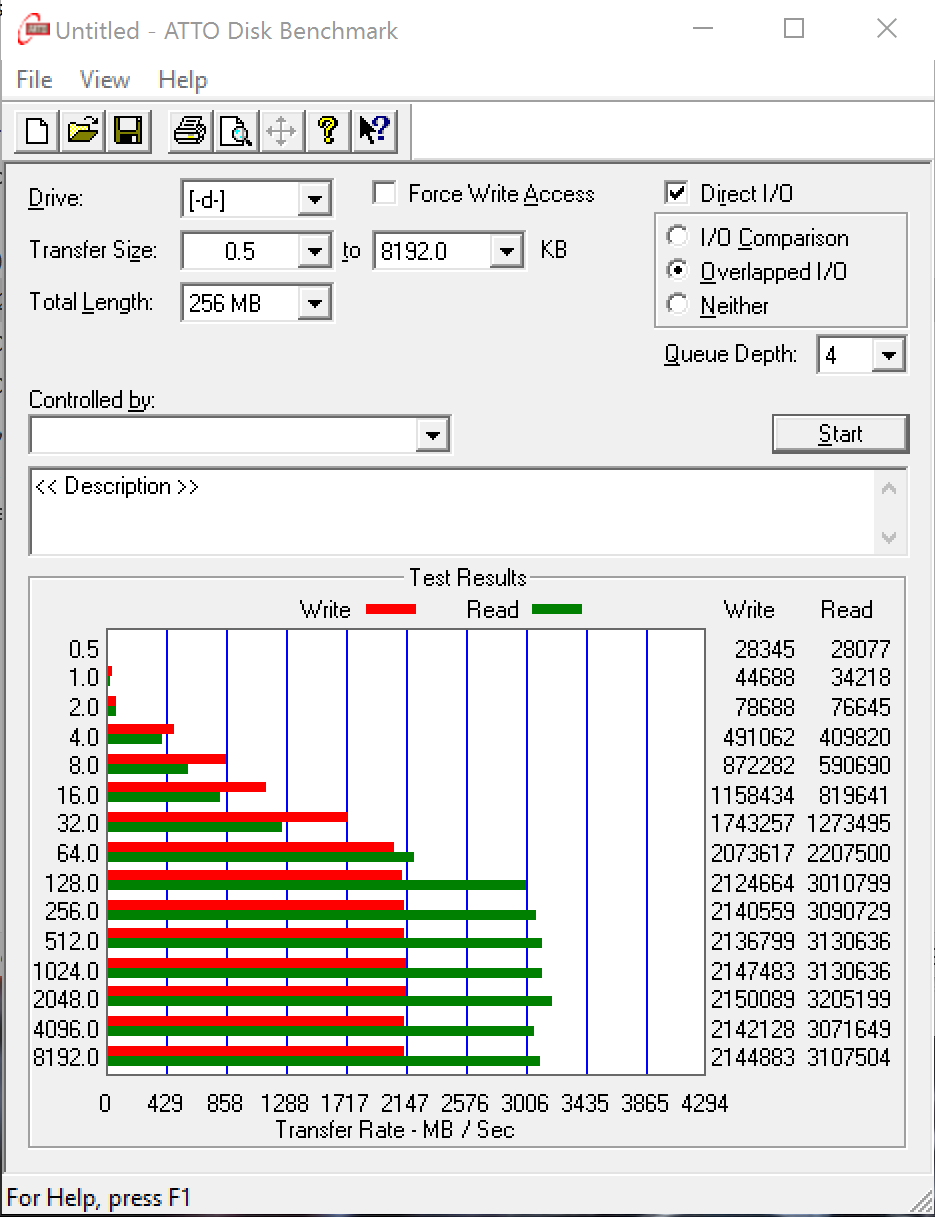

Toshiba 1TB XG5 ATTO

ATTO, although the most basic of benchmarks software, provides some great results of 3.1GB/s read and 2.1GB/s write.  Equally as impressive are the low 4k transfer speeds of over 400MB/s.
