Monster Digital OverDrive 3.0 1TB External SSD Review – Unheard of SSD Portable Capacity at an Amazing Price

CRYSTAL DISK BENCHMARK VER. 3.0 X64

Crystal Disk Benchmark is used to measure read and write performance through sampling of raw (0/1 Fill/compressible) or random data which is, for the most part, incompressible. In the Monster Digital OverDrive 3.0 1TB GB External SSD, performance results are very similar whether we test with compressible or incompressible data and, for this reason, results are displayed utilizing incompressible data.

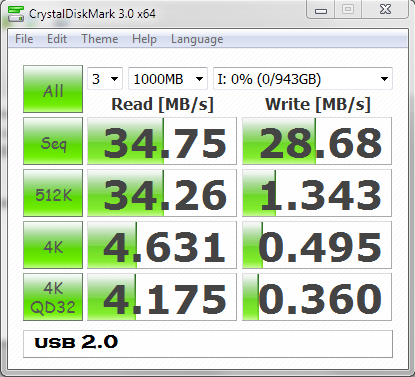

Monster Digital OverDrive 3.0 1TB Crystal DiskMarkMonster Digital OverDrive 3.0 1TB Crystal DiskMark USB 2.0A good look at these results is where the reality of the Phison controller, mixed with the SATA to USB3 bridge can be seen.  Typically in an SSD, we will see much higher 512K and 4K write performance and this was seen in the Angelbird SSD2Go we recently reviewed, although it was the first USB 3.0 external device to display such.  Using this mixture of components, however, aims it directly at those large incompressible file transfers that is seen so much by media professions and keeps the total package very affordable.

Monster Digital OverDrive 3.0 1TB SSD USB Open

ANVIL STORAGE UTILITIES PROFESSIONAL (BETA)

You may not see this for long (and its definitely not common) but you get a freebee simply for reading! Over the last little while, we have been assisting with beta testing new benchmark software called Anvil Storage Utilities which is an absolutely amazing SSD benchmarking utility. Not only does it have a preset SSD benchmark, but also, it has included such things as endurance testing and threaded I/O read, write and mixed tests, all of which are very simple to understand and utilize in our benchmark testing.

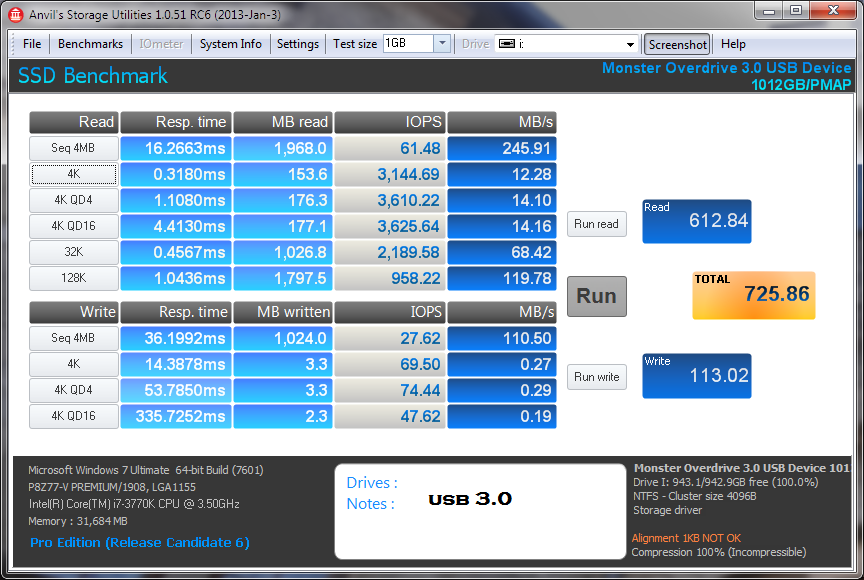

Monster Overdrive 3.0 USB Device Anvil Testing

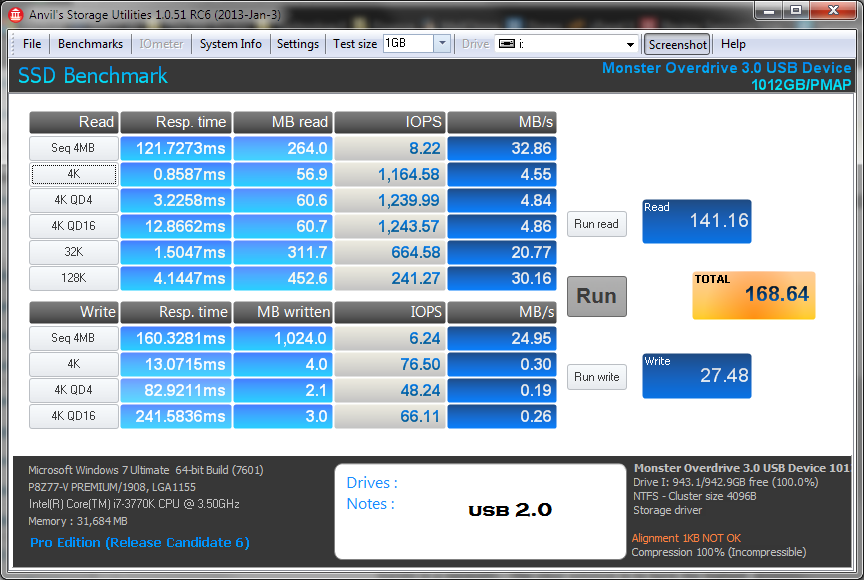

Monster Overdrive 3.0 USB Device Anvil Testing USB 2.0

Anvil Storage Utilities clearly demonstrates the massive performance gain when moving to USB 3.0 from USB 2.0.

21 comments

  1. blank

    I have been looking for a product like this for ages. Thanks a lot for this review.

  2. blank

    Would the Monster SSD be powered adequately by present day 3.0 USB technology? I read a review on Amazon that identifies this point as a problem; thanks!

    • blank

      I don’t know exactly what you mean but…both the 512GB and 1TB capacity drives have been in use for transferring piks and videos for several months now without fail.

      • blank

        That sounds like good news. I don’t have a background to rely on or knowledge of the power supplied by the 3.0 USB technology vs. power required to operate the Monster SSD as rated or promoted in their advertisements. Happy New Year!

      • blank

        A few months back, I bought a 64Gb USB 3 memory stick (don’t recall the brand) to quickly back-up my desktop harddisk. Unfortunately, Win 7 indicated it would take some 6-12 hours to back-up 10 Gbyte — a speed comparable to that of USB 2. While I was waiting for copying the disk, I shopped around and found a Sandisk USB 3 64Gb (Extreme?). I drove to the shop and was back 1.5 hours into the copying process. With the new Sandisk USB memory stick, copying 10 Gbyte took some 12 minutes.

        My point is that USB 3 and SSD doesn’t guarantee fast operation. The use may be without fail, but it may be fast or slow — depending on the implementation. The criticism on Amazon is that the SSD they reviewed was not much faster than a fast HDD for small files.

        Angelbird SSD2go seems to be fast (indicated r/w speeds of up to 460Mb/s). But they don’t have a 1Tb version yet. Even with slow operation, SSDs may be useful — they are more rugged than HDDs. If speed is important, it is probably smart to check reviews that consider this aspect.

      • blank

        Small 4k files are a great deal more work to transfer than large files and this has always been known. The SSD is much more than a simple file transfer size, however, and the first step you take with access time increase is massive. IMHO, USB 3 alone has been set aside by today’s Superspeed and new releases. Angelbird is that example.

  3. blank

    I analyse large data sets for a living. I need large capacity portable drives. What kind of performance improvement can I expect from the Monster SSD compared to read/write to a powered non-ssd 3TB Seagate external? Thanks!

    • blank

      Comparing ANY SSD to a hard drive when transferring large amounts of data is like comparing apples and oranges. The hard drive doesnt come anywhere close to transfer speeds. Look around our site though and see what we have posted with SuperSpeed and UASP.

      • blank

        Thank you for your reply, Les! I looked around and came across the Drobo Mini. It seems to be a good option for me with upgrades and expansion abilities. Your thoughts? I am wondering how the disk management software that comes with the Drobo will impact on my computer’s RAM?

      • blank

        The only hesitancy I might have with that is transfer speeds. The Drobo (which I am not totally familiar with by the way) uses HDD for storage which will still limit your transfer speeds from the external to the system. The SSD increases this significantly. As a more recent example, look at the MyDigitalSSD OTG we recently reviewed. Similarly, we will be reviewing the MyDigitalSSD Pocket Vault in the next few days…both with SuperSpeed that triples and even quadruples transfer rates compared to such a device.

      • blank

        Thanks again Les! I will investigate the MyDigitalSSD further. I see however that the Drobo (www.drobo.com) now caters for SSD as well and even have a mSATA ssd slot. It might be a product to review?

      • blank

        Read this…preformance sucks.

        https://reviews.cnet.com/external-drive-bays/drobo-mini/4505-3033_7-35544730-2.html

        Better yet:

        https://www.drobospace.com/forums/showthread.php?tid=37629

        We have a similar NAS on the way that we know does twice that for performance…and is very similar. To me, that is still WAY TOO LOW! I don’t know why these companies haven’t caught on yet.

      • blank

        Thanks again Les! I am looking at the MyDigitalSSD at the moment. Final question please. I saw you gave the OWC Envoy USB 3.0 an editors choice award. Since I am after speed and not safe storage, which would you prefer, MyDigitalSSD or OWC. Keep in mind my data analysis software runs on Windows. Also can I put a 1TB Samsung in the OWC? Thank you!

  4. blank

    I just bought a monster digital usb 1tb ssd. I plug it in and it doe snot show up in my removable storage. I can find it in my Disk manager but I am unable to format it. I have called and emailed Monster Digital but I get do response from them. Is there a driver for this device? If so where can I get it. Is is not on the Monster Digital web site.

  5. blank

    It’s USELESS to me in the Case. How do i remove the ssd from monster
    digital case? I needed a 500gb SSD to permanently mount as the system
    boot drive in a new PC. The SSD had the lowest price. But then it
    shows up in the “Overdrive Mini” case–USELESS TO ME!!! How do I remove
    it so I don’t have to waste $$$ on buying another SSD?

  6. blank

    Hi Les, thanks for the review and the info. I purchased the 1TB version and love the product. Now my issue is that the drive has stopped working and I have a feeling that it’s the cable. How do I remove the cable and replace with my own? My drive is already past the 3 years warranty. Martin
