HGST SSD800MM SAS 12Gbps SSD and LSI SAS 9300-8e HBA Review – LSI and HGST Intro 12Gbps To The World

MEASURING PERFORMANCE

As with all of our tests, the following tests were performed after a secure erase of the drive. The drive was also conditioned with a predefined workload until it reached steady state.  We also test across the entire span of the drive. delirious

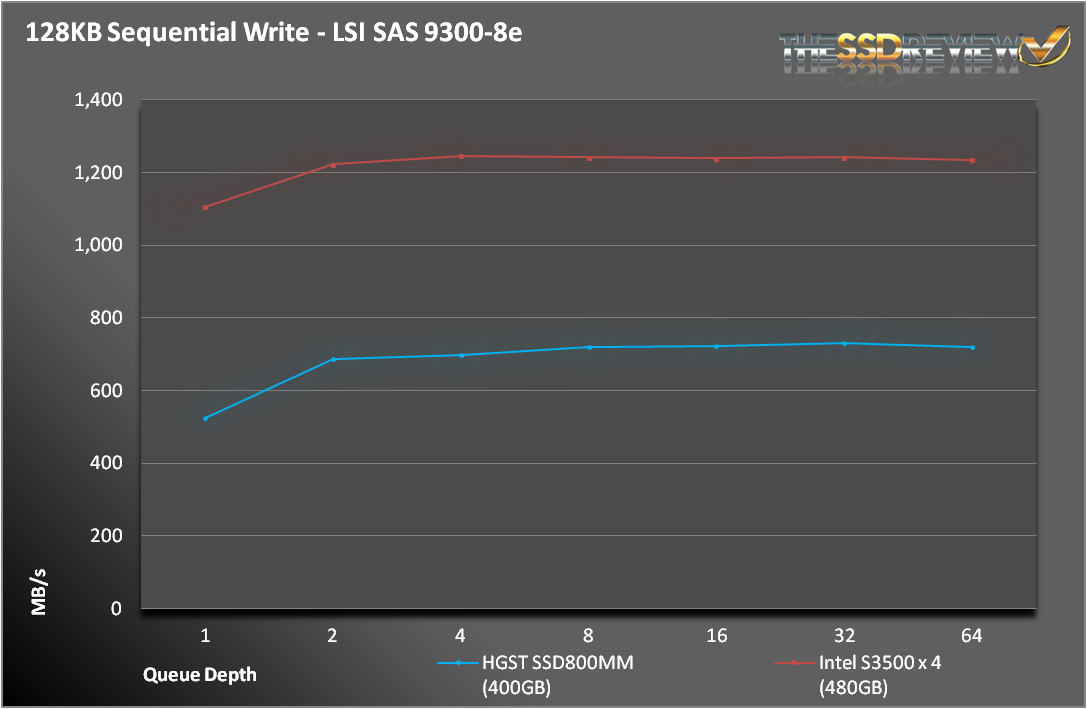

HGST-SeqWrite

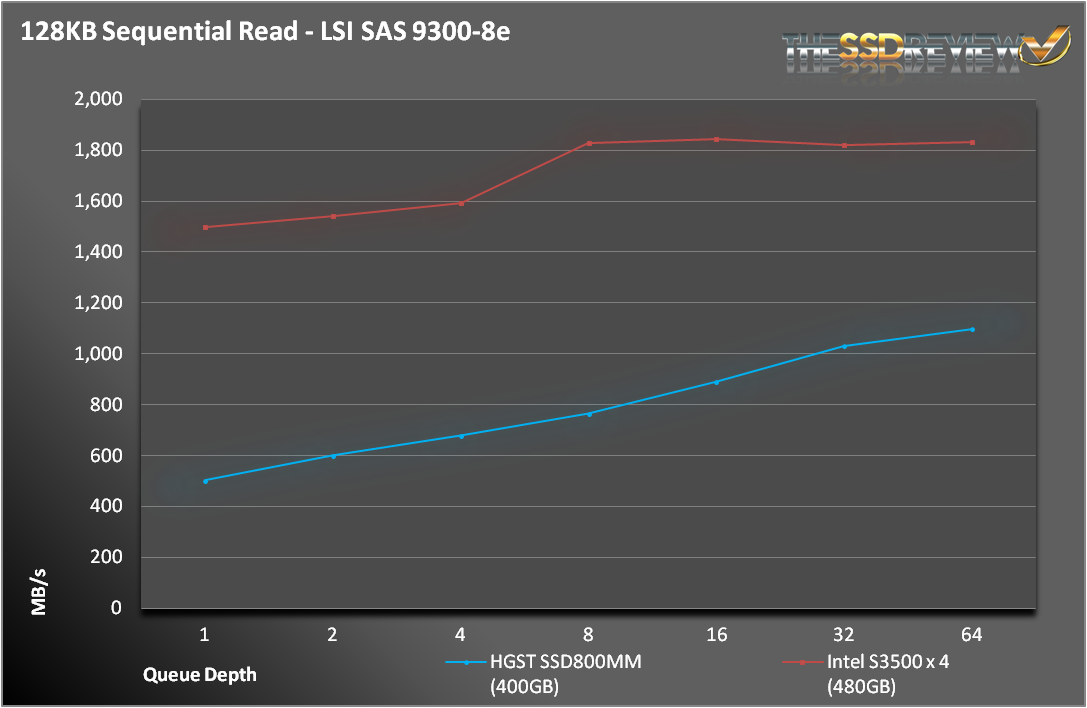

HGST-SeqRead

When we were deciding what we could compare this drive to, we were at a loss.  Every SSD we have tested would be half as fast on a good day.  Instead, we pulled the data form our Intel SSD DC S3500 review.  You might recall that we tested 4 S3500s on an “LSI HBA”.  Well, that HBA was the SAS 9300-8e.

For sequential operations, the SSD800MM offers outstanding performance.  At over 1.1GB/s for read operations and 700MB/s for write operations, it easily outpaces other 6Gbps SSDs.  It wasn’t quite powerful enough to match our S3500s.

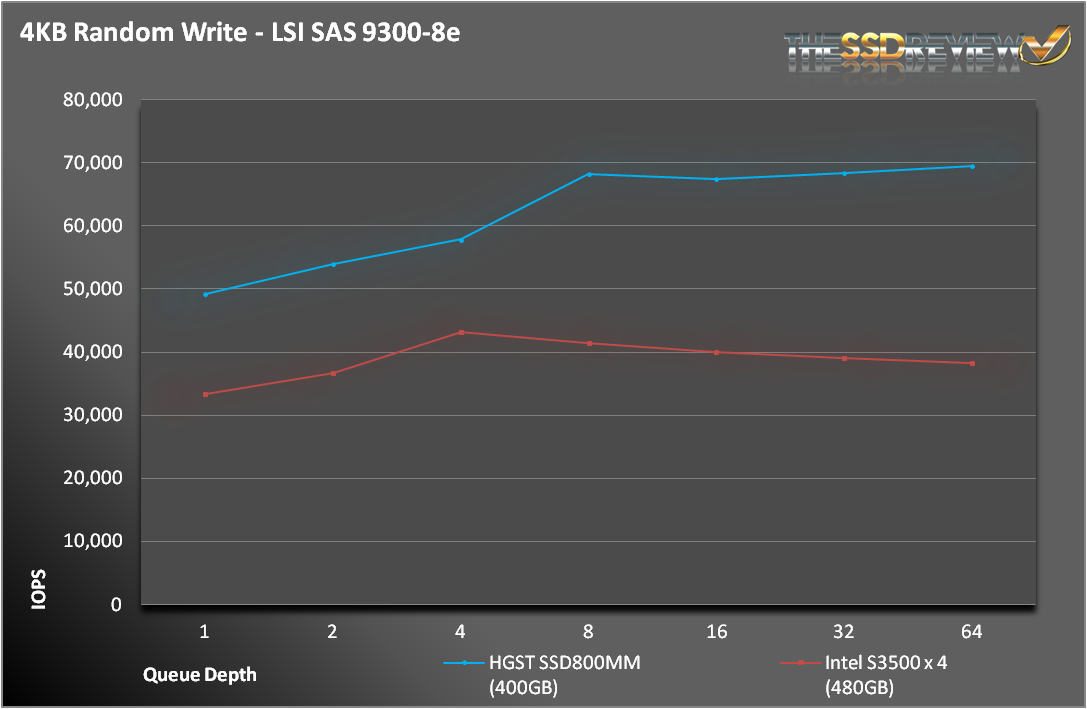

HGST-RandWrite

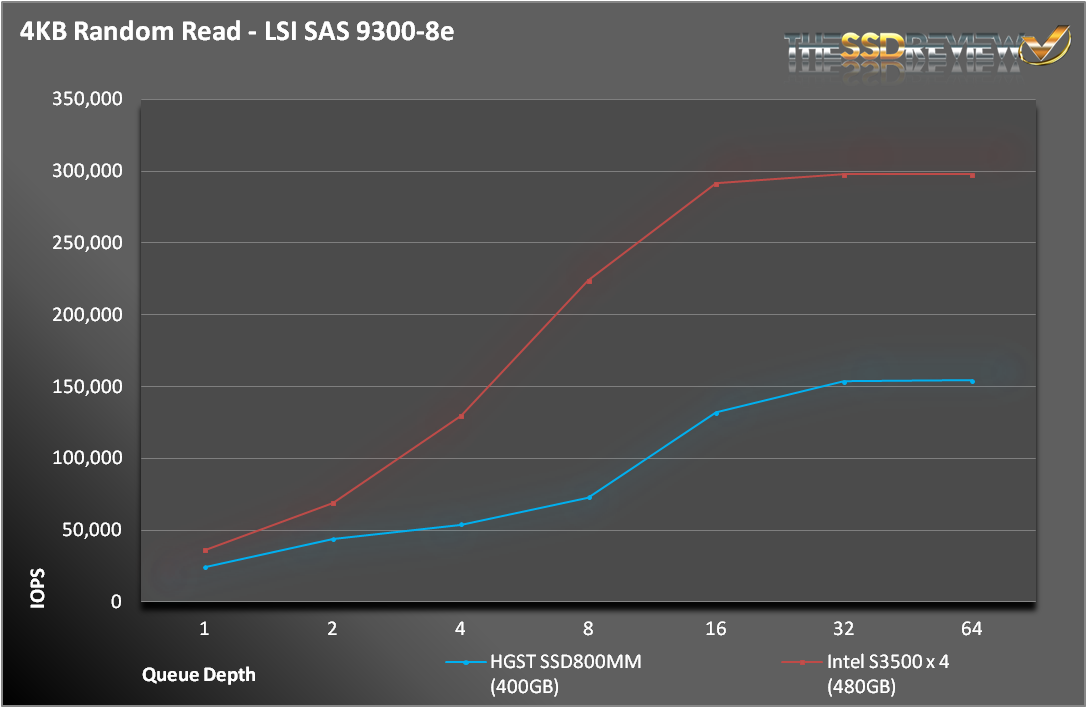

HGST-RandRead

The SSD800MM is a beast when it comes to small-block, random operations.  You would need eight S3500s to match a single SSD800MM in random write performance.  Random reads are excellent at well, where we could consistently get over 150K IOPS.
