ioSwitch Raijin M.2 NGFF PCIe SSD Review – Plextor M6e PCIe M.2 SSD Revealed With Boot Features

ATTO DISK BENCHMARK VER. 2.46

ATTO Disk Benchmark is perhaps one of the oldest benchmarks going and is definitely the main staple for manufacturer performance specifications. ATTO uses RAW or compressible data and, for our benchmarks, we use a set length of 256mb and test both the read and write performance of various transfer sizes ranging from 0.5 to 8192kb. Manufacturers prefer this method of testing as it deals with raw (compressible) data rather than random (includes incompressible data) which, although more realistic, results in lower performance results.

Plextor M6e PCIe 256GB SSD ATTO

ATTO performance highs of 738MB/s read and 583MB/s write are right up there with listed specifications, and our first look at PCIe data transfer speeds.

CRYSTAL DISK BENCHMARK VER. 3.0 X64

Crystal Disk Benchmark is used to measure read and write performance through sampling of highly compressible data (oFill/1Fill), or random data which is, for the most part, incompressible. Performance is virtually identical, regardless of data sample so we have included only that using random data samples.

Plextor M6e PCIe 256GB SSD Vantage Crystal

High sequential performance remained high and the low 4K random write speeds were adequate, although we might like to see speeds above 100MB/s become the norm.

AS SSD BENCHMARK VER 1.6

Up until recently, AS SSD was the only benchmark created specifically for SSD testing and it uses incompressible data.  AS SSD, for the most part, gives us the ‘worst case scenario’ in SSD transfer speeds because of its use of incompressible data and many enthusiasts like to AS SSD for their needs. Transfer speeds are displayed on the left with IOPS results on the right.

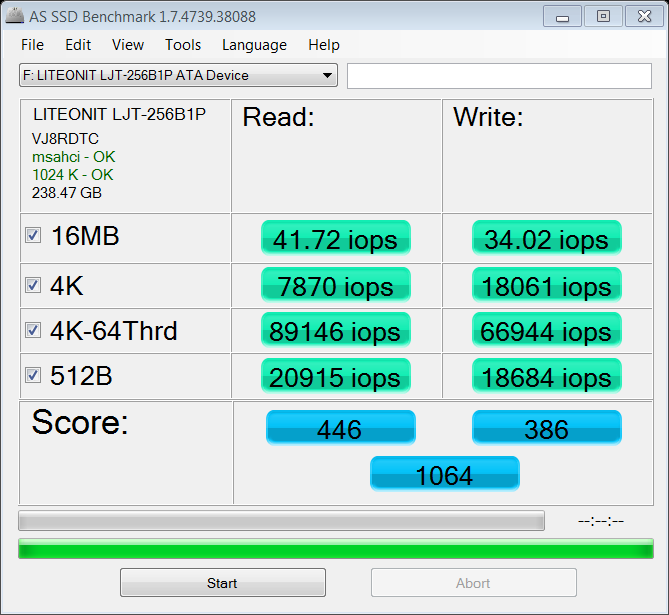

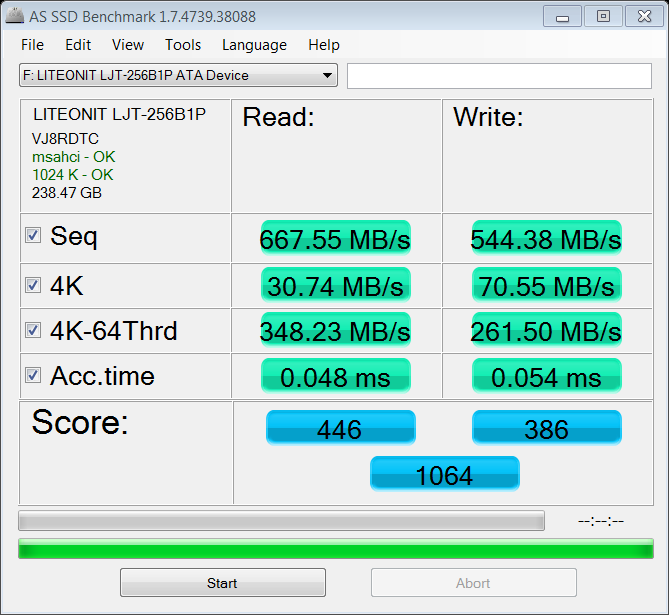

Plextor M6e PCIe 256GB SSD AS SSD BenchPlextor M6e PCIe 256GB SSD AS SSD IOPSPerformance remained strong with AS SSD and IOPS were just a bit under listed specifications of 95,000 read and 75,000 write IOPS.  Looking more to a reality scenario, the AS SSD Copy Bench shown here is pretty impressive:

Plextor M6e PCIe 256GB SSD AS SSD Copy Bench

ANVIL STORAGE UTILITIES PROFESSIONAL (BETA)

You may not see this for long (and it’s definitely not common) but you get a freebee simply for reading! Over the last little while, we have been assisting with beta testing new benchmark software called Anvil Storage Utilities which is an absolutely amazing SSD benchmarking utility. Not only does it have a preset SSD benchmark, but also, it has included such things as endurance testing and threaded I/O read, write and mixed tests, all of which are very simple to understand and use in our benchmark testing.

Plextor M6e PCIe 256GB SSD Anvil

We wanted to push things a bit and see how close we could get to manufacturers IOPS specs so we pushed the read and write queue depth just a bit:

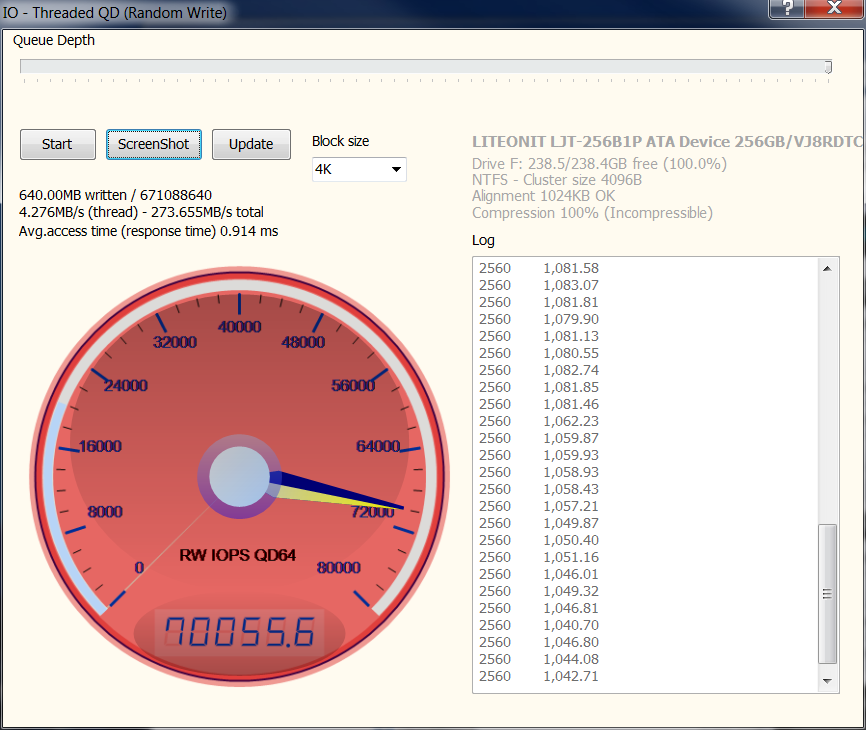

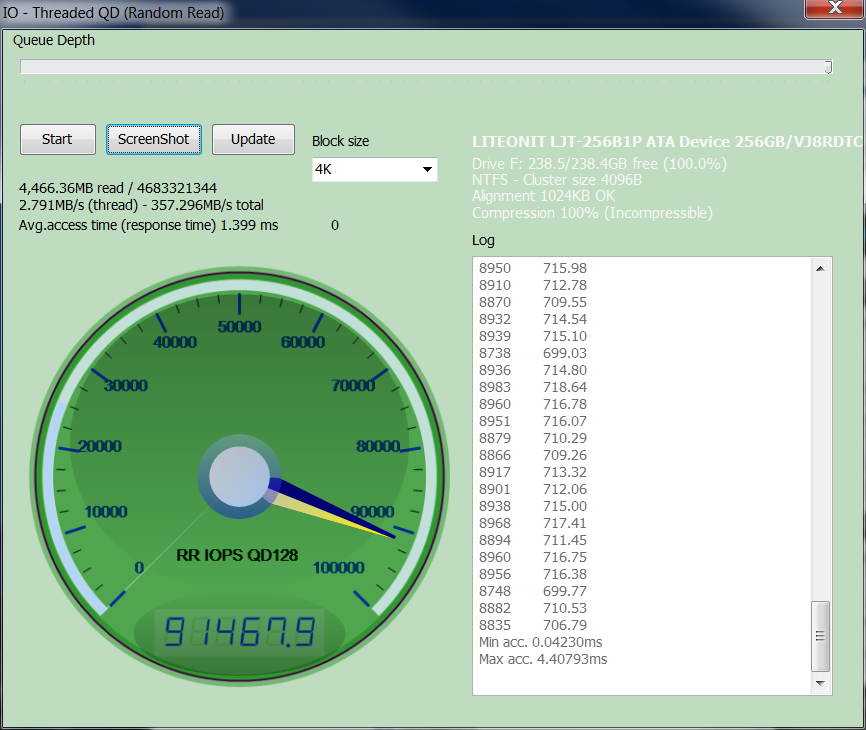

LITEONIT LJT-256B1P ATA Device_256GB_TH-R-IO_20131125-2228LITEONIT LJT-256B1P ATA Device_256GB_TH-W-IO_20131125-2228
