Intel 750 U.2/AIC SSD RAID0 (X3) Report – 5GB/S & 750K IOPS

PCMARK VANTAGE X64 HDD SUITE

The SSD Review uses benchmark software called PCMark Vantage x64 HDD Suite to create testing scenarios that might be used in the typical user experience. There are eight tests in all and the tests performed record the speed of data movement in MB/s to which they are then given a numerical score after all of the tests are complete. The simulations are as follows:

  • Windows Defender In Use
  • Streaming Data from storage in games such as Alan Wake which allows for massive worlds and riveting non-stop action
  • Importing digital photos into Windows Photo Gallery
  • Starting the Vista Operating System
  • Home Video editing with Movie Maker which can be very time consuming
  • Media Center which can handle video recording, time shifting and streaming from Windows media center to an extender such as Xbox
  • Cataloging a music library
  • Starting applications

PCMARK VANTAGE RESULTS

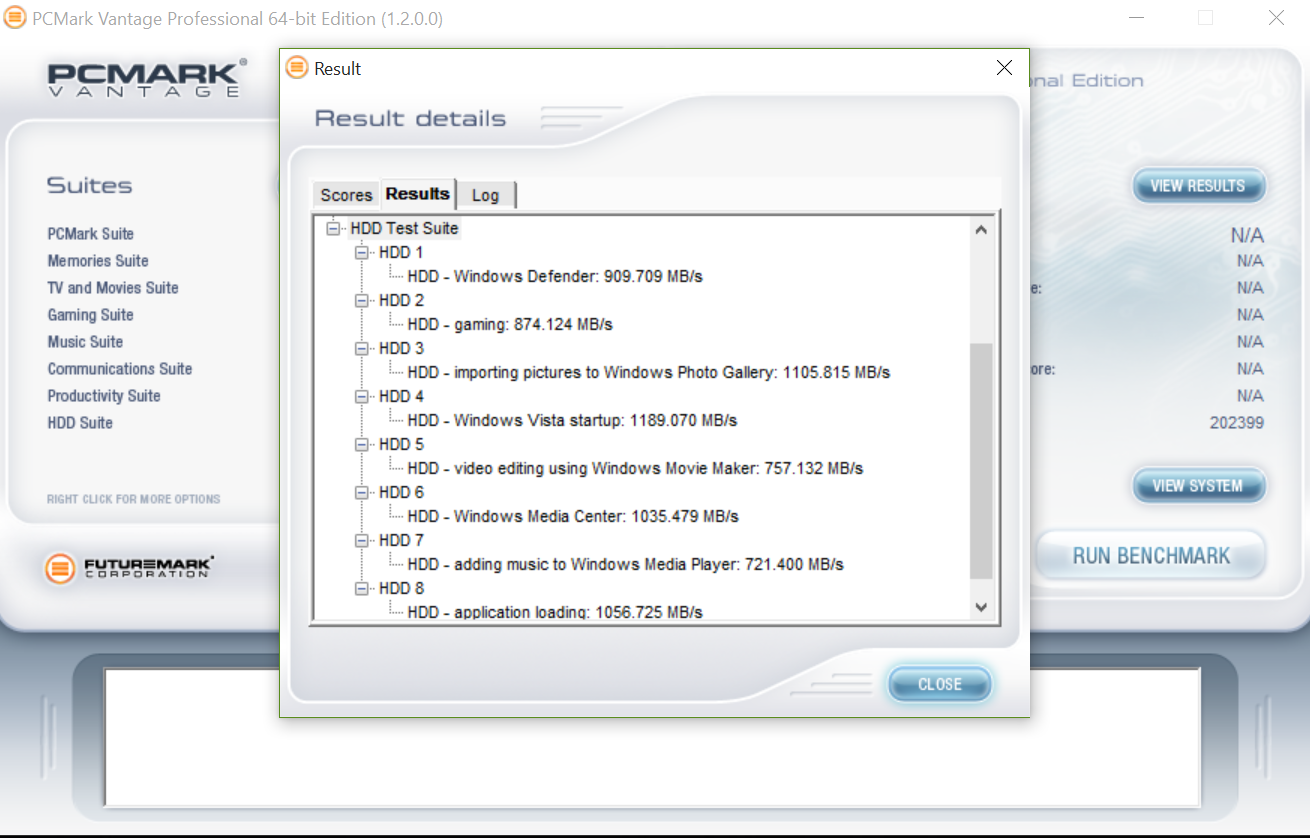

Our RAID combination of three Intel 750 NVMe 1.2TB SSDs resulted in a Total Score of 202399 with a high transfer speed of 1189MB/s during the Vista Startup scenario… Vista StartUp?!?!  In any case, all eight tests returned great results with four exceeding 1GB/s transfer speeds.

Intel 750 SFF NVMe 1.2GB x2 SSD RAID Vantage

IOMETER

Iometer is an I/O subsystem measurement and characterization tool for single and clustered systems. It is typical for our enterprise reviews, actually most enterprise reviews of any SSD review site, but we thought we might use it here just to see the highest we could reach.  This is not steady state testing.

Intel 750 NVMe RAID X3 Iometer 5.3GBs Read

Intel 750 NVMe RAID X3 Iometer 3.9GBs Write

Intel 750 NVMe RAID X3 Iometer 755K IOPS Read

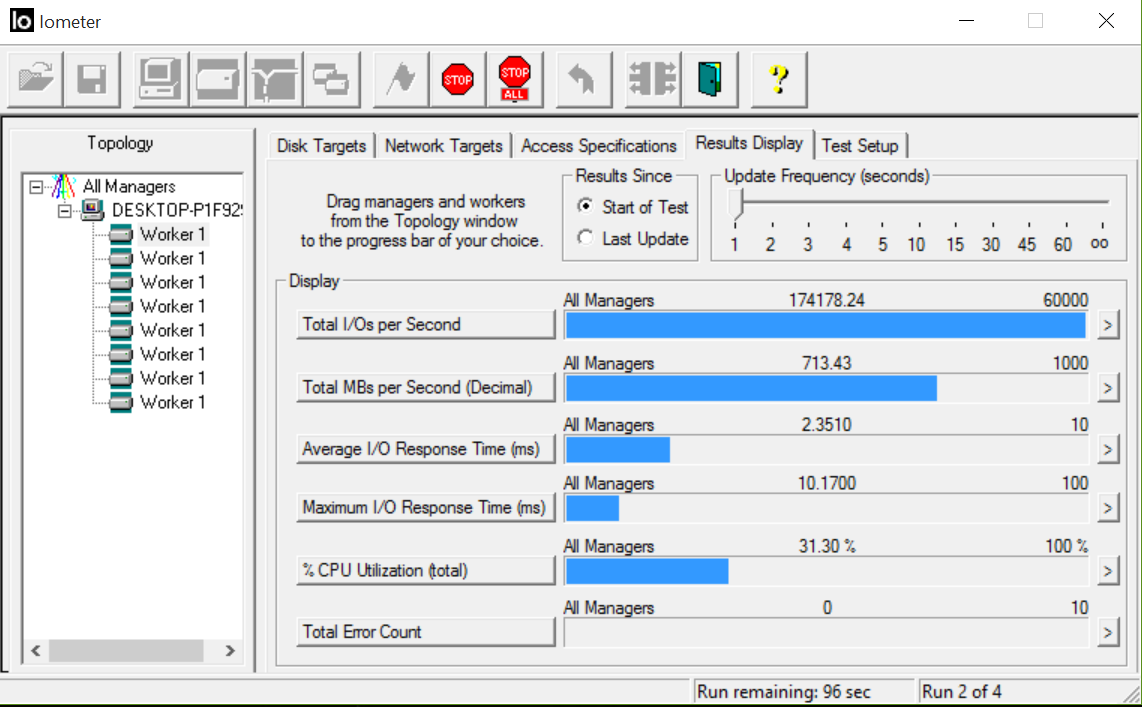

Intel 750 NVMe RAID X3 Iometer 174K IOPS Write

As we can see here, read IOPS have been pushed even higher to over 3/4 million IOPS which is more than can be expected.

7 comments

  1. blank

    Just a great article! Really good job on the test. I thought the DMI 3 speed of 3.93 GB/s would affect performance, and yet it didn’t. How come?

  2. blank

    Guys, I believe:

    1) [b]ATTO READ results are victim of 32bit overflow [/b]. 1024kB block show result of 4053109kB/s (=4GB/s), 2048kB block size only shows 700729kB/s caused by the 32bit overflow. This is AFTER it crossed 4GB/s threshold (2^32 = 4194304kB/s) so the TOTAL write speed in fact was 4GB/s + 0.7GB/s = 4.7GB/s. As I say, ATTO can NOT count with bigger than 32bit numbers internally, so that’s the reason why it only displays 0.7GB/s instead of what it should be 4.7GB/s. The same thing applies to 4096kB and 8192kB block size results, they SHOULD be 4.96GB/s and 4.99GB/s.

    There is no other explanation for such cruel drop in performance when going up from 1024kB block size to 2048, 4096 and 8192kB blocks. Just the results are displayed incorrectly.

    My table :
    size write read
    1024 3614841 4053109 [no overflow here, 4194304 is the break point, 2^32 = 4194304]
    2048 3681783 700729 [should be 4194304+700729 = 4859033]
    4096 3768675 967166 [should be 4194304+967166 = 5161470]
    8192 3863339 993412 [should be 4194304+993412 = 5187718]

    These results are PERFECTLY aligned with Crystal DiskMark results on second page. Crystal gets to 5353MB/s which is the same league as numbers displayed here.

    Write performance is obviously not affected with this, because it only gets to 3863339kB/s maximum which is below 2^32 = 4194304kB/s. SSDs simply can’t write faster. But they can read.

    2) it would be possible to squeeze out little bit more than 755k IOPS (4kB) in IOMeter test on last page. I see 0.6245ms AVERAGE latency for this 4kB test, what in my experience shows disk subsystem being not utilized to its maximum capabilities.

    In SSD RAID tests, I personally have ALWAYS achieved higher IOPS when my latency got above 1ms, quite often above 2ms, (example : I achieve 60.000 IOPS 4kB random read with 0.8ms latency where I sit ; the same config shows 80.000 IOPS 4kB random read with 2ms when I kick it to higher queue depths or more workers).

    My thought is supported by all three remaining IOMeter tests which show 12.5332ms average latency when testing sequential throughput resulting in 5353.58MB/s (first IOMeter screenshot on last page), 16.8915ms latency 3971.78MB/s throughput (second screenshot) and 2.3510ms latency in the last screenshot.

    Compared to those latencies (2.35ms, 12.53ms and 16.89ms), the average 4kB read test latency of 0.6245ms possibly was not taxing RAID to the maximum possible extent.
