Intel 750 PCIe SSD Review (1.2TB) – 1st Consumer 2.4GB/s NVMe SSD Set To Change The Industry

CRYSTAL DISK BENCHMARK VER. 3.0 X64

Crystal Disk Benchmark is used to measure read and write performance through sampling of random data which is, for the most part, incompressible. Performance is virtually identical, regardless of data sample so we have included only that using random data samples.

Intel 750 1.2TB NVMe Crystal Disk MarkJust as we seen in other PCIe SSD reviews, Crystal Disk Mark results show lower than expected results. Here we see 1.6GB/s read and almost 1.3GB/s write. Taking a closer look at 4K performance we can see it achieved 43MB/s read and nearly 260MB/s write! Its 4K write performance is almost double that of the higher performing SATA SSDs on the market.

AS SSD BENCHMARK VER 1.7

The toughest benchmark available for solid state drives is AS SSD as it relies solely on incompressible data samples when testing performance.  For the most part, AS SSD tests can be considered the ‘worst case scenario’ in obtaining data transfer speeds and many enthusiasts like AS SSD for their needs. Transfer speeds are displayed on the left with IOPS results on the right.

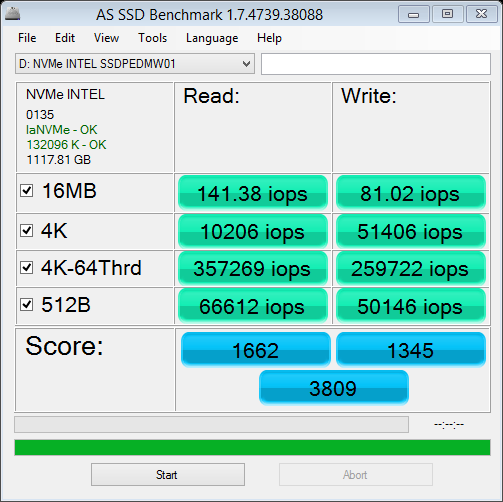

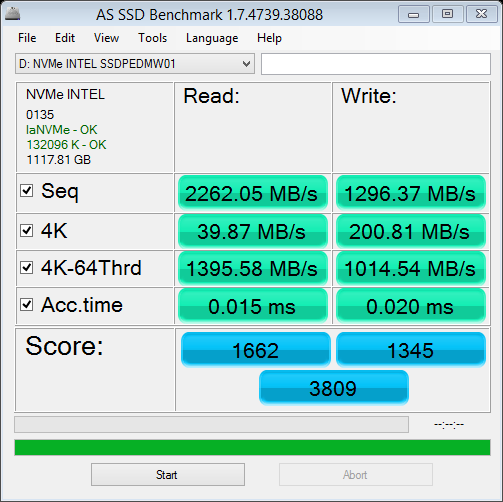

Intel 750 1.2TB NVMe AS SSD Intel 750 1.2TB NVMe AS SSD IOPS Again, with AS SSD we see slightly lesser performance than the rated spec, however, the Total Score of 3809 points is very impressive. Here the Intel 750 was able to achieve 2,262MB/s sequential read and nearly 1,300MB/s write speeds. Looking at 4K performance it was able to reach almost 40MB/s read and 200MB/s write. During the 4K-64Thrd test it hit 357K IOPS read and 260K IOPS write and latency was on par with the rated spec at 0.015ms read and 0.020ms write.

Intel 750 1.2TB NVMe AS SSD CopyIn the AS SSD Copy benchmark we can see some very good performance. So good in fact that it is better than the copy performance that we have seen from its DC P3700 bother.

ANVIL STORAGE UTILITIES PROFESSIONAL

Anvil’s Storage Utilities (ASU) are the most complete test bed available for the solid state drive today.  The benchmark displays test results for, not only throughput but also, IOPS and Disk Access Times.  Not only does it have a preset SSD benchmark, but also, it has included such things as endurance testing and threaded I/O read, write and mixed tests, all of which are very simple to understand and use in our benchmark testing.

Intel 750 1.2TB NVMe AnvilTaking a look at performance results from Anvil Storage Utilities we can see that overall, they are similar to that of our other tests. Let’s move on to Iometer and see what we get.

IOMETER

Iometer is an I/O subsystem measurement and characterization tool for single and clustered systems. It was originally developed by the Intel Corporation however, they discontinued work on the program. In 2003 it was re-launched by an international group of individuals who are now continuously improving, porting and extend the product that is now widely used within the industry. This is a very powerful benchmarking tool and we are just now starting to integrate it into our consumer reviews.

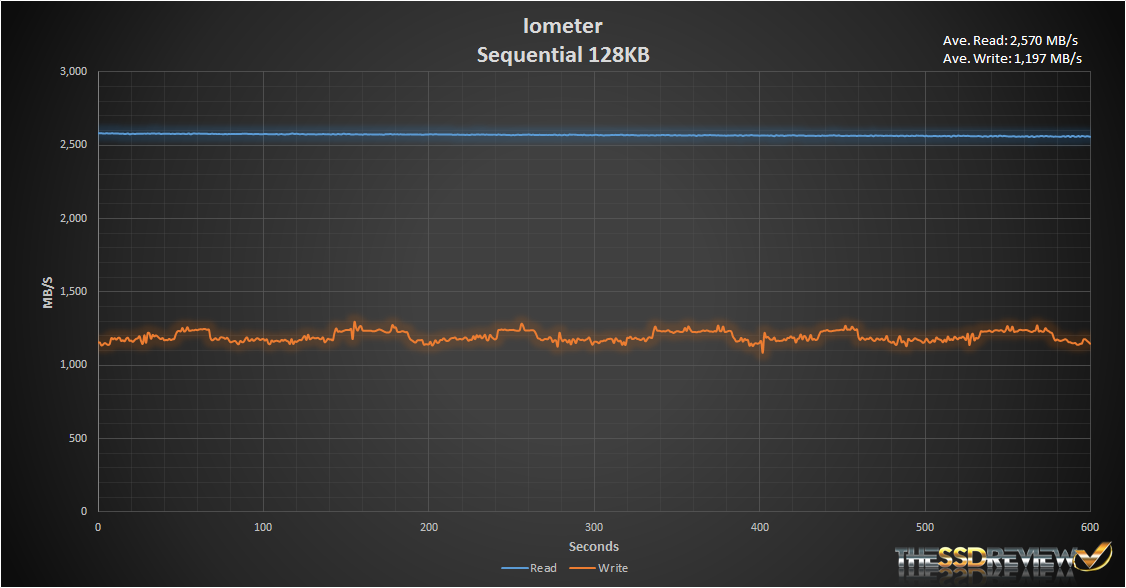

Intel 750 Iometer Seq Read & Write

In Iometer we first preconditioned the SSD with sequential writes for 1hr.  After that we recorded the speeds for an additional 20 minutes, then graphed the last 10 minutes above. As you can see, the performance is quite impressive. The Intel 750 reached an average of 2,570MB/s read and 1,197MB/s write! Looking at the consistency across the time span we can see that it is fairly consistency and offers writes ranging from 1.1GB/s minimum to 1.3GB/s max.

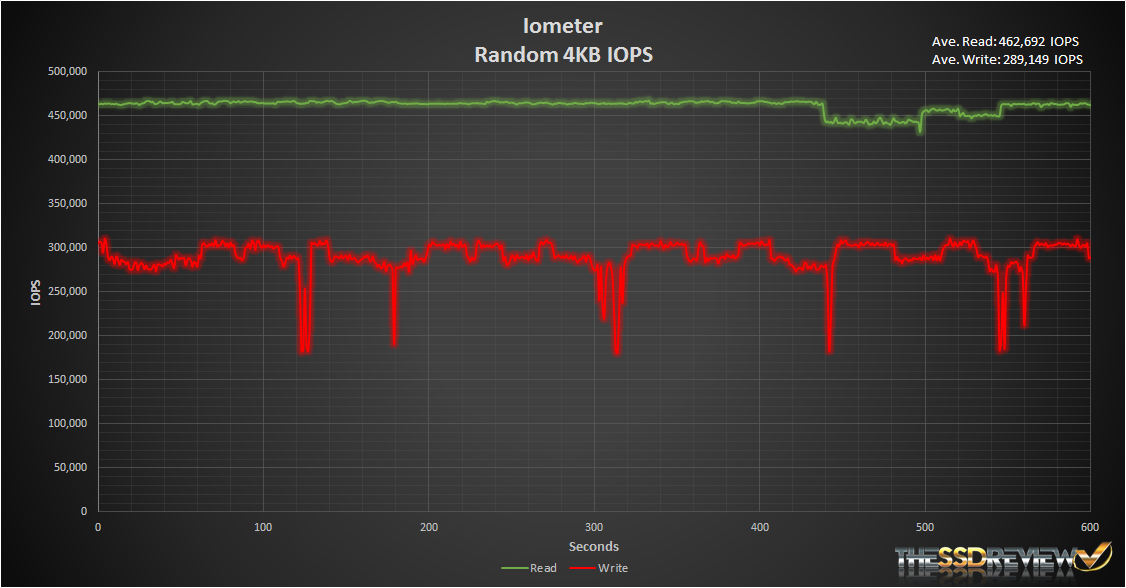

Intel 750 Iometer Random Read & Write

Next we ran 4K random read and write workloads for 20 minutes each and graphed the last 10 minutes above. The average read IOPS we achieved were over the rated 440K at 462,692 IOPS. Looking at the write IOPS the 1.2TB Intel 750 averaged 289,149 IOPS. Very close to the rated 290K value.  We can also see that there are some dips over the 10 minute span, however, overall performance is very good as it quickly jumps back up to ~260K-300K over a few seconds.  This type of performance is definitively far above that of typical consumer workloads and even that of most prosumer workloads.

40 comments

  1. blank

    You guys are replacing my keyboard. I just drooled all over it

    • blank

      Haha, time for one of those water proof ones! Trust me, I found myself drooling uncontrollably after first receiving this SSD as well! I think that I even forgot how to speak for a bit.

      • blank

        Is it true that in the real world a user will notice no difference between an Intel 750 and a Samsung 850 pro or any other SSD for that mater?

      • blank

        It depends on what your real world use is. Everyone has different workloads. If you are editing media heavily such as video and 4K video for that matter, yes there is a difference. If you are just a power user who does a lot of typical desktop tasks you are better off with a SATA SSD.

      • blank

        So for a person with an overclocked 5820K, 16gb of ram, four 4 TB HDs full of movies, who plays games and reads the internet, a 400gb 750 would be a waste of $150 over a Samsung 850 pro 512gb? or should I just blow the $150? I am not the price sensitive.

      • blank

        Well…if you are one who likes the best and the fastest (evident by the OC), you might just have to have the 750 but, for what you describe, there will be no performance difference from the other SSD. Not being price sensitive, I’de be grabbing the 750 personally though…just sayin’.

      • blank

        It’s not going to help you with movies or surfing the web if you’re already running on SSD. It will benefit game loading times, but probably not by a noticeable amount.

        Also, a word of warning on the 5820K, it’s been crippled to only have 28 PCIe lanes. Which means if you’re ever thinking of Crossfire/SLI on your graphics card then may start running out of lanes.

        If you’re looking for a sensible decision, this isn’t it – but then, Haswell-E is probably not that sane either (I’ve got one, so I’m with you on that).

  2. blank

    So my revodrive 3 x2 failed a few days ago and I was eyeing the p3700 but its a bit pricey. Is there a good reason not to consider this thing now?

    • blank

      Up to you and your uses. The P3600 is rated for faster reads and writes, but a bit lower random writes. Then if you look at the endurance rating the P3600 is rated for 3 drive writes per day up to nearly 11PB TBW…not 219TB TBW. So the P3600 annihilates it in endurance if you need that for your workflow.

      • blank

        Its a solid point on the endurance. Its for a workstation so I might trade in this case I might favor the p3600 but it’s pretty amazing that tech has gotten to the point where this is even a decision.

        Thanks for the note and great input as always!

      • blank

        No problem, good luck with your decision!

  3. blank

    If you actually are running workstation loads then this might be useful otherwise judging by the real world benchmarks I’ve seen elsewhere this is a waste of money.

  4. blank

    The 2.5-inch form factor model interests me. It says it ships with an add-on card? Is the SSD tethered to this card or can we use other SAS/Sata Express cards from LSI to power this thing?

    • blank

      It comes with a SFF-8639 to SF-8643 cable. It is only compatible with a PCIe adapter of some sort such as an M.2 to SFF-8643. Currently the only supported motherboard for this SSD is the Asus X99 Sabertooth as it comes with an M.2 to SFF-8643 adapter. It will not work with SAS cards.

  5. blank

    Hi, can anyone help to verify how fast was the boot up timing as I get a wide range of result for the boot up timing.

    Techreport review claim 51 sec boot up which is slowest in all SSD and TT also claim that 750 is noticeable slower, yet the review here mentioned single digit boot up.

    Just how fast? Any software to keep the exact timing?

    • blank

      I had 9 seconds boot in the Z97 test system from power off to on after optimizing everything.

      • blank

        Hmmm so is about as fast as SATA drive, but just not much faster?

      • blank

        Yeah, just about the same. The Samsung 850 Pro 128GB I have as the OS Drive normally boots from power off to desktop in about 8-10 seconds…even a bunch of other SSDs I’ve tested boot about the same.

      • blank

        Well then, I guess this drive need some firmware update to really boost up the boost speed. Probably better future bios update as well.

    • blank

      I suspect most of the delay in boot these days with SSD are BIOS/UEFI initialisations and or driver issues with Windows. All of which could vary from system to system.

  6. blank

    How about testing 2-4 of these in a raid?

  7. blank

    What an incredible piece of tech! I can’t find a single retailer that has them in Canada! I was going to get a 730 series, but now, I’ll get the 750 for a few bucks more!

    Not many people talk about the flush-in-flight power loss protection, but this is a very rare feature on consumer SSDs and I really appreciate.

  8. blank

    So how does this compare to the Kingstone HyperX Predator that you recently reviewed and I recently purchased?!

  9. blank

    I second GE, how does this compare with the HyperX and some of the other high-end consumer pci-e solutions such as the G.skill phoenix and Mushkin Scorpion? What are the pros and cons? (other than a slightly lower $or£/gb)

    • blank

      There are a number of things that differentiate the Intel NVMe SSD from previous solutions, the first of which is the fact that the NVMe driver is part and parcel to Win 8 and above. What this means to boot times is that there is not a lengthy drive bios having to initiate prior to that of the motherboard. Because there are also less commands associated with NVMe, it naturally runs cooler at higher speeds and the best example we have seen of this so far is the performance of the newest Samsung M.2 SSD which reaches performance previously not possible without a heat sink on a M.2 drive. Lastly, performance is very much limited, even in a PCIE 3.0 x4 setup and the IOPs pulled off by this SSD without effort is the true reality of NVMe. Imagine that before long, we will be seeing ultra books such as the MBA pushing selling with performance specs above 2GB/s and similar IOPs which is absolute gold to those working with media, especially 4K video and higher.

  10. blank

    I am currently new to NVMe technology and trying to get a feel of it.I am looking forward to use NVMe SSD. But currently in dilemma as NVMe SSD is same as PCIe SSD?

    Also currently I am using SAS SSD in AHCI mode. Do I need any specific hardware/software to use it on my system (Fedora 20, kernel 3.13, RAM 4 GB).

    • blank

      NVMe, as alluded to in the article is the protocol your OS talks to the drive in – currently we generally use AHCI.

      PCIe is a way of physically connecting the drive to your computer; currently we generally use SATA, before it was IDE.

      In terms of specific hardware, you’ll need a spare PCIe x4 (or greater) slot. If you want to be able to boot from it then your BIOS needs to be of the UEFI variety – if you have a X99 or Z97 chipset then you can be reasonably confident that you’ll be ok.

      I think Linux 3.13 will do it, but you’ll really want to go for 3.3 which has the Intel driver in the kernel.

  11. blank

    The big question for me is just, can I boot it? I’ve got a Z87 based system (Gigabyte Sniper M5) and was really tempted by the HyperX, but this looks even better…

  12. blank

    Samsung Starts Producing 3.2-Terabyte NVMe SSD Based on 3D V-NAND for Next-generation Enterprise Servers
    Seoul, Korea on Sep. 25. 2014

    The newly introduced 3.2TB NVMe SSD provides a sequential read speed of 3,000 megabytes per second (MB/s) and writes sequentially at up to 2,200MB/s. It also randomly reads at up to 750,000 IOPS (input output operations per second) and writes randomly at up to 130,000 IOPS.

    In addition, the 3.2TB SM1715 features outstanding reliability with 10 DWPDs (drive writes per day) for five years. This provides a level of reliability that enterprise server manufacturers have been requesting for their high-end storage solutions.

    The SM1715 comes in 1.6TB and 3.2TB versions, adding more NVMe options to a 2.5-inch NVMe XS1715 lineup that includes 800GB and 1.6TB versions.

    https://www.samsung.com/global/business/semiconductor/news-events/press-releases/detail?newsId=13701

  13. blank
    Oddbjørn Kvalsund

    I just recieved my 750 yesterday and soon found myself slightly bummed out by the lacking NVMe BIOS-support in my ASUS P8Z77-V motherboard. I managed to get the drive working (albeit non-bootable) by placing it in the black PCIe 2.0 slot of the mainboard, but this is hardly a long term solution. I posted a question to the https://pcdiy.asus.com/ website regarding possible future support for these motherboards and this morning they had publised a poll to check the interest for BIOS/UEFI-support for NVMe’s. Please vote here if you (like me) would like to see this implemented! https://pcdiy.asus.com/2015/04/asus-nvme-support-poll-voice-your-opinion/

  14. blank

    Is it worth moving from 2x480GB 730 SSDs in raid 0 to a single 1.2TB 750?

  15. blank

    Would the TRIM work if I place 3x 750 in the server and make Windows software RAID5 with it ?

  16. blank

    This seems to be basically a low-durability P3500? It’s a bit cheaper than the P3500, but not by a lot.
