TSSDR TEST BENCH AND PROTOCOL
SSD testing at TSSDR differs slightly, depending on whether we are looking at consumer or enterprise SSDs. For consumer SSDs, our goal is to test in a system that has been optimized with our SSD Optimization Guide. To see the best performance possible the CPU C states have been disabled, C1E support has been disabled, Enhanced Intel SpeedStep Technology (EIST) has been disabled. Benchmarks for consumer testing are also benchmarks with a fresh drive so, not only can we verify that manufacturer specifications are in line but also, so the consumer can replicate our tests to confirm that they have an SSD that is top-notch. We even provide links to most of the benchmarks used in the report.
SYSTEM COMPONENTS
This Test Bench build was the result of some great relationships and purchase; our appreciation goes to those who jumped in specifically to help the cause. Key contributors to this build are our friends at ASRock for the motherboard and CPU and be quiet! for the PSU and cooling fans. Also, a big thank you to Thermaltake for the case and Kingston for the RAM. We have detailed all components in the table below and they are all linked should you wish to make a duplicate of our system as so many seem to do, or check out the price of any single component. As always, we appreciate your support in any purchase through our links!
| PC CHASSIS: | Thermaltake Urban T81 |
| MOTHERBOARD: | ASRock Z97 Extreme6 |
| CPU: | Intel Core i5-4670K |
| CPU COOLER: | Thermaltake Water 3.0 Ultimate |
| POWER SUPPLY: | be quiet! Dark Power Pro 10 850W |
| SYSTEM COOLING: | be quiet! Silent Wings 2 |
| GRAPHICS CARD: | MSI GTX 660 Ti PE OC |
| MEMORY: | Kingston HyperX Beast 2400Mhz |
| STORAGE: | Samsung 850 Pro |
BENCHMARK SOFTWARE
The software in use for today’s analysis is typical of many of our reviews and consists of ATTO Disk Benchmark, Crystal Disk Info, Crystal Disk Mark, AS SSD, Anvil’s Storage Utilities, PCMark 8, and PCMark Vantage. We prefer to test with easily accessible software that the consumer can obtain, and in many cases, we even provide links. Our selection of software allows each to build on the last and to provide validation to results already obtained.

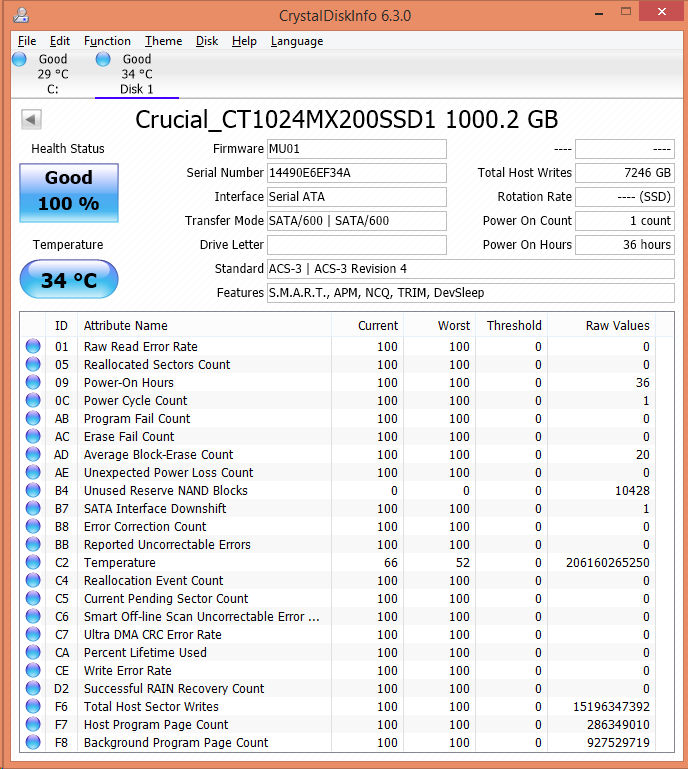

Crystal Disk Info is a great tool for displaying the characteristics and health of storage devices. It displays everything from temperatures, to the number of hours the device has been powered, and even to the extent of informing you of the firmware of the device.
Crystal Disk Info verifies TRIM, NCQ, and DevSleep support. It also shows working temperature sensors and a working total host write counter. There are also a plethora of useful S.M.A.R.T. data counters available to the end user to read.

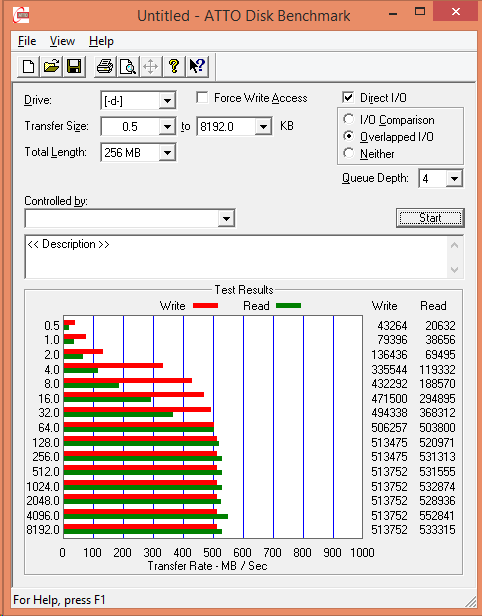

ATTO Disk Benchmark is perhaps one of the oldest benchmarks going and is definitely the main staple for manufacturer performance specifications. ATTO uses RAW or compressible data and, for our benchmarks, we use a set length of 256mb and test both the read and write performance of various transfer sizes ranging from 0.5 to 8192kb. Manufacturers prefer this method of testing as it deals with raw (compressible) data rather than random (includes incompressible data) which, although more realistic, results in lower performance results.
ATTO revels speeds that match the rating Crucial gave the MX200. Read speeds reach up to 550MB/s and writes are over 500MB/s with ease.
It is obvious that you do not always need the 7mm to 9.5mm spacer. When is a spacer typically necessary? I just replaced two 9.5mm drives with 7mm drives; neither 7mm drive came with a spacer and neither needed a spacer. Micron kind of says the spacer is included so you will have it if you need it.
Jim
Older notebooks require the spacer in order to secure th SSD properly.
Thank you!
The spacer is definitely needed with many laptops. Older Dells, for instance.
Thanks!
Jim
Mark and Les-
Do the older ones that need spacers not have screw mounts? My newer Acer netbook (screw mount) came with a 9.5mm but its maintenance guide said it would take either one. My older Acer notebook (screw mount) came with a 9.5mm but its maintenance guide specified 9.5mm; it predated the 7.5mm so I tried the 7mm and it worked fine. I wonder if the spacer is needed for things like external USB drive cases that do not actually have screws holding the drive.
Jim
My older toshiba was a screw-less 9.5mm. It actually used the bottom cover to hold in the drive. Without the spacer, the SSD would just flop up and down. Not good.
Thanks!
Hey Les, long time reader (love the site). Quick question-most of my reading is done to determine which SSDs can help us most in HD video capture & transfer (raw uncompressed). We typically use the Blackmagic Speed Test to determine where a SSD stands before buying. Which of the test that you guys typically run gives me the closest indication to the Blackmagic test? (i.e. which will let me know best how the SSD performs under the test of raw uncompressed data) Thanks 🙂
If you are looking for a benchmark, I would have to say AS SSD is the quick and easy way to test and it is free.
So if you were deciding between the M550 and the MX200 (in 500gb form), which would be the better choice? Assume prices are either exactly the same or not a factor in the decision.
I am with the MX200. Either way, don’t hesitate to follow our links; every little bit helps.
If 850EVO happens to be around the same price as those two, its worth checking that out too.
5 year warranty is great if things go south 🙂
Finally, Crucial has released a firmware update to address the problems with the MX100 drives. I haven’t been successful yet in applying the update, as is noted by many on their forum, but I thought it would be good to post the info here (since I decided to get two MX100’s as a result of the review on this site):
https://forum.crucial.com/t5/Crucial-SSDs/Feedback-Thread-Firmware-MU02-for-MX100/td-p/165974
Sean why don’t the MX200 recover in the PCMark 8 test????
Is this deferred GC or are we stuck with those low speeds????
Those are the speeds it produced going through the test. Due to the firmware it doesn’t seem that it is able to recover quick enough to perform better in the light workloads within the time frame. However, wasn’t developed to deal with constant writes such as are issued out in the PCMark 8 consistency test, thus it doesn’t do too well in it. Our run in PCMark Vantage shows that it does perform a lot better if it isn’t constantly strained. So real world you shouldn’t have much to worry about.
