BIWIN S836 Elite SATA 3 120GB SSD Review – Top Vantage Performance Achieved

This report is an analysis of the newly released BIWIN S836 Elite SATA 3 120GB SSD and if you haven’t heard of BIWIN prior to this report,  you wouldn’t be the first as we learned of them only a few weeks ago while at CeBIT 2012 in Germany.

In fact, we had every intention of introducing BIWIN to North America as the ‘new kid on the block’, at least up until we learned that BIWIN had already shipped over one hundred million (100,000,000) flash storage devices worldwide as of the date of this report.

For those that haven’t been to CeBIT, it is a bit different than CES Las Vegas as the language barrier can become prevalent when meeting many companies for the first time.  In fact, we can probably attribute this review to just that as we had published a CeBIT update on BIWIN which stated that they were ‘considering’ a US presence.

It wasn’t twenty four hours after that article that Joe James, BIWINs Vice President of Worldwide Marketing, contacted us to let us know that BIWIN America was operational and their retail SSDs were available to the North American Consumer.  In fact, he asked if they could get an SSD off to us ASAP, hence today’s report.

SPECIFICATIONS

BIWIN markets three families of SSDs under the names of the Smart, Pro and Elite Series.  While the Smart series contains a JMicron controller, the Pro and Elite rely on SandForce with the Pro containing the SF-1222 SATA 2 processor and the Elite containing the SF-2281 SATA 3 processor.  The Elite series that we are reviewing today is available in 60, 120, 240 and 480GB capacities and performance is listed at 550MB/s read and 520MB/s write with 65,000 IOPS at 4k aligned random write disk access.

The Elite has AES 256-Bit encryption, supports TRIM, and is available in all capacities with either mlc synchronous or asynchronous NAND flash memory, depending on the model number purchased.  NewEgg has many newly listed BIWIN models, with the 120GB variant that we are reviewing shown at an encouraging price of $169.99, however stock is not present just yet.

S836 ELITE COMPONENTS

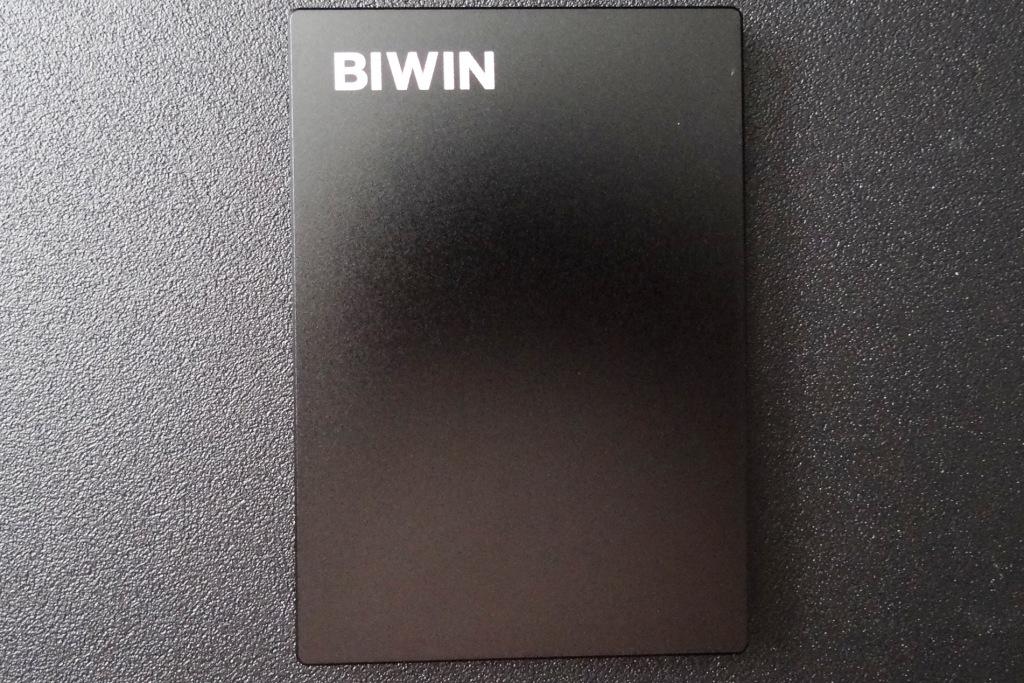

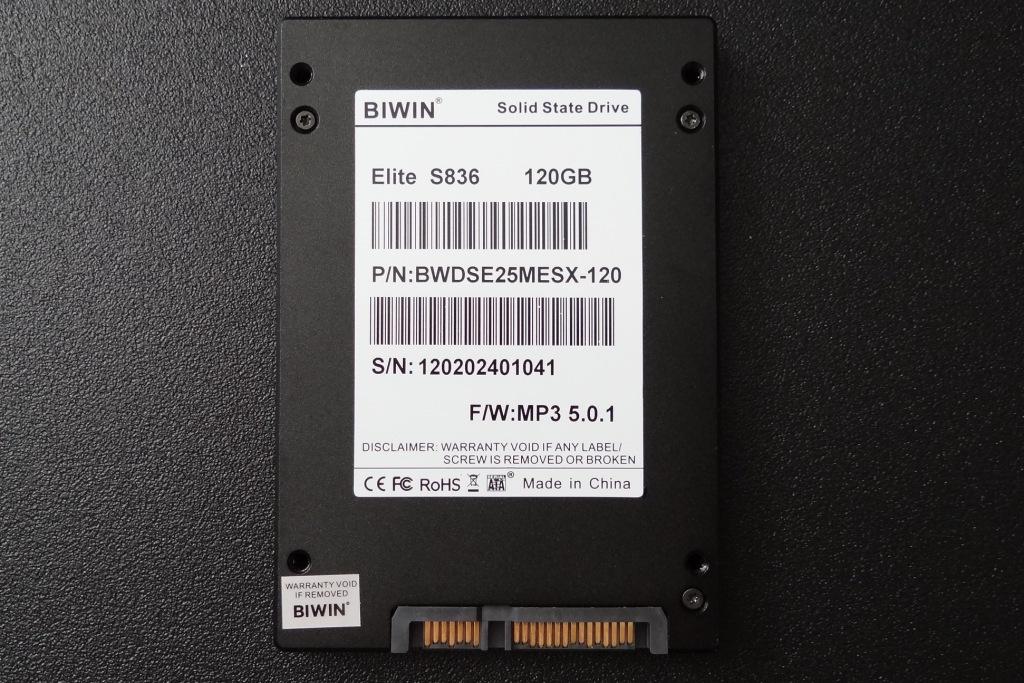

The S836 Elite SSD is protected by a flat black metal casing with a matching base plate secured by four torx security screws.  I have to admit that I was impressed with the simplicity of the design which carried into the look of the matching black printed circuit board, that of which I hadn’t seen with any SSD prior.

The heart and soul of the Elite series is the SandForce SF-2281 processor which is joined by 16 pieces of Intel 25nm synchronous NAND flash memory (29F64G08ACME3), each being 8GB in capacity for a total RAW capacity of 128GB.

An 8GB module remains proprietary for over provisioning and firmware needs and the formatted capacity leaves the consumer with 112GB of available storage.

About Les Tokar

is a technology nut and Founder of The SSD Review. His early work includes the first consumer SSD review along with MS Vista, Win 7 and SSD Optimization Guides. Les is fortunate to, not only evaluate and provide opinion on consumer and enterprise solid state storage but also, travel the world in search of new technologies and great friendships. Google+
  • Zaxx

    Hmmm…

    Good performance…check
    Sizable company…check
    Great looks…check

    Looks like one to keep an eye on for sure.

  • Rreporter007

    OEM/ODM is their main focus of business

  • Newrev123

    I’ve heard of Biwin

    • Bbackofner

      Interesting. Do you have any more details about where to buy?

      • http://www.thessdreview.com Les@TheSSDReview

        “We’re just now getting Amazon and NewEgg set up and will have the first shipments to both of them to load in inventory in the next week or two.”

        Joe James – BIWIN VP of Worldwide Marketing

  • KK

    I know Biwin. They are big in NAND industry.

  • Charden

    I need more data such as whitepapers

  • Wyomingknott2

    having trouble installing Win 7, had to go back to setup and delete the partitions and reinstall 7 again. Does this put a lot of wear on the SSD? I know multiple reading and writing wears them out. Someone give me a piece of mind that I didn’t do something terrifying!!
    Thanks

    • http://www.thessdreview.com Les@TheSSDReview

      Dont worry; things will be fine. SSDs are not, by any means fragile. I have run one ofver with my truck as a matter of fact to prove a point some time ago.

      • Wyomingknott2

        I guess even if I do restore a full drive everday, wear should not be a significant problem. Hopefully I can get at least a decade before the NAND is worn out.

  • BigXSR

    I want to upgrade my SSD and enable TRIM with a Non-Apple SSD. TRIM support does not get enabled by default. Had to go through terminal commands that I copied and pasted in the OS X Lion operating system.

    Got a hold of ‘how to guide’ walk through process of enabling TRIM support in a OS X Lion environment.

    Guide based on instructions digital_dreamer published on insanelymac forums.

    http://www.insanelymac.com/forum/index.php?s=7c1df00258d785170d51ec1d14f26c63&showtopic=256493&st=0&p=1680183&#entry1680183

    3 Steps:

    1. Make back up of original IOAHCIBlockStorage file called IOAHCIBlockStorage.original.
    Enter system password using “sudo”command, since modifying system files. Copy and
    paste code to terminal window.
    2. Code patches IOAHCIBlockStorage file, removes requirements to SSD made by Apple.
    Copy & paste (should take less than a second).
    3. Last step loads new patched file into the kernal. Terminal window takes about 10-15 sec
    before a new line apprears.

    Now reboot your system and verify TRIM is enabled through System Information on Serial-ATA device listing. Enable TRIM support.

    To enable TRIM on an OS X Lion system requires an SSD that supports TRIM is installed. Enabling TRIM for long term sustained performance.

  • Erik

    Do you have an enterprise solution?
    I’m not currently using OCZ Vertex for my desktop SSD.

    • Erik

      Oops…
      I AM using OCZ Vertex now, but looking for an enterprise SSD.

      A long day?!?

  • Joker007

    Do they have any embedded products?
