ASUS Zenbook SSD Review – Not Necessarily SandForce Driven Hits A Speed Bump

If we told you that we spent $2400 to right a wrong in proving something that you as a consumer should be aware of, would you believe us?

This report closely examines the ASUS Zenbook.  Within the ‘Zen’, ASUS may provide either of two SATA 3 SSDs, these being the AData ‘SandForce Driven’ XM11 or the Sandisk U100. There is no price difference between the two, the product number is the same and the consumer has no way of knowing which they will receive.

The performance drop between the two is significant.  Our concern, in fact, led to our investing  in one of each Zenbook (AData/Sandisk), and then voiding the warranties to confirm SSD configuration, so that potential buyers have  a clear view of this.  We believe ASUS should be clearly identifying the SSD on exterior packaging and within specifications just as they would a CPU, especially since the SSD is responsible for the largest visible upgrade we see in computer performance today.

INTRODUCTION

We will be the first to concede that we are not the first to explore this topic as AnandTech covered it some time ago in their Asus Zenbook UX21 Review quite well and we had since received a few e-mails from unhappy customers whom had unknowingly received a system containing the SSD that was not of their choice.  It seems there was no way of identifying the SSD on the exterior packaging and the first signs of SSD identification were found on the interior box which would be seen after purchase.

In fact, it wasn’t until our review of the Samsung PM830 SATA 3 SSD that we had even considered the viability of a Zenbook purchase, this being the result of an unhappy reader asking why we weren’t testing a SATA 3 mSATA SSD in a system for which it was intended, rather than on our Test Bench.  He was absolutely right.

Our next stop was deep within the pages of several tech site reviews where we found a large number of AData XM11 included Zenbooks with great performance results, but we could not find a review with the Sandisk U100 SATA 3 SSD.  We found it odd as the performance detailed by ASUS did match that of the included ‘SandForce Driven’ SSD but what about the Sandisk U100?  It was there that we found some rather remarkable user posts (1,2,3) that opened up our eyes to something that we feel should be rectified by ASUS.

PRODUCT PURCHASE

Given this information, we decided to visit three major chain retailers and do a bit of ‘benchmarking on the go’ where we were very surprised that two of the chains no longer had the Zenbook on display, however, we were free to order online and would receive the product in a few days.  That didn’t work as we leave for CEBit in beautiful Hanover, Germany in a short twenty one hours from now.  We hit the third at which time the conscious decision was made to purchase one of each system.  The deciding factor came from information learned that the Windows Experience Index for the Sandisk U100 was only 5.9, whereas it was significantly higher at 7.9 for the AData XM11.

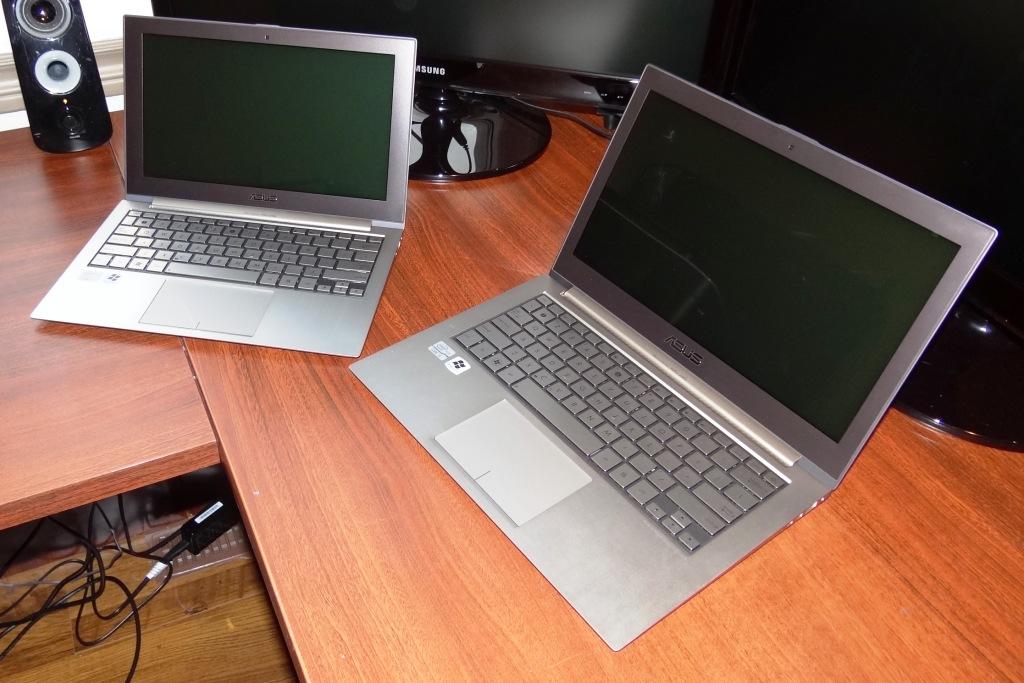

Our end purchase consisted of a ASUS Zenbook UX21 with a AData 120GB SATA 3 SSD installed and a UX31 with the Sandisk U100 SSD installed.  As much as some may believe that the configurations should be exact, the simple fact is that we are only testing the SSD of the system and both are Sandy Bridge systems capable of amazing SATA 3 speeds after all.  We simply have no use for two exact laptops at the office.

As a bit of a side note, those familiar with SSDs are aware that ‘SandForce Driven’ SSDs such as the AData XM11 are of the 120GB capacity while the Sandisk U100 SSD is 128GB, yet both of our packages identified the internal SSD as 128GB.  Given the value of SSD real estate, that loss of 8GB on a system advertised as 128GB is just a bit deceiving.

SYSTEM DISASSEMBLY

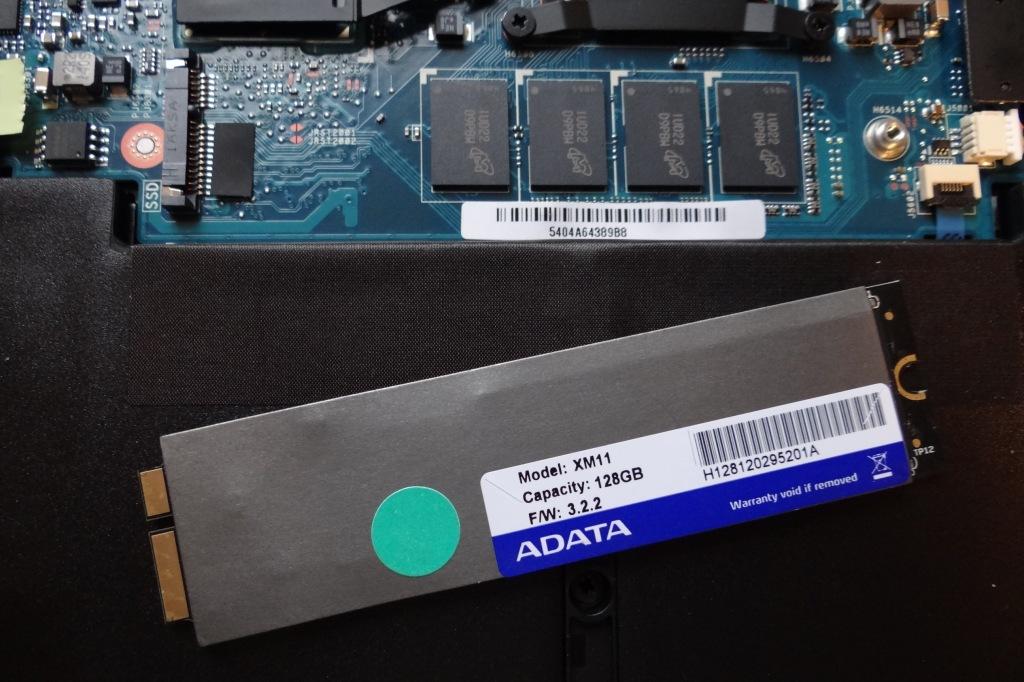

These pictures display the SSDs as they were being removed from the chassis.  It is not a simple task as the chassis is secured by several very small torx screws and the SSD screw is covered by security tape which meant that removal voided the warranties.



About Les Tokar

is a technology nut and Founder of The SSD Review. His early work includes the first consumer SSD review along with MS Vista, Win 7 and SSD Optimization Guides. Les is fortunate to, not only evaluate and provide opinion on consumer and enterprise solid state storage but also, travel the world in search of new technologies and great friendships. Google+
  • AData XM11 owner

    The Sandisk U100 owners at least can laugh at the AData XM11 owners when they stumble on the Sandforce SF-2281 BSOD bug…

    • http://www.thessdreview.com Les@TheSSDReview

      Old news and severely blown out of proportion.

      • Ryomitomo

        My cousin’s OCZ Vertex3 SF drive BSOD almost daily. I don’t think the problem was blown out of proportions…

      • name

        hello, I know this is a very old article. however i just want to know if i could use the adata xm11 drive in my desktop? can I just plug it into my sata and power connector? thanks

      • http://thessdreview.com Les@TheSSDReview

        It depends on whether you have the original Zen that we tested in this article, or a newer model with M.2 SATA listed in the specs. Can you advise?

    • http://www.facebook.com/kira.bondarev Kira Bondarev

      I have a UX31 with a Sandisk U100 and I get the BSOD pretty often as well. I am not a expert, but my guess would be that all since SSD is still a pretty new technology and not that popular as the HDD it’s not yet perfect and still has some issues and bugs.

      • http://www.thessdreview.com Les@TheSSDReview

        I have been with SSDs since there first release in 2007 and I wouldn’t believe that your BSODs are common because of it being a new technology. Typically there is another reason which hasn’t yet surfaced. I have been through just about every SSD on the market and run 10 or so systems and laptops and I never experience BODSs randomly.

  • Someone

    The SandForce BSOD bug has been fixed as it has been tested and verified by AnandTech and many other publications. I don’t like SandForce, but you have to admit they (or at least Intel) have stabilized their firmware and their SSD’s are now very competitive with the rest.

    • http://www.thessdreview.com Les@TheSSDReview

      The SandForce bug was overblown. I couldn’t count the numbet of drives we reviewed and tested an, to this day, I only know of one instance of a drive bricking personally. This is compounded by the fact that I have installed probably over a hundred drives in the past two years for clients in my area and they have yet to experience the issue as well

      • http://www.pedroamador.com Pedro Amador

        Is the bug fixed or not? Thanks in advance!

  • amb9800

    Interesting follow-up to this is that the 256GB SanDisk U100 seems to be far worse– the machine stutters and freezes with even light multitasking and can barely handle 480p local video without stuttering.

    Here’s ATTO from my UX31 (results are the same even with less data on the drive): http://img819.imageshack.us/img819/6683/ux31u100atto.jpg

    CrystalDiskMark: http://forum.notebookreview.com/attachments/asus/74685d1326647552-ux31-ssd-tips-thread-ux31crystaldiskmark.png

    • http://www.thessdreview.com Les@TheSSDReview

      Understandable as the specs would be much the same and for any but typical usage their would be just that.

    • http://www.thessdreview.com Les@TheSSDReview

      Thank you very much. As a reviewer, it is hard to make a decision in testing, as with this review, and to decide whether to hold back and get another sample for testing or to go ahead and believe the results are similar to what others have received.

      My initial decision relied upon that of other forum posts and its nice to have validation here as well.

    • http://www.pedroamador.com Pedro Amador

      This is
      totally true, I have a SanDisk SSD U100 256GB in a new ASUS and the performance
      is horrible. With all the resources stopped, I’m not able to see a film…
      sometimes is stopping!

      Do you know if there is a solution or I need to change the hard disk or
      computer?

      • http://www.thessdreview.com Les@TheSSDReview

        Thank you for the personal experience to validate our findings Pedro and we are sorry of your predicament.

      • http://www.pedroamador.com Pedro Amador

        But your blog helps a lot… congratulations… I’m a new fan :D

        By the way… I had been working as a performance consultant with ERP system 12 years ago. I was strange what you mention to turn off the pagefile of Windowns (Totally?), are you sure about this? (I guest that people with just 1GB can’t do it, people with 8GB can do it… but with 4GB???)

      • http://www.thessdreview.com Les@TheSSDReview

        Believe it or not, I have been suggesting such since 07 and have watched the world slowly move to my side. 4GB minimum for the typical user is the recommendation. If you have highly intensive needs, I would recommend 8GB but many would be amazed how much they can get going in Win 7 before they resources suffer.

        I haven’t had PF on since the day I got 4GB RAM and have never once experienced a warning or problem….and I can be fairly intensive!

      • http://www.pedroamador.com Pedro Amador

        Thanks for the answer! I turned off some days ago… and the performance is better (but I’m not very happy with this SDD… it is the third one I have it, and I found it very slow).

        Best regards

      • mattseds

        Unreal. I had no idea there was ever a difference offered, and found this thread while searching for potential firmware updates for the U100. I was quite sure the SSD was my issue, as there was ZERO capability to do any simultaneous disk activity. Unzipping something while surfing the net, and the net crawls because it can’t load pages into cache.

        Anyhow, just adding that the disabling of the page file makes a huge improvement. I’m guessing that this disk is so IO thread-limited that performing one operation while Windows swaps to the page file is enough to bring it to its knees. I had monitored in the System Resource Monitor, and found that disk activity looks minimal during times of slowness, but spikes to 10MB/s+ for 10-15 seconds toward the end of a “slow spell”. This suggests a huge queue of IO built up.

        Users of the U100 – disable your page file!

      • mattseds

        Just correcting my above that the sustained spike was 100MB/s, not 10MB/s

      • http://www.pedroamador.com Pedro Amador

        It is not really good. I have the pagefile turned off. But some times Windows is not working… and start a crazy state!

      • amb9800

        @TheSSDReview:disqus, do you know of any 256GB (or larger) SSDs in the same form-factor as the U100? I’d love to replace it, but looks to be a proprietary shape/connector and incompatible with Apple’s SSD pinouts?

        A bit surprised that Asus is still using the U100 in the Zenbook Prime series…

      • http://www.thessdreview.com Les@TheSSDReview

        The ‘gumstick’ form factor of the Zen is similar but not compatible with its Mac counterpart, so unfortunately the OWC drive will not work. The ONLY other drive that would work is the ADATA twin of that drive that we reviewed and it is not available through consumer sales. Sorry.

      • amb9800

        For what it’s worth, upgrading to Windows 8 CP gave me a pretty nice bump in SSD performance. A few months in, and while it’s still horrible (gets stuck while switching between desktop and Metro, had a few multi-minute full-system freezes during I/O-intensive tasks, videos are hopeless, etc.), it’s at least better than under Win 7. Also, for some reason, switching to an older version of the Intel AHCI driver gives a 5-10% bump in write performance.

  • Me

    Running only synthetic benchmarks is not enough, I would expect to see some user scenario measurements and also some power consumption comparison.
    I got the Zenbook with SanDisk U100 and after 2 weeks I can say that I’m very happy.

    • http://www.thessdreview.com Les@TheSSDReview

      The review displays the most realistic method of ‘true user experience’ evaluation seen today with PCMark Vantage and, as well, AS SSD Copy Benchmark is also a true copy test benchmark. There is nothing defective about the U100 whatsoever and in typical use, it would be difficult to differentiate from any other. The difficulty lies in anyone purchasing a system with this ssd for specific uses such as photography, movie editing and whatnot. It took 47 seconds to move a file….those are back to HDD days!

  • Lun916

    I find an interesting video on YouTube.
    Its talking about the Sandisk SSD compared with ADATA that use in Zenbook.
    Check it ! LOL

    http://youtu.be/QjY7Ki85dWw

    • http://www.thessdreview.com Les@TheSSDReview

      Excellent Find!

  • Michael

    I’ve had to send my Asus Zenbook UX31 with a SanDisk SSD U100 128GB for an RMA a second time already because the system stuttered, froze, BSOD crashed, and had infinite restart loops into BIOS.The first time I sent it out was for the same reasons and the SSD couldn’t detect the operating system so it was replaced by Asus. Every 2-3 months of heavy usage (leaving the Zenbook on or on standby daily, weekly, or overnight), this BSOD issue happens. Any suggestions for a good SSD replacement/upgrade for the Zenbook?

    • http://www.thessdreview.com Les@TheSSDReview

      Because of the blade/gum stick form factor of that SSD, there are no replacements that I am aware of available to the consumer. The only solution I might suggest is to push ASUS to replace it with the SF based model.

  • Cristian

    Where I can buy an XM11 for my Zenbook ???

  • Hugo

    Hello, my SSD Zenbook crashed. Do not think he’s anywhere to make the purchase. Do you know where I can make the purchase of this SSD adata?

    • http://www.thessdreview.com Les@TheSSDReview

      The only way this SSD can be acquired is through ASUS repair.

  • Jefffay

    Is it just me or do the motherboards on the two computers appear to be different? Why is this?

  • Jean

    My UX31E ssd (the sandisk one) crashed as well. Infinite loop in the bios, as it seems to happen to many. Is it possible to replace it with the Adata ssd ? (I am asking because on the pictures the motherboards different – I am not expert)

  • John

    I have the Sandisk SSD. Could this be the reason my Zenbook 31a freezes and stutters when compressing large files or using bittorrent on a 100 mbit connection? It has been a real disappointment as my old Asus Eeebox 1501p with a 5400 SATA II drive and 1.8 GHz dual core atom felt a lot smoother.

    Might there be another more serious hardware problem or is this acceptable when buying an expensive state of the art ultrabook? Im considering trying to get it exchanged at my retailer but I dont want to be without my main computer for whatever time it takes if they are just gonna wipe my install and then return it.

    • http://www.thessdreview.com Les@TheSSDReview

      I have heard same from others and that could be attributed directly to that SSD.

  • jkosonen

    My asus zenbook crashed, is there a way to get data out of the ssd. I don’t seem to find any sata adapter to work with this ssd card. Any ideas how to get the data out?

    • http://www.thessdreview.com Les@TheSSDReview

      I am not aware of any cards for such either….sorry.

    • cristi
    • Matt

      Mine crashed too. Unfortunately the SDD technology is quite poor and the data is unrecoverable. My UX31E Sandisk SDD needed replacing, so I returned the machine for an after warantee repair, the HDD was replaced with another. It crashed 3 months later – after the warrantee of the new replacement I have sent ASUS many emails about this and it seems that ASUS wash their hands of any HDD problems. Don’t buy ASUS, they’re crooks

      • http://thessdreview.com Les@TheSSDReview

        Sorry to hear of your experience, however, SSD technology is very stable and you got caught in a sub-standard system is all.

  • mindteaser

    Are you aware of any issues in the Asus Zenbook with the 256GB SSDs? I was looking at the UX31A-DH71 which comes with a 256GB SSD. I read somewhere that you may be able to tell what SSD is installed by the serial number of the laptop (that’s on the outside of the box).

    • http://www.thessdreview.com Les@TheSSDReview

      You can tell if you can get to the inside box and, as well, if you get to the system itself. If it is a 256GB, it limits the possibilities as I have not seen a SF controlled SSD in a pre-built system with 256GB, although it is possible.

  • wingmasterx

    UX31A-BHIT11 (touch screen) has a much better SanDisk drive now than previous UX31A models. I purchased this computer from BestBuy today, and was at first disappointed to find the dreaded SanDisk logo on the inner box. However, I ran some of the benchmarks used here, and my drive has better performance than ADATA XM11! I have included a summary of my test results below vs. scores reported for XM11 in this article.

    My drive is: SanDisk SD5SE2128G1002E.

    Windows Experience Index (disk data transfer rate) : 8.1 SanDisk vs. 7.9 XM11
    AS SSD Benchmark (total score): 750 SanDisk vs. 465 XM11
    AS SSD Benchmark (Acc.Time Read / Write): 0.157ms / 0.096ms SanDisk vs. 0.145ms / 0.331ms XM11

    My drive also performed favorably on the CrystalDiskMark test (though I neglect to list the actual numbers)

    • http://www.thessdreview.com Les@TheSSDReview

      Those arent really fair reflections of that drive and I was curious as to high sequential reads and writes, along with the low 4k writes, even wthout comparison. Can you send those along?

      • wingmasterx

        Here are my CyrstalDiskMark 3.0.2 x64 tests using settings for default random data and (x5, 1000MB):

        Read [MB/s] Write[MB/s]
        Seq 491.2 335.9
        512K 290.5 345.5
        4K 21.79 41.33
        4K QD32 257.9 179.0

        Is this what you wanted? If not I can report something else if you can point me in the direction.
