TSSDR Z97 TEST BENCH
SSD Testing at TSSDR differs slightly depending on whether we are looking at consumer or enterprise SSDs. For consumer SSDs, our goal is to test in a system that has been optimized with our SSD Optimization Guide, and our system has been optimized by the adjusting of C States, if necessary. Benchmarks for consumer testing are also benchmarks with a fresh drive so, not only can we verify that manufacturer specifications are in line but also, so the consumer can replicate our tests to confirm that they have an SSD that is top-notch. We even provide links to most of the benchmarks used in the report.
This is a brand new test bench and, as such, we would love to thank those who jumped in specifically to help the cause. Key contributors to this build are our friends at ASRock, Corsair, Kingston with components from past contributors to include In-Win, EVGA, beQuiet, Plextor, Samsung, QNIX and RamCity, this still being a key resource in the acquisition of the XP941. We have detailed all components in the table below and they are all linked should you wish to make a duplicate our system as so many seem to do, or check out the price of any soul component. As always, we appreciate your support in any purchase though our links!
This Test Bench build was the result of some great relationships and purchase; our appreciation goes to the below mentioned manufacturers for their support in our project. Our choice of components is very narrow, in that, we choose only what we believe to be among the best available and links are provided to each that will assist in hardware pricing and availability, should the reader be interested in purchase.
|PC CHASSIS:||InWin D-Frame Open Air Chassis|
|MOTHERBOARD:||ASRock Z97 Extreme6 Socket 1150|
|CPU:||Intel Core i7-4790|
|CPU COOLER:||Corsair Hydro Series H105 Extreme Water Cooled |
|POWER SUPPLY:||be quiet Dark Power Pro 10 1000W PSU|
|SYSTEM COOLING:||be quiet Silent Wings 2 PC Fans|
|GRAPHICS CARD:||EVGA GTX 770 Superclocked with ACX Cooler|
|MEMORY:||Kingston HyperX Beast |
|KEYBOARD:||Corsair Vengeance K95 Mechanical Gaming Keyboard|
|MOUSE:||Corsair Vengeance M95 MMO/RTS Laser Mouse|
|MONITOR:||QNIX 27″ QX2710 2560×1440 |
|SYSTEM SSD||INTEL P3700 800GB NVME SSD|
The software we will be using for today’s analysis is typical of many of our reviews and consists of ATTO Disk Benchmark, Crystal Disk Info, Crystal DiskMark, AS SSD, PCMark Vantage, along with Anvil Storage Utilities. In our reports, we prefer to test with easily accessible software that the consumer can obtain, and in many cases, we even provide links. Our selection of software allows each to build on the last and to provide validation to results already obtained.

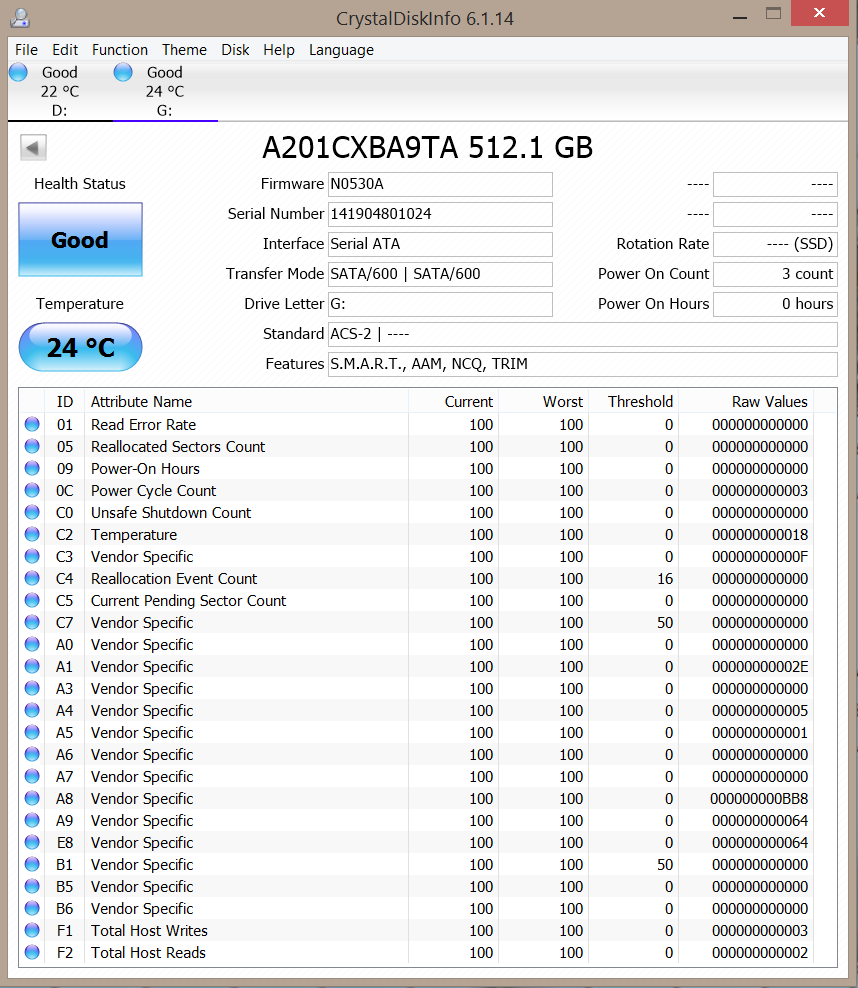

Crystal Disk Info is a great tool for displaying the characteristics and health of storage devices. It displays everything from temperatures, to the number of hours the device has been powered, and even to the extent of informing you of the firmware of the device.
Many of the SMART attributes are vendor specific, however, the key values are present to assist in continuous monitoring of this drive.
