Learn What SSDs Can Do For You:

ADATA SX300 128GB mSATA SSD Review – LSI SandForce Performance In Top Capacities

The popularity of mSATA SSDs is probably one of the more unexpected SSD trends to show its face and, even today, e-tailers just can’t seem to keep mSATA SSDs in stock.

With consumers now wanting the performance best in their mSATA capable laptops, ultras hitting the market, as well as a few motherboards now being shipped with integrated mSATA ports, this trend doesn’t seem to be letting up anytime soon.

In a few Lenovo laptops models, the mSATA became an answer to both performance and capacity as the SSD became the boot drive enabling the hard drive as strictly a storage medium.  Our SSD analysis today will look at another of the mSATA family as we examine the new ADATA SX300 mSATA 128GB SSD.

INTRODUCTION

Through use of top tier NAND flash memory, ADATA is the first and still one of the few companies to provide both LSI SandForce performance along with typical binary capacity points.  To the average consumer who has chosen to remain with products that utilize LSI SandForce Flash Storage processors (FSPs), this means that ADATA can offer 7% additional user capacity with their product.  This might not seem like such an issue at first but it definitely bears mentioning that LSI SandForce has found their way into SSDs just about every consumer manufacturer short of Crucial/Micron and Samsung. At last count, I believe they were up to fifty partner agreements.

Where we once saw LSI SandForce controlled SSDs in capacities of 60, 120, 240 and 480GB, ADATA is now able to offer their products at the typical binary capacity points of 64, 128, 256 and 512GB.  This was first examined in our initial review of the MyDigitalSSD mSATA SMART SSD, a SSD that was found to be a rebranded 256GB variant of the very SSD we are looking at today.

SPECIFICATIONS

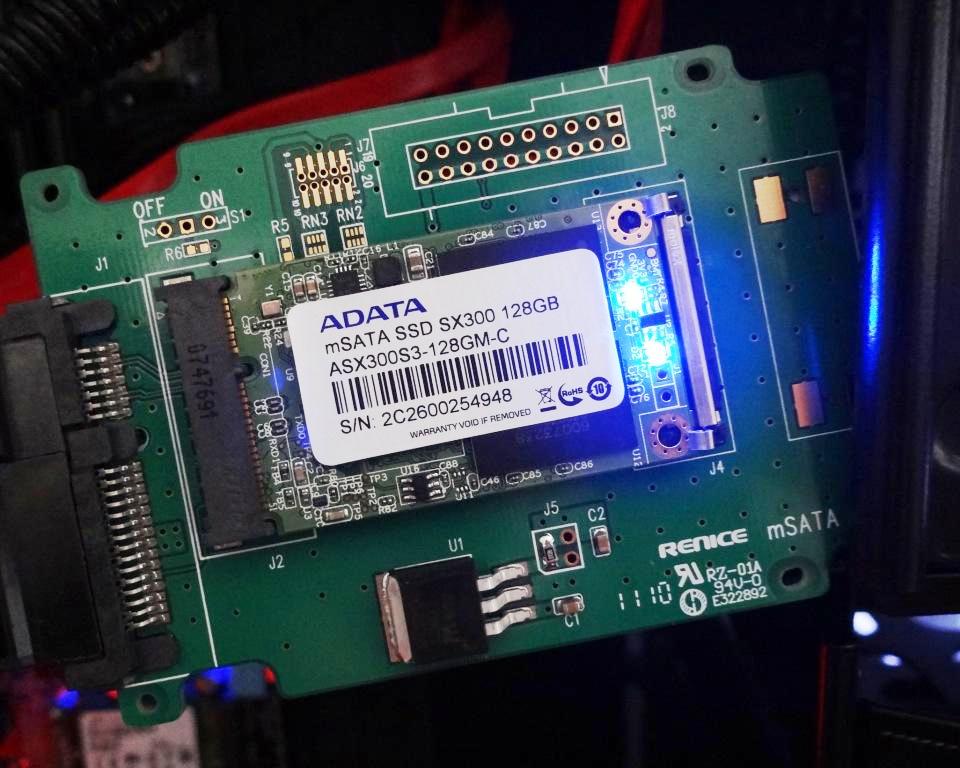

The ADATA SX300 mSATA SSD is a SATA 3.0 (6Gbps) SSD that is one third the size of a business card and weighs only 7 grams.  It is available in capacities of 64, 128 and 256GB and a quick check of Amazon shows pricing to be at $101.61 for the 64GB, $157.37 for the 128GB and $320.68 for the 256GB version. Performance for the SX300 is listed at 550MB/s read and 505MB/s write with 85,000 IOPS at low 4k random write disk access.  The SX300 comes with a standard three years limited warranty.

SX300 COMPONENTS

The SX300 contains the LSI SandForce SF-2281 FSP along with four modules of NAND flash memory that are indiscernible from their markings, however, we have been unofficially informed that they may be four 24nm MLC modules of Intel’s finest NAND flash memory.  ADATA advises that, in order to be able to achieve their capacity points with the LSI SandForce FSP, they had to use the best of the best memory available.

Although there is a total of 128GB RAW capacity, a small amount remains proprietary to firmware needs and, once formatted, the total user available capacity is 119GB.

About Les Tokar

is a technology nut and Founder of The SSD Review. His early work includes the first consumer SSD review along with MS Vista, Win 7 and SSD Optimization Guides. Les is fortunate to, not only evaluate and provide opinion on consumer and enterprise solid state storage but also, travel the world in search of new technologies and great friendships. Google+
  • pcuser

    How are you able to use Anvil Storage Utilities RC1.
    Both RC1 and RC2 have expired and no longer working.
    Only RC3 works for me

    • http://www.thessdreview.com Les@TheSSDReview

      Not really hard to figure out I am sure…

    • http://www.facebook.com/aljawhary Muhammad Al-Jawhary

      Change your windows date and it will work just fine :)

  • sgogeta4

    Not sure if you get notifications for comments in your other reviews, but I was hoping you could shed some light on the differences between this and the MyDigitalSSD drive. I know you could not identify the memory modules on the latter, any progress in that aspect? Other than possibly the memory chips and warranty, do the firmware updates differ? Are there any other things I might have missed?

  • argh.

    hi can i know sx300 or m4 128gb is better?

    • http://www.thessdreview.com Les@TheSSDReview

      It is simply the point of reading the reviews and making a decision.
