LSI 9265-8i MegaRAID Card vs Adaptec 6805 RAID Card – The Ultimate 6Gb/s RAID Showdown

EXTERNAL CHARACTERISTICS

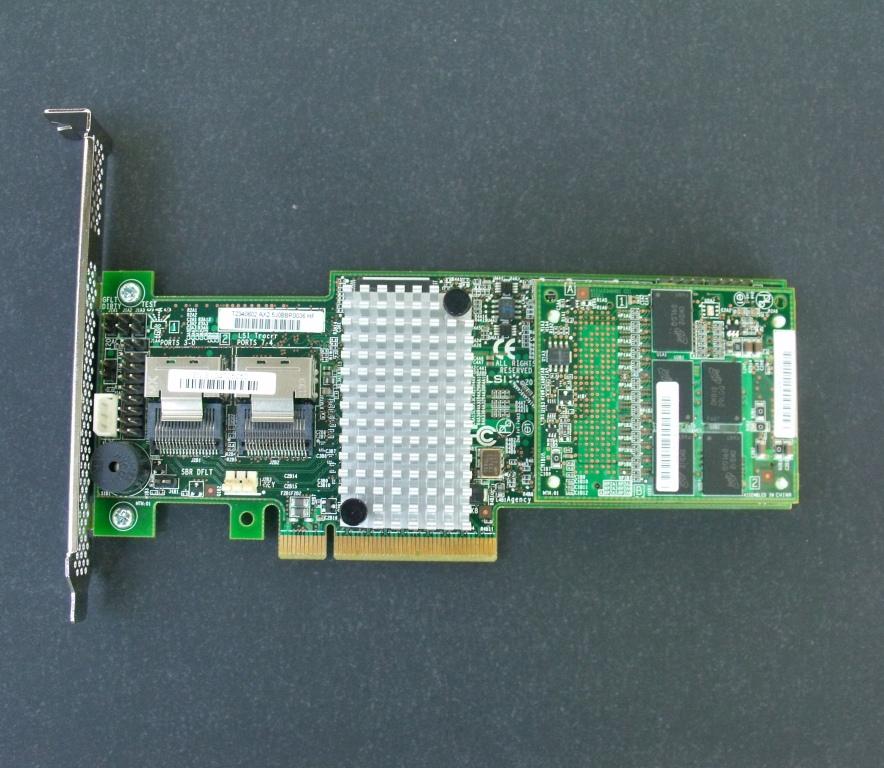

This LSI card is composed of a very small low-profile MD2 form factor which measures 6.6 X 2.536.  This keeps the footprint of the card very small and eases installation. LSI went out of the way to keep this card small. Instead of expanding its size for this updated revision of the 9260, they opted to place a daughter board on the rear of the card which holds the cache of the card.

Underneath the silver heat sink are the brains of this card, the LSISAS2208 Dual- core 6Gb/s ROC- x2 800MHz PowerPC Processor. Near the PCI-E bracket we find the two SFF-8087 x4 connectors. These allow fan out cables to connect up to four devices to each port, allowing direct access to eight devices. Utilizing an expander will allow you to connect up to 128 SAS/SATA devices to the card for large enterprise applications.

This generation of ROC from LSI has proven to be a very popular sort. Several companies have begun using these on a wide variety of RAID controllers.

SPECIFICATIONS

FEATURES

  • Eight internal SATA+SAS ports
  • Two mini-SAS SFF-8087 x4 connectors
  • 6Gb/s throughput per port LSISAS2208
  • Dual Core ROC
    – 800MHz PowerPC® MD2
  • Low profile (6.6″ X 2.536″)
  • x8 PCI Express 2.0 host interface
  • 1GB DDRIII cache (1333MHz)
  • Optional battery backup unit (LSIiBBU09 remote mount)
  • Connect up to 128 SATA and/or SAS devices
  • RAID levels 0, 1, 5 and 6
  • RAID spans 10, 50 and 60
  • Auto-resume on rebuild
  • Auto-resume on reconstruction
  • Online Capacity Expansion (OCE)
  • Online RAID Level Migration (RLM)
  • SSD support with SSD Guard
  • Global and dedicated hot spare with revertible hot spare support
    – Automatic rebuild
    – Enclosure affinity
    – Emergency SATA hot spare for SAS arrays
  • Single controller multipathing (failover) I/O load balancing
  • Comprehensive RAID management suite

BENEFITS

  • Second generation 6Gb/s SATA+SAS with unprecedented levels of performance
  • Ideal for internal storage environments using up to 128 SAS, SATA and solid state drives (SSDs)
  • Unsurpassed IOPs performance and advanced software options help users realize full benefits of SSD deployments
  • Meets high I/O transaction demands of database and datacenter applications
  • Provides the sustained data transfer rates and high sequential bandwidth to meet processing requirements of digital media, video and imaging environments
