Samsung’s Newest 950 Pro Consumer M.2 SSD Capable of 2.5GB/s – 2015 Samsung SSD Global Summit Update

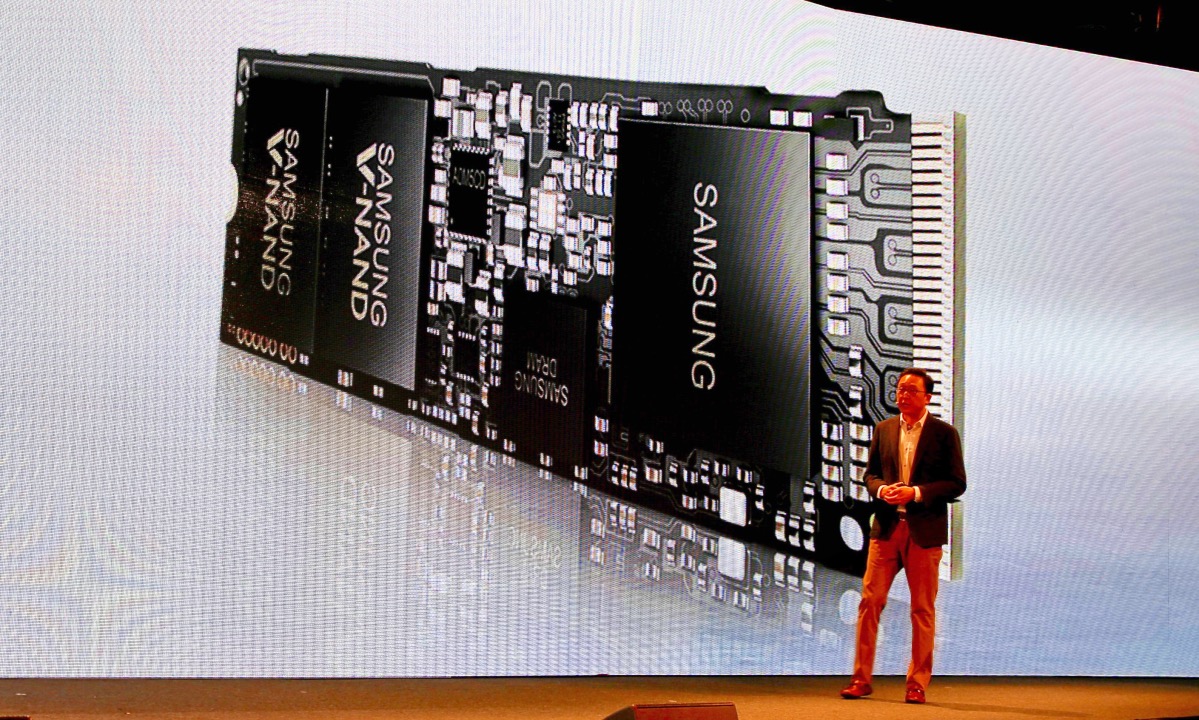

Samsung 950 Slide 1

Today at the 2015 Samsung Global SSD Summit in Seoul, South Korea, Samsung announced their newest consumer NVMe SSD, the 950 Pro.

Samsung 950 Pro M2 SSD Front

Utilizing Samsung’s 3D V-NAND memory and supporting PCIe 3.o x4, the 950 Pro is only available in M.2 form factor and promises to be the smallest, lightest and most powerful SSD platform available to the consumer today.

Samsung 950 pro m2 SSD Back

Available in capacities of 256 and 512GB, it comes with performance specs of 2.5GB/s read and 1.5GB/s write with up to 300,000 read and 110,000 write IOPS.

Samsung 950 Pro m2 SSD Components

It also features Samsung’s own MLC V-NAND 32-layer 128Gb die with a UBX controller and updated Samsung Magician software.

Samsung 950 Pro Throughput

The Samsung 950 Pro M.2 NVMe SSD has AES 256-bit encryption as well as Dynamic Thermal Guard, capable of protecting the drive in temperatures ranging from 0 to 70 degrees Celsius.  In addition, it is capable of withstanding shock up to 1.5G and vibrations to 20G.

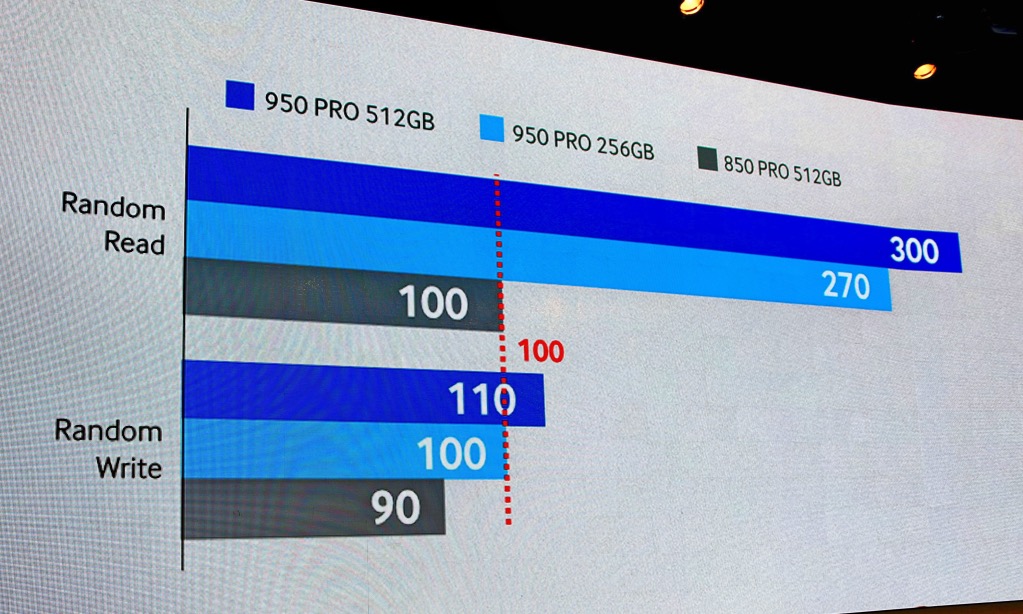

950 Pro IOPS

It comes with a 5 year limited warranty with an endurance spec of up to 200 TBW for the 256GB size, and 400TBW for the 512GB capacity. It is expected to be available as of October 2015 with an MSRP of $199 (256GB) and $349 (512GB).

Samsung 950 Pro m2 SSD CDM

Last but not least, Samsung’s release of 256 and 512GB capacities is just a start and we will be seeing a 1TB version at some point in the future.  In fact, if you look closely at the 950 Pro, you will notice that all the components are located on its face, leaving the bottom completely empty for future capacity upgrades.  This is only possible through use of Samsung’s newest V-NAND memory.

Samsung 950 Pro M2 SSD on table

35
Leave a Reply

avatar
10 Comment threads
25 Thread replies
0 Followers

Most reacted comment
Hottest comment thread
16 Comment authors
Serghei TocaHelen StellaLocutusEstBorgCorey RyanRoger Bell Recent comment authors
  Subscribe
newest oldest most voted
Notify of
lorki
Guest
lorki

Does it have an option rom like the kingston hyperx predator or is
it like the sm951 which needs motherboard support in order to boot?

I suppose the latter but it would be nice if it has an option rom for booting.

Les@TheSSDReview
Guest

I don’t believe it has optional ROM or it would have been mentioned. Stay tuned for a full report in early October.

LocutusEstBorg
Guest
LocutusEstBorg

I can confirm that the 950 Pro is bootable in UEFI mode on my X79 Rampage IV provided provided CSM is enabled (but everything in CSM can be set to UEFI only).

dravo1
Guest
dravo1

Is Samsung offering an adapter card to use this on a non-M.2 mobo?

Les@TheSSDReview
Guest

Not at this time; it was brought up in the Q&A period and they stated that it wasn’t part of the immediate release, however, might be a consideration for the future.

fvbounty
Guest
fvbounty

I sure hope they do because it won’t work with my Asus Maximus Vll motherboard. I don’t have clearance with my M.2 slot?

Les@TheSSDReview
Guest

WE have addressed ASUS issues with M.2 SSDs for what seems like years now on the site and in the forums. In a nut shell…check out ASRock. There is a reason that we use them pretty much exclusively for SSD testing. As a matter of fact, we are about to build the Extreme 7 which has 3 PCIe 3.0 x3 M.2 slots…. We will be testing the Intel 750 and Samsung 950 pro very soon in standard and RAID modes with this.

fvbounty
Guest
fvbounty

Thanks I’ll be waiting for that review….might just go with a 750.

Nuno G.
Guest
Nuno G.

What about Gigabyte?? Their new mobos, clearly states (on the manuals) that their m.2 ports are NVME ready

Adam
Guest
Adam

What if you don’t have a motherboard capable of PCI express? I have an Alienware 18. I’ve tried the M.2 to SATA III 2.5 enclosure by Syba and my OS Windows 7 Ultimate only recognized 100mb but wouldn’t recognize the m.2 m951 ssd I bought. Any suggestions? Will they have converters? Or will they make the M.2 950 Pro in 2.5 and mSATA versions?

Thanks Les, you seem very knowledgeable.

Les@TheSSDReview
Guest

Adapters that fit into the PCI E slots are available.

Adam
Guest
Adam

If I wanted to use an m.2 to sata adapter, will it work for my Alienware 18? Here’s a link to the adaptor:

http://www.amazon.com/gp/product/B00ITJ7U20?psc=1&redirect=true&ref_=ox_sc_act_title_2&smid=ATVPDKIKX0DER

Thanks Les!

Blast Beat
Guest
Blast Beat

It will have a samsung native nvme driver like intel for the 750 series?

Les@TheSSDReview
Guest

Wait for it…

Dan
Guest
Dan

“…updated Samsung Magician software.”
With full Windows 10 functionality? If so, release it to the rest of us plebes who are getting really tired of the wait.

Les@TheSSDReview
Guest

We will be receiving the updated software in the next week or so for testing.

Nuno G.
Guest
Nuno G.

Do you really need Magician in order your SSD work?!? I don’t think so…

Dan
Guest
Dan

I expect to get all of the functionality that I purchased.

Nuno G.
Guest
Nuno G.

But what functionality?!? To run you only need the appropriated drivers !!! Even the generic ones, from Microsoft, are good enough…

Daniel Moravek
Guest
Daniel Moravek

Any news about 48 layers V-NAND SATA SSD?
